VFD M серии VFD037M23A 3.7kw векторное управление привод переменного тока Частотный преобразователь для Delta
- Category: >>>
- Supplier: Guangxi Nanning Craftsman Electromechanical Equipment Co. Ltd.
Share on (62363200947):
Product Overview
Description
Product Description
Delta frequency inverter-VFD-M series
Mini Ultra Low Noise AC Motor Driver
Top12 features
1.Use 16-bit microprocessor, sine wave PWM control
2.Automatic torque boost and automatic slip compensation
3.Output frequency 0.1-400Hz
4.8-speed setting and 7-stage programmable operation
5.Ultra-low noise, carrier frequency can be adjusted from 1kHz-15kHz
6.Two-stage acceleration and deceleration time and two-stage S-curve acceleration and deceleration
7.Analog frequency setting can accept 0-10VDC, 4-20mA
8.Built-in serial communication interface RS-485 (Bao rate 38400 max.)
9.Energy-saving operation and automatic voltage regulation (AVR)
10Adjustable V/F curve and automatic adjustment acceleration and deceleration
11.Simple vector control and built-in PID control and easy positioning
12.Sleep/wake function and zero speed holding function
| Output frequency 0-400Hz. |
| Adjustable V / F Curve and Vector Control. |
| Main frequency / auxiliary frequency,1ST / 2ND frequency source selection. |
| 16 segments can be preset speed and 15 segments can be programmed to run. |
| Optional PG card,do speed closed-loop control. |
| Built-in PID feedback control. |
| Automatic torque and slip compensation. |
| Radiator temperature detection function. |
| Built-in Modbus (RS-485 baud rate up to 38400bps). |
| upport field communication module: DN-02, LN-01, PD-01. |

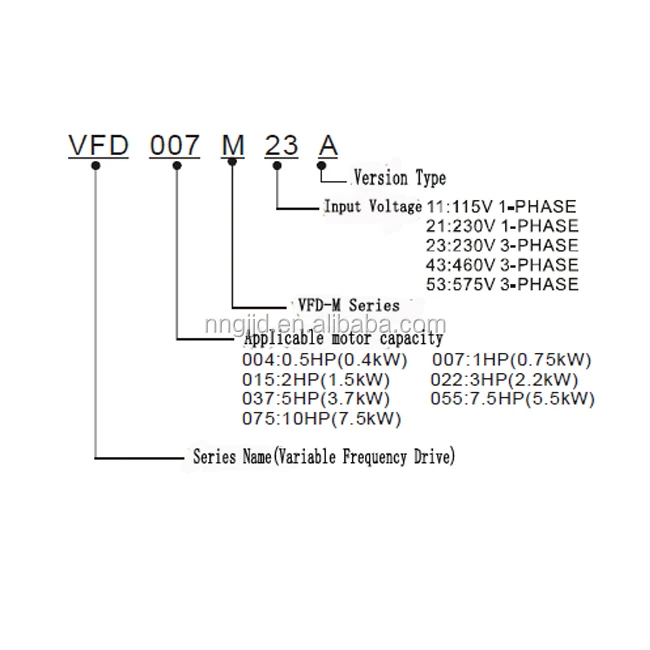

Model
VFD M Series 115V Single Phase
VFD002M11A 0.2kW (0.25HP) 115V 1phase
VFD004M11A 0.4kW (0.5HP) 115V 1phase
VFD007M11A 0.75kW (1HP) 115V 1phase
VFD M Series 230V Single Phase
VFD004M21A 0.4kW (0.5HP) 230V 1 phase
VFD004M21B 0.4kW (0.5HP) 230V 1phase
VFD007M21A 0.75kW ( 1 HP ) 230V 1 phase
VFD007M21B 0.75kW (1HP) 230V 1phase
VFD015M21A 1.5kW ( 2 HP ) 230V 1phase
VFD015M21B 1.50kW (2HP) 230V 1phase
VFD022M21A 2.20kW (3HP) 230V 1phase
VFD M Series 230V Three Phase
VFD004M23A 0.4kW (0.5HP) 230V 3 phase
VFD007M23A 0.7kW ( 1 HP ) 230V 3 phase
VFD015M23A 1.5kW ( 2 HP ) 230V 3phase
VFD022M23B 2.20kW (3HP) 230V 3phase
VFD037M23A 3.70kW (5HP) 230V 3phase
VFD055M23A 5.50kW (7.5HP) 230V 3phase
VFD M Series 460V Three Phase
VFD007M43B 0.75kW (1HP) 460V 3phase
VFD015M43B 1.50kW (2HP) 460V 3phase
VFD022M43B 2.20kW (3HP) 460V 3phase
VFD037M43A 3.70kW (5HP) 460V 3phase
VFD055M43A 5.50kW (7.5HP) 460V 3phase
VFD075M43A 7.50kW (10HP) 460V 3phase
VFD M Series 575V Three Phase
VFD007M53A 0.75kW (1HP) 575V 3phase
VFD015M53A 1.50kW (2HP) 575V 3phase
VFD022M53A 2.20kW (3HP) 575V 3phase
VFD037M53A 3.70kW (5HP) 575V 3phase
VFD055M53A 5.50kW (7.5HP) 575 V 3phase
VFD075M53A 7.50kW (10HP) 575V 3phase
Our advantage
1.Factory direct supply,competitive price.
2.Professional Experience of inverter more than 10 year.
3.Prompt delivery and remarkable services.
4.100% new materials for production and 100% reliable hight quality.
5.Free After-Sale Service,solve all your problems.
Scenarios &features
Application:Building air conditioning,wood carving machine,machine tools,waste water treatment system,XY axis of crane,washing machine,ironing machine,air compressor,cargo elevator,escalator,circular loom,flat knitting machine,noodle machine,four woodworking planer, Textile machinery.
