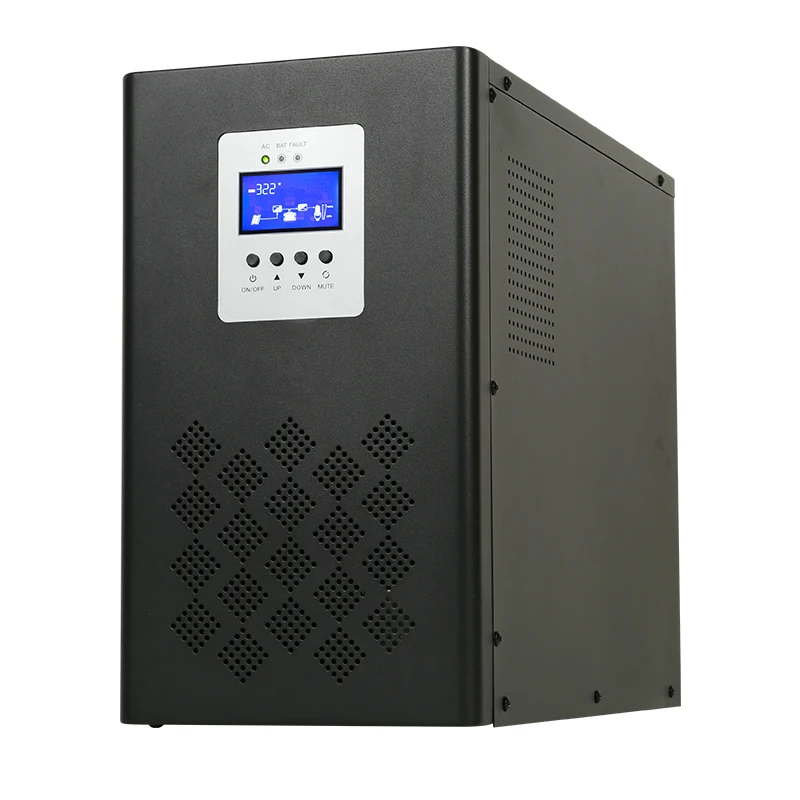

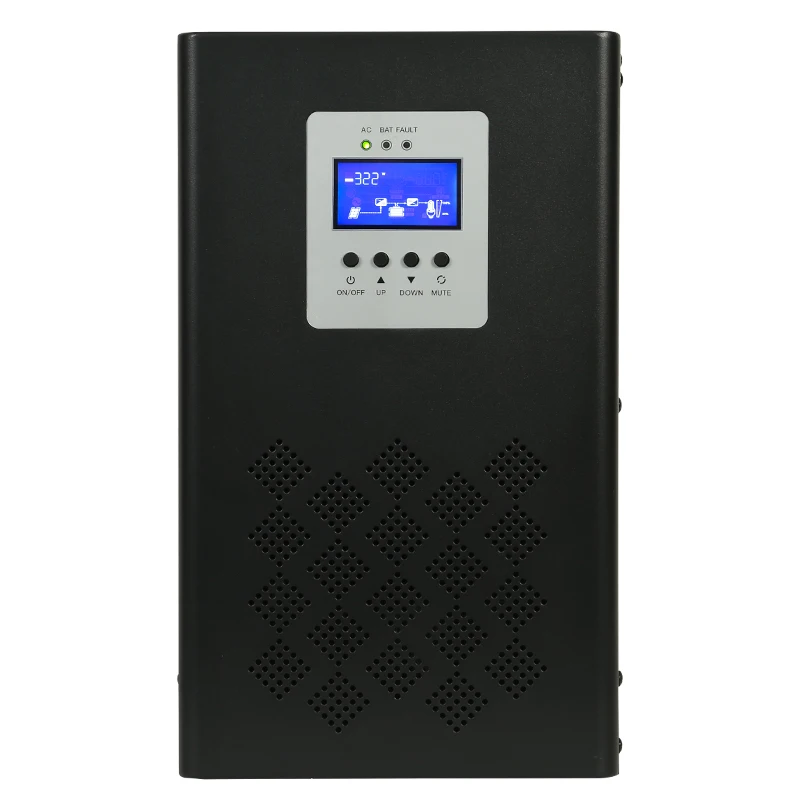

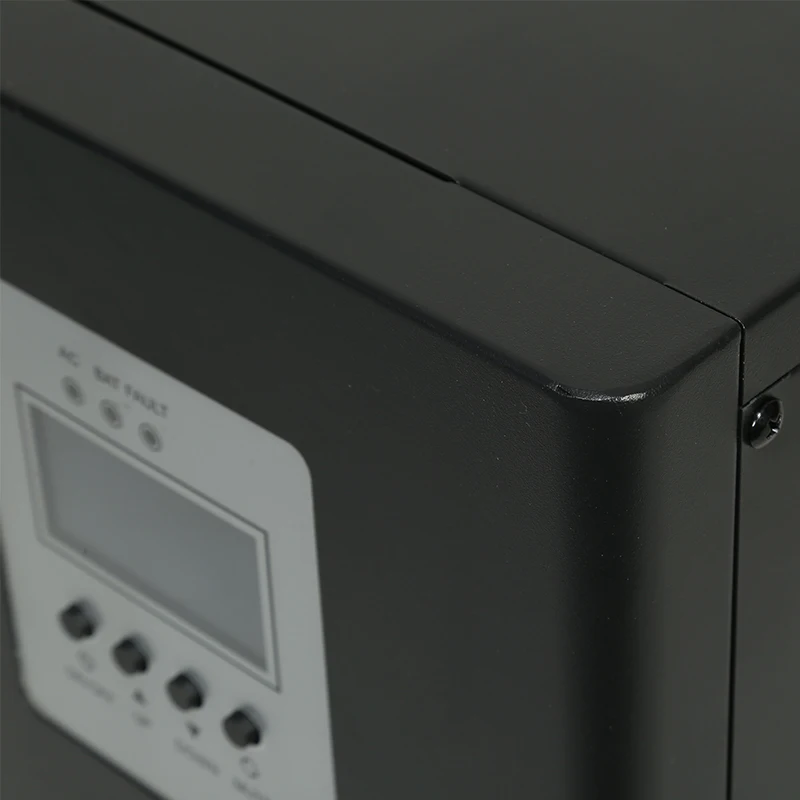

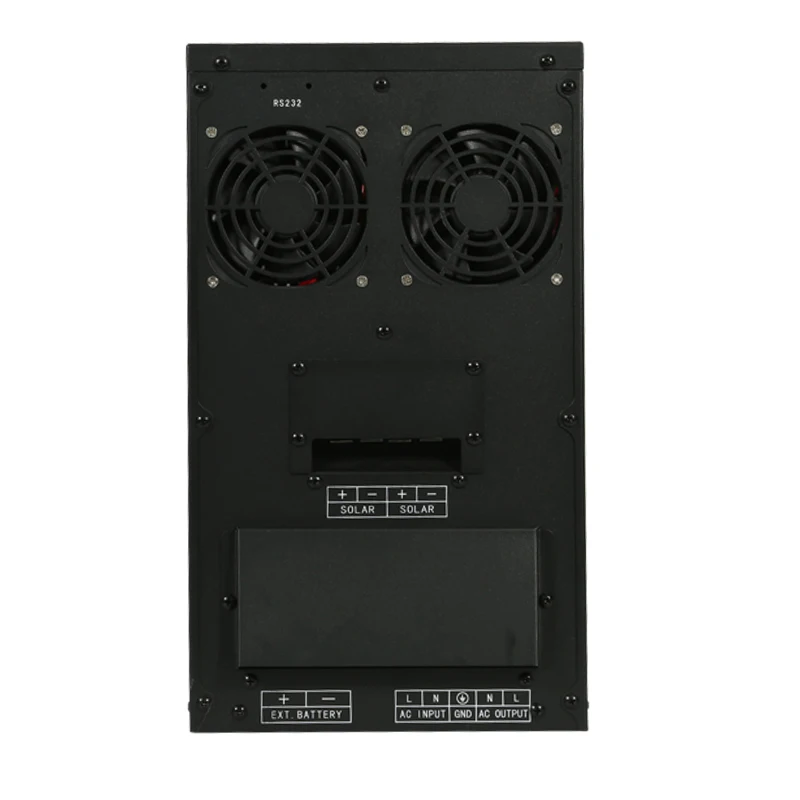

MI Bokai Hybrid Off Grid Solar Low Frequency Inverter High Efficiency 3kw 4kw 5kw 6kw Solar Power System Home Single LMI Series powerwall
- Category: >>>
- Supplier: Foshan Bokai Power System Equipment Co. Ltd.
Share on (62363217992):
Product Overview
Description
Why Choose Us
Products Description
LMI 1500W-6000W
product features

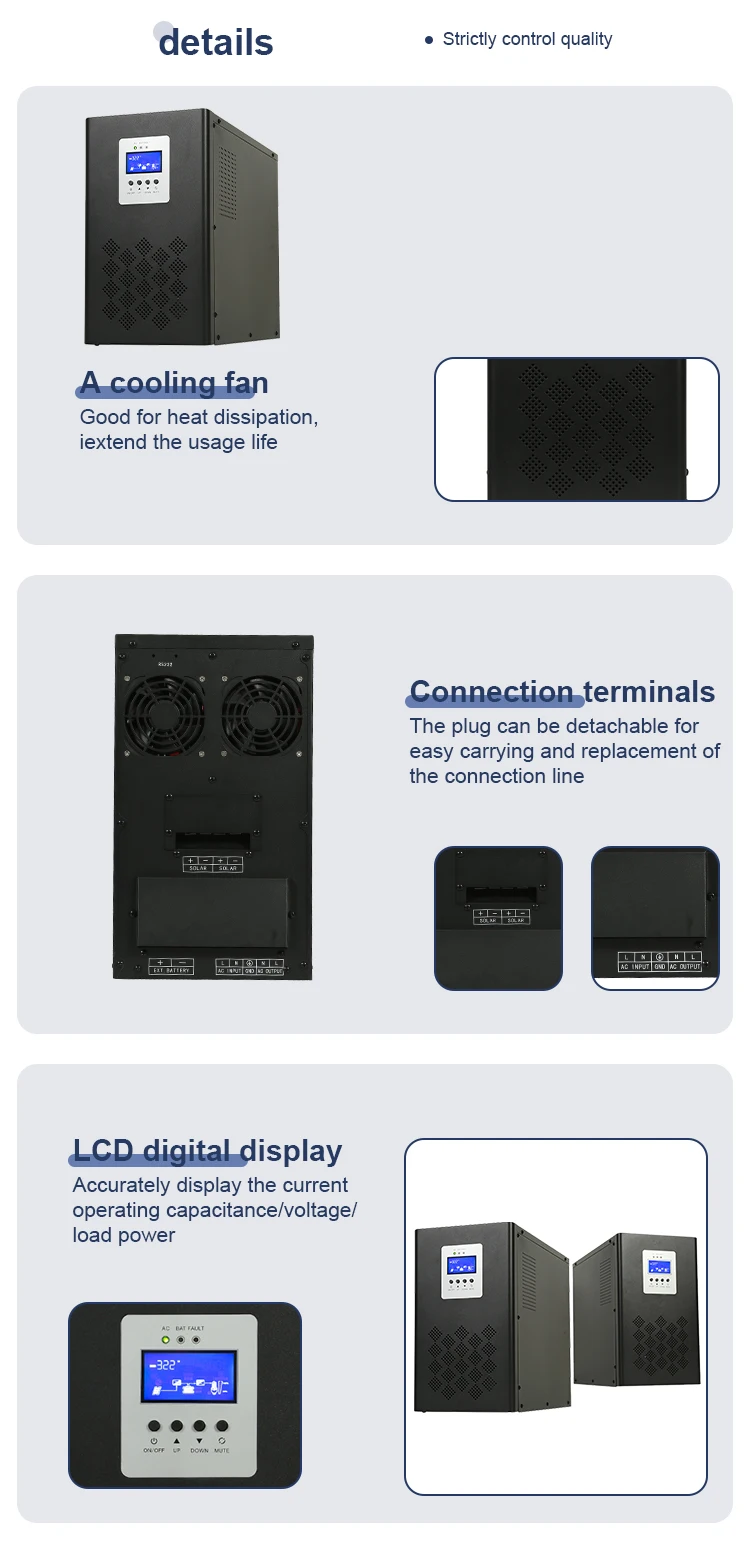

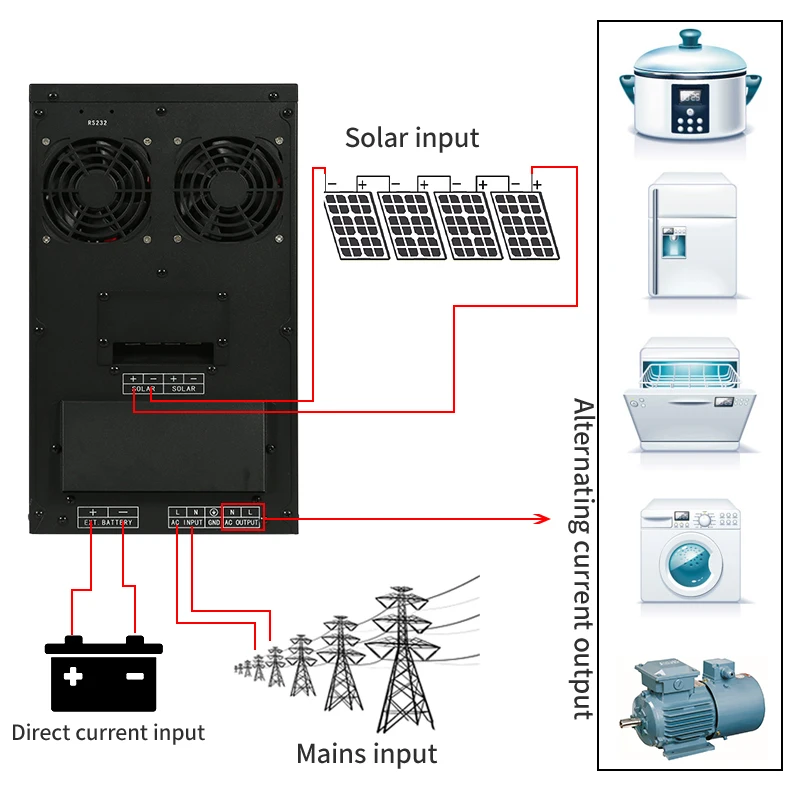

Details Images
Product Paramenters
MODEL LMI-**** | 1.5KW | 2KW | 3KW | 3.5KW | 4KW | 5KW | 6KW | ||||||||
Rated power | 1.5KW | 2KW | 3KW | 3.5KW | 4KW | 5KW | 6KW | ||||||||
Battery voltage | 24/48VDC | 48VDC | |||||||||||||
Net weight | 15KG | 17KG | 21KG | 23KG | 25KG | 32KG | 42KG | ||||||||
Grost weight | 15KG | 17KG | 21KG | 23KG | 25KG | 32KG | 42KG | ||||||||
Dimension(L*W*H) | 470x220x385mm | ||||||||||||||
Solar power Controller (MPPT) | Solar rated voltage | 24V:36-90V 48V:72-126V | |||||||||||||
Maximum input voltage | 24V:105V 48V:160V | ||||||||||||||
Charging current | 30A,40A,50A,60A,80A,100A,120,(Optional) | ||||||||||||||
Protection type | Solar cells, anti-anti-charge protection,battery open-circuit protection,battery reversal protection | ||||||||||||||
inverter | AC luput voltage range(VAC) | 100/110/120/127/220/230/240V(+20%,-20%) | |||||||||||||
Iuput frequency(Hz) | 45-65Hz | ||||||||||||||
Output voltage range(VAC) | Inverter mode 100/110/120/127/220/230V240V(+2%,-2%) | ||||||||||||||
Utility output voltage range | constant voltage output 100/110/120/127/220/230V240VAC±10% | ||||||||||||||
Output frequency (Hz) | 50/60±1% | ||||||||||||||
Utility output frequency | 50Hz/ 60Hz automatic tracking | ||||||||||||||
Output wavefrom | Pure sine wave | ||||||||||||||
Efficiency | ≥85% | ||||||||||||||
THD | ≤3% | ||||||||||||||
Transfer time(ms) | ≤4ms | ||||||||||||||
Overload protection | rated power >110%; >130%, 10S power off; >150%, 0.6s power off | ||||||||||||||
Temperature protection | ≥85℃ alarm,≥90℃ Shutdown the machine | ||||||||||||||
Battery protection | Automatic detection and discharge protection, overcharge protection,intelligent management | ||||||||||||||
Cooling method | Automatic detection of wind cooling ≤42℃ fan rotating heat dissipation, ≥55°C fan high rotating heat dissipation | ||||||||||||||
Display | LCD (inverter output voltage,input AC voltage,battery capacity percentage,load capacity percentage,etc.) | ||||||||||||||
