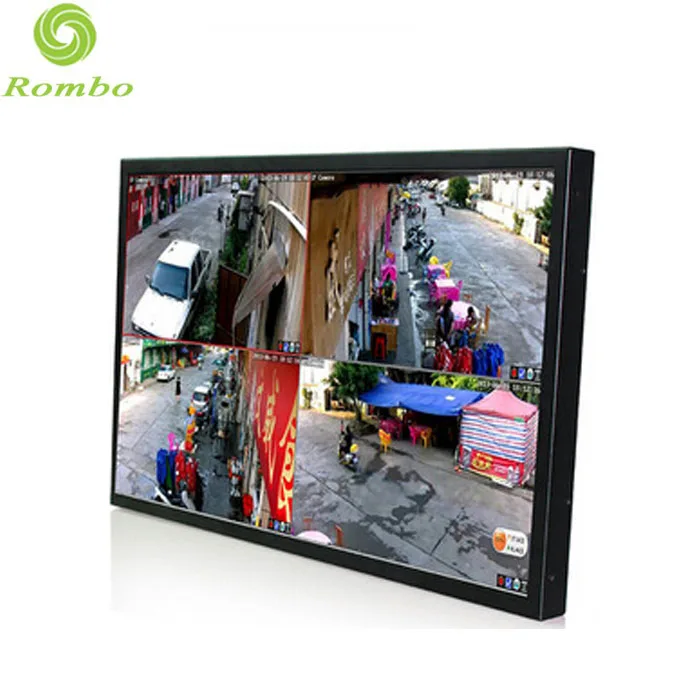

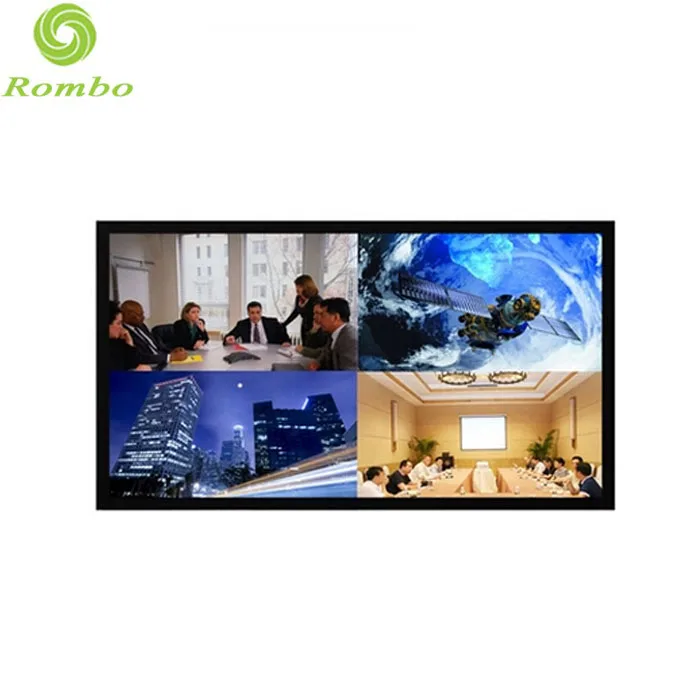

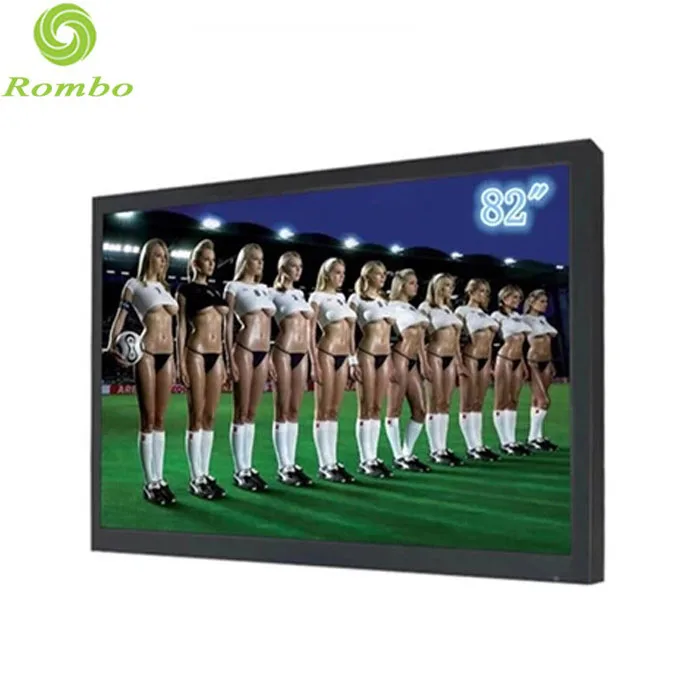

Professional LED backlight 32 inch metal case cctv monitor
Product Description
1. 4K Ultra HD LCD panel, resolution is 3840*2160, can be downward compatible 1080P signal.
2. DP HD digital signal input, it is the 2.1 times of main HDMI, and support 4K x 2K display.
3. The case is adopted high standard aluminium alloy design.
4. Automatically backlight and brightness adjust, intelligent screen protection, anti-burns
5. 3D digital noise reduction,HD high-definition signals,Progressive scan, make the image vivid and smooth.
6.Multiple full HD interfaces, High compatibility
Features :
1) High definition,high resolution
2) High brightness
3) Interface type:VGA,DVI and HDMI connected analog signal and digital high-definition signal
4) Equipped with sensitive infrared receiving device, can remote control monitor each parameter
5) With automatic eliminate ghost function, protect the long-term use of liquid crystal screen
6) Continuous boot for 7*24 hours,deserve to trust
7) Support 365 days non-stop boot,the backlight life is up to 60,000 hours
8) Modular design according to customer demand(M*N) . 9) Professional security grade cctv monitor
Main Specification
Model No.
RB-JSQ32
Panel size
32″TFT-LCD/LED
Housing
Iphone Design
Dimensions
773.6×470×80 mm
Body Material
Metal case SPCC
Display area(mm)
700(W)×394(H) 16:9
Maximum resolution
1920×1080
Display color
16.7M
Pixel Pitch(mm)
0.51075(H)×0.51075(V)
Brightness (nits)
500cd/m2
Contrast
2000:01:00
Visual angle
178°/178°
Response time
5ms
Life(hrs)
>60,000(hrs)
Horizontal frequency
30-75KHZ
Vertical frequency
56-75KHZ
Life(hrs)
>60,000(hrs)

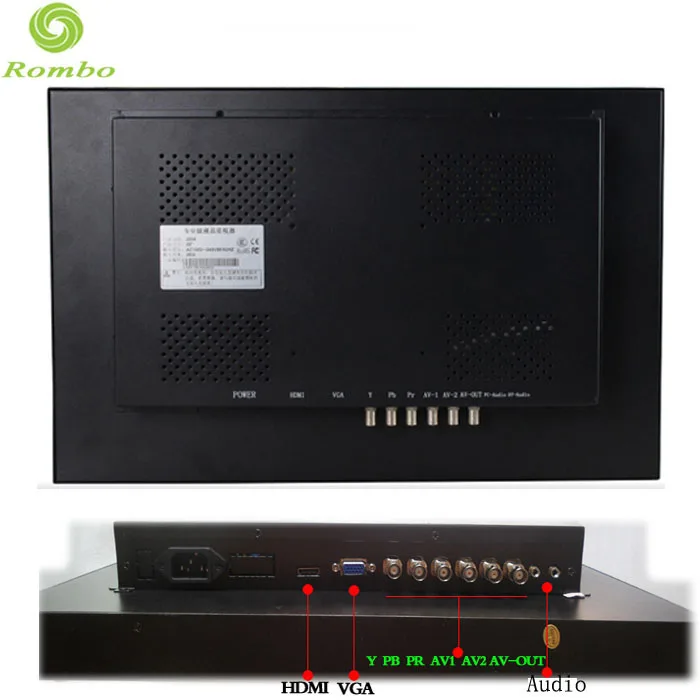

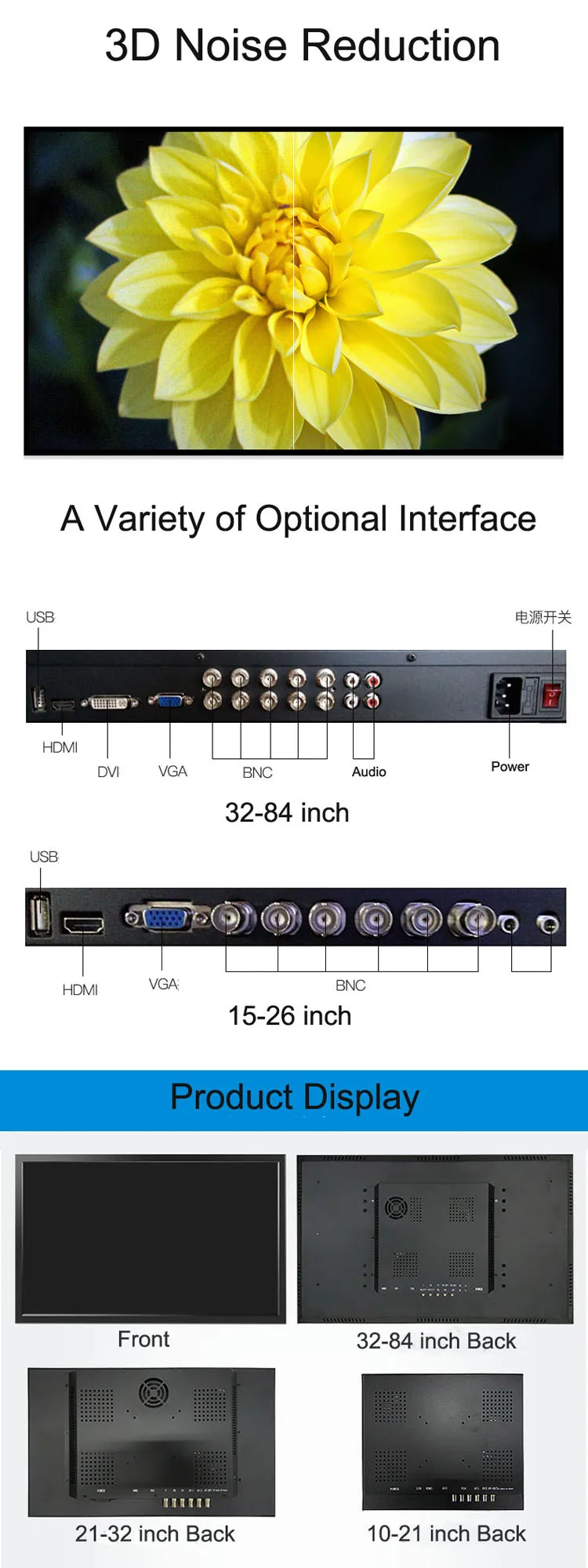

Input and output
Composite video input
3 (BNC×2)
Y,Pb,Pr/Y,Cb,Cr input
3 (BNC×3)
S-video-Y/C input
2(BNCx2)
D-15 pin RGB input
1
HDMI
1
DVI
1
Composite video output
2 (BNC×1)
Audio
Left (RAC*2) ; Right (RAC*2)
Video
Color system
PAL/NTSC/SECAM
Compatible HDMI input/DVI
480P,576P,720P,1080I,1080P
3D Comb filter
Yes
Video reduction noise
Yes
Menu language
Chinese/English( multiple language option required)
Power
Power supply
AC100V~240V,50/60Hz
Maximum power consumption
52W
Standby power consumption
3W
Temperature
Working temperature
0°C~50°C
Storage temperature
-20°C~60°C
Working humidity
60%
Storage humidity
60%
Appearance
Panel/appearance
White, black, customized
Body dimension(Lx W x H)mm
773.6×470×80 mm
Net weight
13.5kg
Panel material
Metalc casing
Installation
wall-mounted, desktop (optional)

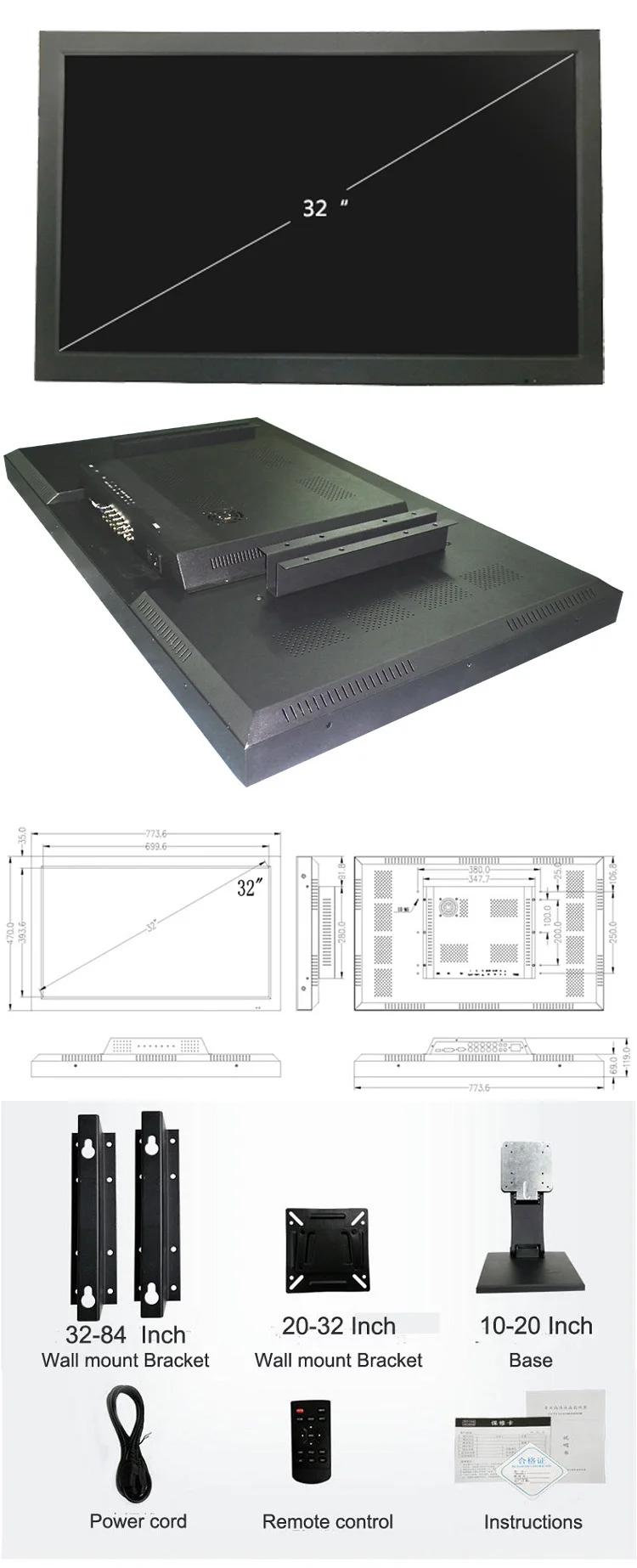

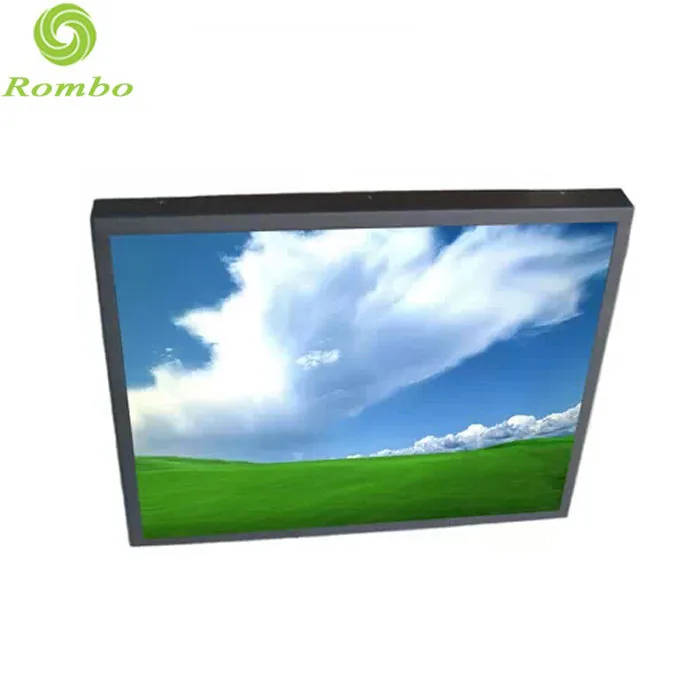

Detailed Images

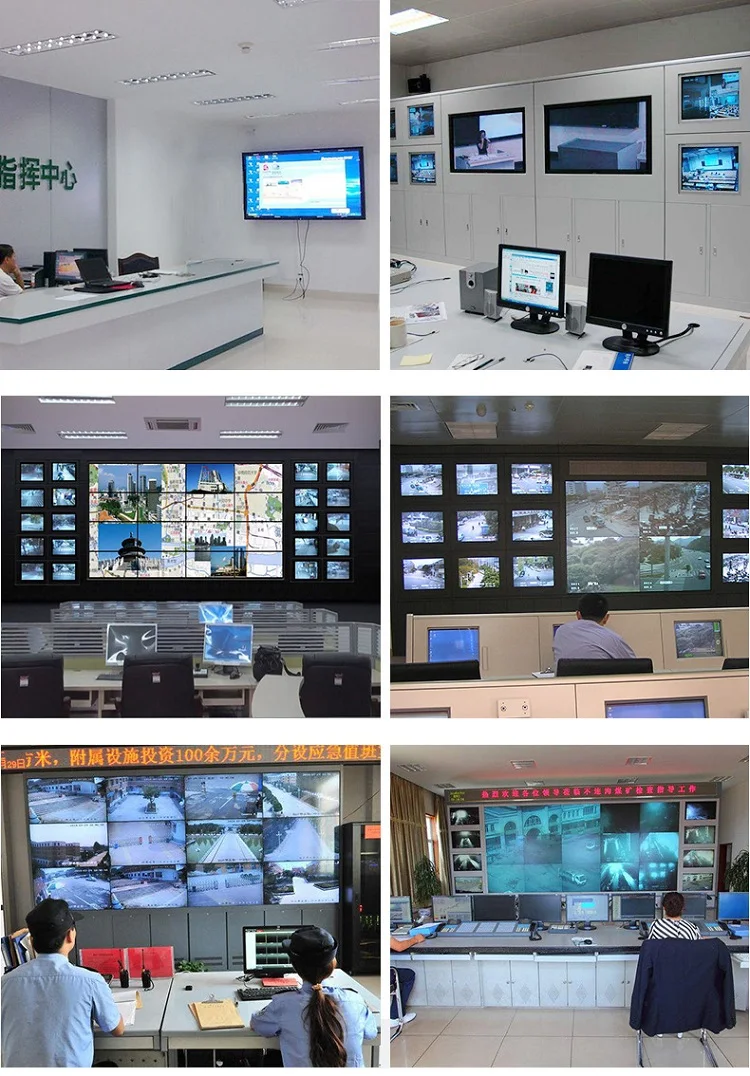

Appliaction
Related Products
Advantages
Trade Terms
Packing & Shipping
Company Information
After-Sales Service
Quality Services:
All our products have one year guarantee from the shipping date.And it is ok upgrade to two or three years guarrantee with addtional cost. Under guarantee: if any non-human damage happen, we'll offer free repairing or replacement, but since we don't have much profit, the aftersale service is free, so we can offer free repairing or replacement except shipping cost . Out of guarantee: we offer repairing parts at lower cost, and service free in charge. Customization & services:
We accepted customized projects including software and hardware.
Do not hesitate to share your idea with us, since we have experienced engineer team and we do our best to help client's project.
Online service:
we are online all the time. any quetions, just feel free to get in contact with us !
Warranty:
One year warranty for All in one pc,laptops and tablet,3 years for monitor. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
