AOYI 220V ac adjustable voltage regulator stabilizer LTC 482

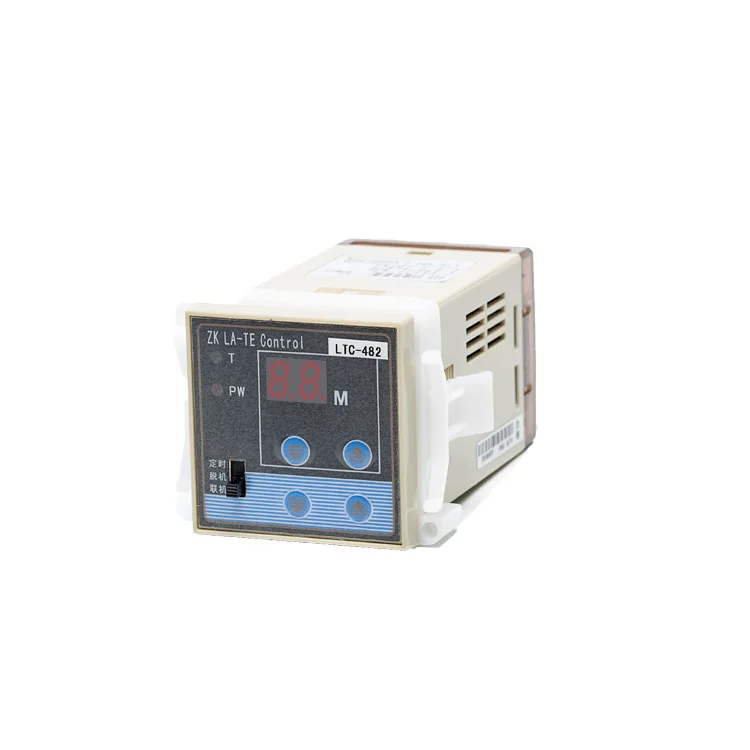

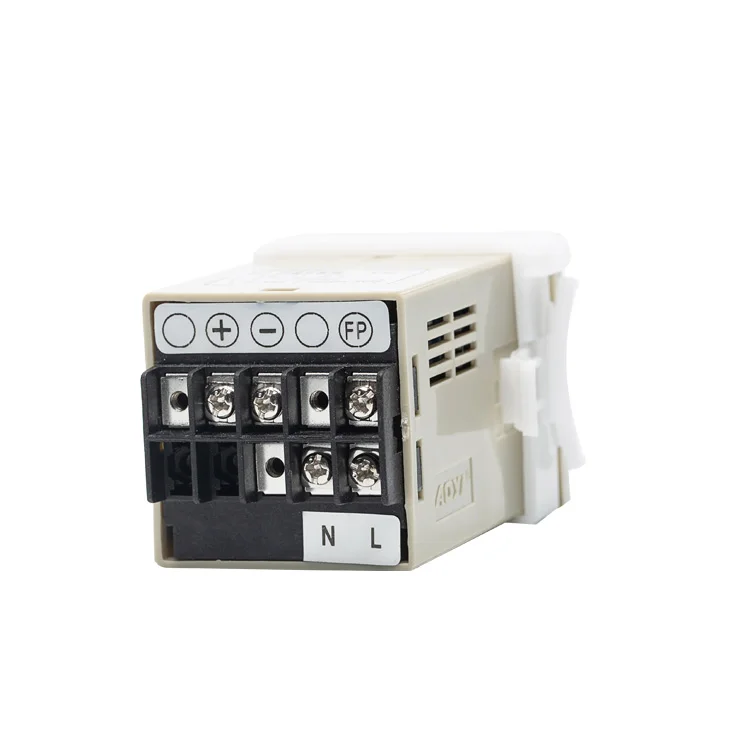

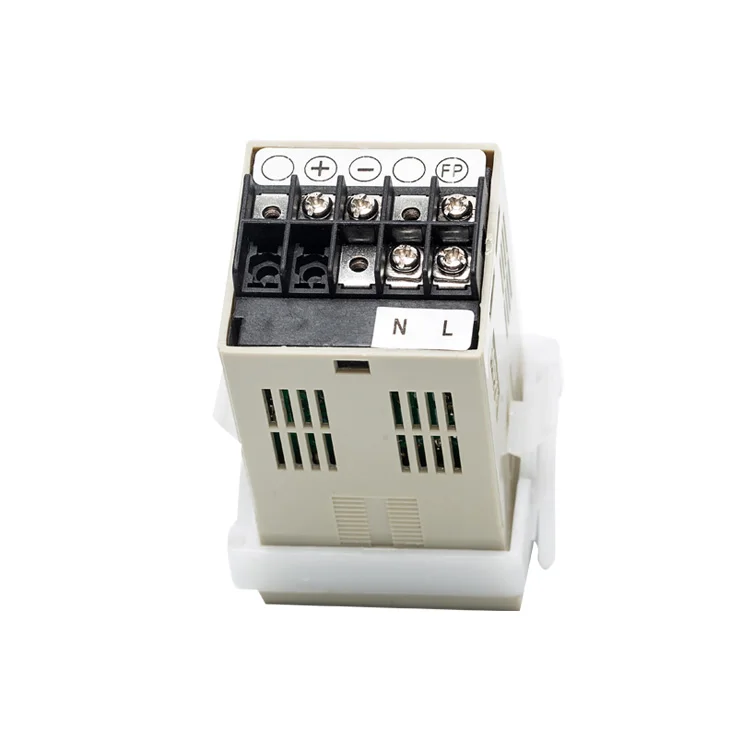

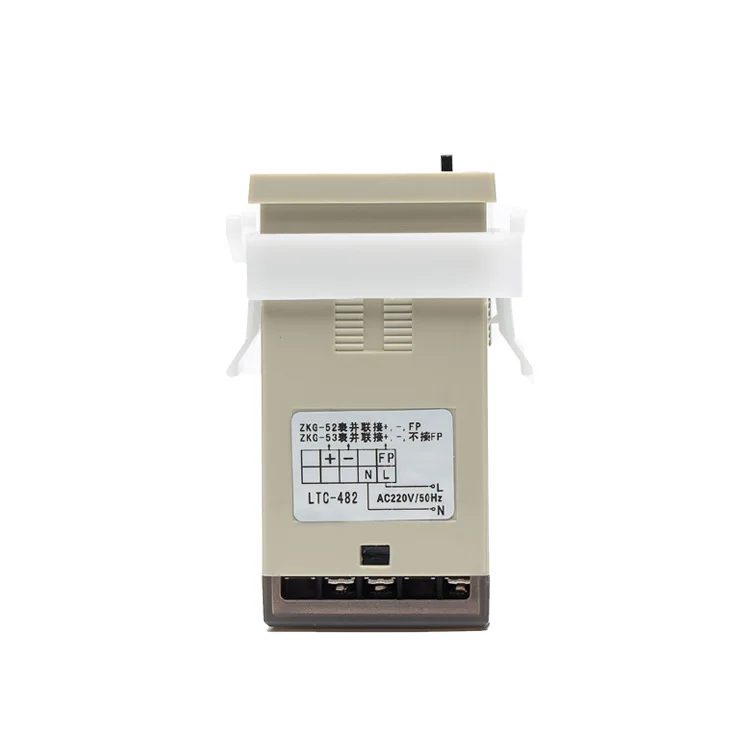

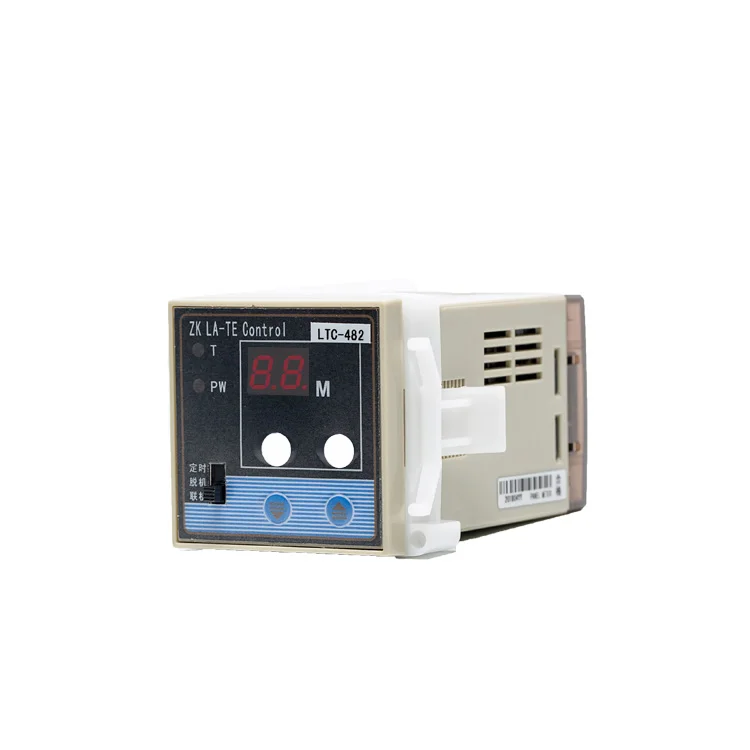

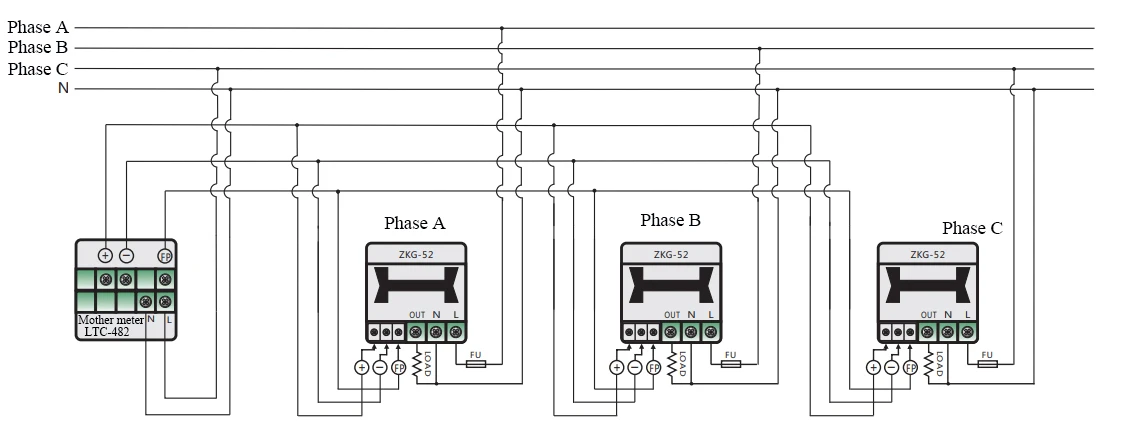

Connect the LTC-482, fuse, LOAD and so on together according to the wiring diagram. (The terminals +, -, and FP of the LTC-482 are connected to the terminals +, -, and FP, of the ZKG-52 correspondingly.)

When the toggle switch is in the online position, the LTC-482 can control multiple ZKG-52s (up to 150) to adjust the voltage rise or fall of the connected voltage regulator.

When the toggle switch is in the offline position, the mother meter LTC-482 loses control of the sub-table ZKG-52, and the sub-table ZKG-52 controls the adjustment voltage value by itself.

When the toggle switch is in the timing position, FP can be connected to realize the full-power output function of the startup preheating timing. If the full power output function is not required, the FP terminal does not need to be wired and will not affect the whole machine control.

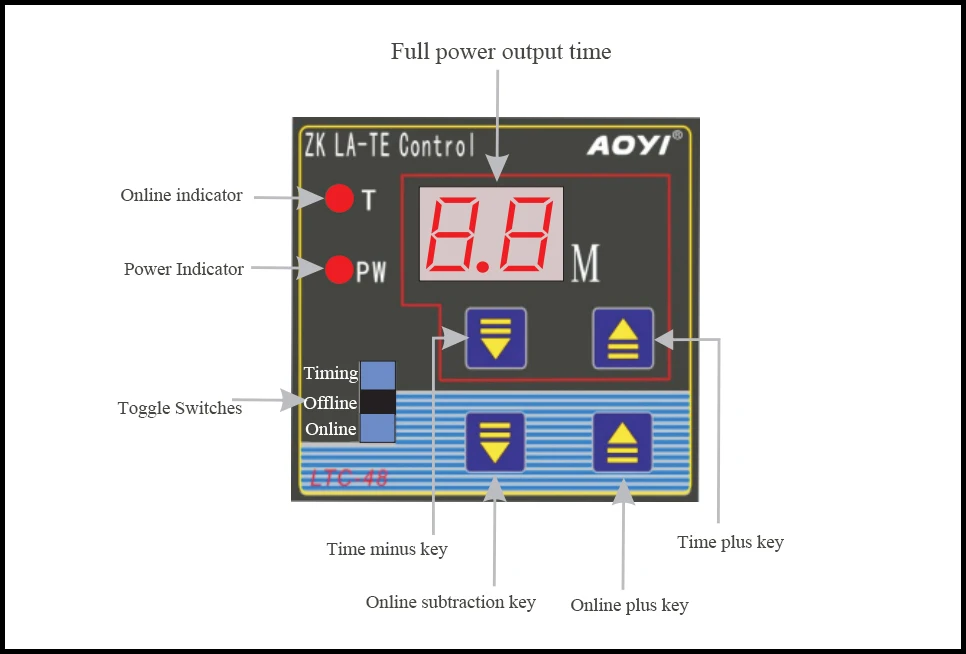

To modify the full power output time, first turn the toggle switch to the timing position, press the time plus or minus button to set the time (time setting range 0-99 minutes), then turn the toggle switch to the offline position. Then dial back to the timing position to remember the newly set time.

When the toggle switch is in the online position, press the online plus key and the online decrease key can adjust the ZKG-52 to the required setting.
