Embedded Industrial Control computer with low Power consumption and High performance without Wind Fan.

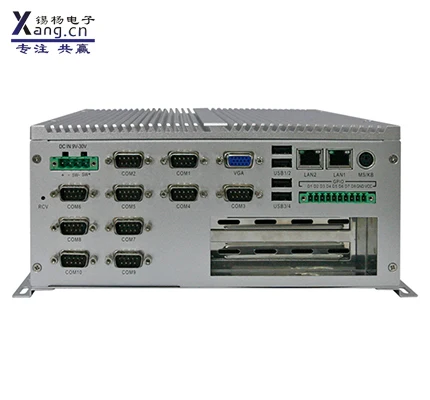

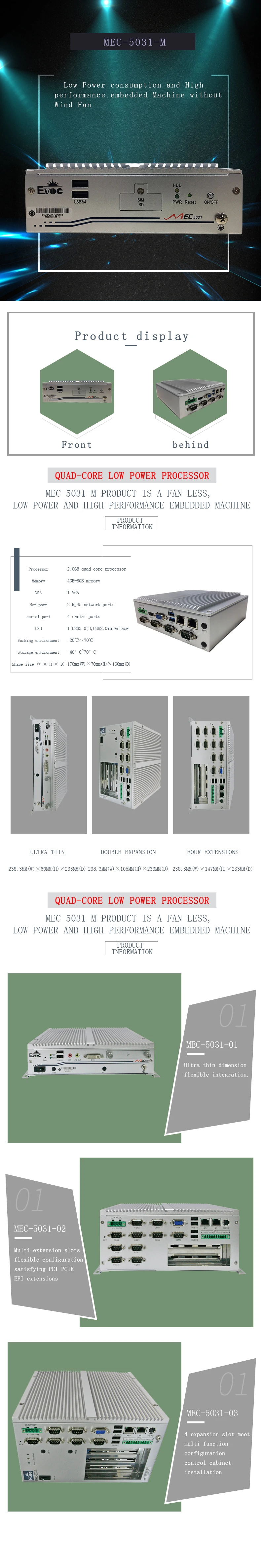

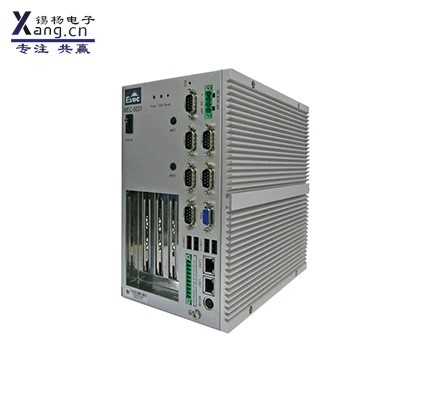

MEC-5031

MEC-5031 uses J1900 quad-core processor + Bay Trail chip and Intel ®Atom chip D525 processor + Intel ®ICH8M chip scheme. J1900 supports 2 SO-DIMM expansion slots with a maximum of 8 gigabytes of memory, and 2 MiniPCI-E expansion slots for 3G and WiFi applications. The system can support DC9-30V direct power supply, but also through the power adapter to achieve AC220V input, widely used in highway lane control, mechanical detection equipment, intelligent transportation, industrial automation control and other embedded fields.




System configuration
ProcessorIntel Celeron J1900 2.0GHZ (quad core).
On-board Intel@ATOM processor D525 1.8G processor
Chip setBay Trail.
ICH8M
Memory2 SO-DIMM slots, standard 4GB, upgradable 8GB.
Standard 1 2GB DDR3 SO-DIMM memory, maximum support 4GB memory
Display
VGA1 VGA (J1900: maximum resolution 2560 X 1600; D525: maximum resolution 2048 X 1536)
LVDS:Optional
HDMI:1 HDMI interface (maximum resolution 1920 / 1200, J1900 only)
DVI1 DVI-I (J1900: maximum resolution 1920X1200; D525: maximum resolution 1600 X1200)
I interface
Net port2 10/100/1000Mbps RJ45 ports; LAN1 supports network wake-up
serial port10 serial ports (COM1~COM6 is optional for RS-232/422/485 and COM7~COM10 is RS-232; based on configuration);
USB6 USB2.0 interfaces (2 USB on the front panel)
PS/21 KB/MS
GPIO1 x 8 or 32 digital I interface (optional)
LPT1 LPT interface (optional)
Audio frequency1 group of AUDIO interfaces, supporting Line-in, Line- out
Memory
Hard diskStandard 2 2.5 inch hard disk position, maximum support 2 2.5 inch hard disk position;
CF1 CF card interface (front / side panel; optional)
M-SATAM-SATA1 M-SATA interface
Extended bus
1 MiniPCIE expansion slot
1 SIM card slot
Working environment
-20 ℃ ~ 70 ℃; (wide temperature CF card / electronic disk)
-5 ℃ ~ 50 ℃ (monitoring hard disk)
 5% ~ 90% 40 ℃ (non-condensed state)
 Storage environment -40 ℃ ~ 70 ℃; 5% 90% 40 ℃ (non-condensed state)
 Power supply Support for 9W 30V DC wide voltage input or through 90W AC external adapter input
 External dimension (W × H × D)
Ultra thin: 238.3mm (W) × 60mm (H) × 233mm (D)
Dual extension: 238.3mm (W) × 105mm (H) × 233mm (D)
IV extension: 238.3mm (W) × 147mm (H) × 233mm (D)
