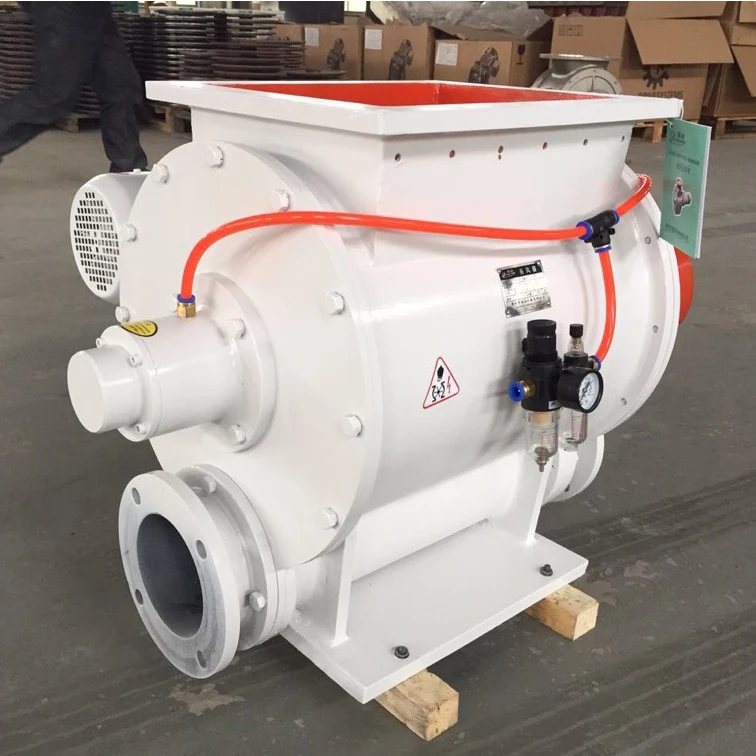

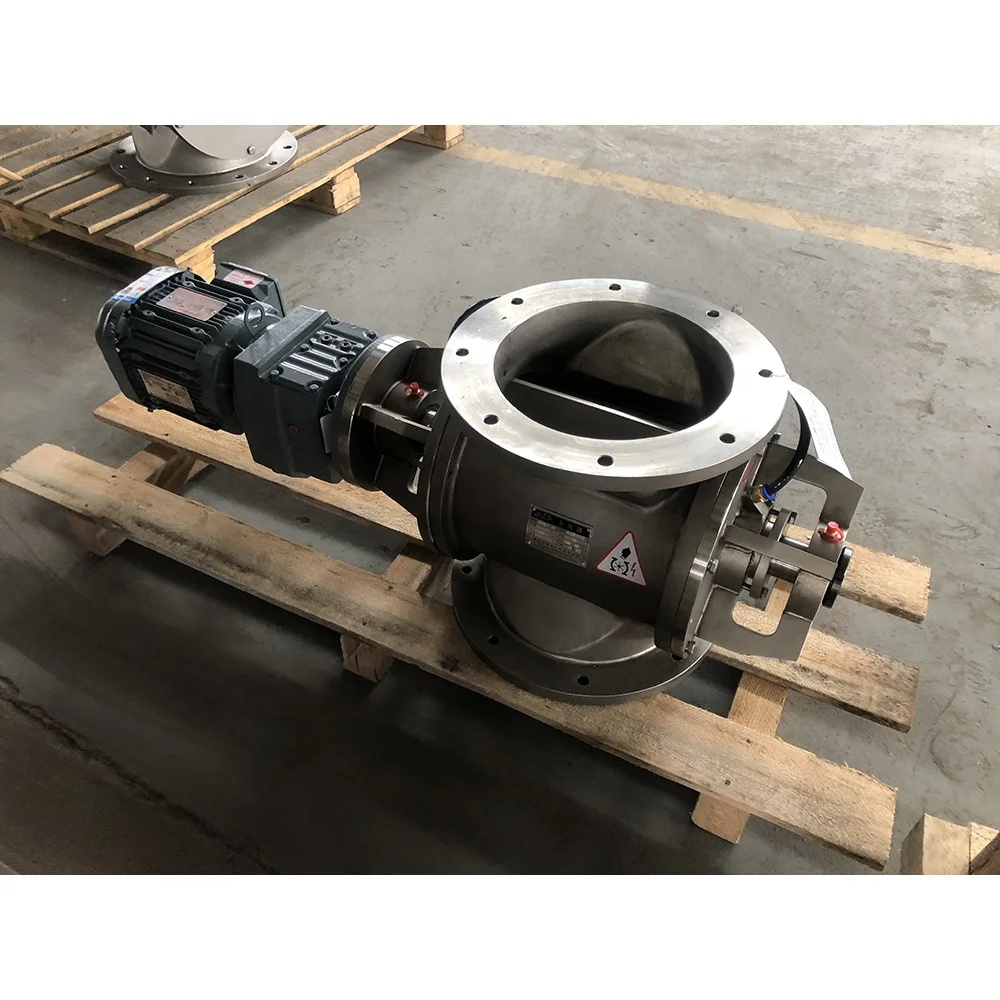

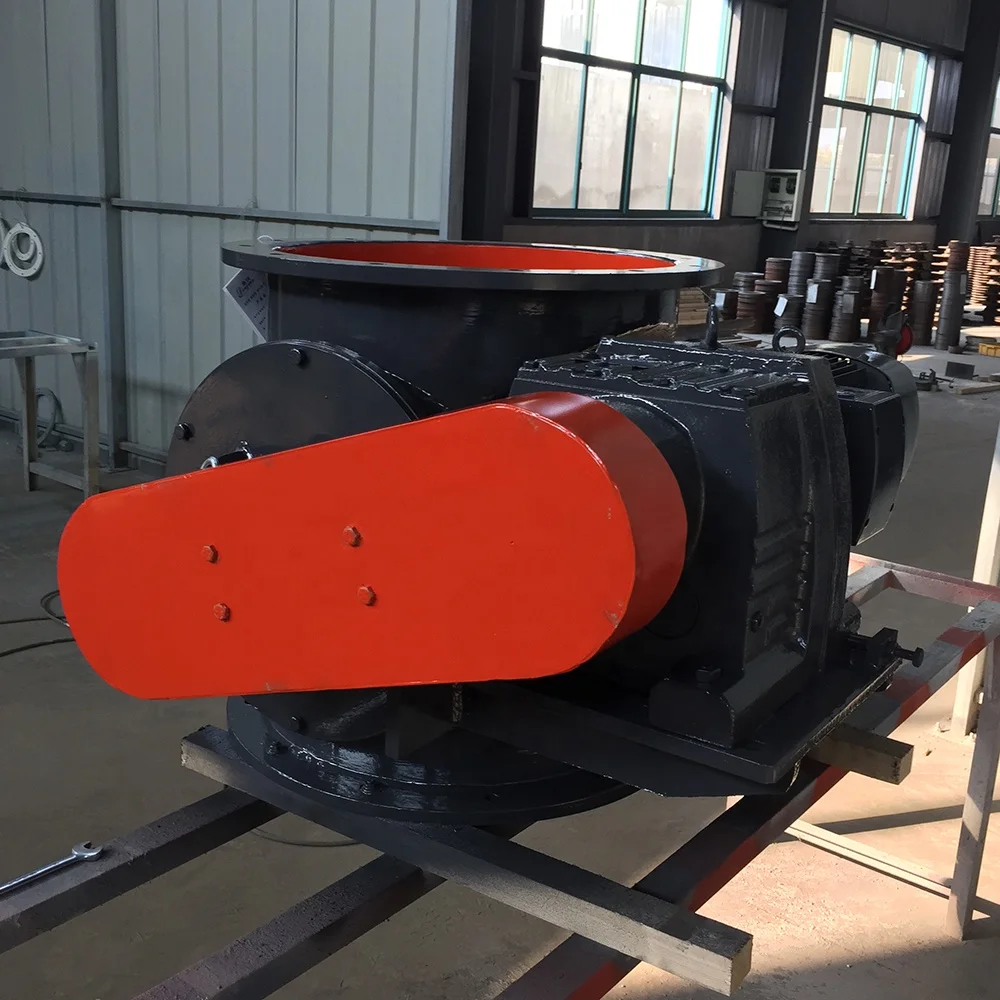

Glorair Rotary Valve with Air Purge Shaft Seals

Product Overview

Description

Glorair Rotary Valve with Air Purge Shaft Seals





Rotary airlock is special equipment applicable for unloading, packing, mixing, dust collection, metering, rationing conveying of solid materials (powder, particles and its mixtures) conveying system. Materials can be discharged equably and continuously to the downstream unit according to the conveying system requirements.











• Widest rang of products to handle different materials and working conditions


• Special shell inlet/outlet design to prevent particles from extrusion, blocking and shear breaking


• Excellent seals between rotors and shells to ensure reliable performance and easy maintenance


• Exhaust passage and exhaust nozzle is designed for pressure balance inside the shell to improve working efficiency without materials accumulation


• Shell and impeller with special structure design to convey very hard, high viscosity, high temperature, electrostatic and supper fine materials


• Capable of handling food grade and drug grade materials





Model	Capacity / Rotation	Motor Power	Rotation	Working Temp.
2L	2 L/R	0.55 KW	24 R/Min	≤300C
4L	4 L/R	0.55 KW	24 R/Min	≤300C
6L	6 L/R	0.55 KW	24 R/Min	≤300C
8L	8 L/R	0.75 KW	24 R/Min	≤300C
10L	10 L/R	0.75 KW	24 R/Min	≤300C
12L	12 L/R	1.1 KW	24 R/Min	≤300C
14L	14 L/R	1.1 KW	24 R/Min	≤300C
16L	16 L/R	1.1 KW	24 R/Min	≤300C
18L	18 L/R	1.1 KW	24 R/Min	≤300C
20L	20 L/R	1.1 KW	24 R/Min	≤300C
26L	26 L/R	2.2 KW	24 R/Min	≤300C
30L	30 L/R	2.2 KW	24 R/Min	≤300C
36L	36 L/R	3.0 KW	24 R/Min	≤300C
40L	40 L/R	4.0 KW	24 R/Min	≤300C
46L	46 L/R	4.0 kw	24 R/Min	≤300C
56L	50 L/R	5.5 KW	24 R/Min	≤300C
66L	66 L/R	7.5 kw	24 R/Min	≤300C
