Efficient Lift Original Elevator Control Cabinet,STEP Elevator Serial Integrated Controller AS380
- Category: Elevator Parts >>>
- Supplier: Xian,Yuanqi,Elevator,Parts,Co.,Ltd.
Share on:
Product Overview
Description
Lift Parts Supplier

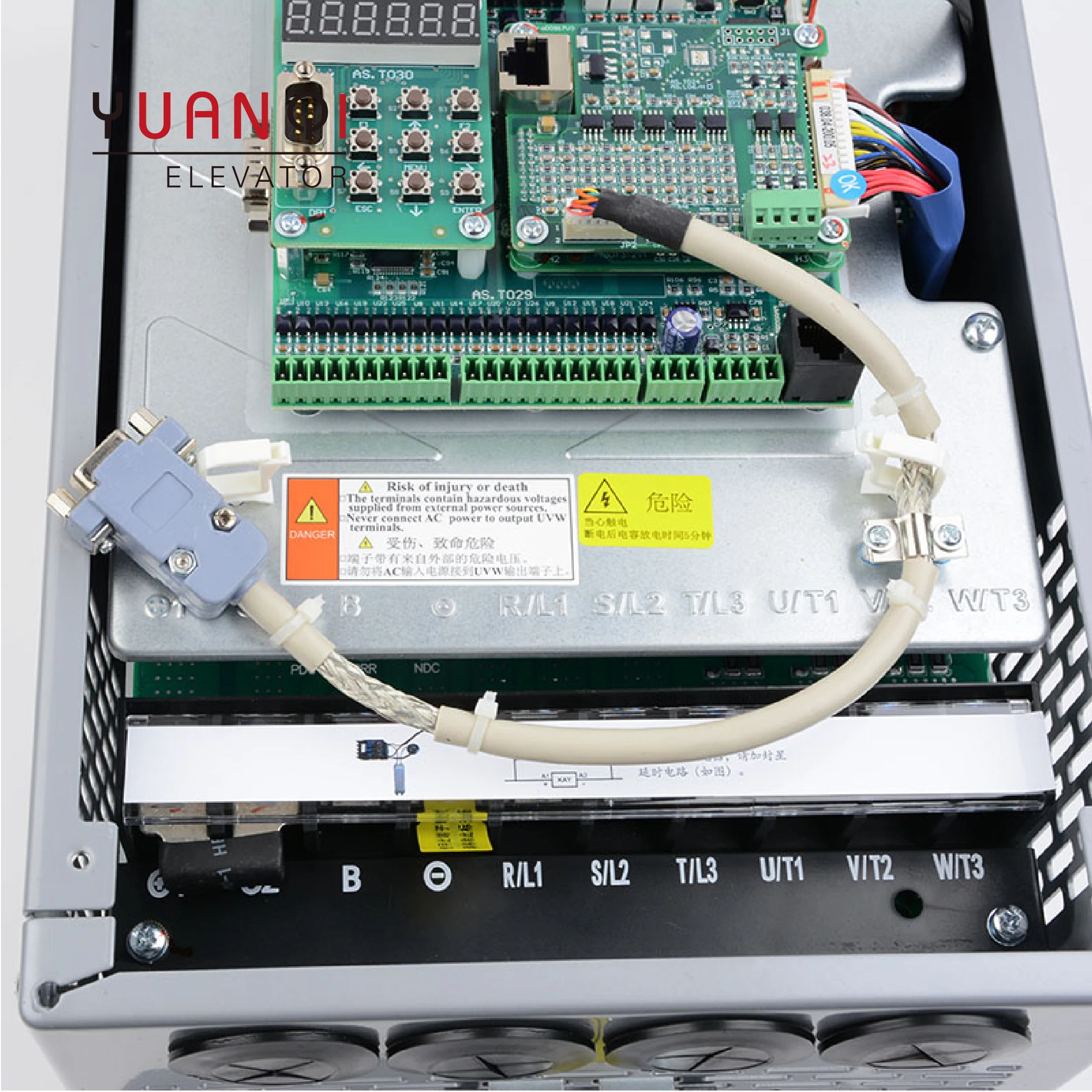

STEP Elevator Serial Integrated Controller AS380

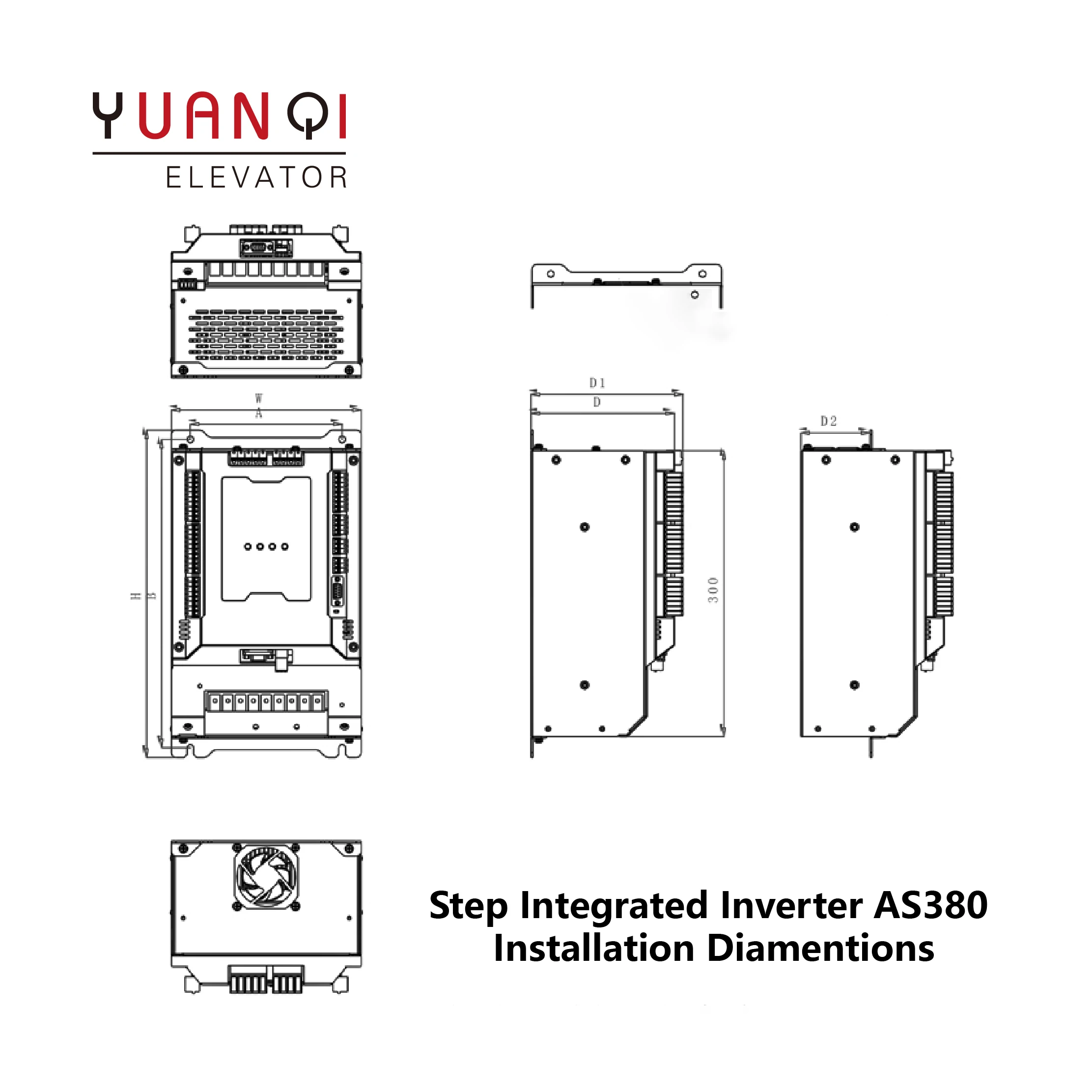

| AS380S 5.5-22kW Installation Diamentions and Weight Sheet | |||||||||||||
| AS380S- | A | B | H | W | D | D1 | D2 | Installation Hole Diameter(Φ) | Installation | Fastening Torque(Nm) | Weight | ||
| Bolt | Nut | Washer | |||||||||||
| 4T05P5S | 160 | 324 | 344 | 200 | 151 | 160 | 73 | 7 | 4M6 | 4M6 | 4Φ6 | 3 | 6.1 |
| 4T07P5S | 6.2 | ||||||||||||
| 4T0011s | 341 | 361 | 7 | ||||||||||
| 4T0015s | 7.2 | ||||||||||||
| 4T18P5S | 7.6 | ||||||||||||
| 4T0022S | |||||||||||||
| AS380S 30-37kW Installation Diamentions and Weight Sheet | |||||||||||||
| AS380s- | A | B | H | W | D | D1 | D2 | Installation Hole Diameter(Φ) | Installation | Fastening Torque(Nm) | Weight | ||
| Bolt | Nut | Washer | |||||||||||
| 4T0030S | 200 | 512 | 547 | 330 | 151 | 160 | 157 | 7 | 4M6 | 4M6 | 4Φ6 | 3 | 34 |
| 4T0037S | 34 | ||||||||||||
♥ If you want to know more information about our products welcome to contact
us in any time, And welcome to our company!
