Plastic Brush Broom Zipper Net Rope Monofilament Yarn Making Machine Monofilament Extruder Machine
- Category: >>>
- Supplier: Qingdao Jinfuxin Plastic Machinery Co. Ltd.
Share on (62363518068):
Product Overview
Description
Machine Description
PET Zipper Monofilament/Yarn/Fiber Extrusion Line
I. Brief Introduction of PET Zipper Monofilament Extrusion Line
PET zipper monofilament extrusion line consists of special dehumidifying and crystallizing system, extruder, material filter, melt pump, mold, haul-off rollers, ovens, and winders
----Raw material: PET bottle flakes, pp granules
----high tension
----Monofilament diameter: 0.2-1.0mm or as customer needs

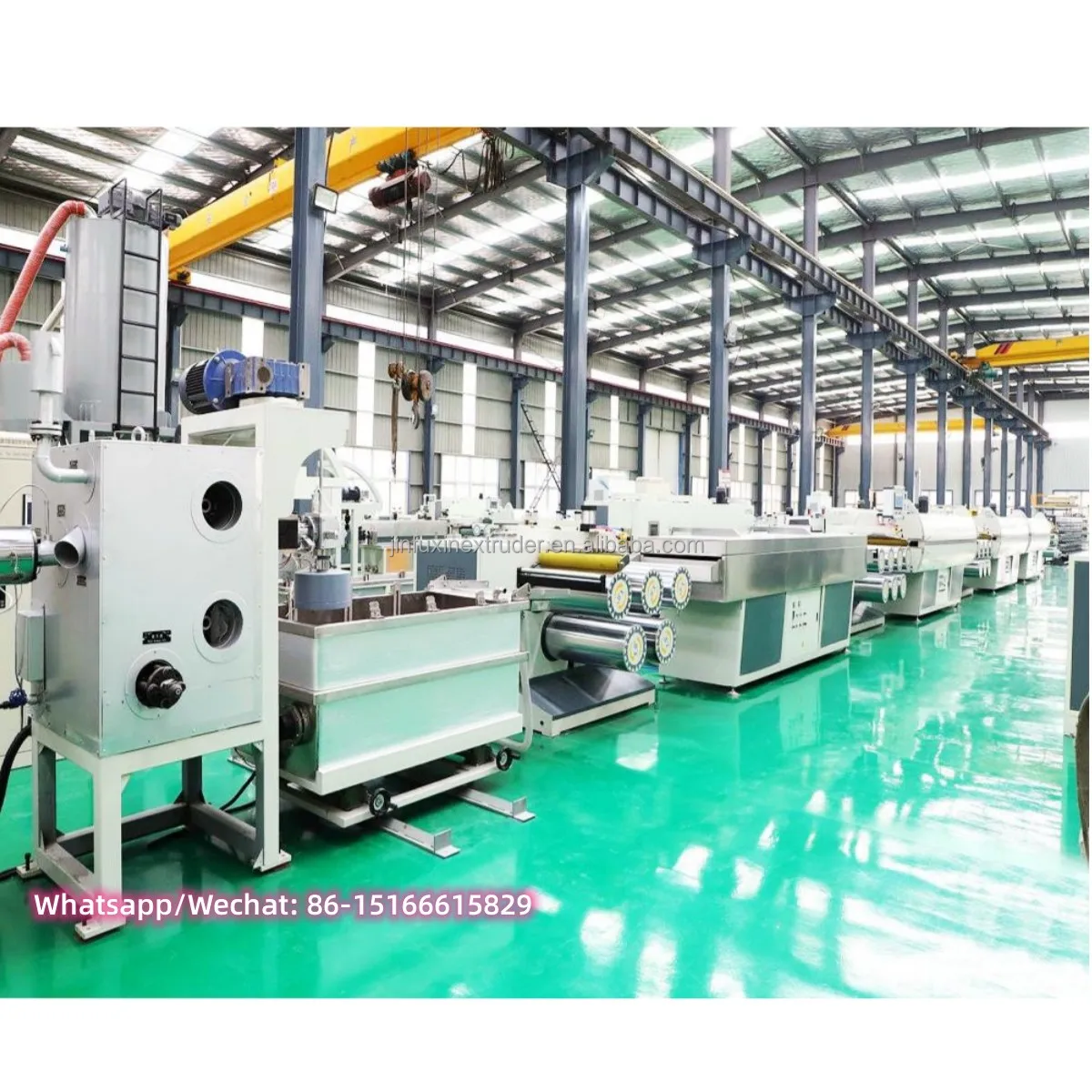

Extrusion line picture

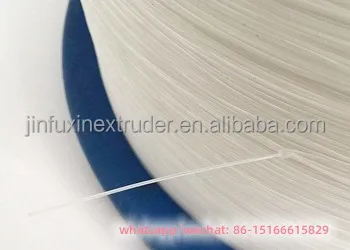

Broom Brush Bristle monofilament yarn fiber picture
II. Main Technical Parameters
NO | Machine Model | Machine Capacity | Power Consumption (KW) |
1 | SJ75 | 60-70kg/h | 130 |
2 | SJ90 | 150-200kg/h | 160 |
3 | SJ110 | 200-250kg/h | 180 |
4 | SJ120 | 250-300kg/h | 210 |
Machine Pictures & Details
1. Horizontal PET drying and dehumidifying system
---100% recycled pet bottle flakes
--- mainly for small machine capacity, like 50-100kg/h

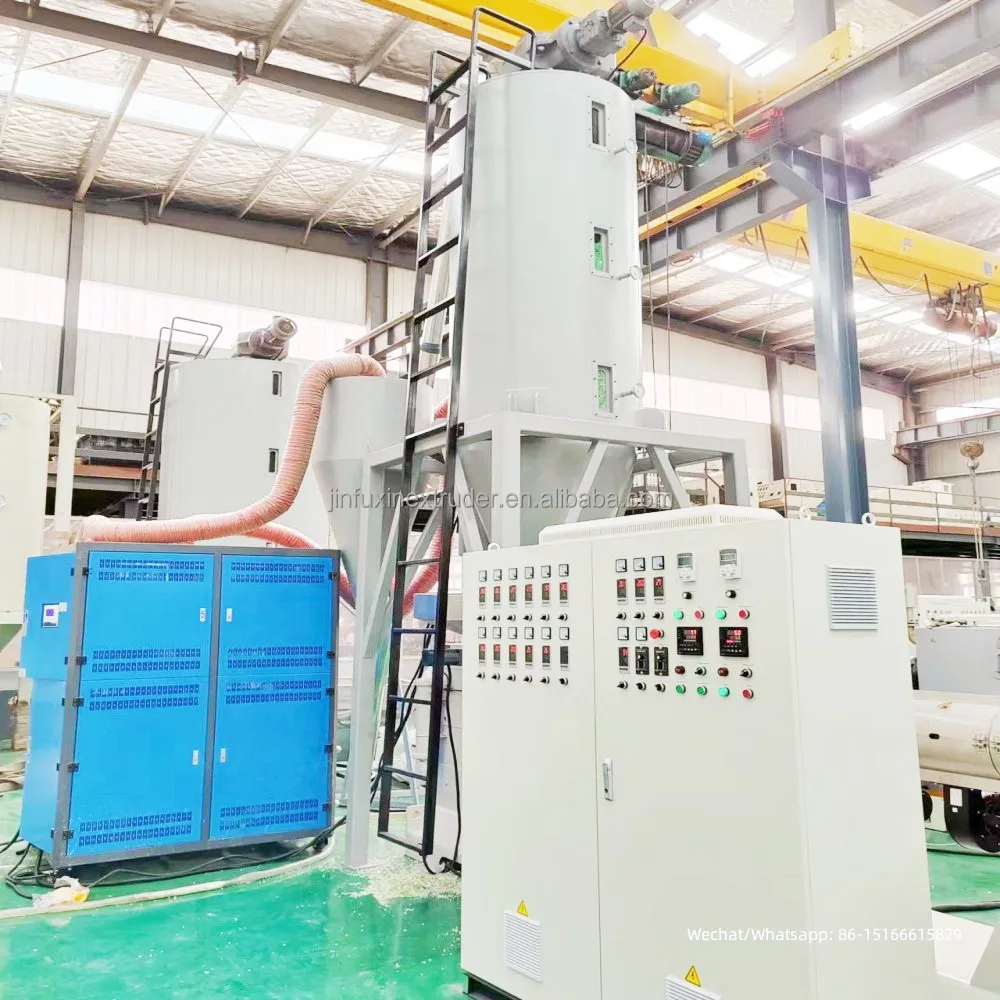

2. Vertical PET drying & dehumidifying system
---special rotators for pet botlle flakes dryign and dehumidifying
----machine capacity can be 70-300kg.h
3. S single screw extruder
----special treated screw & barrel

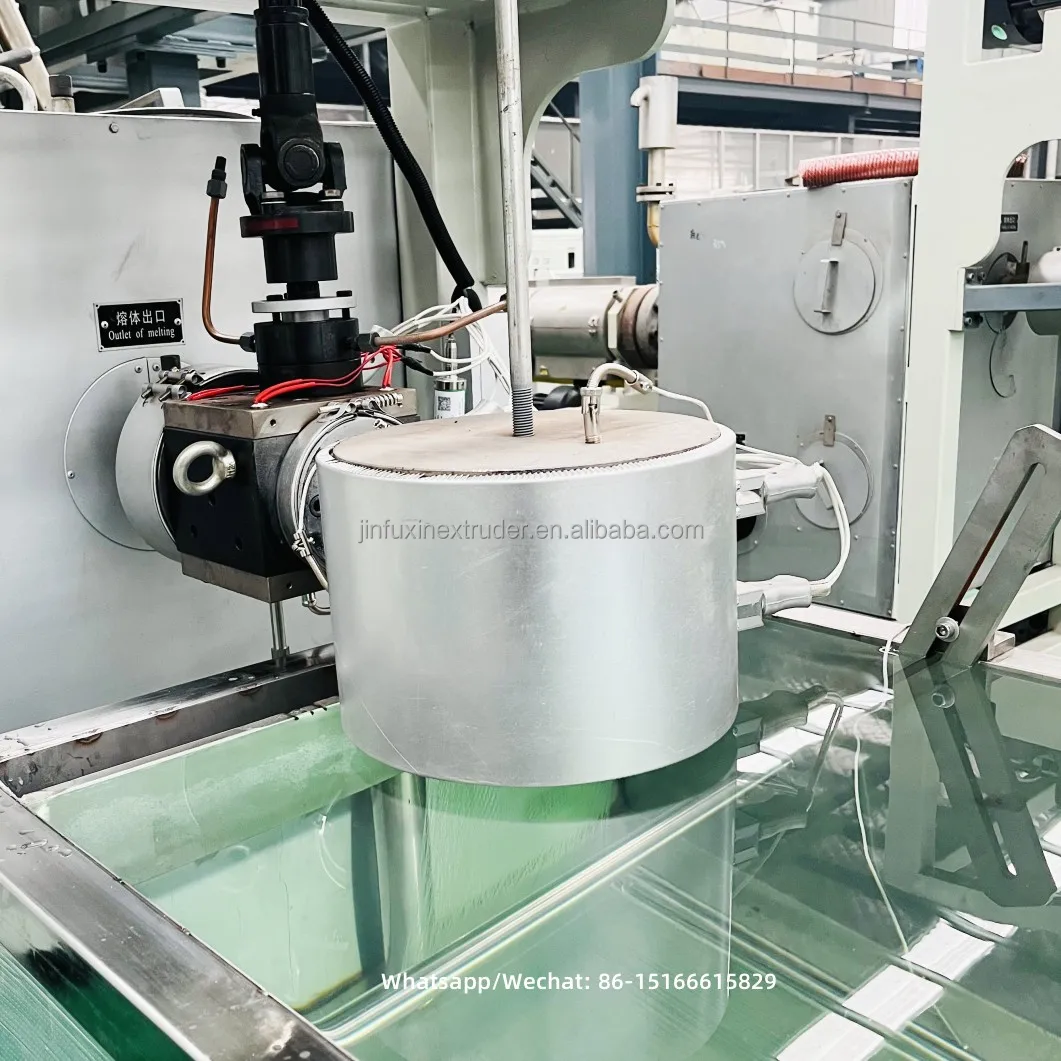

4. Material Filter, Melt pump, Extrusion Mould & Cooling Tank
--- candle type filter, bigger filtering area, no need change filter net shortly.
----Close--loop control system from extruder to melt pump, by which extrusion can be automatically controlled by melt pump.
----Melt pump ensures stable extrusion
----Melt pump ensures stable extrusion
---304 stainless steel water cooling tank
5. Extrusion Mould
---produce different size monofilaments
---hole quantity can be changed

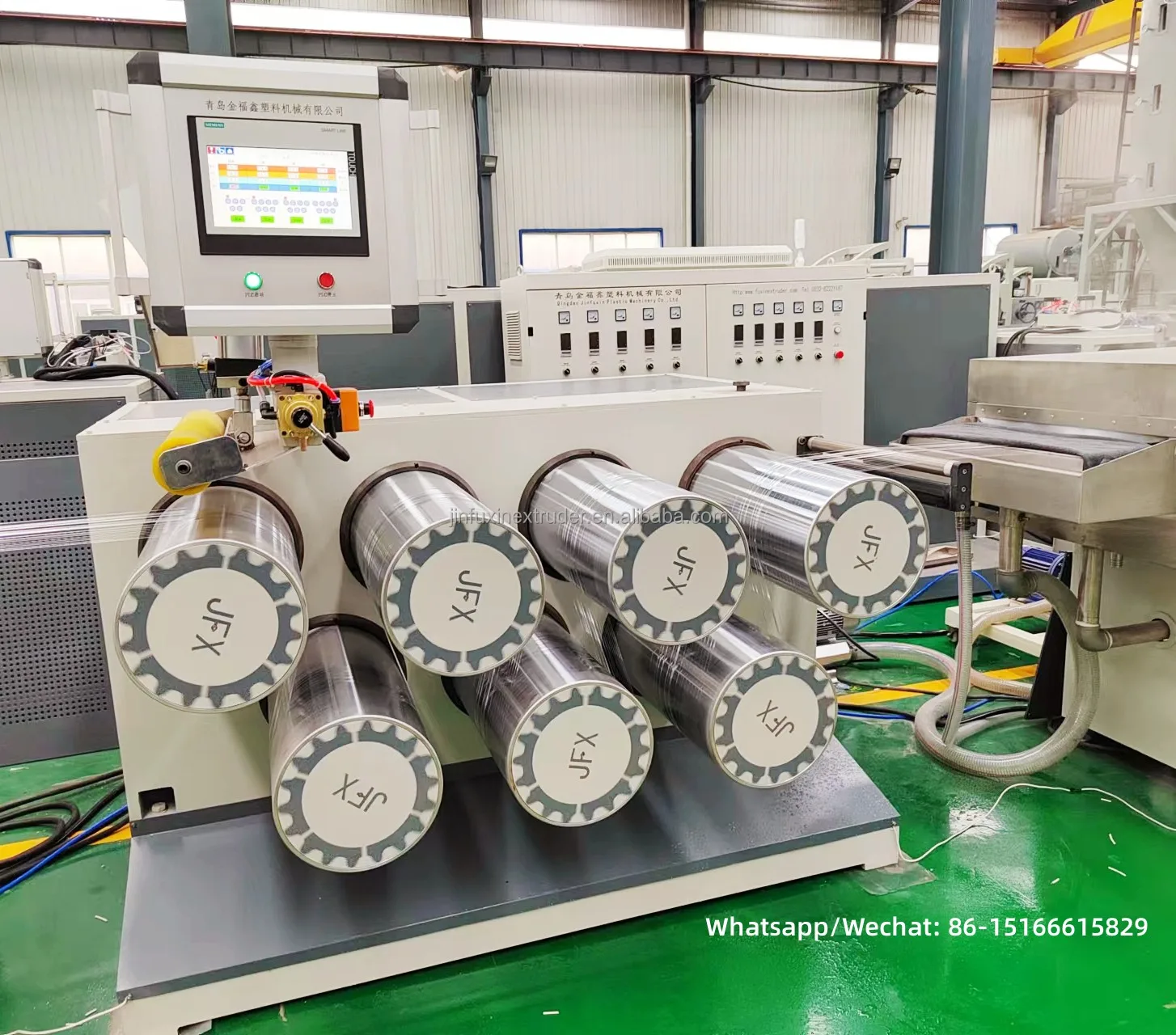

6. Haul-off Rollers
--gear transmission
---chromized rollers

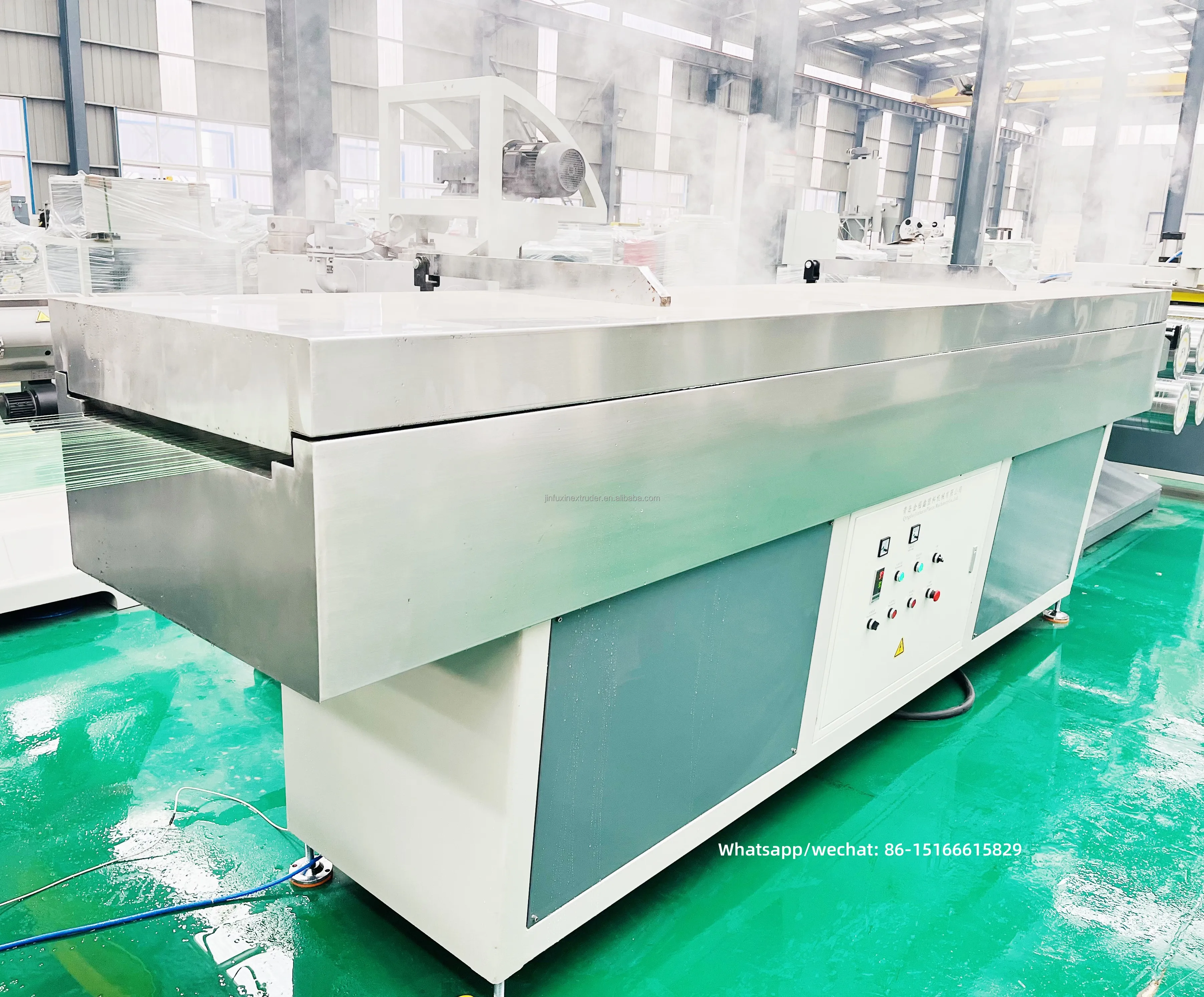

---rollers are PLC synchronized speed control7. Water Oven
---made by 304 stainless steel

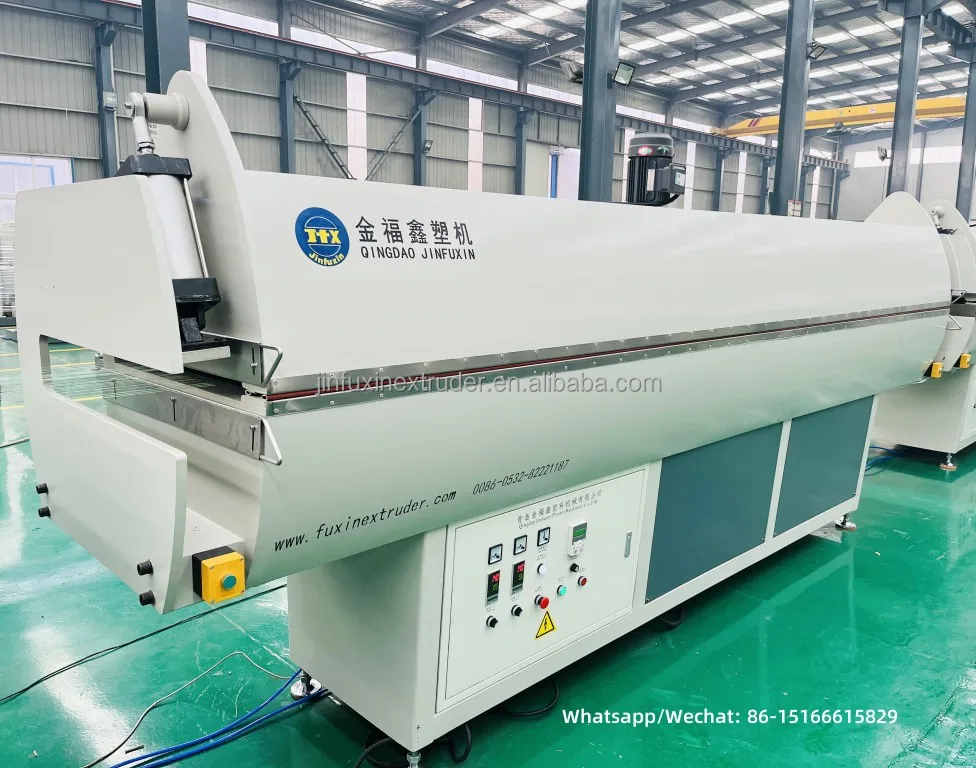

8. Air Oven
---forced air blowing system
---inverter control
---good heat-preservation
9. Online shaping

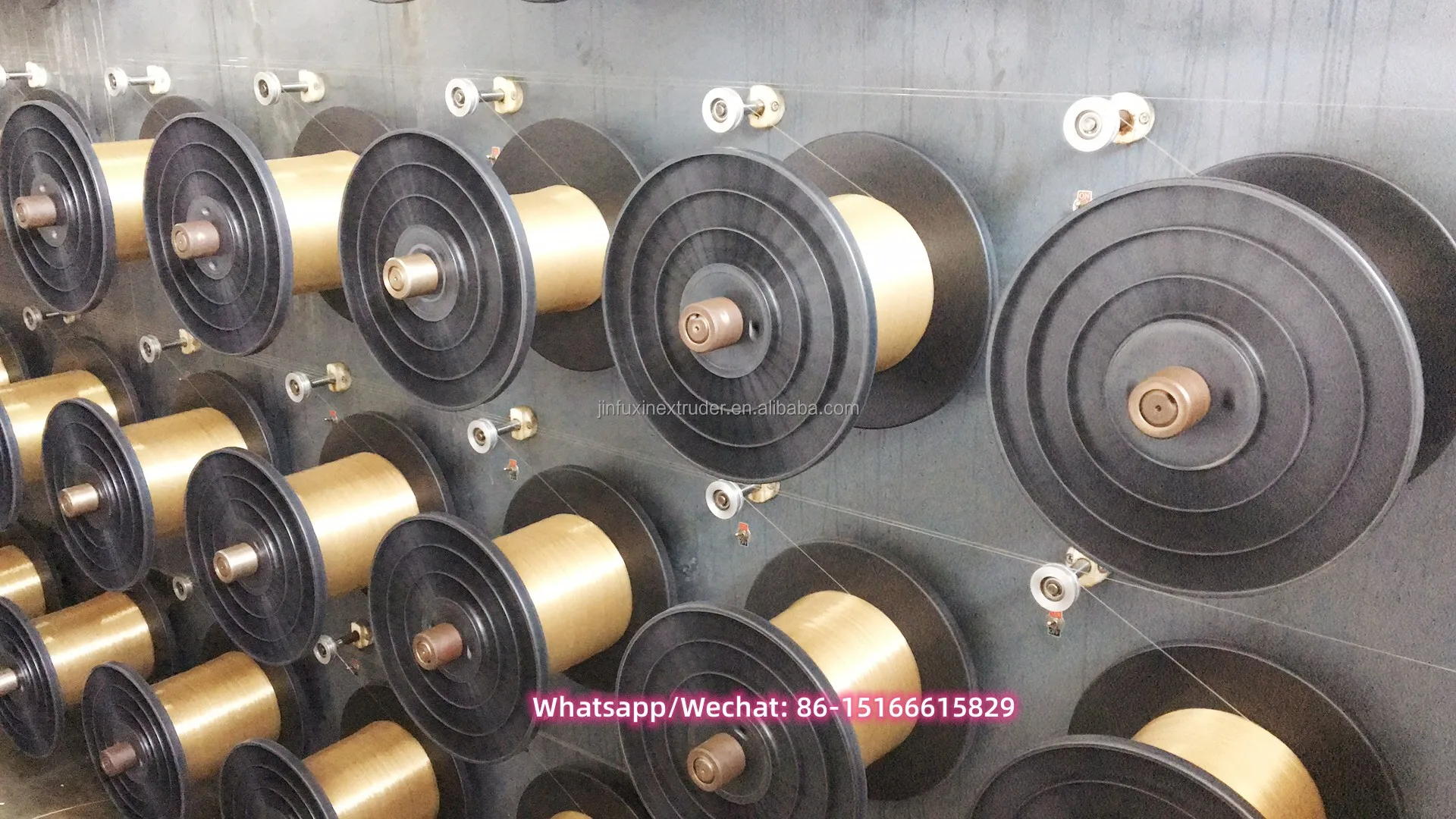

10. winding machine
--I-wheel bobbins
--winding weight: as customer needs
Machine packaging & Delivery
Company Profile
Qingdao Jinfuxin Plastic Machinery Co., Ltd is one professional plastic strap & plastic monofilament extrusion machinery facotry in QINGDAO, CHINA. It was founded in 2002, covers an area of 15000 square meters.
QINGDAO JINFUXIN PLASTIC MACHINERY CO., LTD is engaged in Plastic Extrusion Machinery design, research and production. But the main products are Plastic PET/PP/HDPE/PVC Monofilament Extrusion Line, Plastic PET/PP Strap Extrusion Line. 80% of machines are for exportation, including USA, Mexico, Brazil, India, Russia, South Africa, South Korea, etc.
QINGDAO JINFUXIN PLASTIC MACHINERY CO., LTD is engaged in Plastic Extrusion Machinery design, research and production. But the main products are Plastic PET/PP/HDPE/PVC Monofilament Extrusion Line, Plastic PET/PP Strap Extrusion Line. 80% of machines are for exportation, including USA, Mexico, Brazil, India, Russia, South Africa, South Korea, etc.
