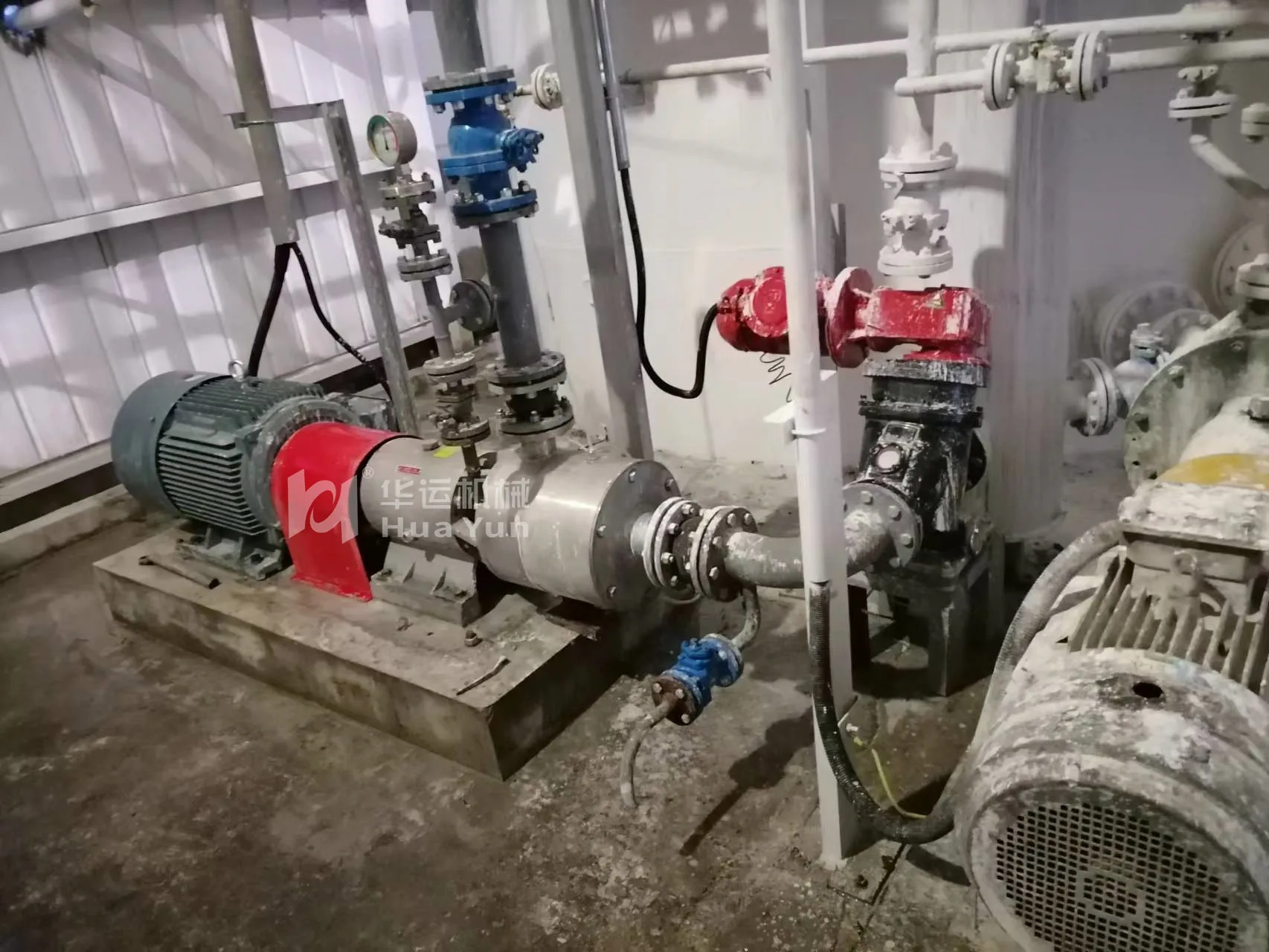

Single stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers
Single-stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers
Single-stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers
Single-stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers
Single-stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers
Single-stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers
Single-stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers

Single stage Inline mixer,Inline homogenizer,High Shear Homogenizers mixers

Share on (62363541706):


Price:$3,000.00 - $5,000.00

Quantity:


Product Overview

Description



Brief introduction of Hefei Huayun Machinery Manufacturing Co.,Ltd
Hefei Huayun Machinery Manufacturing Co.,Ltd was established in 1995.Our company is a high-tech enterprise specialized in R&D,manufacturing and sales of fluid machinery equipment in China.With more than 20 years experience,we have served more than 3000 customers all over the world.So our team can help you choose equipment and supply best service to you.With the concept “Serve the world with high quality”,we must become your trusted and reliable partner when you choose us.


Why choose us?
1、R&D,manufacturing emulsifying pump by ourself;
2、With more than 20 years experience and served more than 3000 customers;
3、Single-stage pump,double stage pump and three-stage pump availiable for you;
4、Different material availiable for you;
5、Good after-sales service;
6、You are welcome to visit our factory at any time.

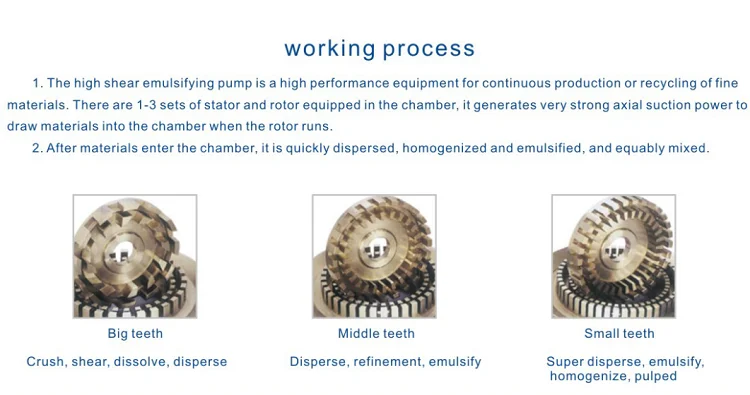

Product working principle
The high shear emulsifying pump working chamber is equipped with one set,two sets or sets of rotating staors,there are end suction ceilings and horizontal cantilever structures.Each level is two to six layers,and is composed of primary,secondary or three stage high speed rotating stators.The motor and the working head are elastically connected.The bearing can be greased or lubricated,it is easy to disassemble and install,and the cost of replacement parts is low.The double-faced mechanical seal is used.The applicable temperature is -20-140 degree celsius,and the temperature range needs to be customized.




Work Requirement
Pressure<18 bar,vacuum>0.3bar,material temperature<150°.The flow will reduce 20% if viscosity increase every 1000mpas,and must be pumped into the emulsifying pump when the viscosity is about 3000mpas.Anti-explosion is optional.

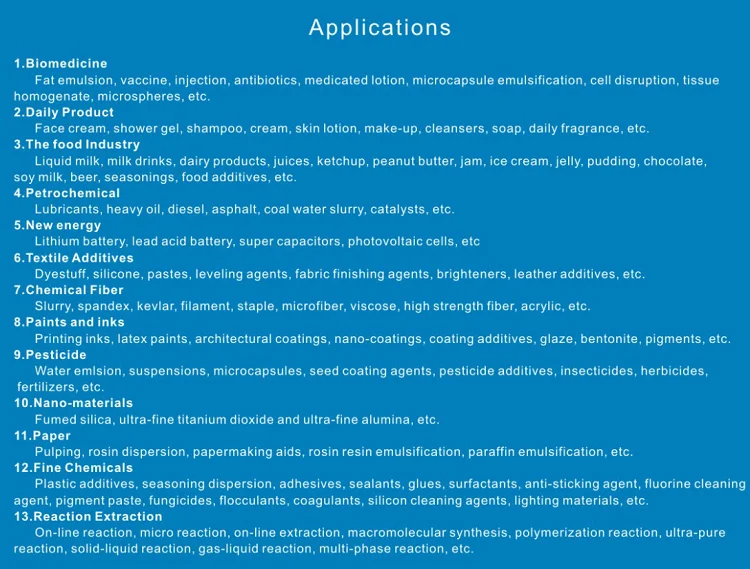

Applications
Mixture of Liquid-liquid,solid-liquid,coatings,paints,food,metal oxide suspension,oil-water mixture,accurate reaction,nanoscale chemicals,etc.
