Product Overview
Description
Product Description
Name | medical hi-pot tester |
The output voltage | AC DC 0 to 5kV |
Test current | AC 0-2/20mA DC 0-2/10mA |
Test accuracy | ± (5% + 3 words) |
testing time | 0.0s to 999s 0.0=Continuous test |
Transformer capacity | 100VA |

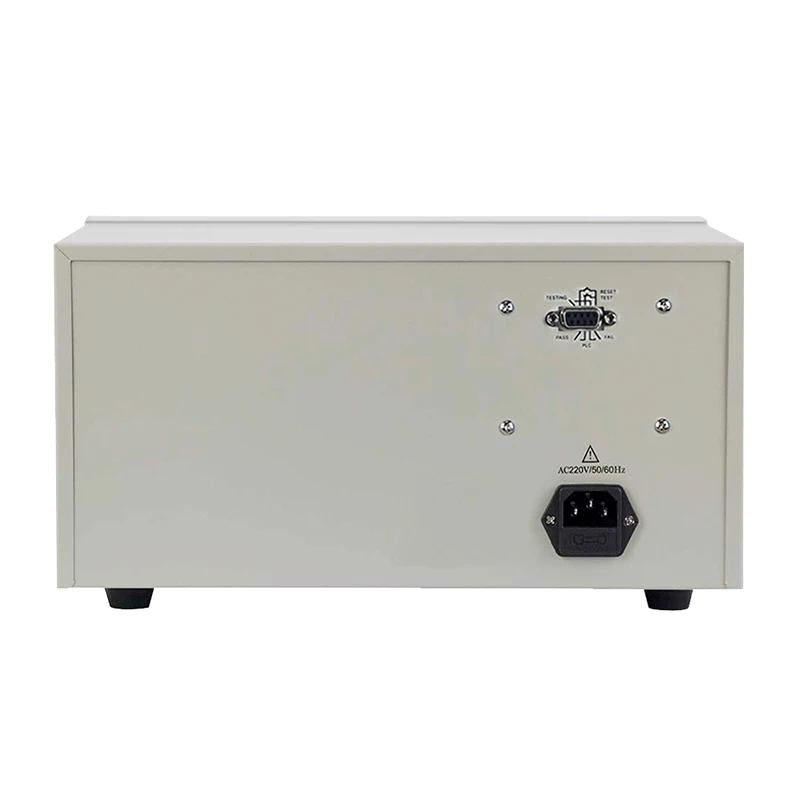

PLC interface | Optional |
Power requirement | AC 220V ± 10% 50Hz / 60Hz ± 3Hz |
working environment | Temperature (0-40) °C Humidity ≤ 75% RH |
Dimensions | 320*270*180mm |
weight | 9.5kg |

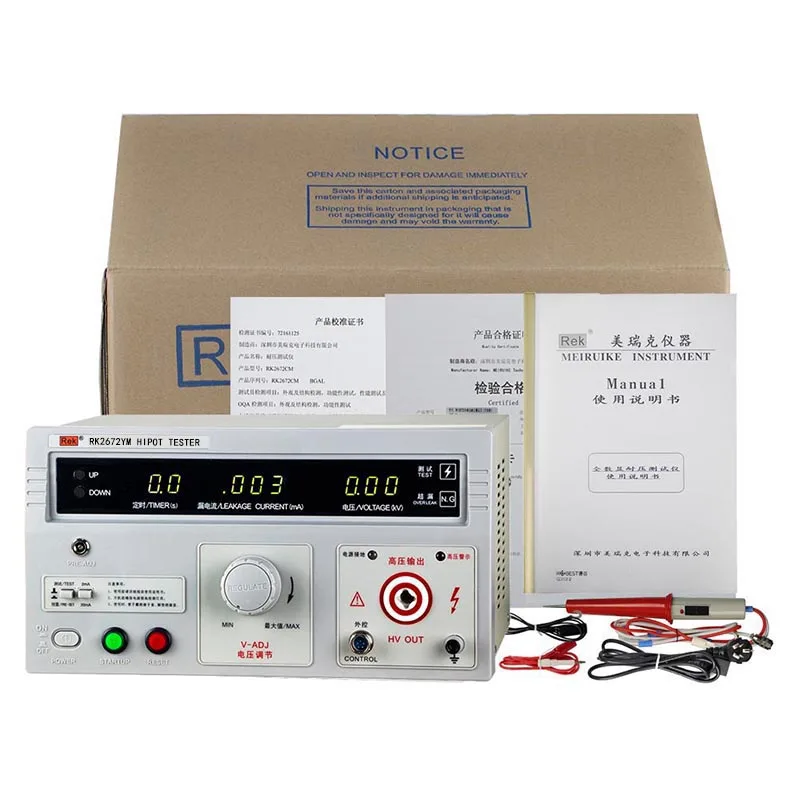

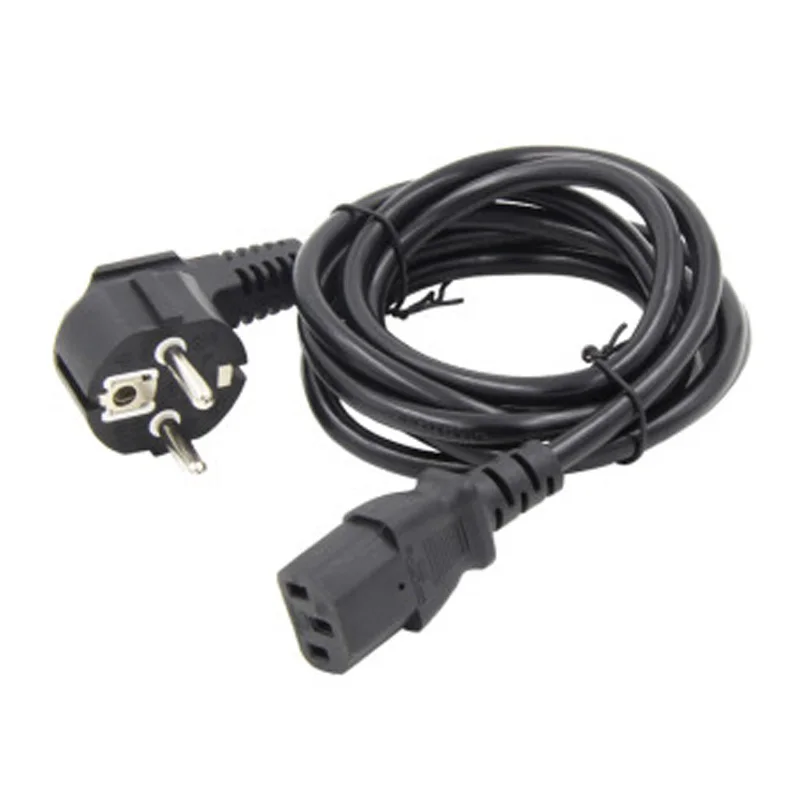

Accessories | Withstand voltage test bar, test line, ground wire, power cord |
- product description

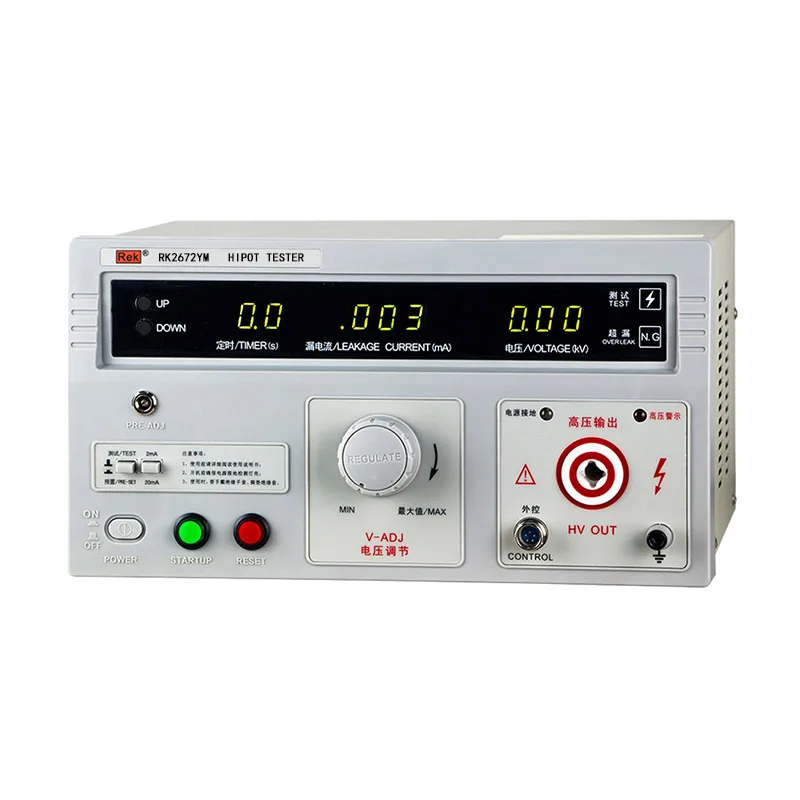

The RK2672YM medical withstand voltage tester has all the functions of the conventional pressure side meter, and adds an arc (flashover) detection function. Through an external oscilloscope, the "flash" of the tested electrical equipment can be detected intuitively, accurately, quickly and reliably. "Net" phenomenon, when the electrical equipment under test has no "flashover" phenomenon, the oscilloscope displays a stable "Lissajous figure (ie a closed ring)". If the electrical equipment under test has a "flashover" phenomenon, then the Lissajous figure A large flashing of electrical equipment occurs on the edge to ensure the safety of the electrical equipment under test. This product is also suitable for all kinds of electrical equipment that need to detect "flashover" defects. It is an indispensable pressure tester for medical electrical equipment manufacturers, maintenance departments, users, product quality inspection departments and technical supervision departments.
Details Images
Double-headed BNC line
Remote control high pressure test gun
Standard grounding test line
Product Usage
1, medical equipment: all kinds of new medical equipment and medical equipment, cardiac monitoring, medical imaging, biochemical analysis equipment, blood pressure meter and thermometer and other home medical equipment,
2, diagnostic and treatment equipment: X-ray diagnostic examination equipment, ultrasound diagnosis, nuclear medicine, endoscopy system, ENT diagnosis and treatment equipment, dynamic analysis and diagnosis equipment, cryogenic refrigeration equipment, dialysis diagnosis and treatment equipment, first aid equipment,
3, hospital care equipment and appliances: all kinds of beds, cabinets, surgical chairs, beds, etc.
4, auxiliary equipment: medical care data and image processing equipment, rehabilitation equipment for disabled people, etc.
5, oral medical equipment: dental diagnostic medical equipment, dental surgical equipment, dental technology equipment
6, medical magnetic resonance equipment
1, the test time can reach 999s
2, leakage current, voltage, time display simultaneously
3, leakage current, test time can be set continuously
4, with an oscilloscope interface, can monitor the ignition of the object under the arc and flashover phenomenon
5, GB9706.1-2007 (IEC60601-1: 1988) experimental voltage requirements: flashover phenomenon or breakdown should not occur during the experiment. The medical withstand voltage tester has specially added an oscilloscope interface to observe flashover and arcing through the Lissajous figure.
