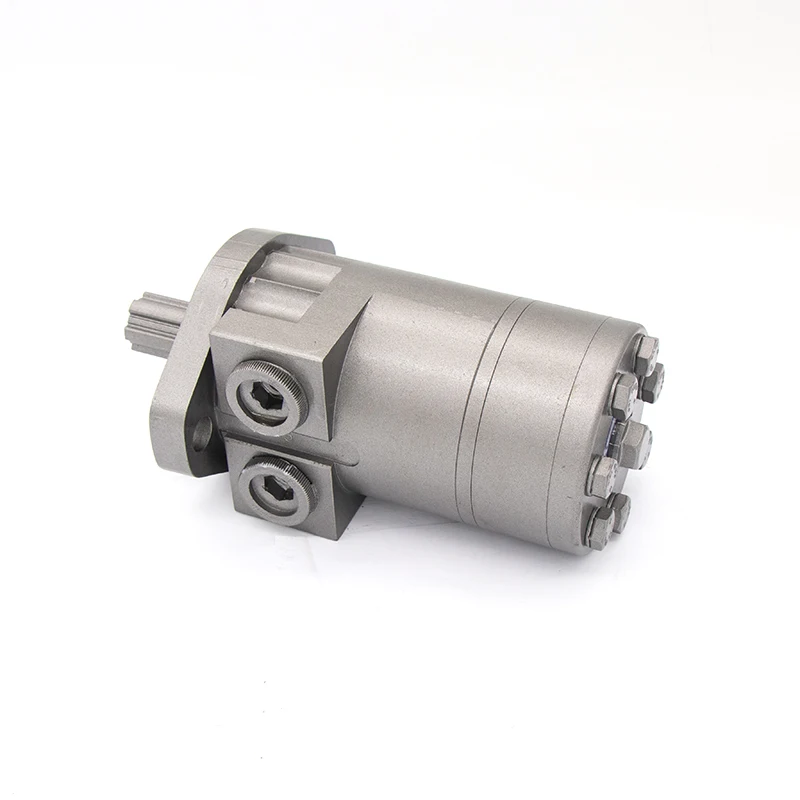

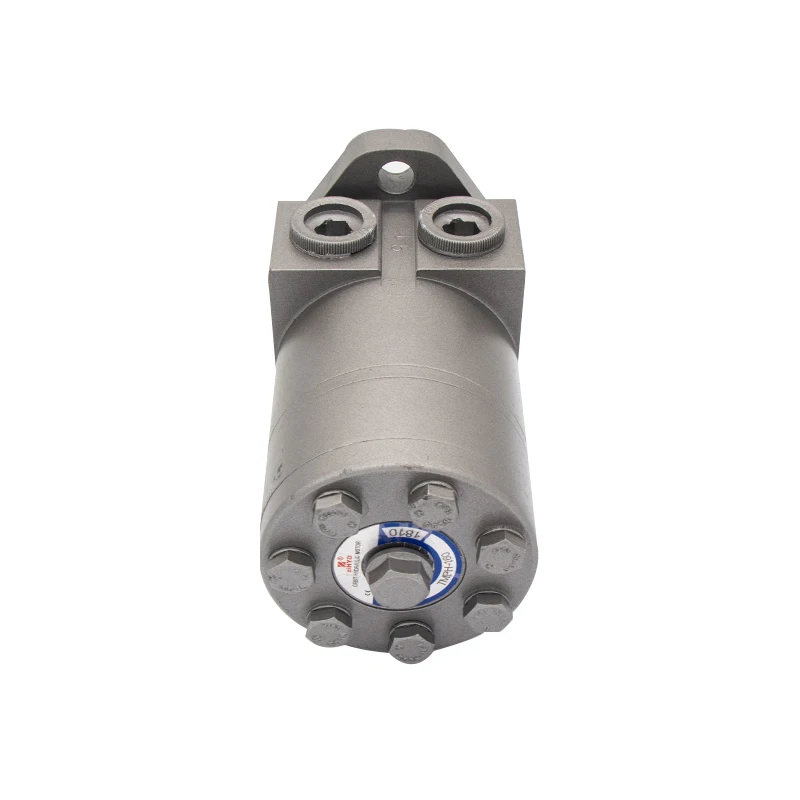

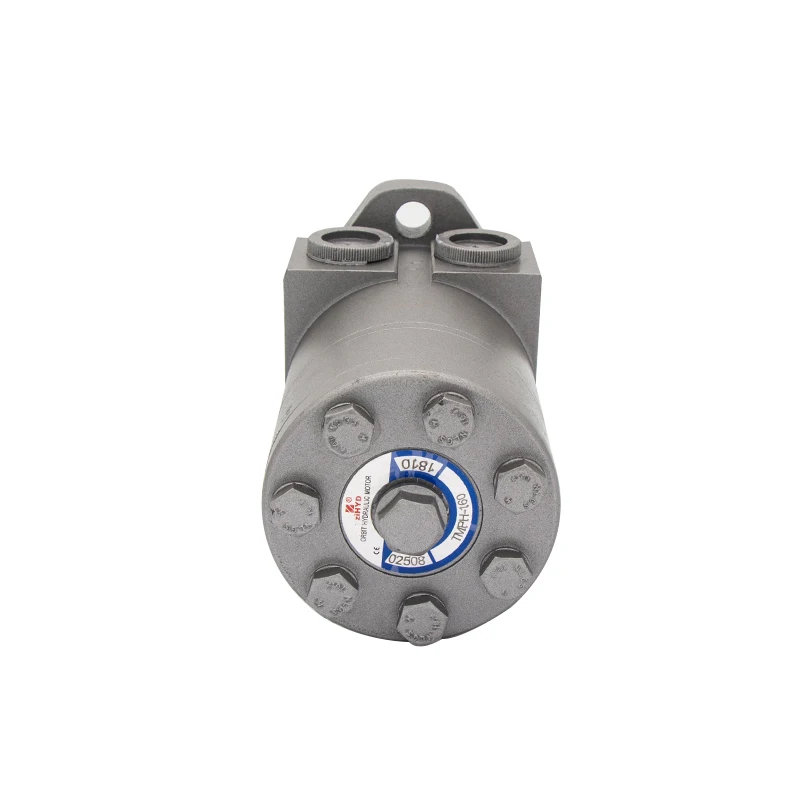

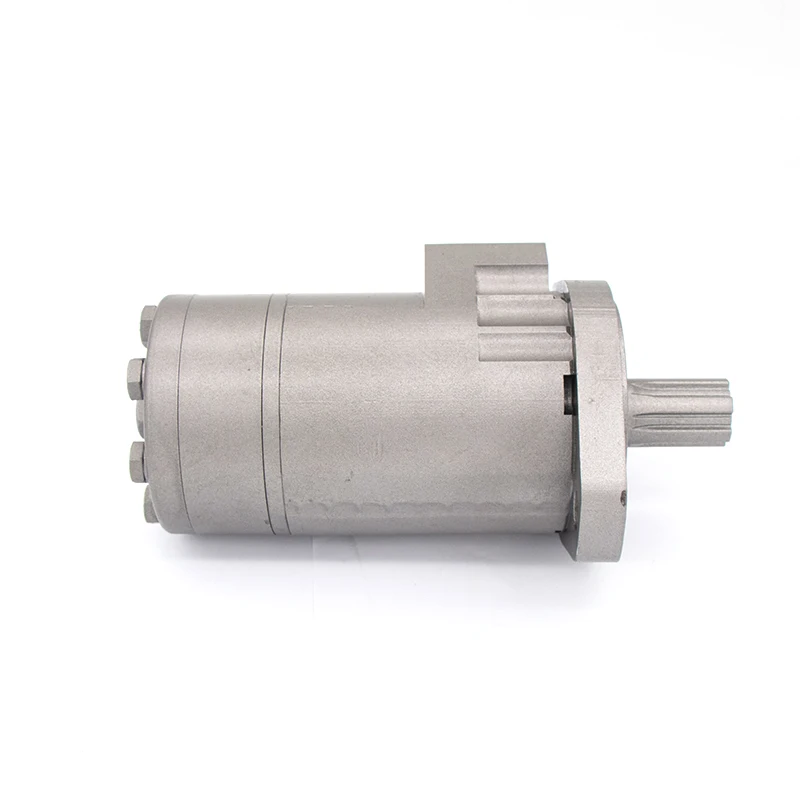

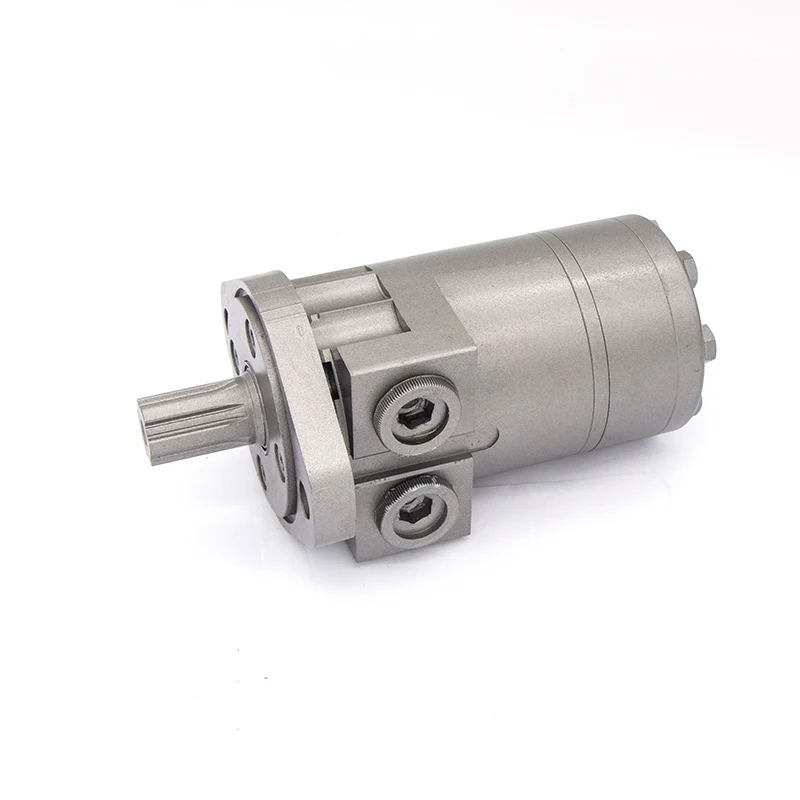

ziHYD/THOTH spares hydraulic orbital motor spool valve motor for danfoss
- Category: >>>
- Supplier: Ningbo Zhongyi Hydraulic Motor Co. Ltd.
Share on (62363662142):
Product Overview
Description
| TYPE | TMPH-50 | TMPH-80 | TMPH-100 | TMPH-125 | TMPH-160 | TMPH-200 | TMPH-250 | TMPH-315 | TMPH-400 | |
| Displacement(ml/r) | 49.3 | 76.6 | 95.8 | 120.4 | 153.2 | 191.6 | 240.8 | 306.5 | 383.1 | |
| Max.Pressure.Drop(Mpa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 |
| int. | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11 | 9 | |
| peak. | 20 | 20 | 20 | 20 | 20 | 20 | 16 | 13 | 11 | |
| Max.torque(N.m) | cont. | 90 | 140 | 175 | 220 | 280 | 350 | 350 | 360 | 350 |
| int. | 115 | 175 | 220 | 275 | 355 | 440 | 445 | 445 | 455 | |
| peak. | 130 | 205 | 255 | 320 | 410 | 510 | 515 | 530 | 555 | |
| Max. Speed (cont.)(r/min) | 810 | 780 | 625 | 495 | 390 | 310 | 245 | 195 | 155 | |
| Max.Flow(cont.)(L/mim) | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Max.Output.Power(cont.)(Kw) | 6.4 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 7.4 | 6 | 4.8 | |
