1Ton 800KW electric Induction furnace for melting steel iron copper aluminium
- Category: >>>
- Supplier: Henan Rongke Electrical Manufacturing Co. Ltd.
Share on (62363700185):
Product Overview
Description
Product Description

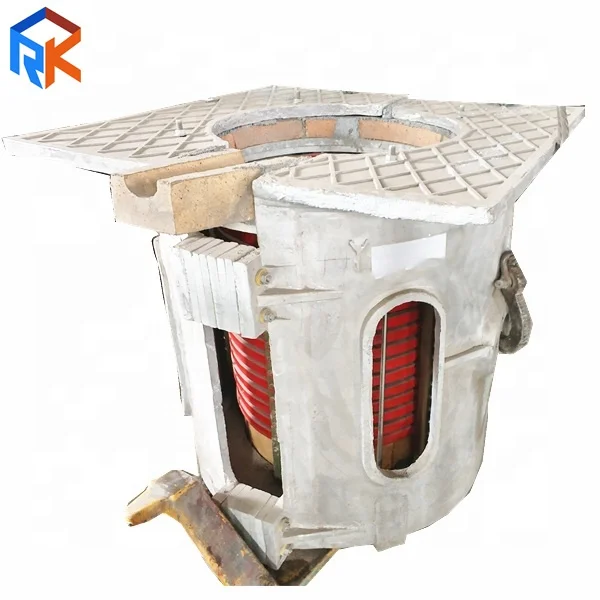

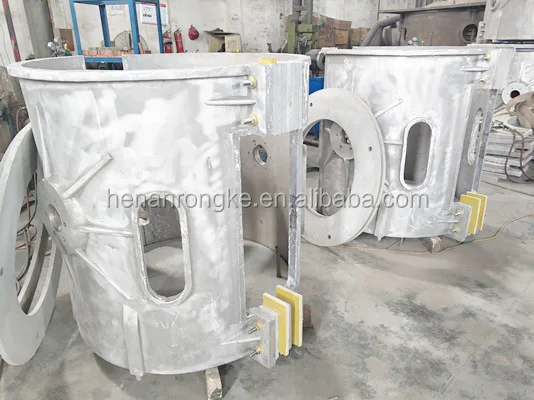

Our factory also have less cost aluminium shell induction furnace, this type furnace with aluminium shell have same melting speed compared to steel frame furnace.
FEATURES:
1.High quality aluminium shell cover, looks magnificient and beautiful, the aluminium shell cover has small weight and can be easily installlation and operate, maintenance.
Description of application effect
使用效果描述
使用效果描述
2. easy installation and maintenance for aluminium shell induction furnace set. Even though simple weld steel structure can support the aluminium shell furnce body for melting.

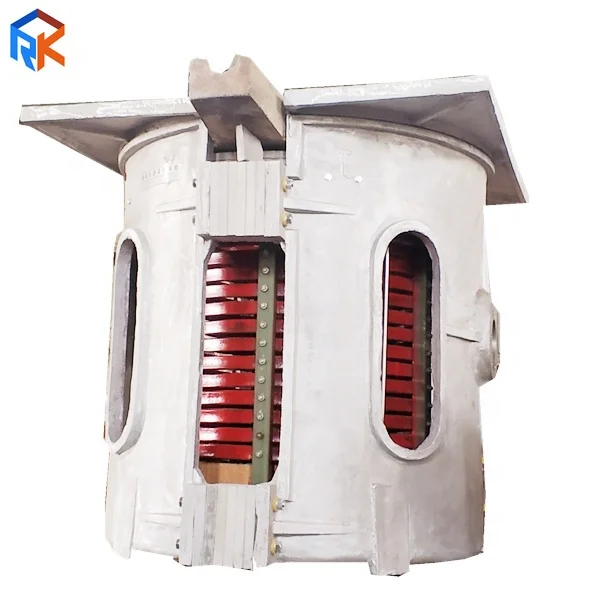

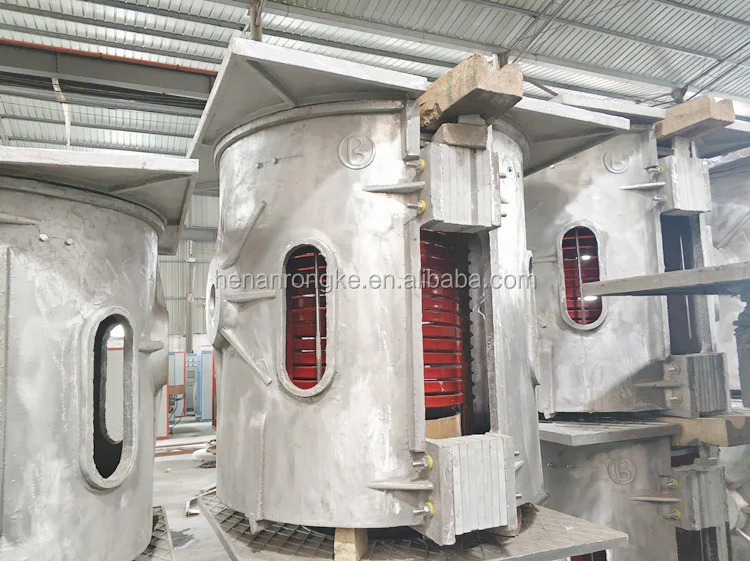

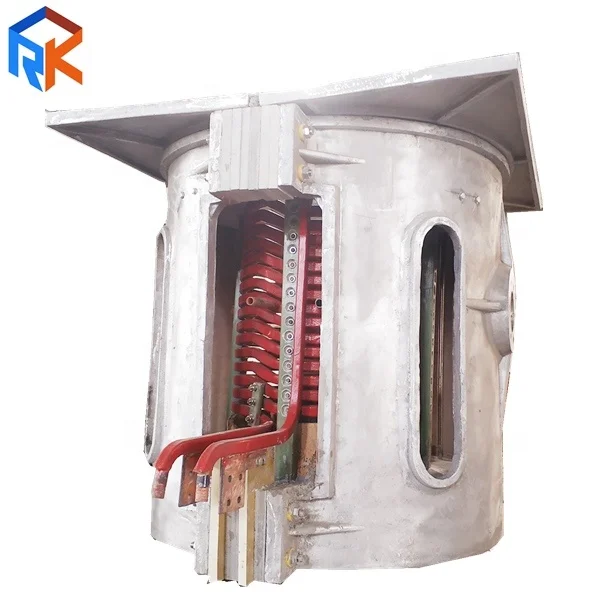

5.Induction copper coil:
The coil assembled from a solid, durable and highly conductive T2 copper tube. The copper tube is Chinalco Luoyang Copper Co., Ltd brand product. The water-cooled coil and the effective coil are integrally formed by a copper tube without segmentation. The two adjacent copper tubes of the induction coil are strictly insulated and adopt advanced segmentation technology. An insulating sheet is implanted between adjacent induction coils. After the insulating varnish is sprayed, it becomes a complete structure, and is pressed by the upper and lower steel structures in the furnace body, and the overall structure is firm and has no deformation problem. The coil turns are appropriate to achieve maximum electrical efficiency. The coil is supplied with cooling water from a plurality of water paths and evenly distributed. The outside of the coil is tightly wound with an insulating material. The inter-turn arc-shaped insulating spacers ensure uniform coil spacing and facilitate moisture removal.
Detailed Images
Product Items:
NO. | Quantity | ITEM | ||||

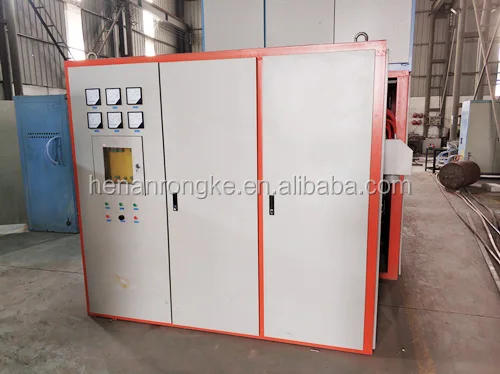

1 | one set | 800KW(One set), 1000HZ output power supply cabinet | ||||

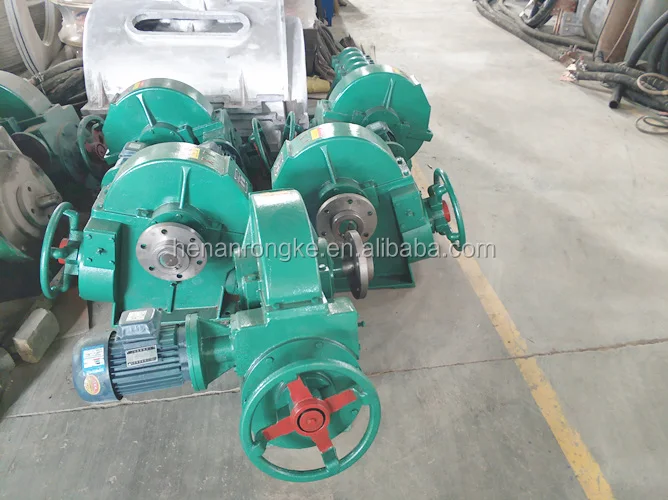

2 | Two | Induction melting Furnace body with reducers | ||||
3 | one set | Capacitor Assembly bank(Self cooling) | ||||
4 | two pieces | Water cooled cables | ||||
5 | one set | Technical documents, drawings and operation manuals | ||||
6 | one set | Necessary spare parts for power supply cabinet | ||||

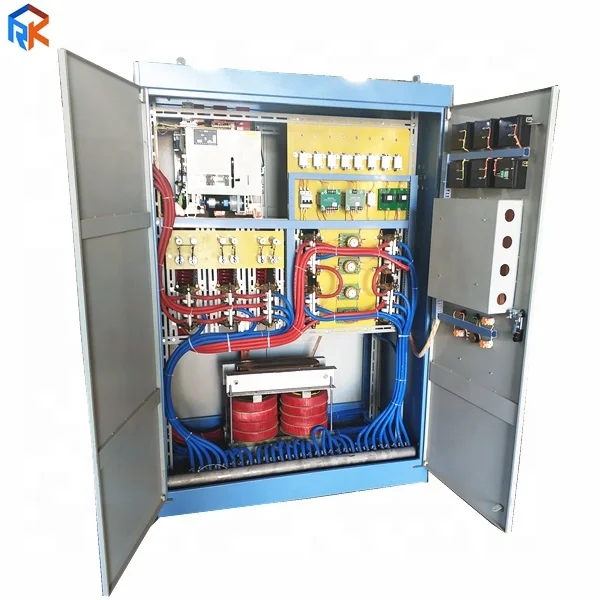

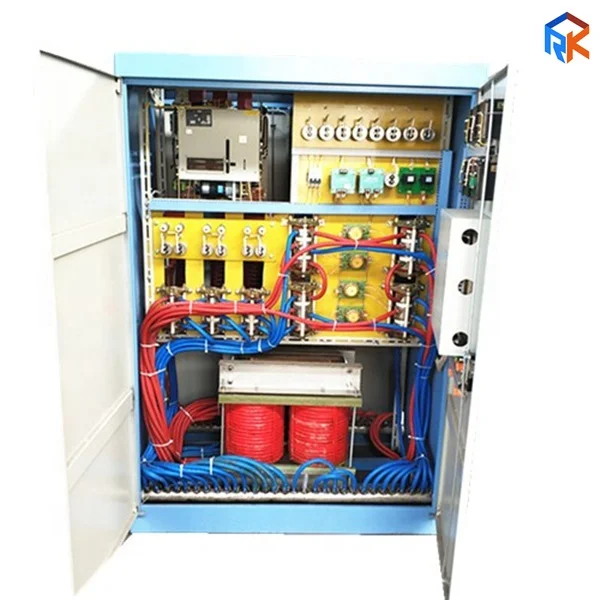

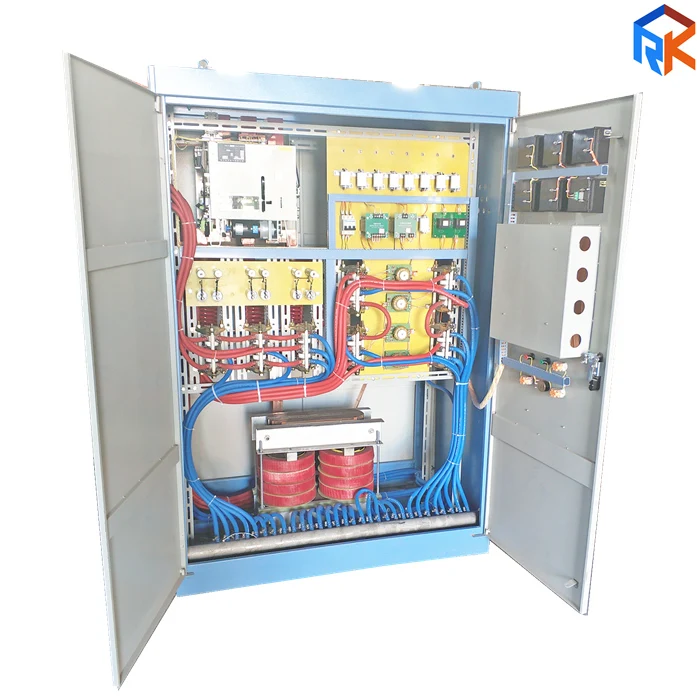

Power Supply Features
1.Advanced electronic circuit control, with over-voltage, over-current, limiting pressure, current limiting, lack of phase, undervoltage, underwater pressure, phase sequence automatic identification, cooling water temperature alarm protection and many other protection features. Power factor automatic adjustment function. From the cold charge to the heating during the entire cycle regardless of how the furnace conditions change can be achieved, automatically maintain the power to the furnace, so that the maximum amount of molten metal per kilowatt, the shortest same power heating time, thus increasing the profits of manufacturers,increased labor productivity.
2. Control line dedicated integrated box and high pressure area are fully isolated, keep the control room clean and cool. Greatly improve the control circuit board life and system reliability.
3.High-power converter devices preferred from international and domestic well-known manufacturers, and run at 50% of the rated capacity, so with 100% design safety factor, increasing the overall system reliability.

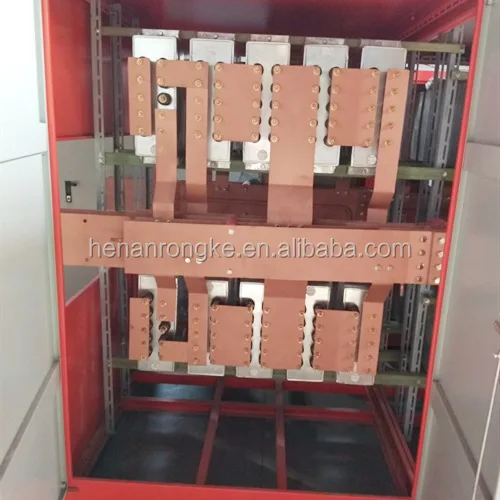

4.The equipment uses large air cooling copper, compared with the water-cooled copper, more energy for heating, increased efficiency, don't need maintenance.
5.Power start using zero voltage sweep start, no impact, in the state of no-load, heavy load, cold steel and other states can be reliable from the dynamic, stable and reliable, trouble-free for a long time and facilitate to maintenance.
5.Power start using zero voltage sweep start, no impact, in the state of no-load, heavy load, cold steel and other states can be reliable from the dynamic, stable and reliable, trouble-free for a long time and facilitate to maintenance.
Packing&Shipping

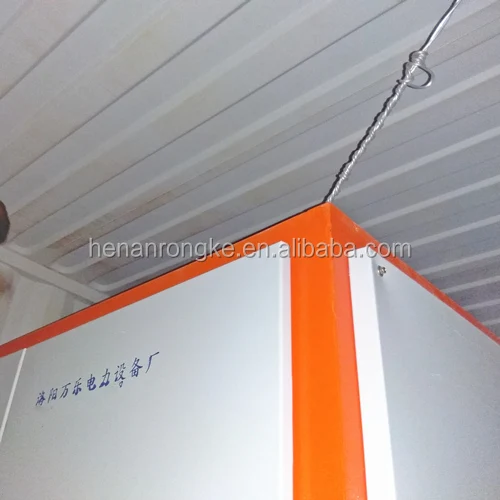

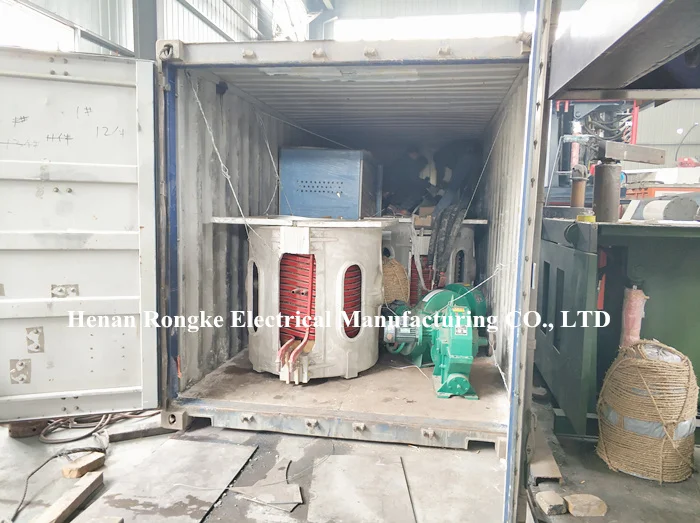

The whole equipment finished full and completely covered by container to delivery. The equipment will fixed by our factory in
container to prevent damaged by crash in the delivery process.
Small capacity furnace packaged by Plywood Case or as customers' request.
container to prevent damaged by crash in the delivery process.
Small capacity furnace packaged by Plywood Case or as customers' request.
After Sales Service

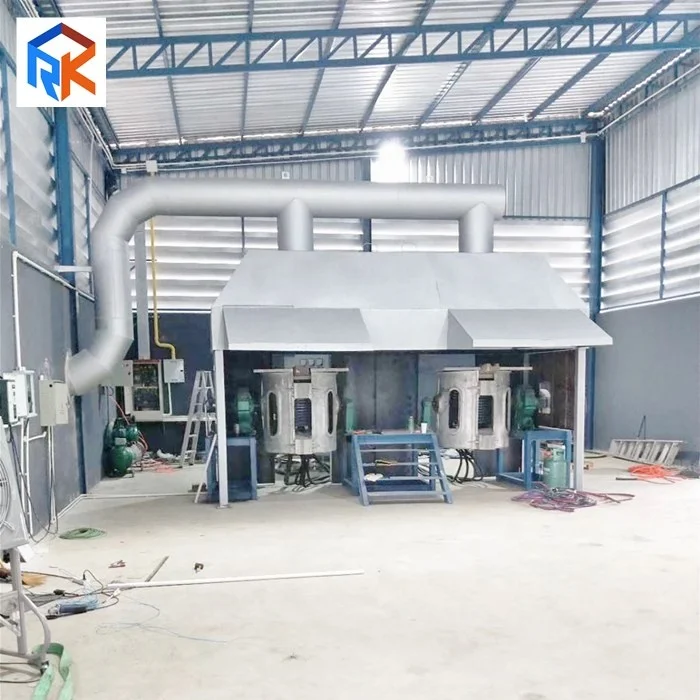

Installation and commissioning
The user should first according to our foundation and plane layout to layout the foundation for the building, in accordance with
the drawings and use the instructions to install the furnace and the power supply in place, water, circuit materials prepared
completely. We dispatch engineers to guide equipment installation,and responsible for Commisioning, When training and installation
just need pay wage to engineers.
the drawings and use the instructions to install the furnace and the power supply in place, water, circuit materials prepared
completely. We dispatch engineers to guide equipment installation,and responsible for Commisioning, When training and installation
just need pay wage to engineers.
Company Introduction
Our factory mainly products Intermediate frequency electric furnace(heating equipment and smelting equipment). Capacity 0.15 ton to 50 ton. Twin furnace body working simultaneously 20 minutes with our highest efficiency and have the patent of Mixed Hertz induction stirring melting furnace for alloy casting. Series inverter steel melting 550KWH per ton. New design billet induction heating equipment can be less than 300KWH per ton. Graphene new materials manufacturing furnace with technology can be supplied.
After thirty years development, we upgraded to Henan Rongke Electrical Manufacturing CO., LTD new factory more than 7000 square meters.
After thirty years development, we upgraded to Henan Rongke Electrical Manufacturing CO., LTD new factory more than 7000 square meters.
FAQ
1. How many sets induction furnace your factory have produced?
After twenty- eight years passed, produced more than 5000 sets induction furnace sets in the worldwide.
2. Do you have engineer overseas service?
Engineer overseas service available.
3. Where are your factory located?
Our factory located in Luoyang city, Henan Province.
