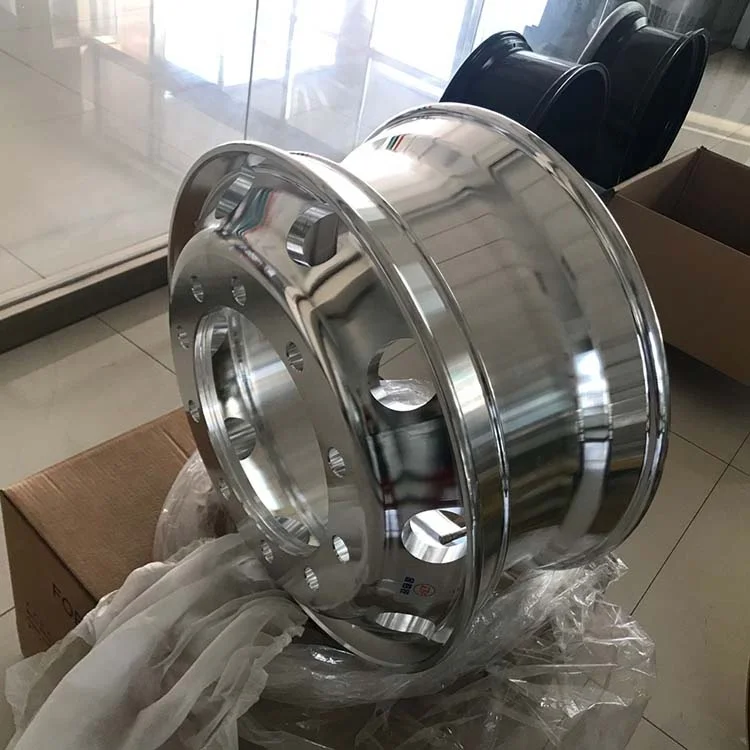

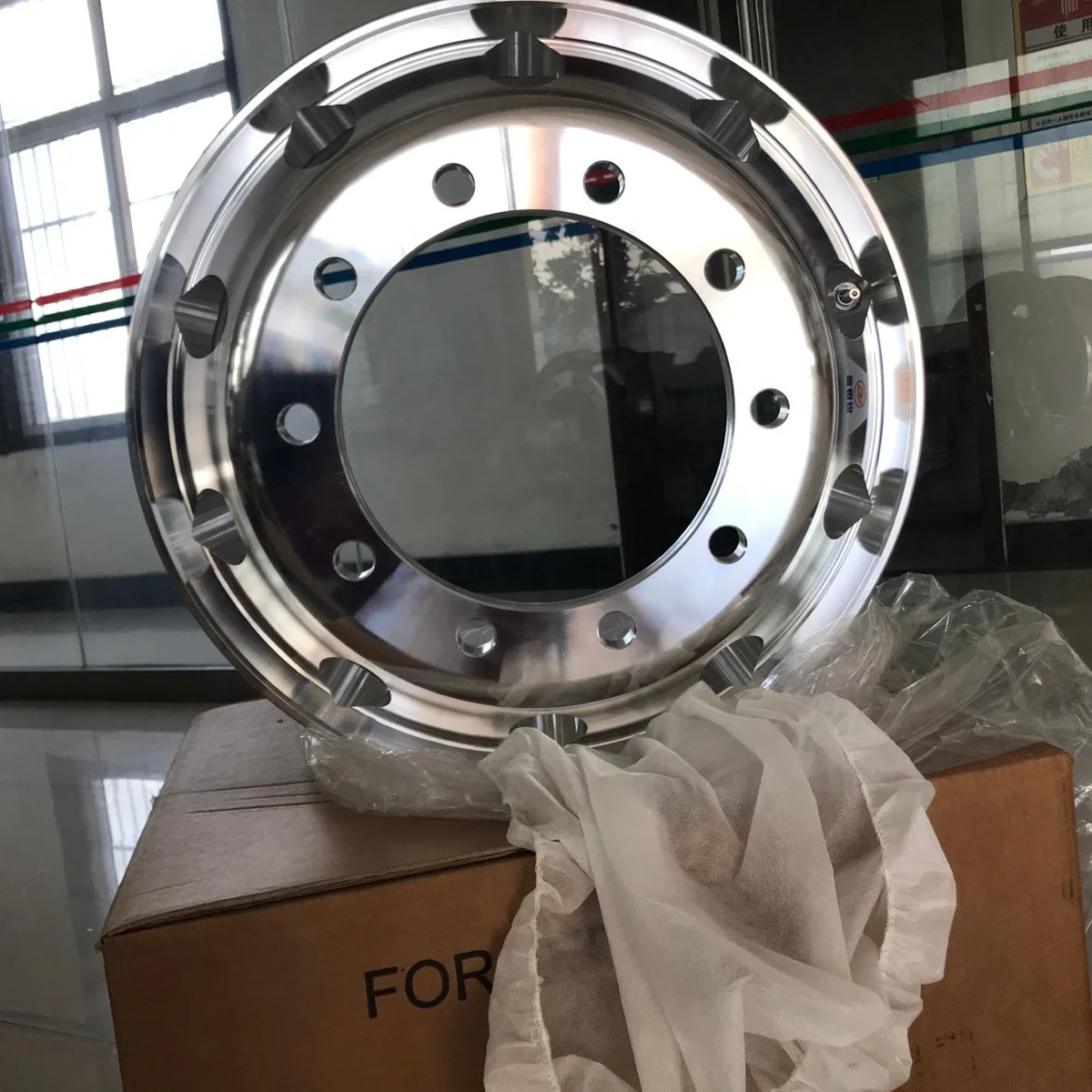

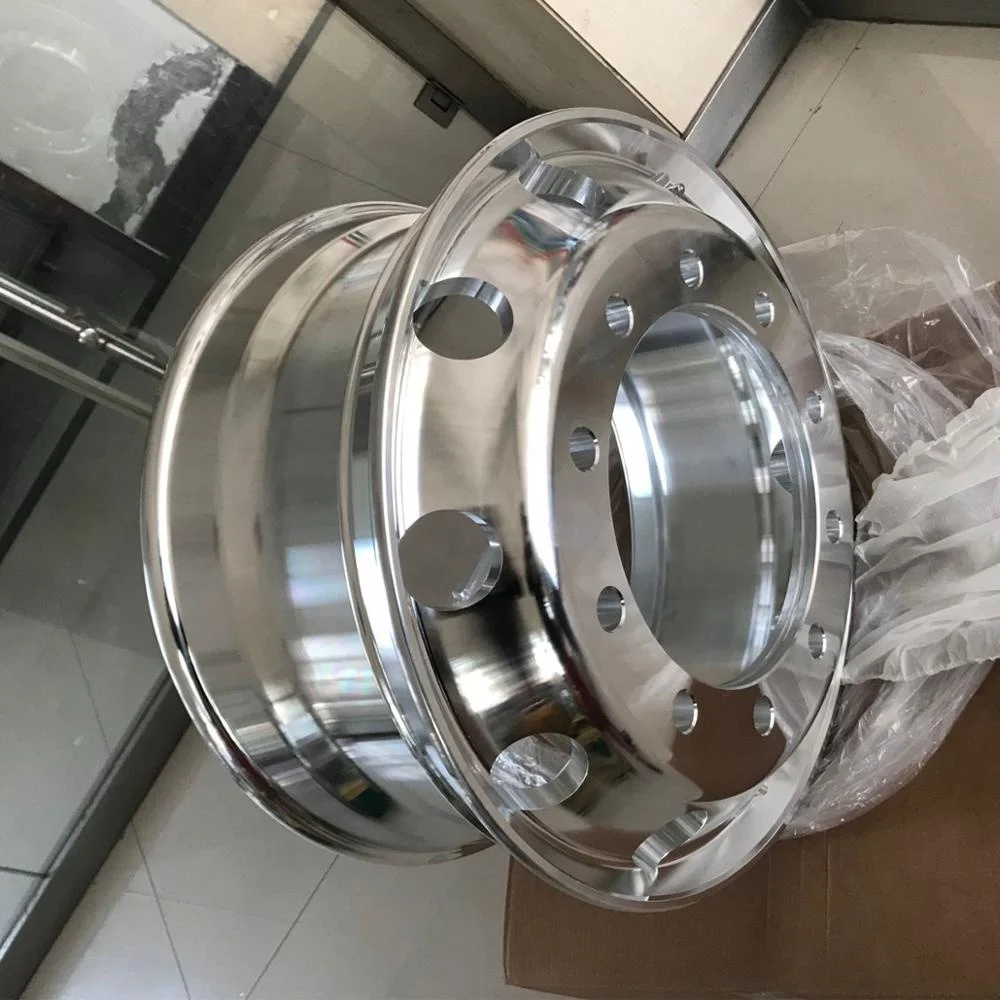

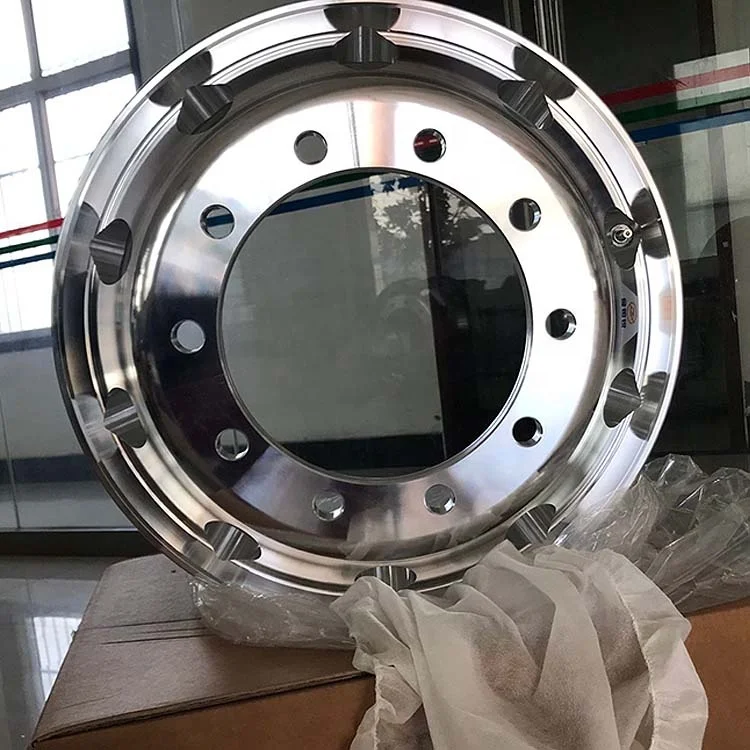

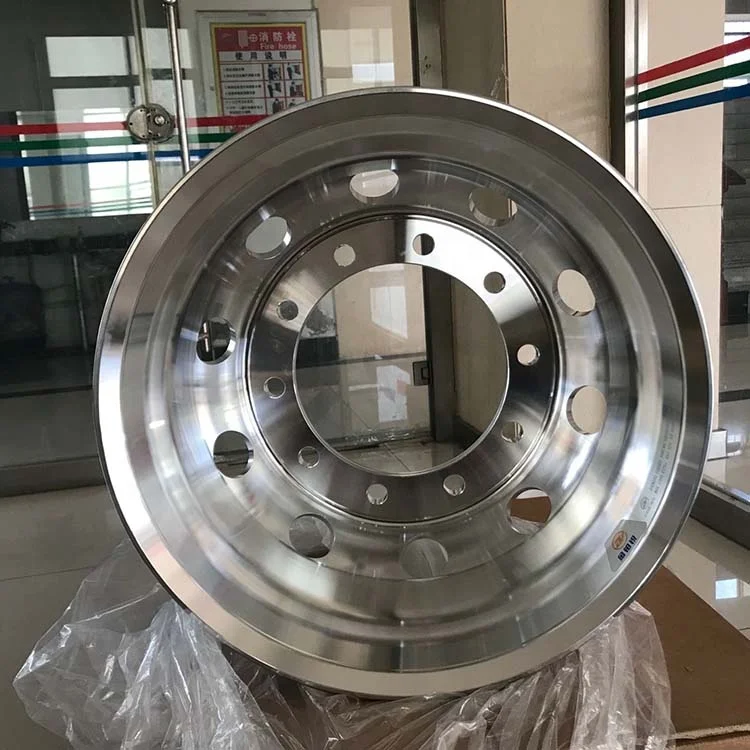

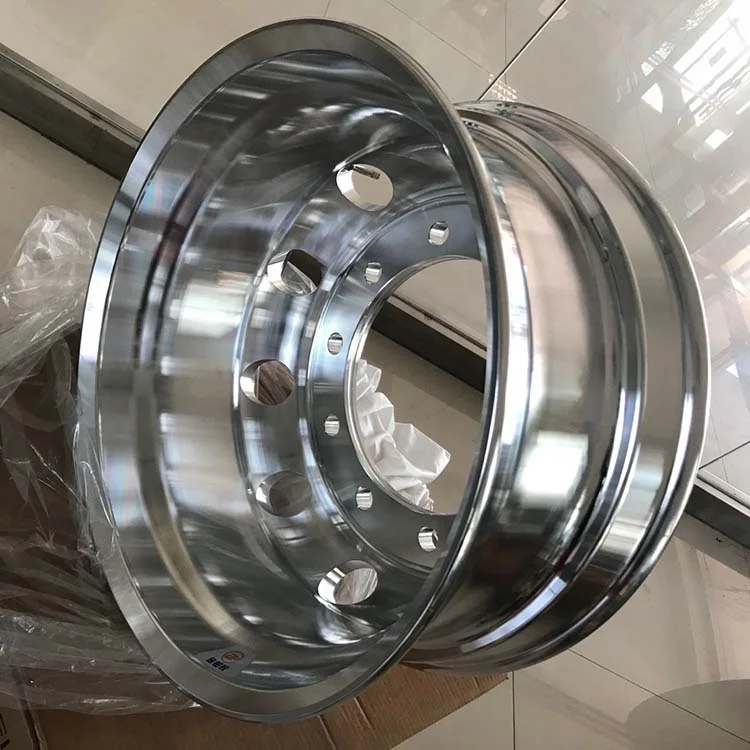

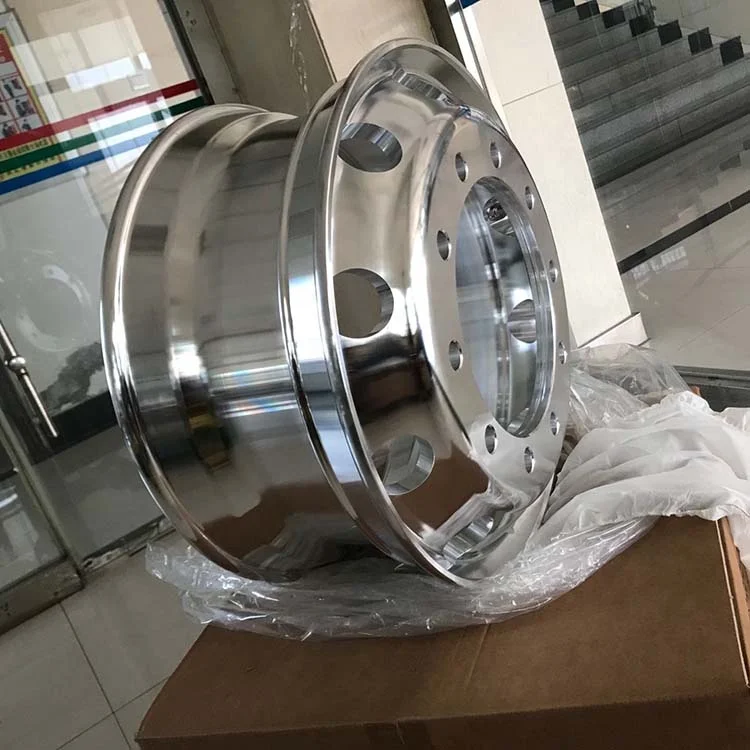

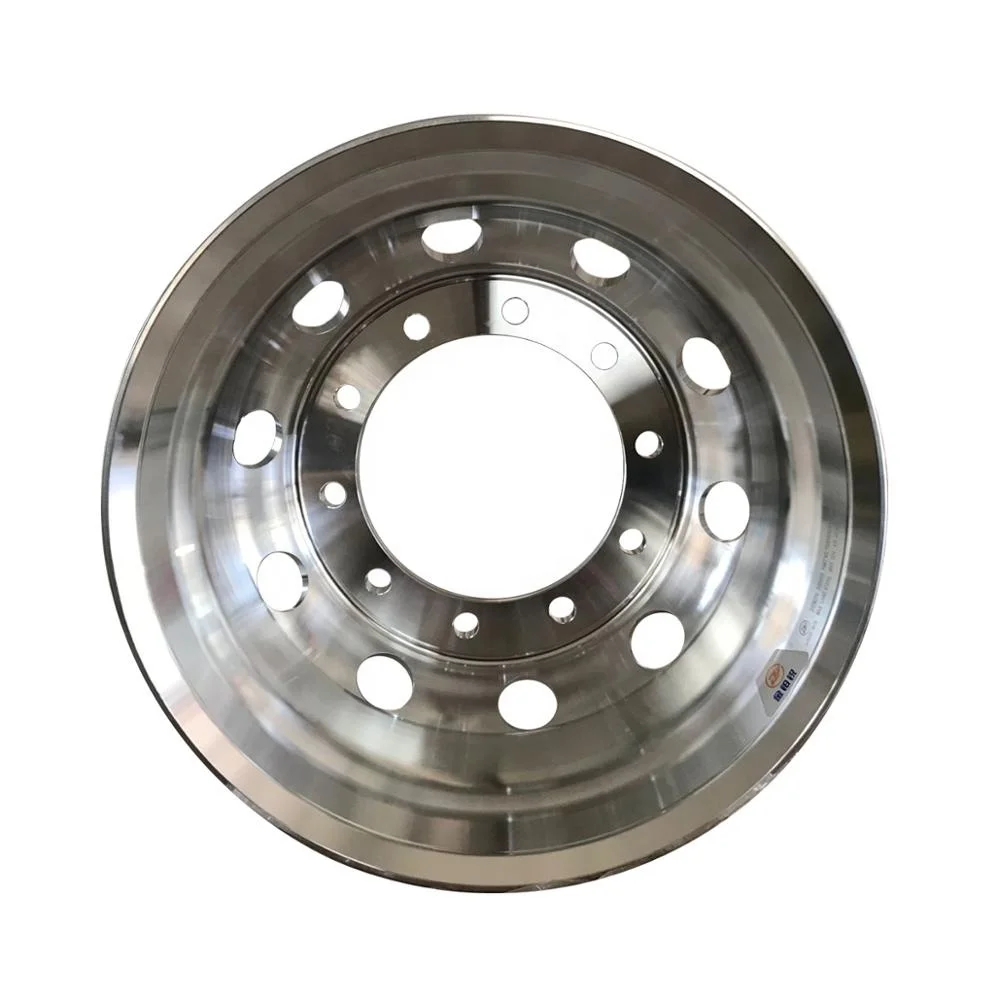

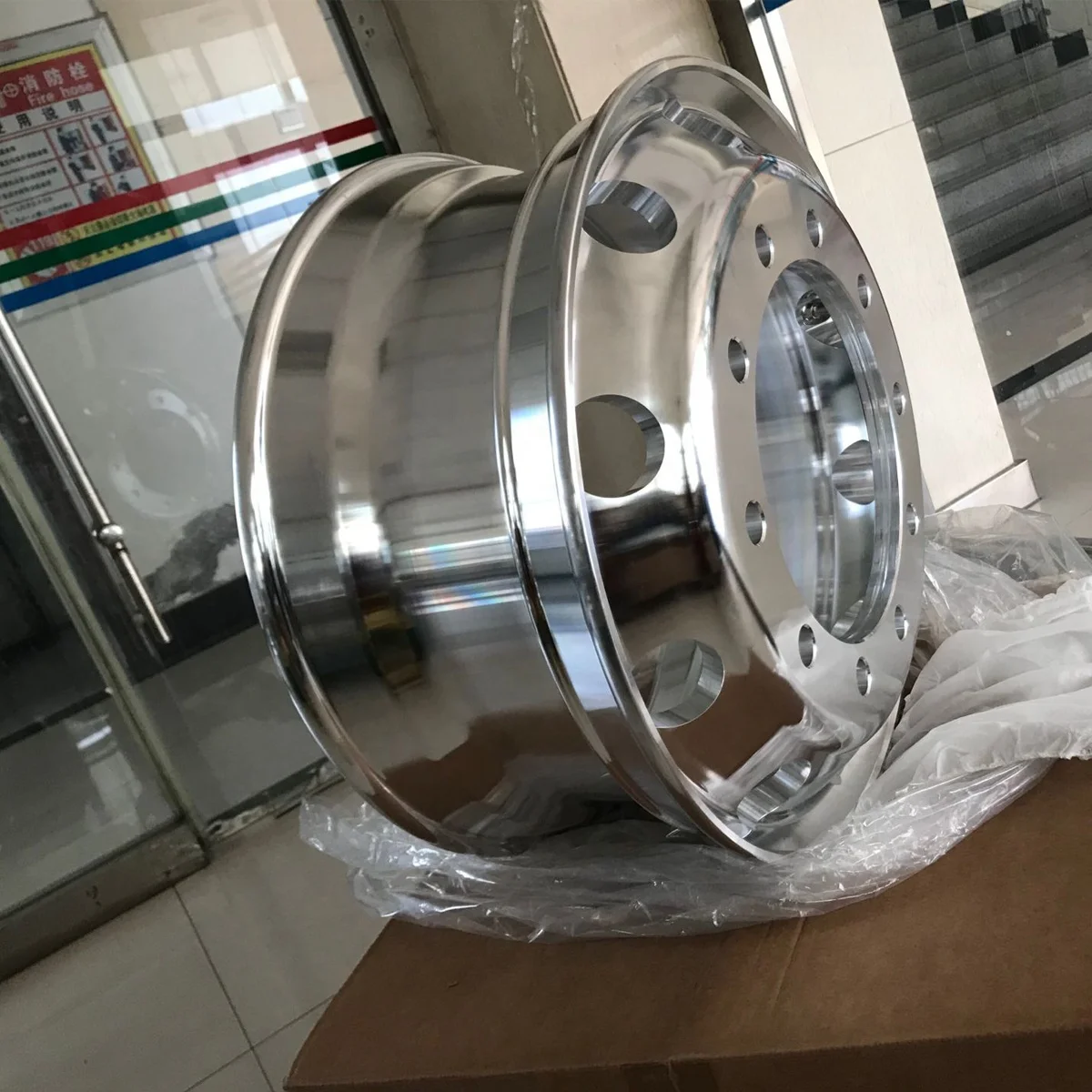

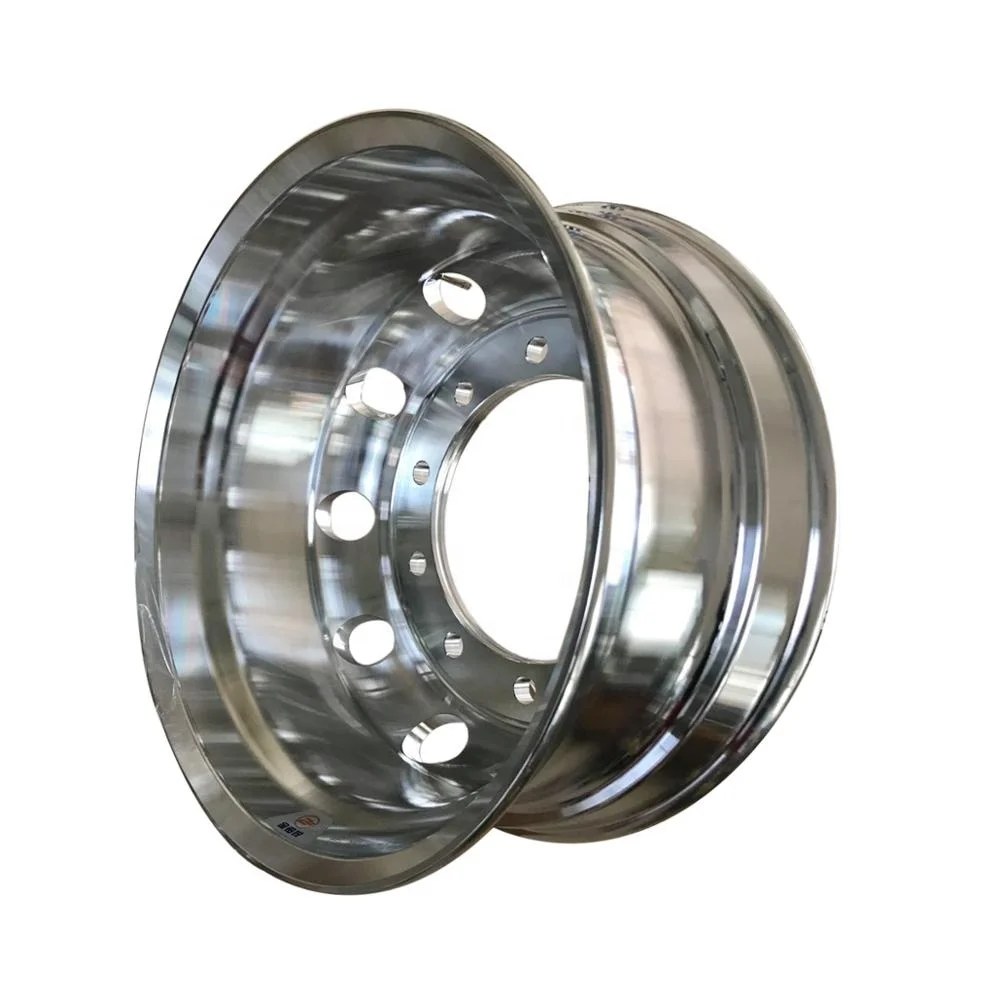

High Performance Aluminium Truck Wheel 22.5*9.0
- Category: Truck Wheels >>>
- Supplier: Dongying Joyo Auto Parts Co. Ltd.
Share on (62363760403):
Product Overview
Description
Product Description
| PART NO. | SIZE | PCD HOLES | STUD HOLE DIA. (mm) | P.C.D (mm) | C.B(mm) | OUTSIDE OFFSET (mm) | INSIDE OFFSET (mm) | WEIGHT (kg) | MAXLOAD (KG) | VALVE | TIRE |
| ZYAL2259001 | 22.5X9.00 | 10 | 26.5 | 335 | 281.2 | 176.5 | 152 | 25.8 | 4125 |
70MS-7 |
12R22.5 |
| ZYAL2259002 | 10 | 32.5 | 335 | 281.2 | 176.5 | 152 | 25.6 | 4125 | |||
| ZYAL2259003 | 10 | 32.5 SR22 | 335 | 281.2 | 176.5 | 152 | 25.4 | 4125 | |||
| ZYAL2259004 | 10 | 26.5 | 285.75 | 221 | 176.5 | 152 | 27.5 | 4125 | |||
| ZYAL2259005 | 10 | 32.5 | 285.75 | 221 | 176.5 | 152 | 27.3 | 4125 | |||
| ZYAL2259006 | 10 | 32.5 SR22 | 285.75 | 221 | 176.5 | 152 | 27.1 | 4125 | |||
| ZYAL2259007 | 10 | 26.5 | 285.75 | 220 | 176.5 | 152 | 27.5 | 4125 | |||
| ZYAL2259008 | 10 | 32.5 | 285.75 | 220 | 176.5 | 152 | 27.3 | 4125 | |||
| ZYAL2259009 | 10 | 32.5 SR22 | 285.75 | 220 | 176.5 | 152 | 27.1 | 4125 |
