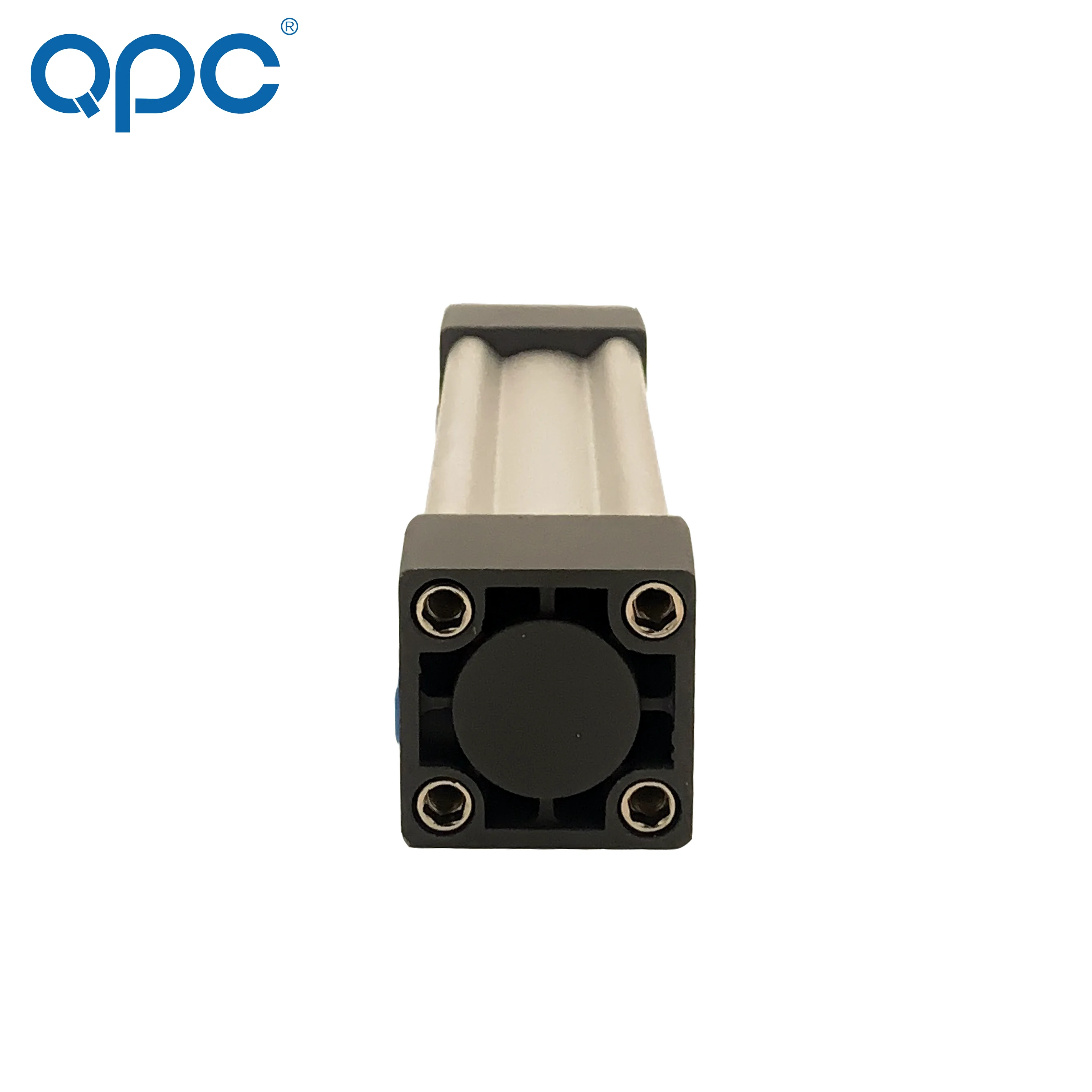

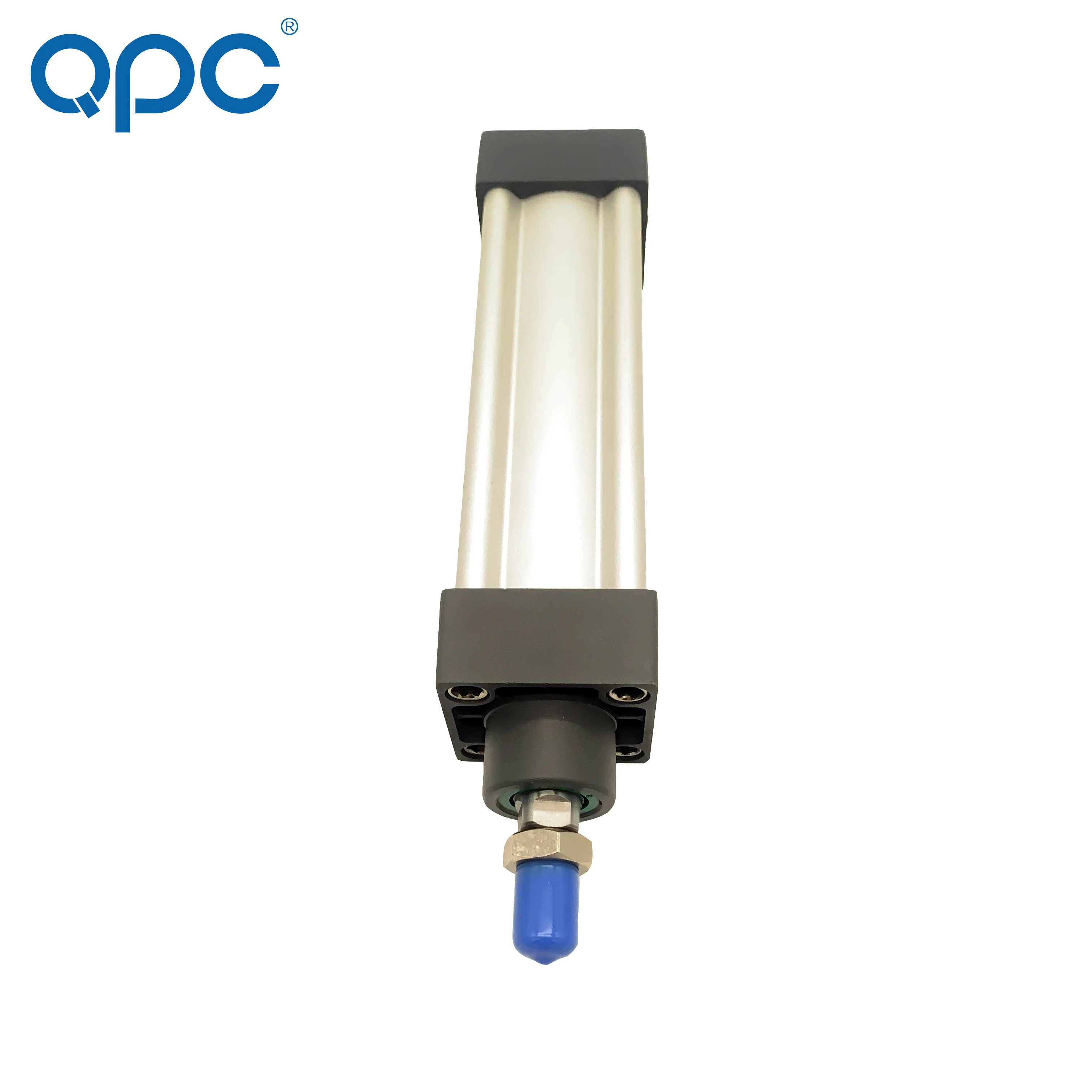

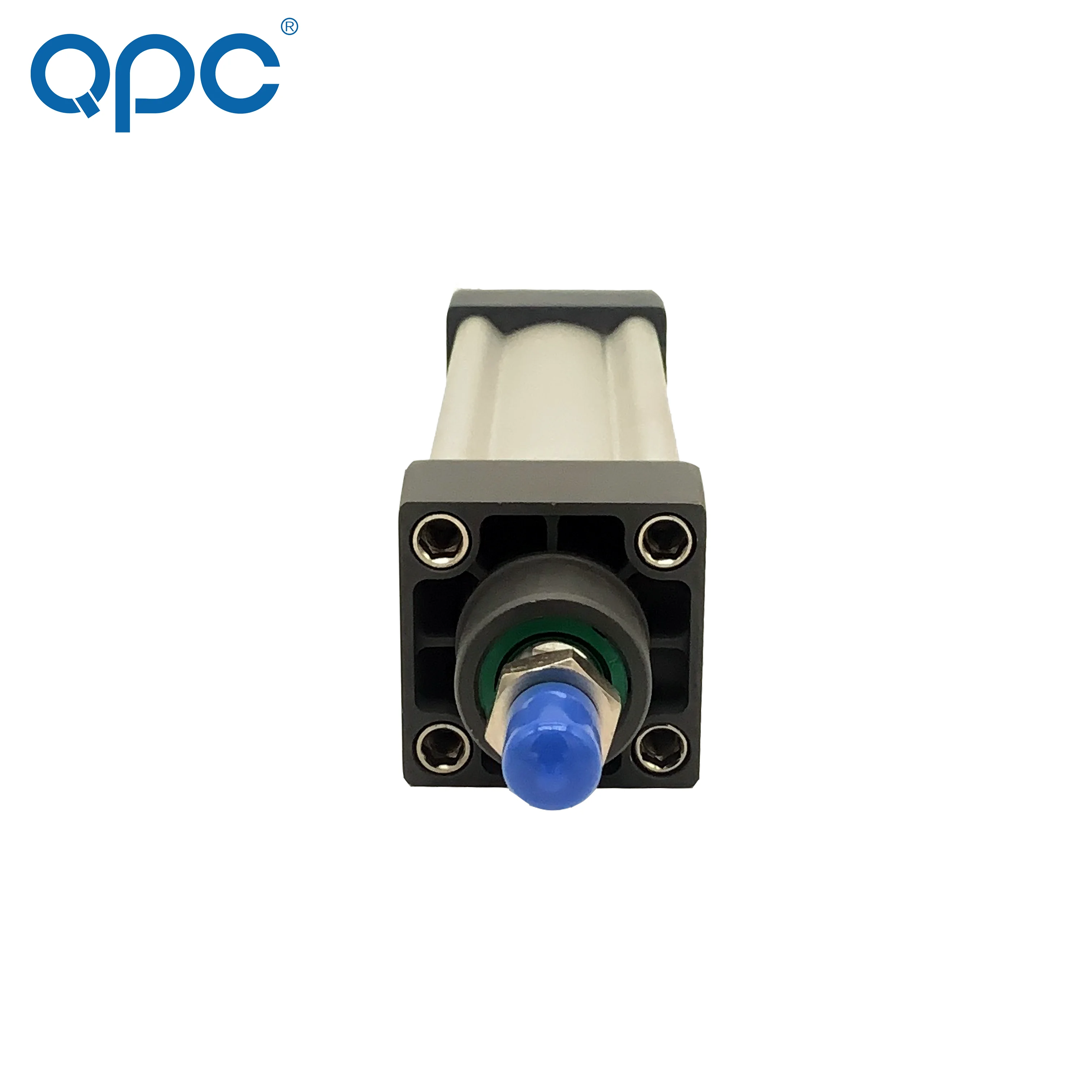

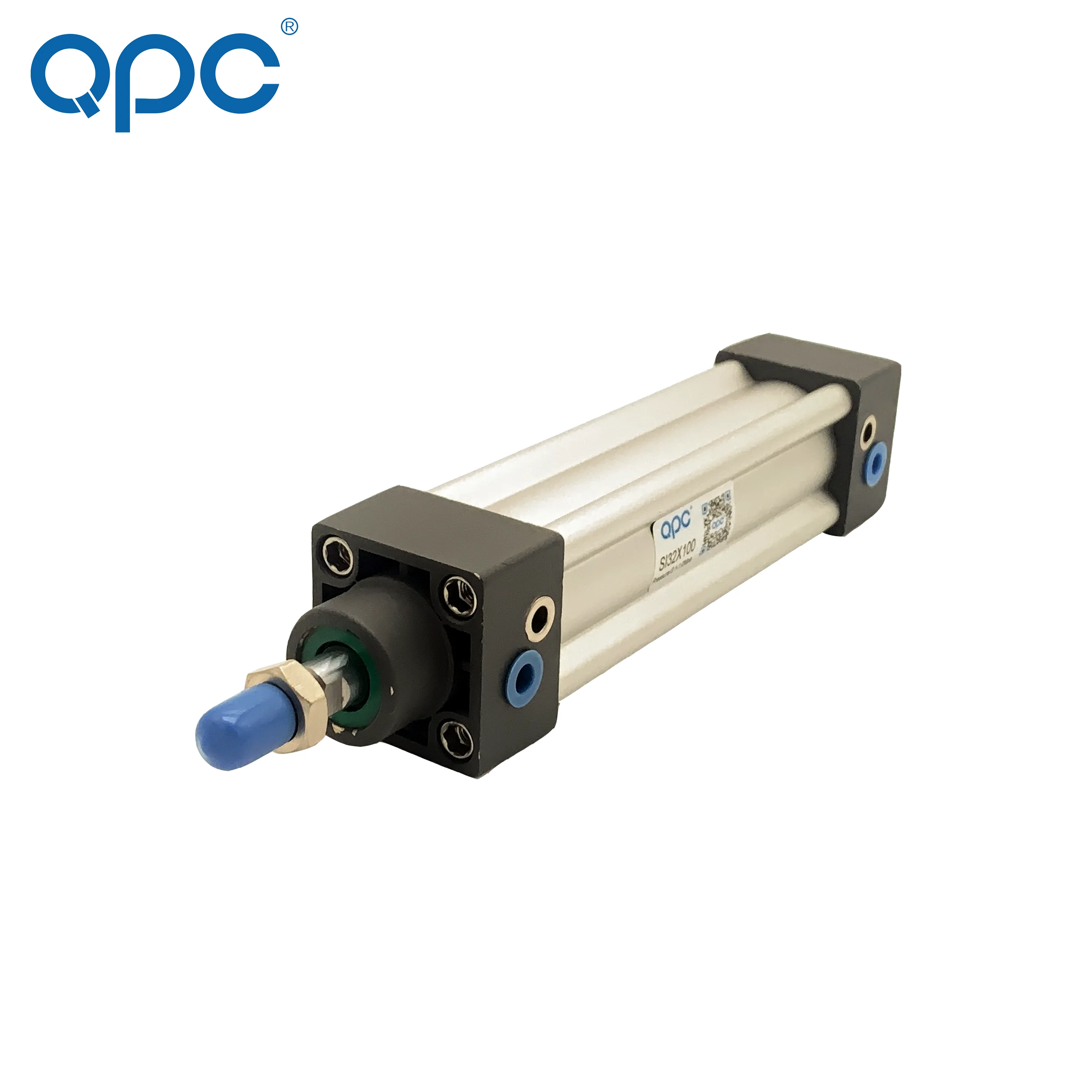

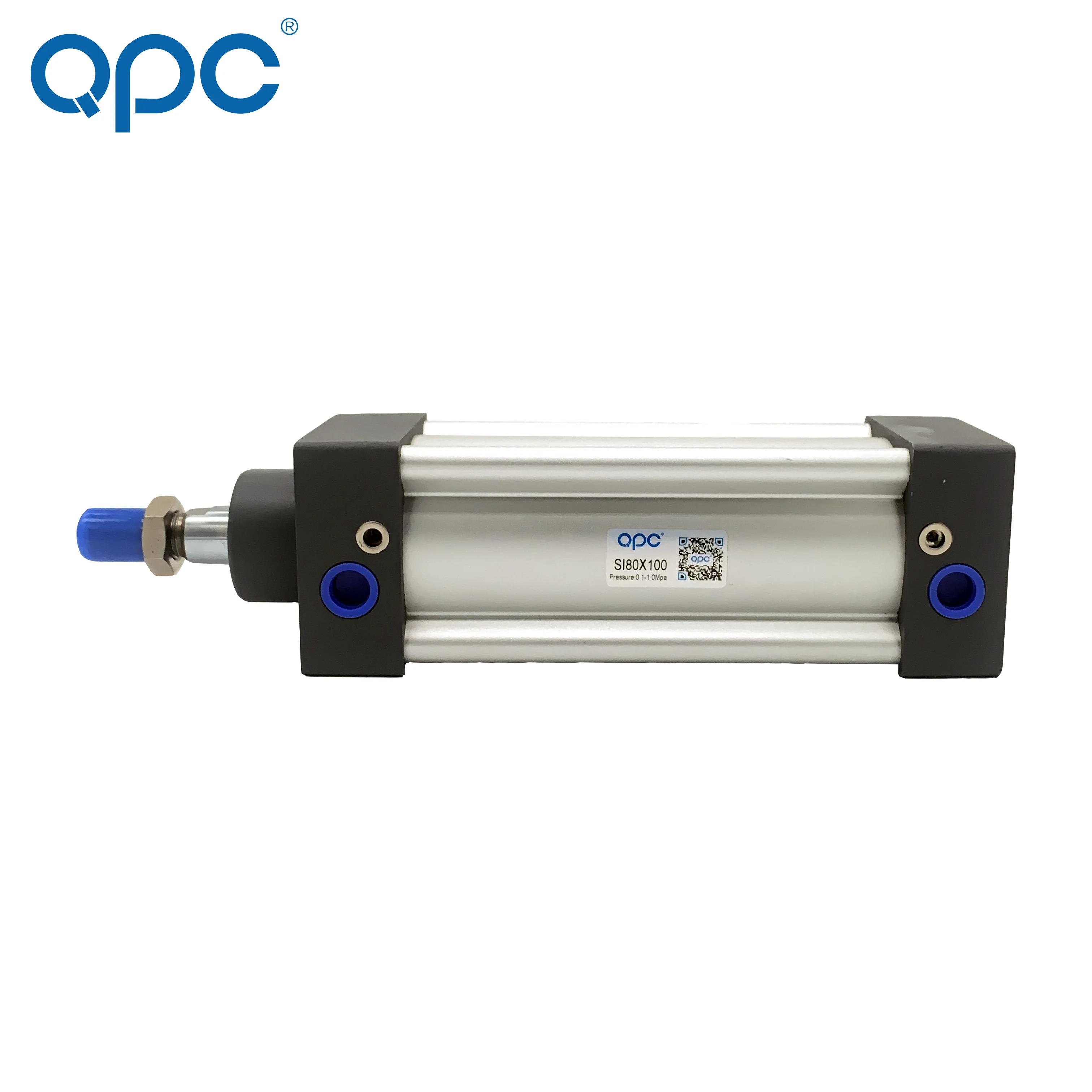

SI Series ISO6431 Standard Pneumatic Cylinder
Specification :
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Motion Pattern | Double Acting | ||||||||
| Working Medium | Air ( to be filter by 40um filter element) | ||||||||
| Operating Pressure | 0.1~1.0MPa(14~145Psi) | ||||||||
| Ensured Pressure Resistance | 1.5Mpa (215Psi) | ||||||||
| Temperature ℃ | -20~80 | ||||||||
| Speed Range(mm/s) | 30~800 | 30~500 | |||||||
| Stroke Tolerance | 0~2500+1.0 251~10000+1.4 1001~15000+1.8 | ||||||||
| Buffer Type | Adjustable cushion | ||||||||
| Buffer Stroke ( mm ) | 27 | 30 | 36 | 40 | 50 | ||||
| Port Size | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | ||||








1. Q: What's your main products ?
A: We mainly produce the Pneumatic Components , include Air Soure Unit , Solenoid Valves , and Cylinders etc. More than 20 years in this line .
2.Q: Sample qunatity acceptable ??
A: Yes , samples can be provided for test .
3.Q:What's the Payment Terms ?
A: Both T/T and L/C are acceptable .Also pay by alibaba is ok .
4.Q:What's the delivery time ?
A:Generally it's 5-10 days if the goods are in stock.
5.Q:What's the warranty ?
A:12 months under normally used.
Established in 1999 NINGBO QPC Pneumatic Co.,Ltd is located in Fenghua -- China pneumatic industrial Park , more than 20 years forced on the pneumatic manufacture. QPC has earned a trust and commitment from over 1 million customers through the world with annual production output surpassing 200 million units .

QPC facility covers an area of 5000 square meters with production and office , 15 production lines. 2 Technology & Research departments , and our engineer has obtained many national pneumatic patents . Innovation technologies affect all aspects of the production and supply chain, from R&D product testing to automated production .
