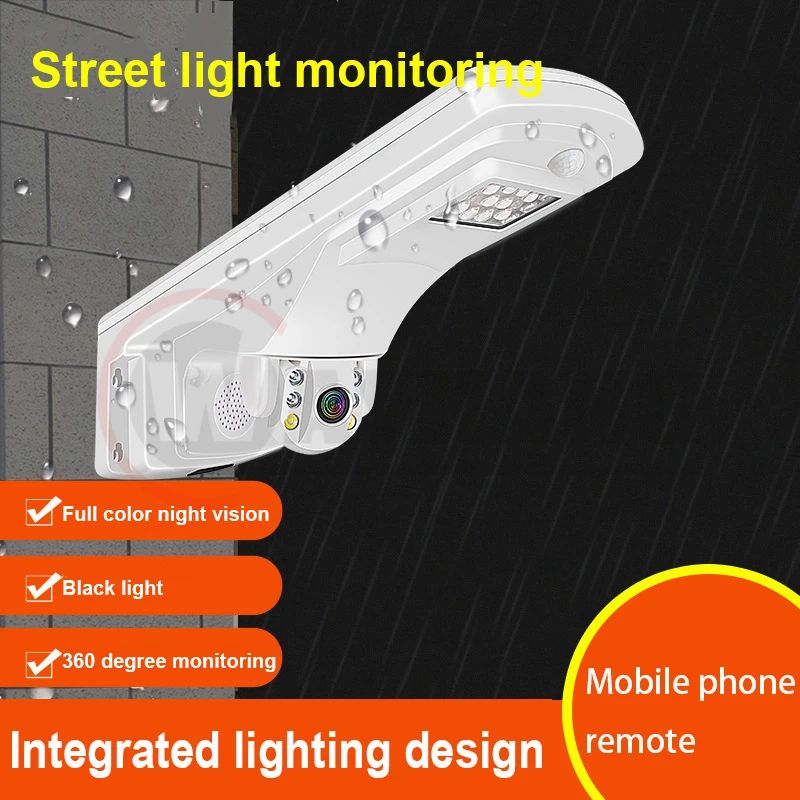

1080P 2.0MP Integrated monitoring street light camera, 4G/WIFI CCTV Camera, Garden Street Camera
- Category: >>>
- Supplier: Shenzhen Wayhang Technology Co. Ltd.
Share on (62364079495):
Product Overview
Description
1080P 2.0MP Integrated monitoring street light camera, 4G/WIFI CCTV Camera, Garden Street Camera
Main Feature:
4G Camera Features:
100% NEW and High Quality.
2-1 function, with 4g or WIFI camera and led light function.
1080P HD 2MP camera, the video is clearly visible.

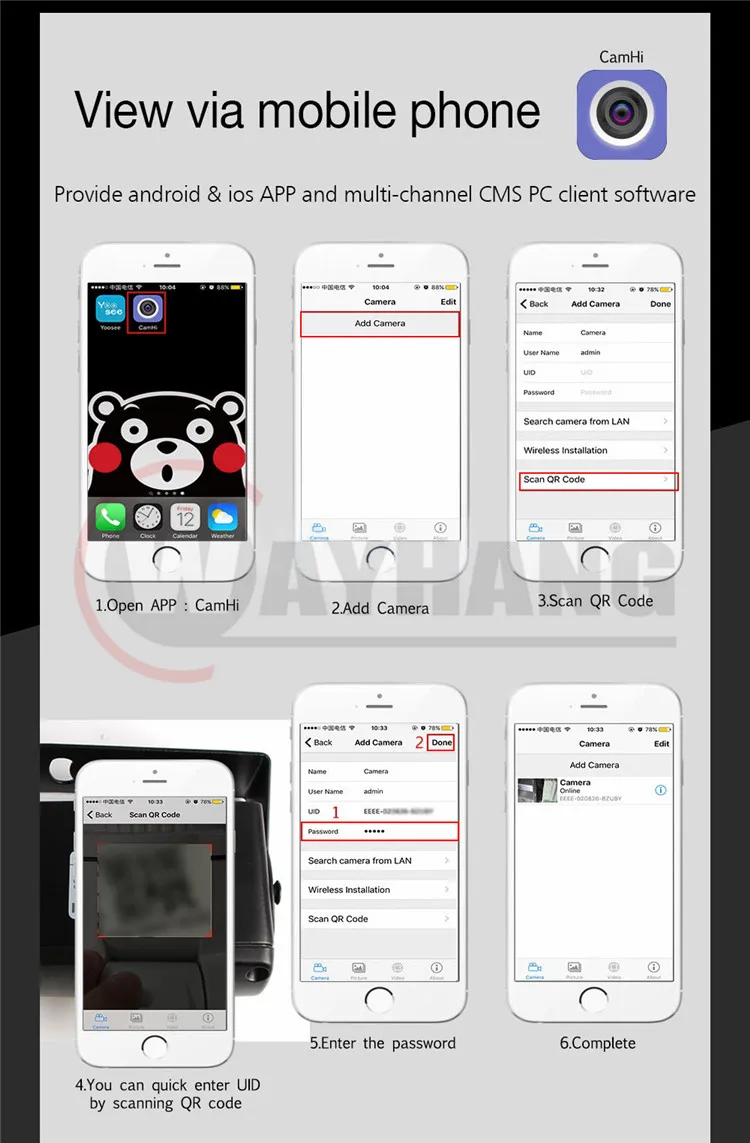

Support APP and PC view monitoring status anywhere,anytime.
PC Client support multi-screen viewing, playback, recording and alarm, and remotely retrieve TF/SD card recording.

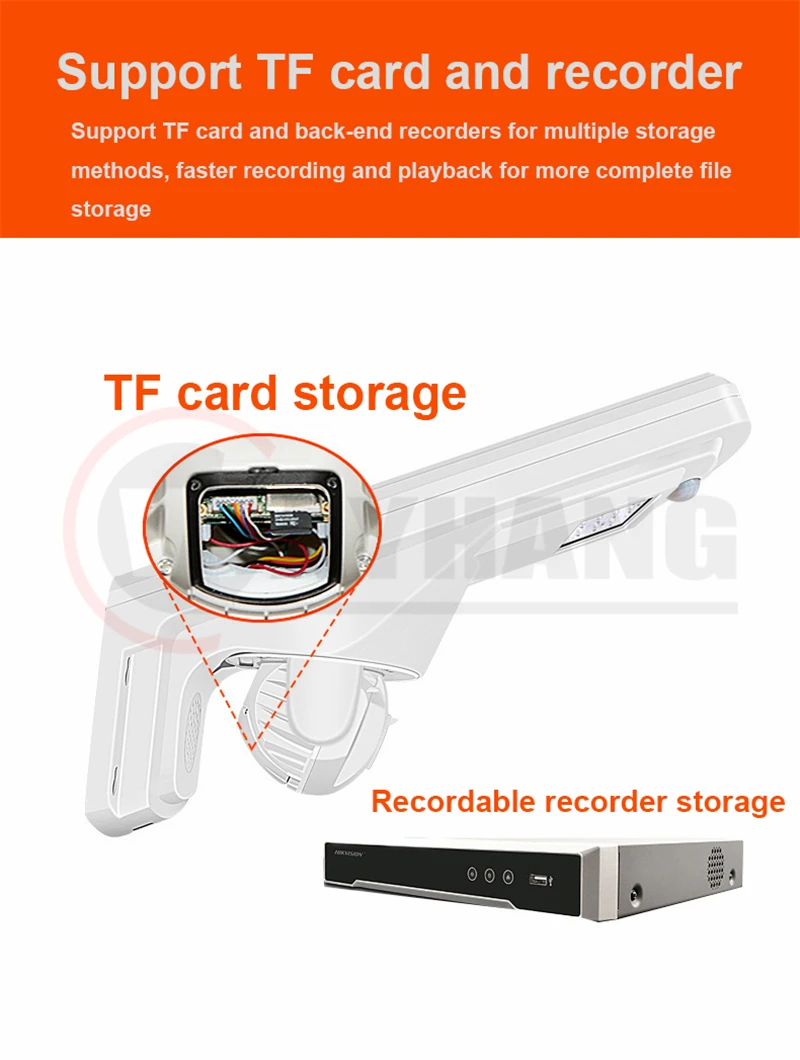

Support Max up to 128GB TF/SD card.(not included)

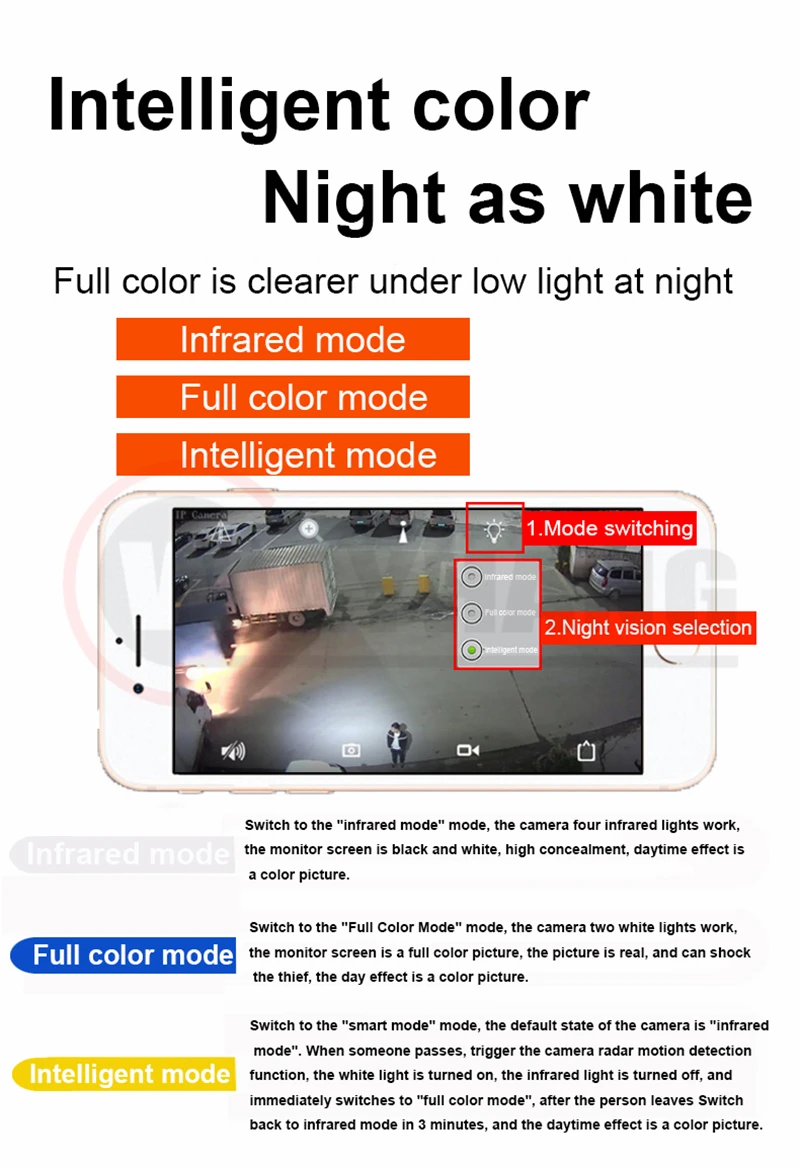

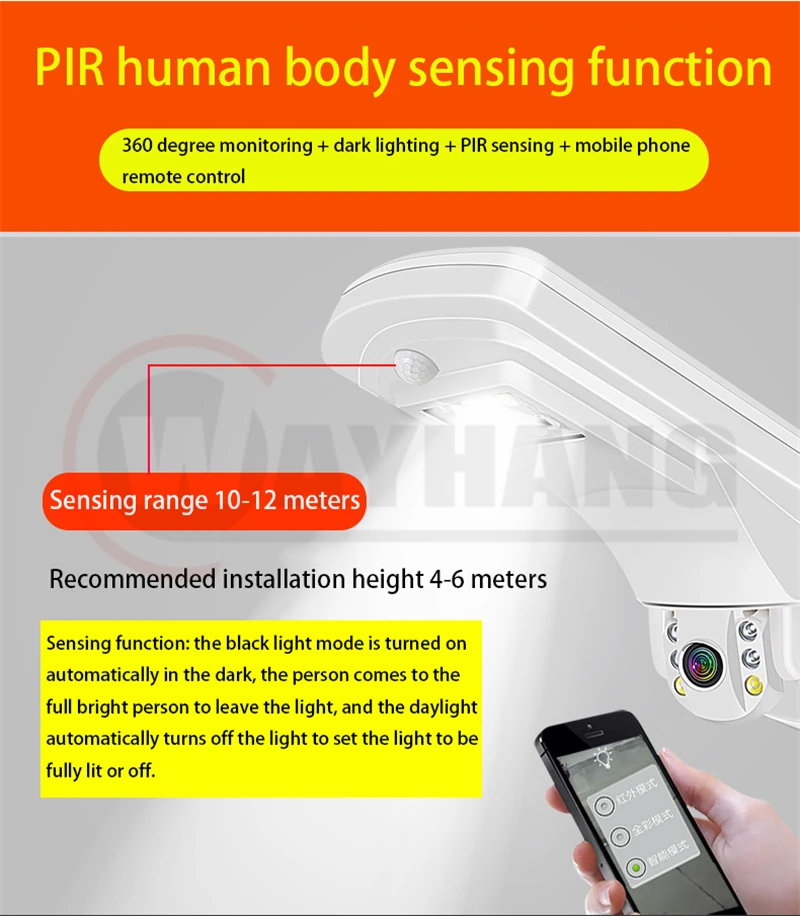

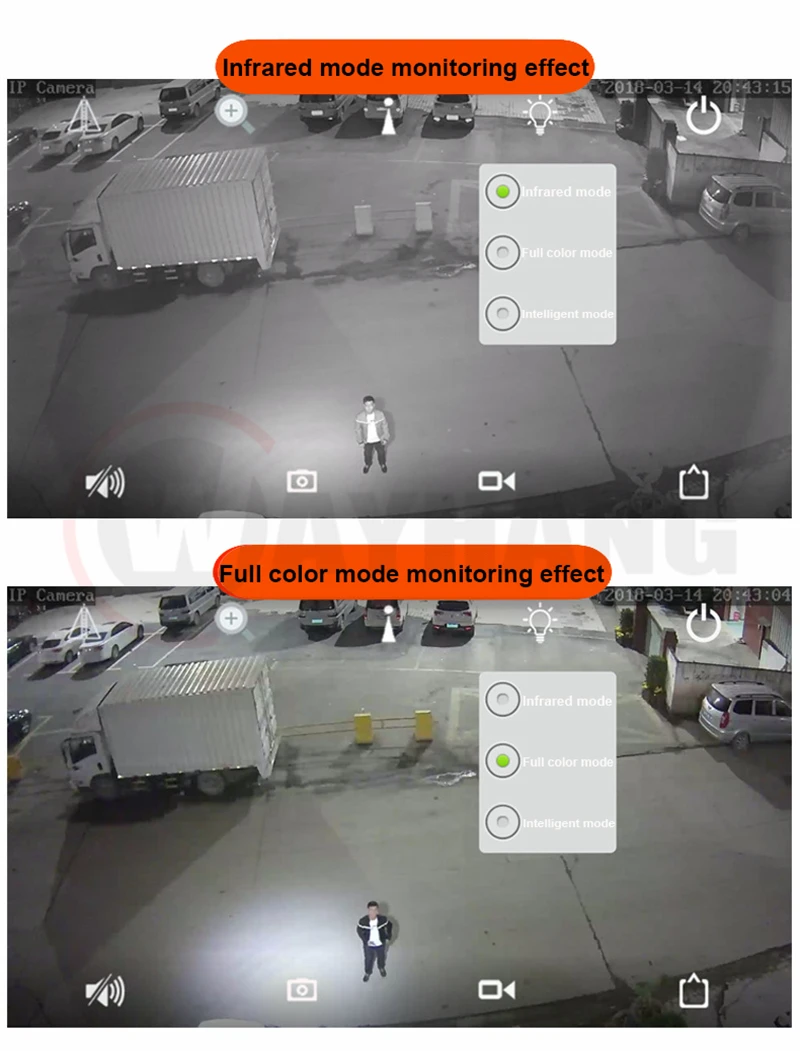

Support Motion detection alarm and night vision.The alarm sends the picture to the specified mailbox,the alarm uploads the picture.

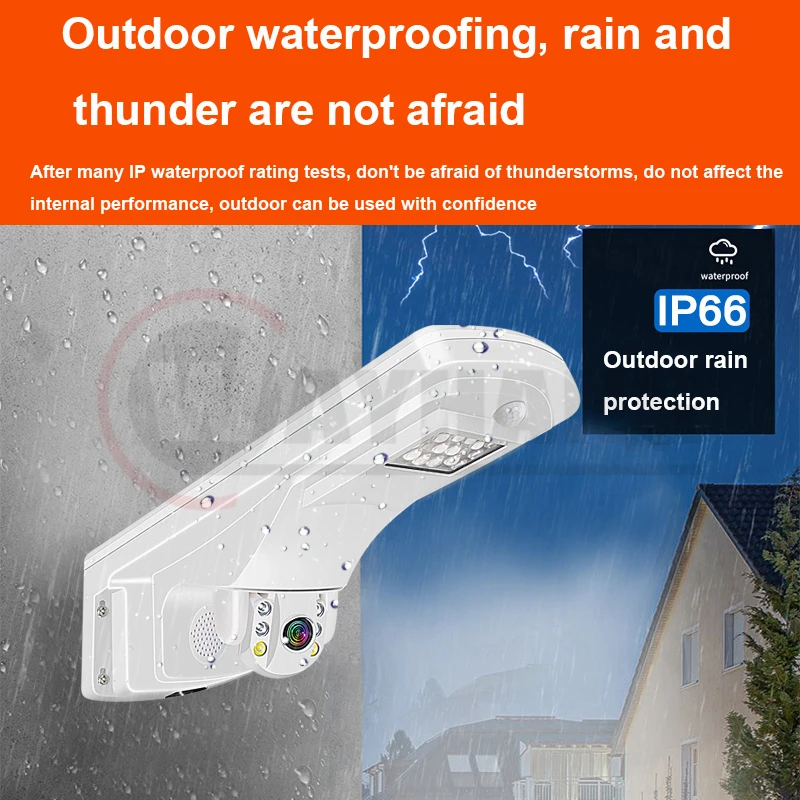

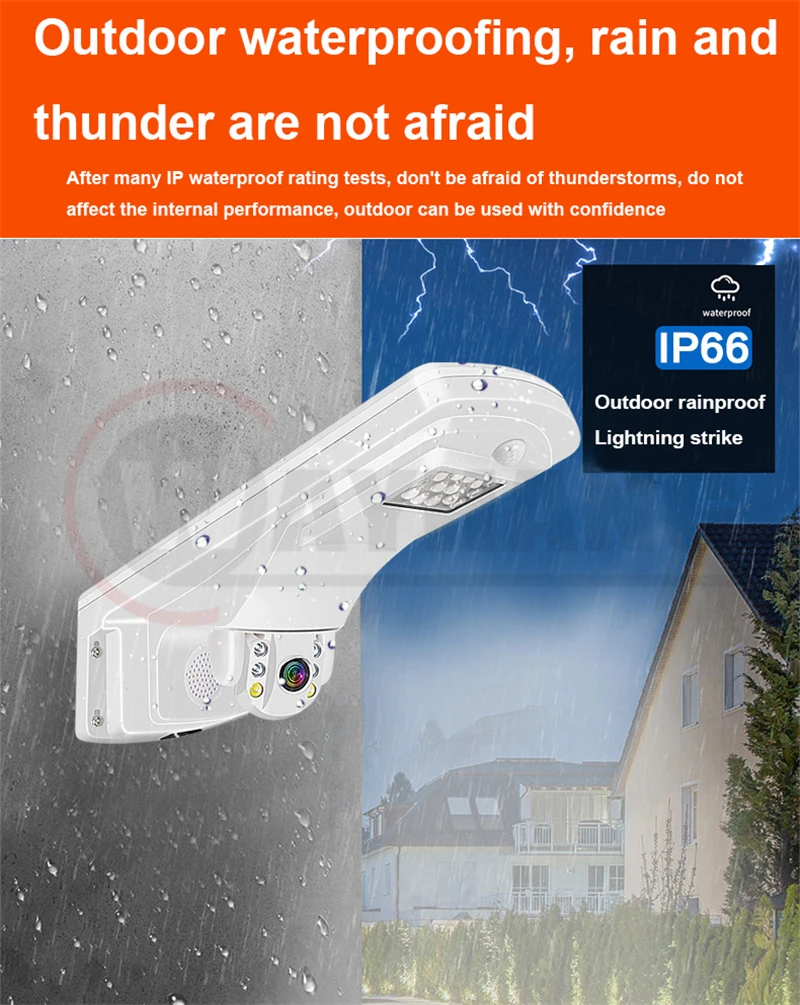

Waterproof IP65.
LED Light Features:
16Pcs LEDs Light
Lumens: 3000LM
Color temperature K:3000K-6500K
Mode: Steady
Light Color: White
Power: 16W
Voltage: 100-240V

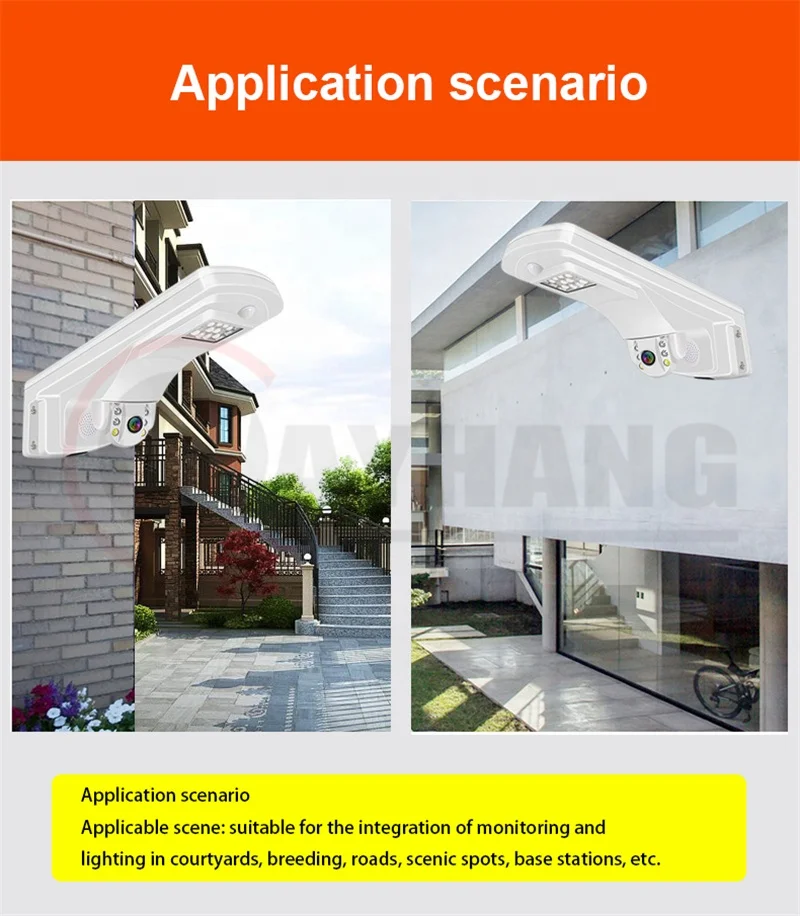

Application scenario:
Home garden, street, building site, school etc.

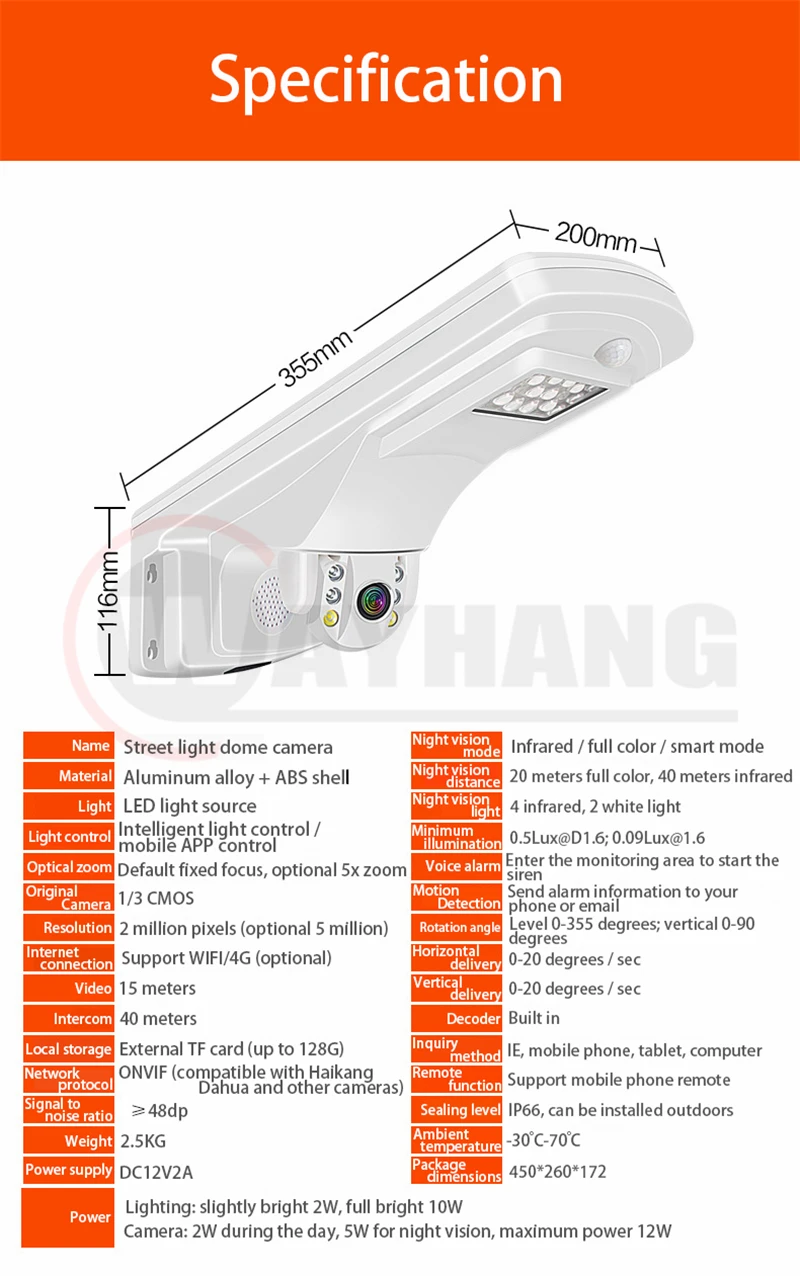

Specification:
| Camera | Operating system | Embedded Linux OS |
| Processor | HI3518EV200 | |
| Sensor | SONY 1/3" ultra low illumination CMOS sensor | |
| 1080P 2.0MP | ||
| Lens interface type | M12 | |
| Lens | 6mm lens OR 5X ZOOM | |
| View angle | 120 degree, 5-6M high distance | |
| Min.illumination | 0.05lux/0lux (IR on) | |
| Day&Night mode | Auto IR-CUT | |
| Night vision distance | 16pcs LEDs --6 hours high brightness+25% dim light for 6 hours | |
| Video | Video compression | H.264 |
| Video streaming | Three streaming | |
| Video resolution | Model NC901G First stream:1080P(1920x1080), 720P(1280x720), Q720P(640x352) | |
| Model NC906G First stream:960P(1280x960), 720P(1280x720), Q720P(640x352) | ||
| Second stream:Q720P(640x352), QQ720P(320x176) | ||
| Third stream:QQ720P(320x176) | ||
| Video code rate | 32~6144Kbps. supports constant bitrate/variable bitrate | |
| Video frame rate | NC901G:25fps,NC906G:15fps | |
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |
| Image enhancement | Backlight compensation,Automatic white balance, Digital WDR, 3D digital noise reduction | |
| Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
| Alarm linkage | alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm mobile phone message push | |
| Privacy mask | maximum support 4 users to simultaneously browse | |
| OSD | support camera name, date and time information superimposed | |
| User management | Supports user and rights management | |
| Simultaneous viewers | Maximum support 4 users to simultaneously browse | |
| Network protocol | TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc | |
| Connection protocol | N/A | |
| 4G | 4G standard | FDD-LTE |
| Frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) | |
| Transmission rate | Upload max:50Mbps, download max: 150Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| 3G | 3G standard | WCDMA |
| Frequency range | B1(2100MHz), B8(900MHz) | |
| Transmission rate | Upload max:5.76Mbps, download max: 21Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Interface | Power interface | 5.5mm power interface |
| Ethernet | RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
| TF card Slot | maximum support 128G TF card, can set the automatic capture and timer recording | |
| Reset button | Support | |
| General specification | Power supply | DC 12V 1A |
| power | Day:3W, Night:8W | |
| Operating temperature | -20 to +60 degree | |
| Operating humidity | 10% to 95%(non-condensing) | |
| Waterproof level | IP65 | |
| Material | Aluminum | |
| Installation | Rack mounting | |
| Product size(W×D×H)(mm) | 45*21*4.7cm | |
| Product weight(kg) | 1.5kg | |
| Accessories | 1*Power Supply, Bag*Screws, 2*Antenna, 1*Manual,1*Holder | |
| Package Size(W×D×H)(mm) | 450*260*172mm | |
| Package Weight(kg) | 2.5 |
Package included:
1Pcs * Outdoor 4g Camera Light
1Pcs * Bracket
1Pcs * Power Adapter
1Pcs * Screws
1Pcs * Manual
Quality Control and After-sales Service
--12 months products warranty with a very strict quality rechecking before shipping every device:
1)R&D testing:upgrade testing, signal testing, functional testing, performance testing, installation
testing and safety testing;
2)Production testing:the first testing phases, aging test phases, and secondary testing phases.Internalbattery, FLASH chip, voltage regulator IC, Switching on/off Power Supply, MCU, GSM modules,
basic settings, as well as the appearance of alarm will be tested during Production testing period.
--A professional engineers team and sales team offer you a prompt,patient and efficient after services,
help you solve your problems ASAP.
