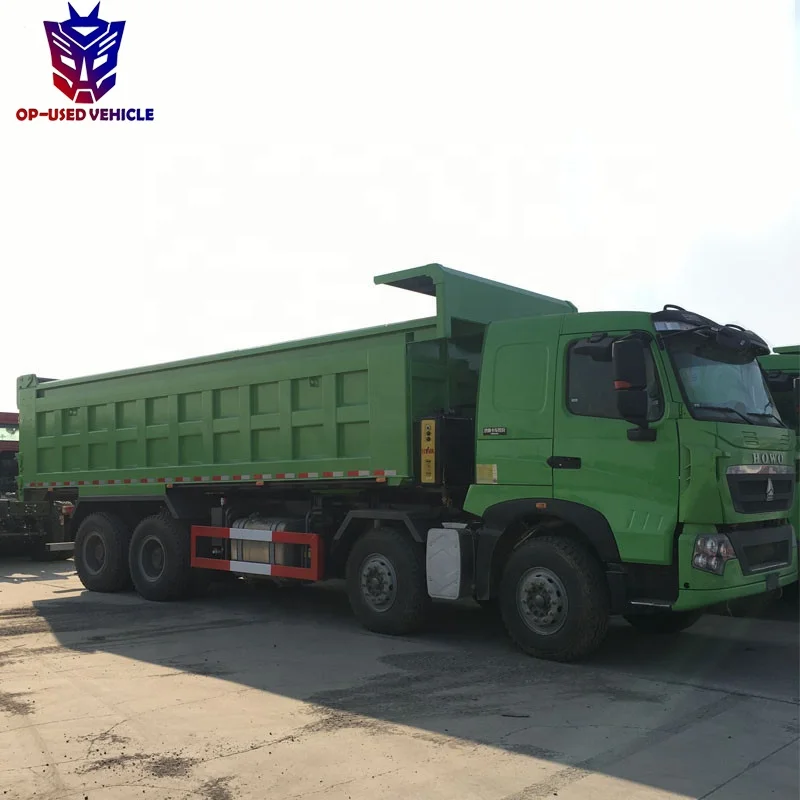

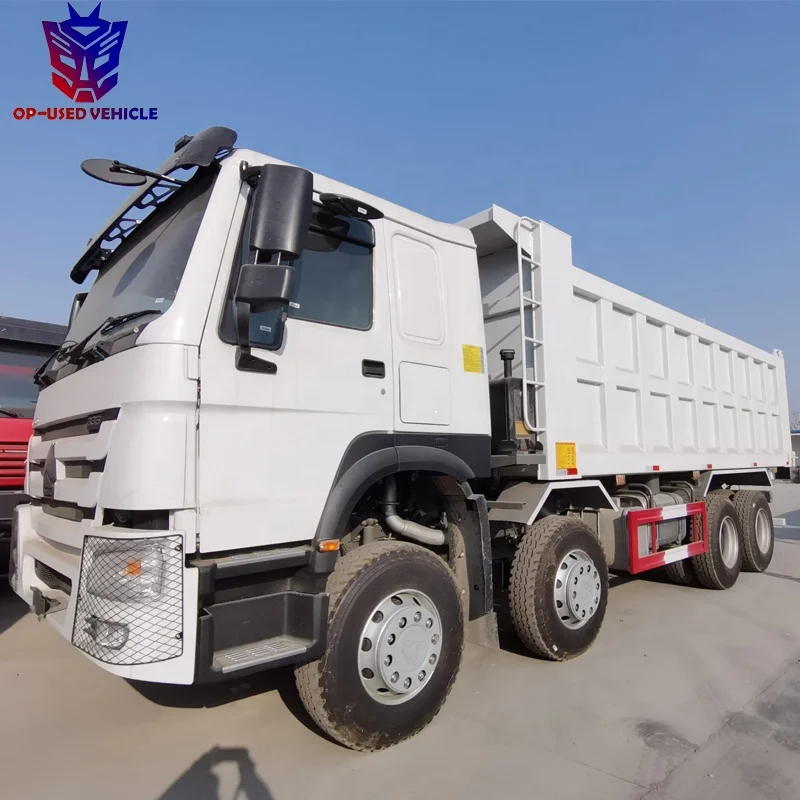

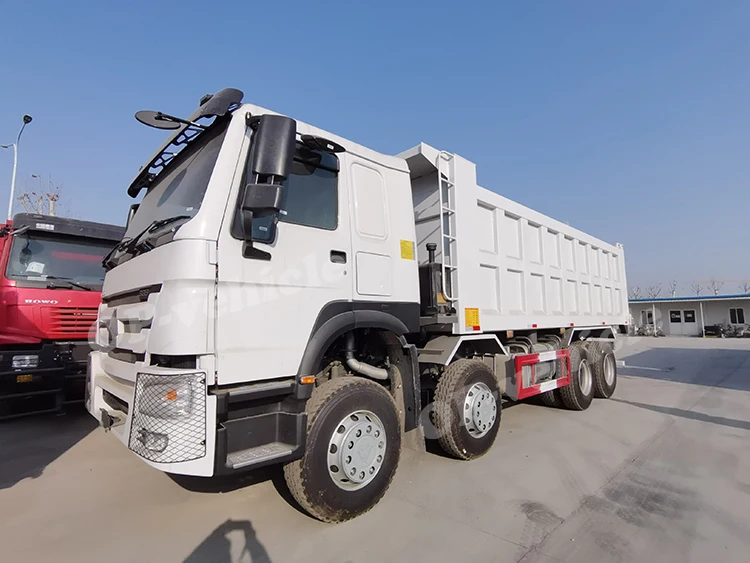

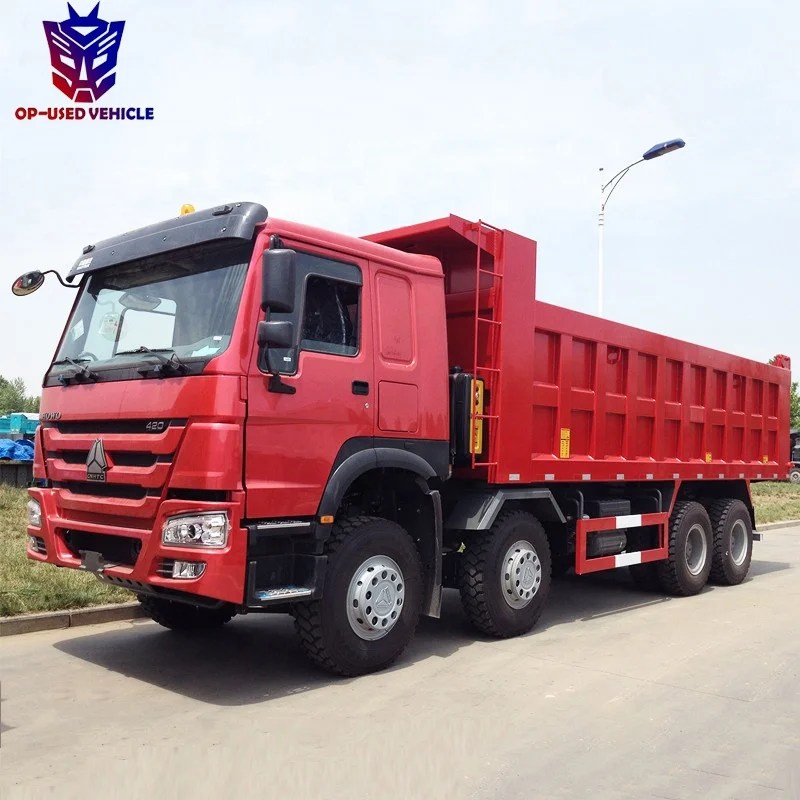

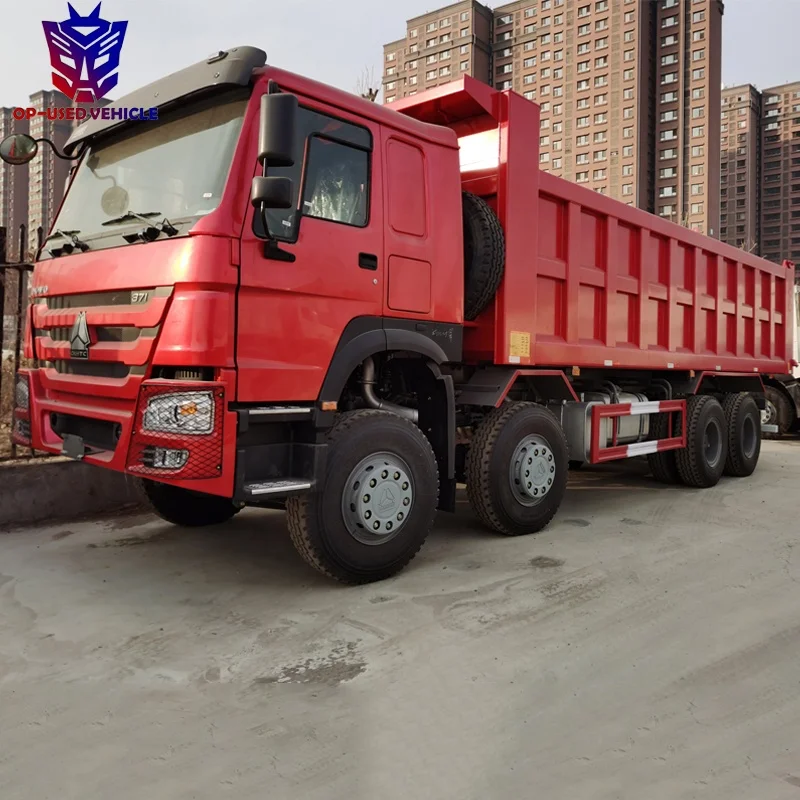

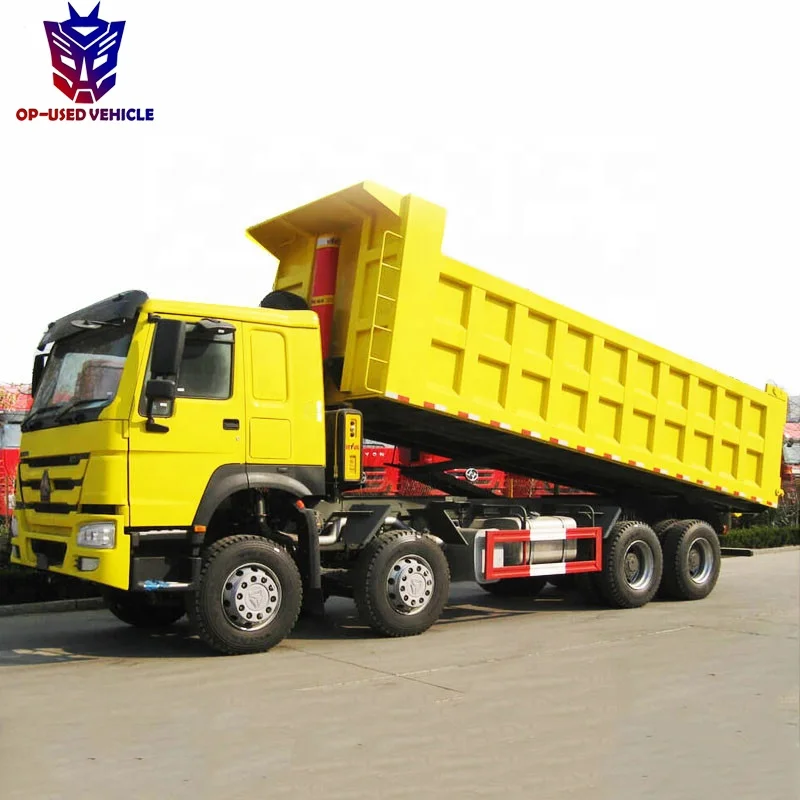

New Sinotruk Howo 8x4 420hp 12 wheeler dump tipper truck
- Category: >>>
- Supplier: Jinan Optimus Prime Used Vehicles Co. Ltd.
Share on (62364105690):
Product Overview
Description
New Sinotruk Howo 8x4 420hp 12 wheeler dump tipper truck
Product Description
dumper truck is mainly composed of a chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device, and is used for transporting coal, stones, earth slabs, asphalt, and the like. Because the loading compartment can automatically dump a certain angle of unloading, greatly saving unloading time and labor, shortening the transportation cycle, improving production efficiency and reducing transportation costs, it is a common transportation truck. Among them, the hydraulic cylinder is a power component lifted by the dump truck, and a high-quality hydraulic cylinder is selected.
The driving methods of the End dump truck are mainly 4x4, 6x4, 8x4. The driving modes are left hand driving and right hand driving. According to the goods transported by the customer, we can provide the most suitable Rear dump truck advice for the customer.
The height of the plane on the chassis frame is from the ground. Generally, the height of the plane on the 6x4 chassis frame is 1050-1200. The larger the value, the higher the center of gravity of the end dump truck, and the easier it is to cause the rollover.
Howo sinotruck 371 for tipper 6 months or 60 000 km from the date of shipment whichever comes first. The Seller shall supply the Buyer claim parts to country side of buyer under CNHTC quality control system, but the local charges and customs duties will be undertaken by the Buyer. The following services or adjustments required by normal wear (consumption) and normal maintenance are not within the scope of guarantee: Oil filter, fuel filter, air filter, brake lining, clutch and driven clutch, fan v-belt, lamp, fuse, lubricant, engine coolant, battery fluid, fuel , tyre ,glass and so on.
|
Truck Model |
ZZ3317N4267A |
||||
|
Truck Brand |
SINOTRUK –HOWO |
||||
|
Driving Type |
Left hand drive |
||||
|
Dimension(Lx W xH)(unloaded)(mm) |
10825x2496x3450 |
||||
|
Cargo body size (L*W*H, mm) |
7800x2300x1500, |
||||
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm |
||||
|
Lift type of Carriage |
Front Lift |
||||
|
Approaching angle/Departure angle(°) |
19/22 |
||||
|
Overhang(front/rear) (mm) |
1500/1975 |
||||
|
Wheel base (mm) |
1800+4200+1350 |
||||
|
Max speed(km/h) |
75 |
||||
|
Curb weight(kg) |
15170 |
||||
|
Fuel tanker capacity(L) |
300L |
||||
|
Fuel consumption(L/km) |
20-40 L/100 km |
||||
|
Clutch |
Single-plate dry clutch Φ430mm |
||||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
|||
|
Horse Power, max(kw/rpm) |
371HP |
||||
|
Emission |
EURO II |
||||
|
Model |
WD615.47. water-cooled,four strokes,6 cylinders in line with water cooling,directly injection |
||||
|
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
|||
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake |
||||
|
Front axle |
HF9, Steering with double T-cross section beam |
||||
|
Rear axle |
HC16 |
||||
|
Color |
Optional |
||||
|

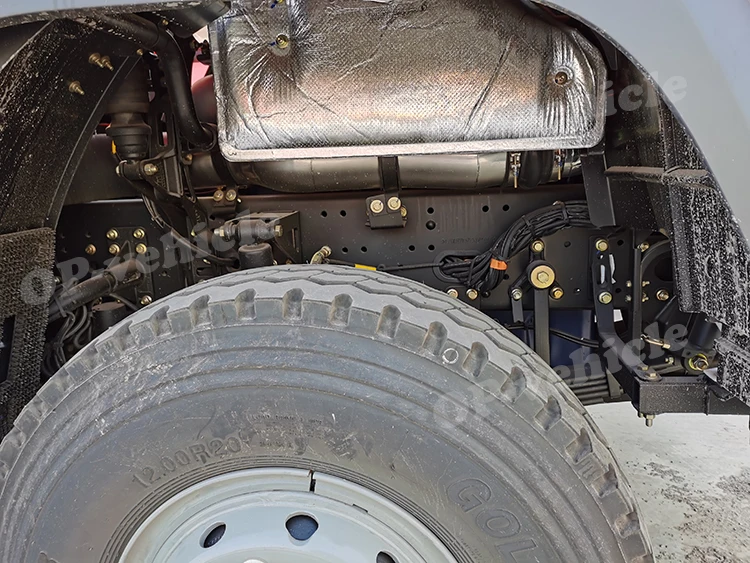

Tire |
12.00R20 Radial tire |
||||
|
Tire quantity |
12+1 spare=13 tires |
||||
|
Electrical system |
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500kw |
||||
|
Starter |
7.5Kw/24V |
||||
|
Cab |
HOWO76 cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
||||
Packaging & Shipping
Dump trucks are generally transported in three ways: By Bulk cargo ship, By ro/ro ship , By 40' flat rack
Our Services
1: Our company promise one year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.
3: We are serious about after-sales service.
Company Information
Jinan optimus prime used vehicles co.,ltd is located in Jinan, Shandong, with a factory in Quanpu Industry Park, the major production base of semi trailers in China. Approved by the National Development and Reform Commission, our company is listed as a qualified vehicle modification company in the commission’s official notice. With quality resources and remarkable technique, jinan optimus prime used vehicles co.,ltd is rising up in China’s special vehicle industry and machinery industry.
Jinan optimus prime used vehicles co.,ltd is a comprehensive enterprise, integrated with second-hand vehicle and machinery trading, both original and modified. Our factory covers an area of more than 50 acres with an total investment of 80 million yuan (over 12 million USD). Currently we stock more than 1000 units second-hand vehicles, including all kinds of large scale, heavy duty trucks, trailers and other machineries.The semi trailers comprising heavy duty cargo semi trailers, tipper dump trucks, tanker semi trailers and other types of trailers. Besides, we provide second-hand automobiles, special purpose vehicles and construction machineries, which can be customized according to clients’ requirements.
With 10 national registered senior appraisers in second-hand vehicle and machinery, we strictly and carefully evaluate every product, sticking to the principle of objectivity, independence, fairness and scientificity. We take full responsibility of our acts and are liable for our products. Quality of all products are guaranteed, relieving clients’ concerns , and offering convenience and a pleasant purchasing experience. Regarding clients as gods and being honest to every client, we have been aspiring and always will aspire after clients’ trust and maximum satisfaction.
Our customers
For used tipper dump trucks and tractor head trucks, some clients would like to check the condition and do physical verification by themselves. Therefore, when customers require field visit, we will show the clients around and explain the details from how we select the used tipper dump trucks and tractors, how we refurbish them to how we provide after sale service.
When negotiating the prices, we always provide several options for clients. At the same time, customers can choose configuration for themselves according to their budgets and needs.
