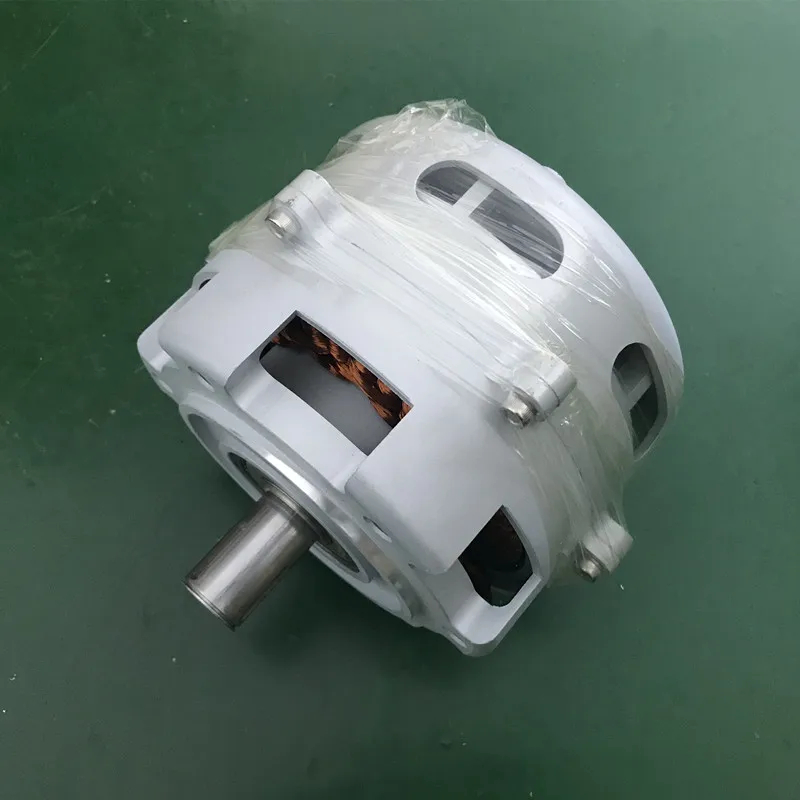

20kw electric bldc generator motor 15Nm
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (62364113023):
Product Overview
Description
20kw electric bldc generator motor 15Nm
Note: All our products are designed for RC Area, if you are not in this area and don't have the knowledge of brushless dc motor, please Do Not Directly pay before inquiry from us. All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.
Product Description
14140 Brushless Motors, are made by high-precision CNC machine, hand-wound, as well as high-grade magnets to improve efficiency.
The Motor original designed for the EV Car dirve and starter, which delivers longer runtime, and extended motor life, to make our customer products continue to deliver high-performance electric drive.
1.Caution
a.Please use appropriate propeller or thrust,in appropriate one will cause poor performance and may damage the motor.
b.Do not run the motor more than 60 seconds under electrostatic environment, it may cause motor overheating or damage.
c.Make sure the motor inside is clear before using.
d.Inappropriate ESCs will cause the motor perform worse. Please use the matched ESC.
e.Pay attention to screw length during assembly, the longer screw may damage motor coil.
Feature
Hand-wound for maximum copper fill.
Precision-balanced rotor will boost the efficiency and power performance of the motor.
Nickel-plated sintered neodymium rotor for maximum motor acceleration braking power and performance in high-temperature conditions.
Product Parameters
| RT Motor | 14140-90KV (Rated 15KW) |
| Motor type | Outer rotor |
| Construction | 36N/24P |
| Winding Turns | 3T-D |
| Working Voltage | 40-85V |
| Max RPM | 8000 |
| RPM/V | 90 |
| No Load Current | 6.5A |
| @10V | |
| Rated Torque | 15N*M |
| Rated Current (A) | 150 |
| Max Efficiency | >87% |

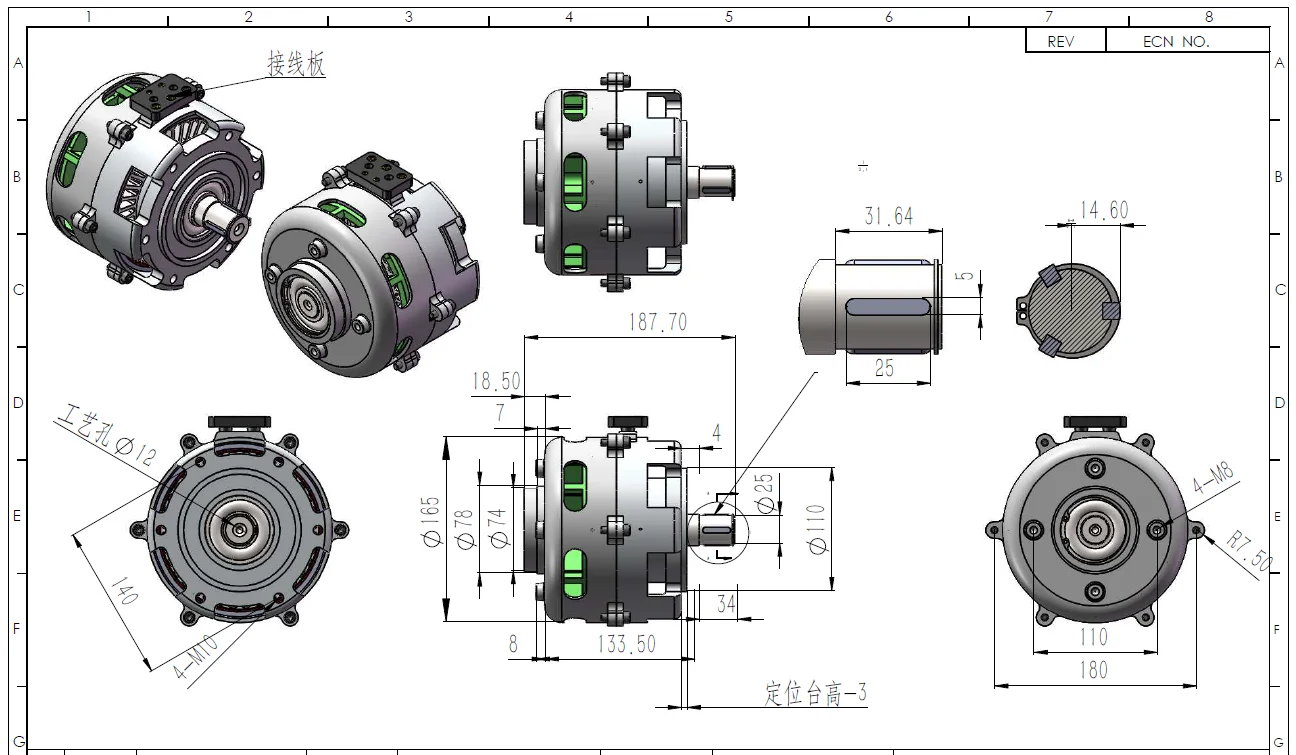

| Dimension(mm) | D165*L135 |
| Shaft Dimension | D25*34mm |
| M10*140 | |
| Sensored or Sensorless | Sensorless |
| Max Power(10S) | 20KW |
| Max Torque(N*M) | 28N*M |
| Max Current (A) | 350 |
| Net Weight (kg) | 6.6 |
| Cooling device | Air |
| Ingress protection | IP47 |
OEM/ODM Order question
We can custom made whatever brushless dc motor and servo you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.
For the motors please let us know your requirements:
1. Please choose inrunner motor or outrunner motor you need.
2. Do you have motor diameter and length limited?
3. What working voltage you will use for this motor?
4. What's your expected rated power?
5. What's your expected RPM?
6. You battery pack can bear how high peak current?
7. You estimated yearly sales qtys?
8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.
9. Other requirements if you need, for example, wire length, connector types and so on.
Contact Us directly via Trade Manager or send us email both ok, we will reply ASAP in 24 hours.
Below our custom made motors for other clients for your information.

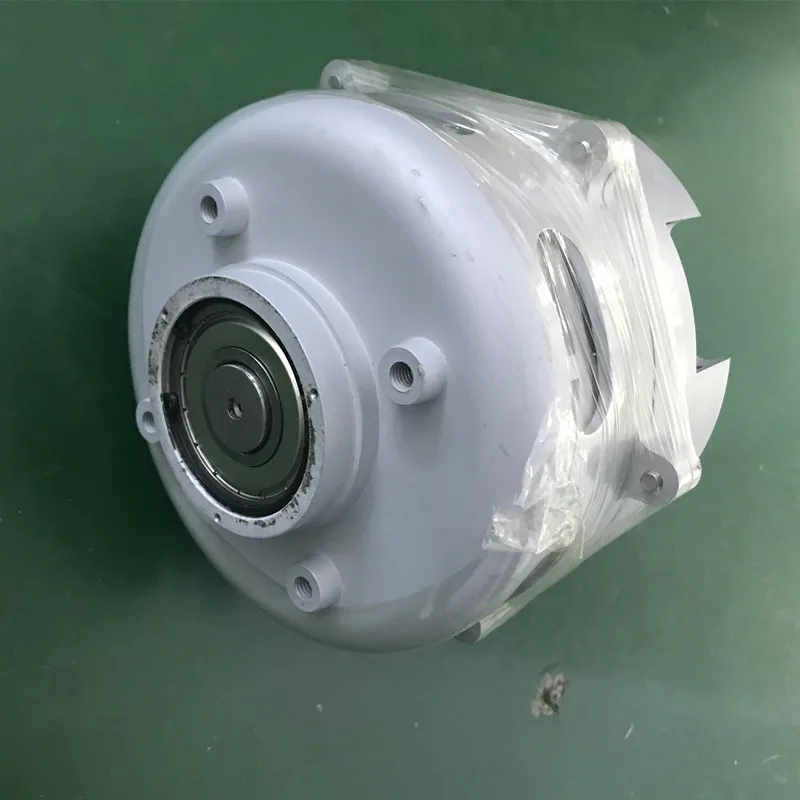

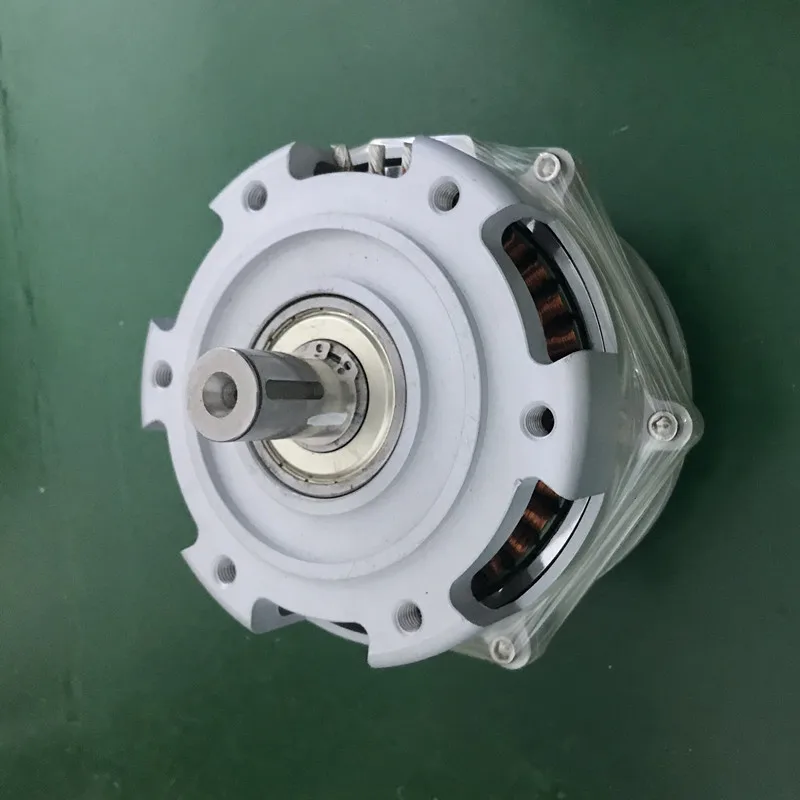

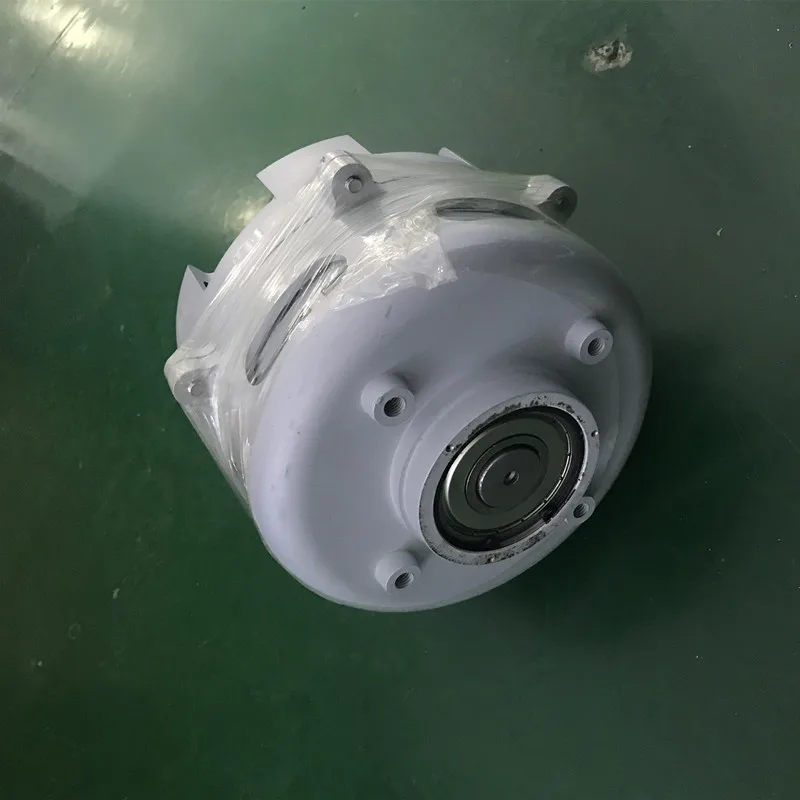

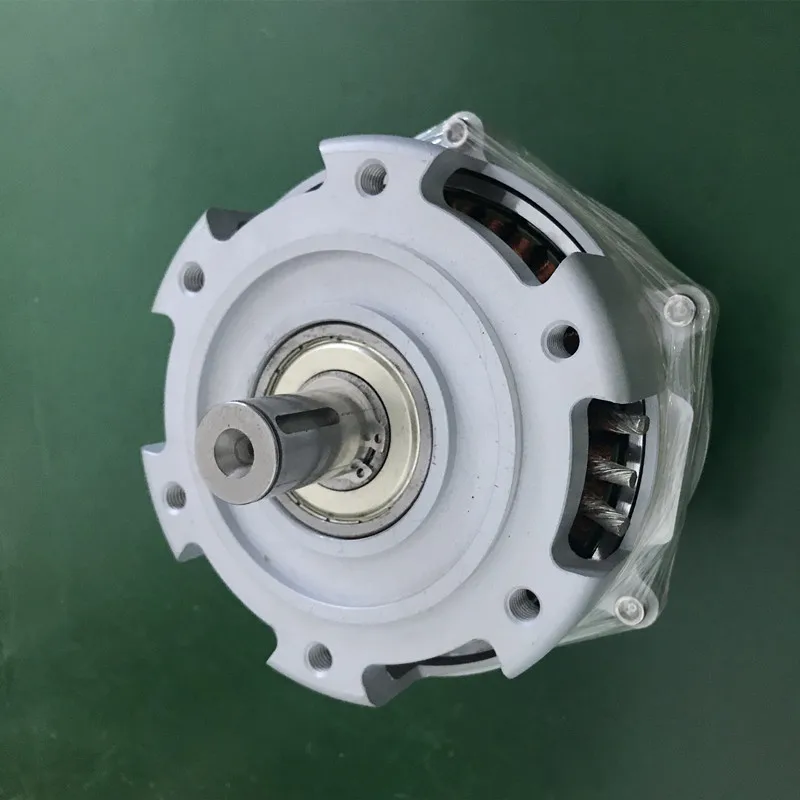

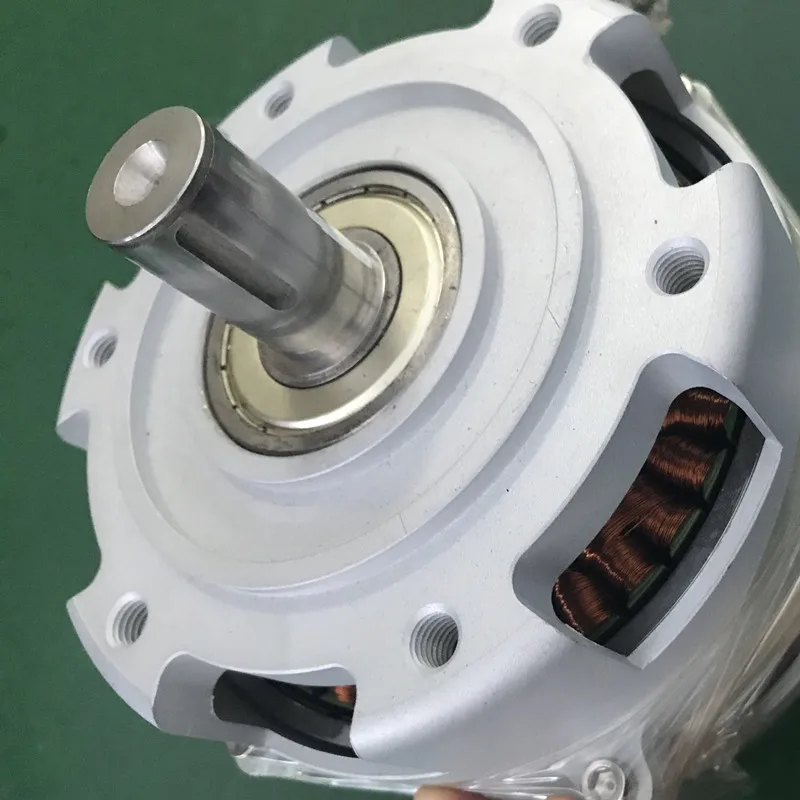

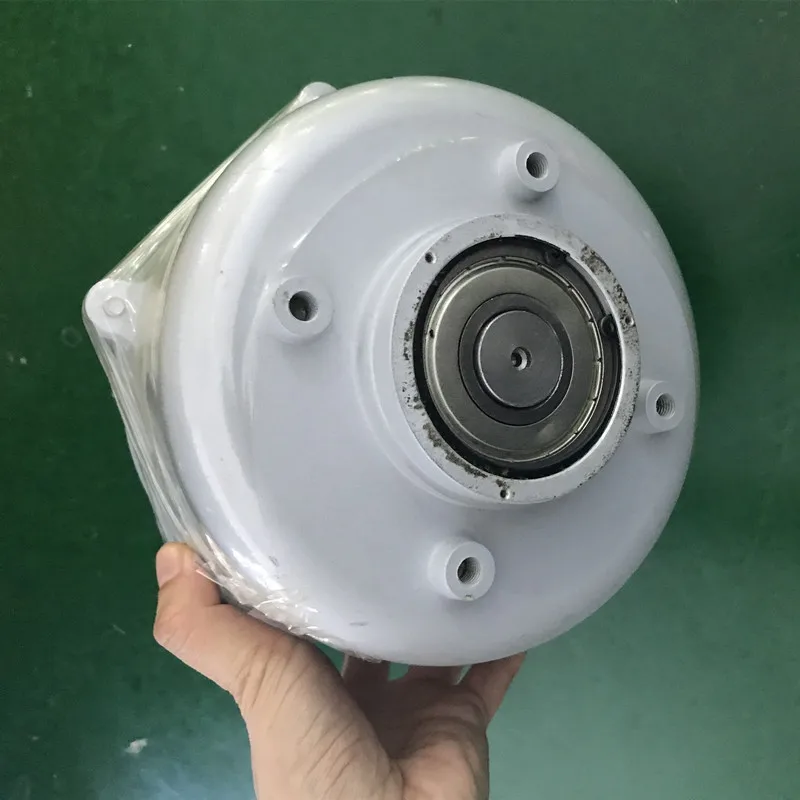

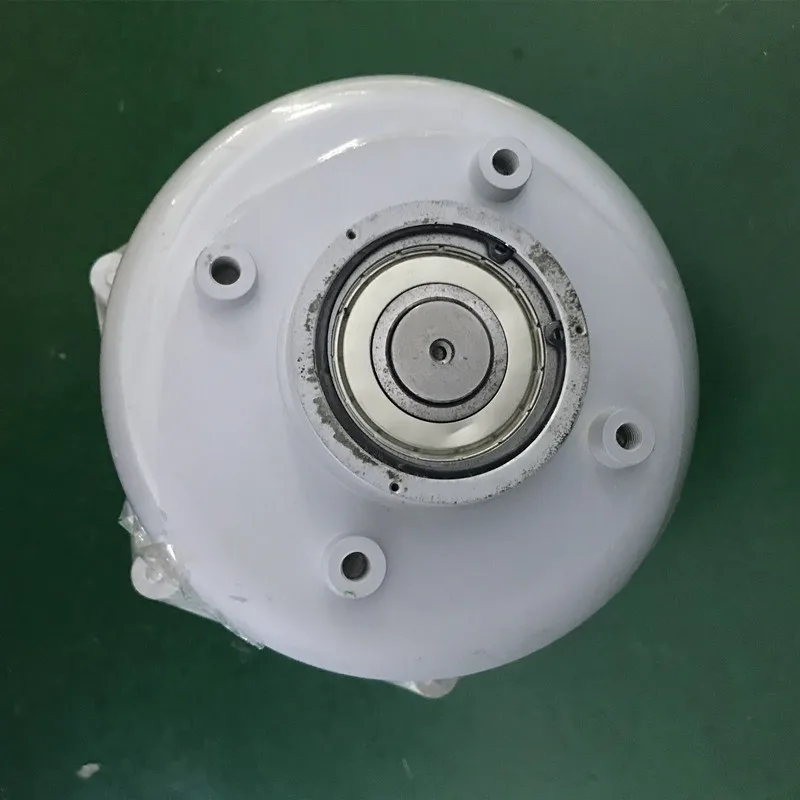

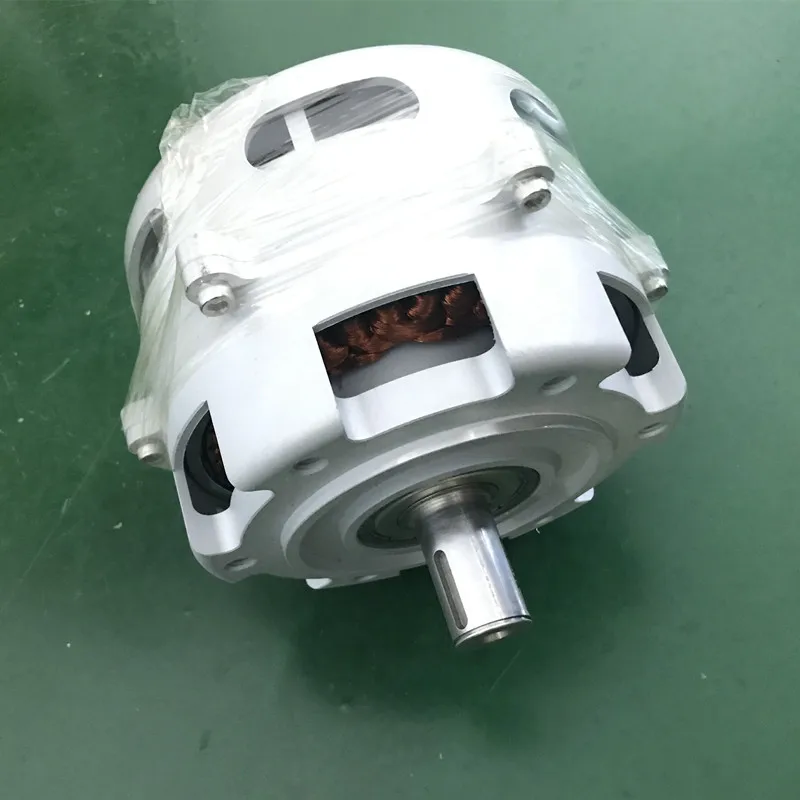

Product Pictures
Product Packing
Our Certificate
Our Factory
About US
Reacher Tech has devoted more than 10 years to the designing, developing and manufacturing the high-tech electronic brushless power systems for RC modelers and Industry Application.
We possess our own intellectual property and powerful R&D, which makes us design and produce products to satisfy customers’ needs (OEM customization service). All of our products can be meet CE and ROHS certification and some had passed Certificates. We’re looking forward to cooperating with global distributors of RC power systems (RC Brushless Motor, Industry brushless motor, Aero ESC, Car ESC, Marine ESC, RC Servos, Industry Servos, etc)
Reacher Tech consists of 3 departments as following at present:
--Brushless Motor and RC Servo Department. Including R&D and manufacture.
--Brushless ESC ( Electronic Speed Controller) Department.Including R&D and manufacture.
--Buyers Office (Searching relative products for clients, like RC Charger, Battery Pack, RC Plane, RC Car, UAV, Drone, Turbojet Plane, etc.
Whatever clients who want us to do the search and do the drop shipping, we are pleasure to do this service for you)
For the purpose of following the latest development of science & technology closely, we are dedicating to enhancing the product details and making continuous improvements in pursuit of the product perfection. Meanwhile, the products with high quality and stability together with professional services will be offered to the customers all the time.
Shipping Advice
Shipping Methods Optional
1.For normal products, we suggest to ship via EMS/UPS/DHL/FEDEX/TNT Express, we will
choose the economic one for you depends on the different discount.
2.For product like motor, servo with magnet inside, China inland express refused to ship magnet
product except to do the extra magnetic inspection. So we always ship via Hongkong DHL, to
save time and cost.
3.For the special product with battery or the pure battery products, as it’s very serious for battery
shipping. We choose the battery special shipping line, every day shipping charge is floating.
4.For big jet plane sample, as the length+(width+height)*2>3m, all the China inland EMS refused
to ship, the only shipping way is via Singapore Post.
5.For Bulk qtys order, we will choose shipping via Air or by sea depends on the final volume and
weight.
