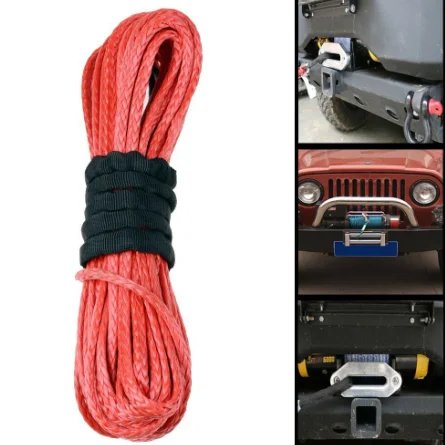

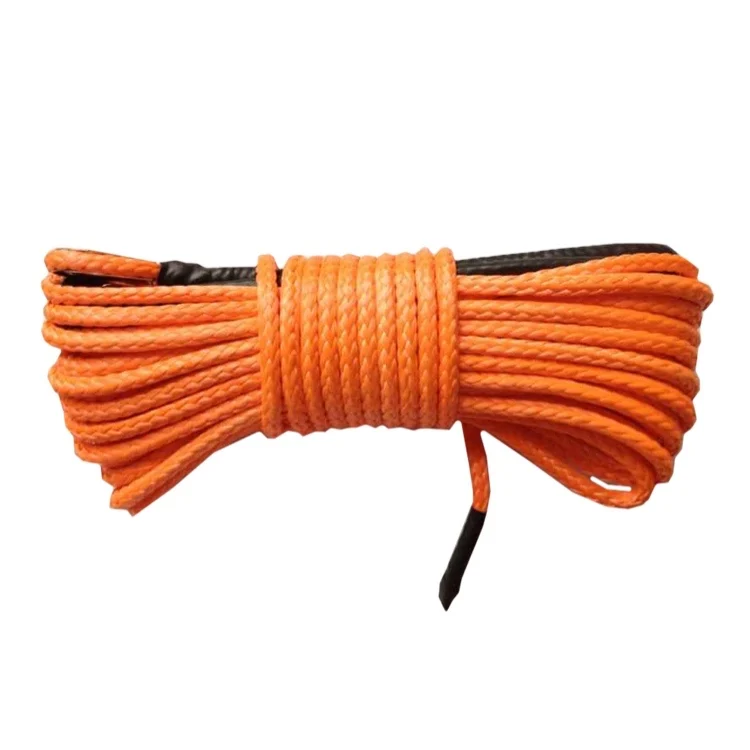

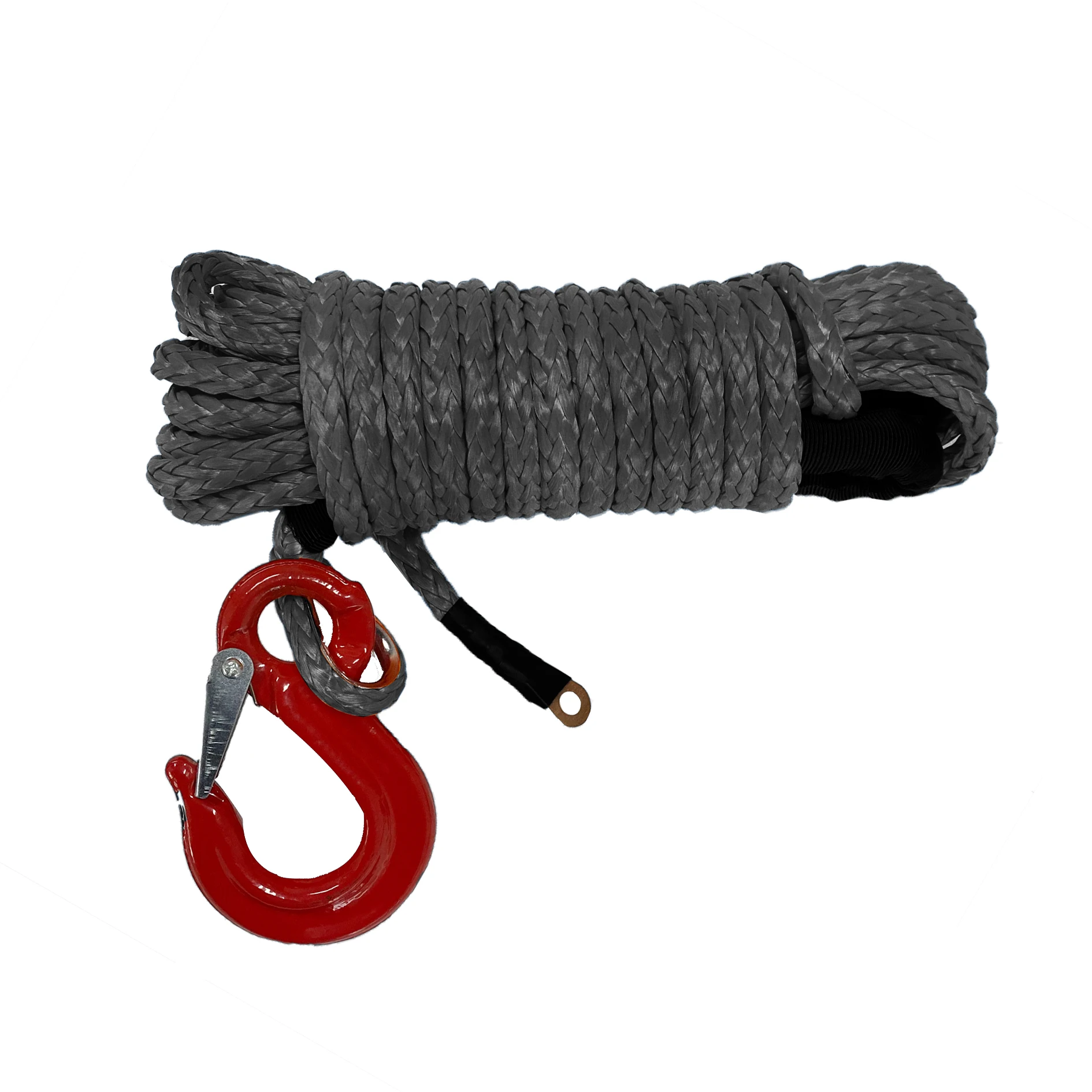

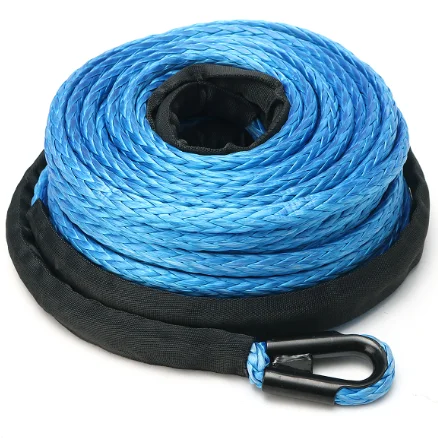

UHMWPE Waterproof/ 4X4 Off road Double Braided Vehicle Atv Utv Suv Truck Winch Synthetic Rope
- Category: >>>
- Supplier: Xinglun Rope Cable Co. Ltd.
Share on (62364120481):
Product Overview
Description
Product Description
J-MAX is suitable for all off-road vehicles and ATV vehicles in severe environmental conditions like snow ground, desert,moor,beach and muddy roads.
More details:
Size: 4mm-16mm
Length: 15m/30m/40m As Finished Length or based on your need.
Package: PP bag, water-proof
Specification
Dia (mm) | Cir (ins) | Linear Density (Ktex) | MBL (KN) Unspliced Rope | MBL (KN) Eye-spliced Teminations |
4 | 1/2 | 10.24 | 16.23 | 14.69 |
6 | 3/4 | 23 | 36.7 | 33 |
8 | 1 | 40 | 65.3 | 58.7 |
10 | 1-1/4 | 61 | 102 | 92 |
12 | 1-1/2 | 87 | 147 | 132 |
14 | 1-3/4 | 117 | 200 | 180 |
16 | 2 | 151 | 260 | 235 |
20 | 2-1/2 | 232 | 380 | 340 |
24 | 3 | 331 | 520 | 470 |
28 | 3-1/2 | 445 | 680 | 610 |
30 | 3-3/4 | 506 | 770 | 690 |
Feature
Safe ：
Do not store energy
Have no splinters and burrs
Do not store energy
Have no splinters and burrs
Easy handle:
J-MAX is about 80% lighter than wire rope
J-MAX is about 80% lighter than wire rope
Higher Strength:
Breaking strength 30%-90% higher than steel wire rope
Breaking strength 30%-90% higher than steel wire rope
Melting Point: 150
Elongation:3-4％
Elongation:3-4％
Abrasion Resistance:★★★★★
Chemical Resistance :★★★★
Chemical Resistance :★★★★
Easy to handle,Inspect and Repair

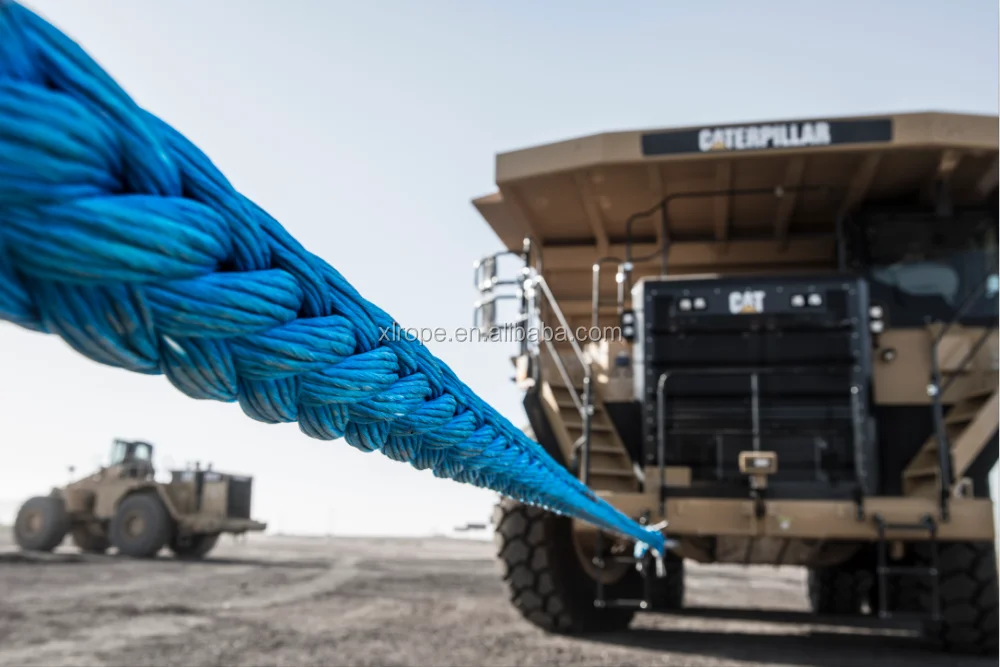

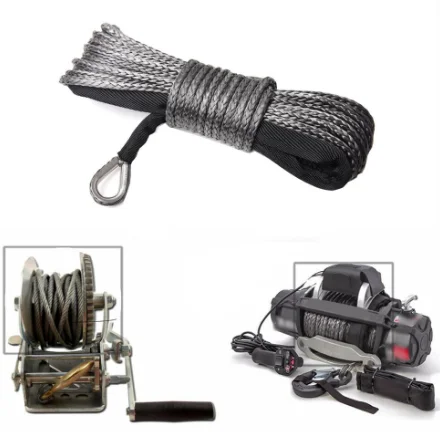

Application
.

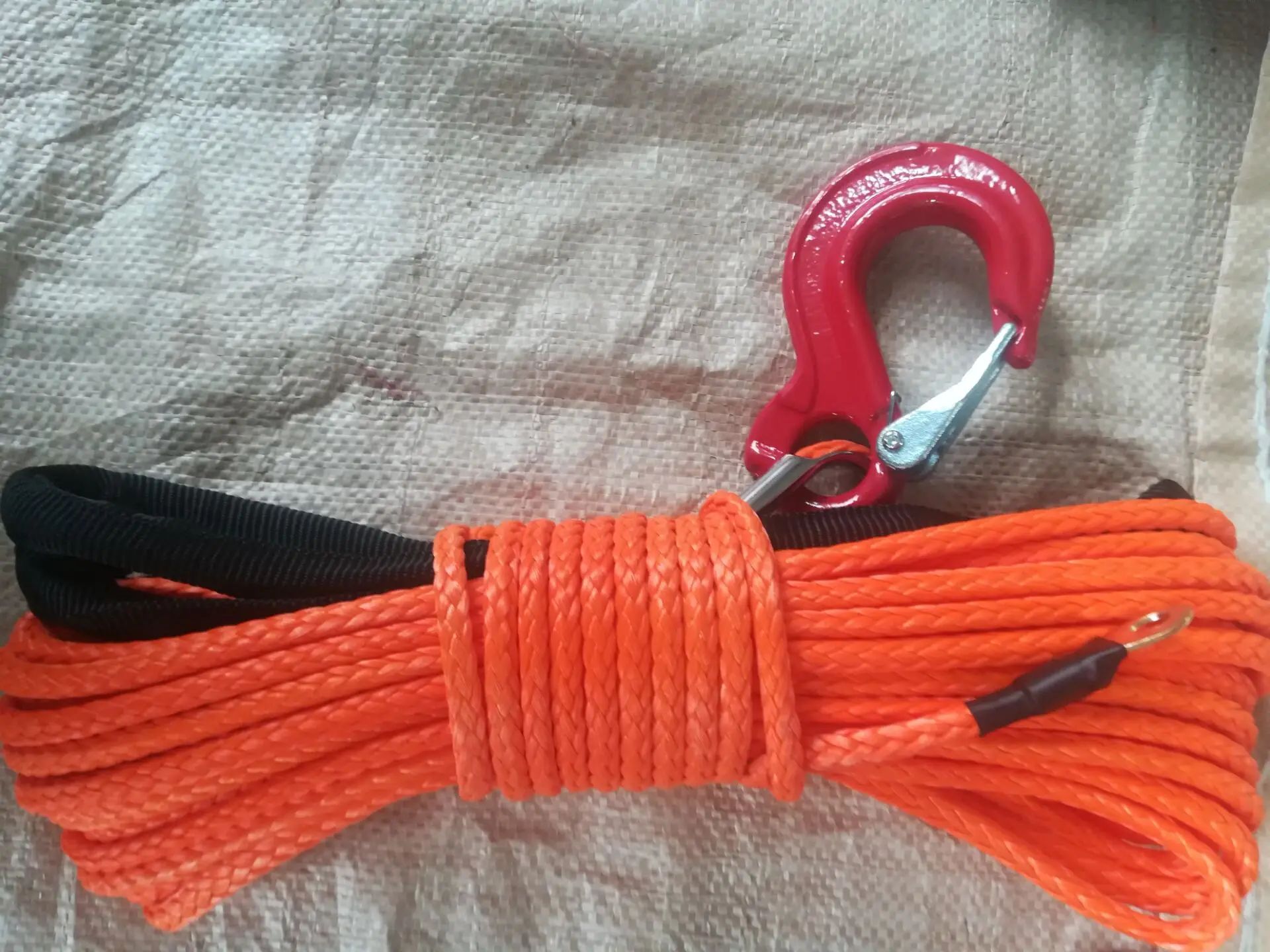

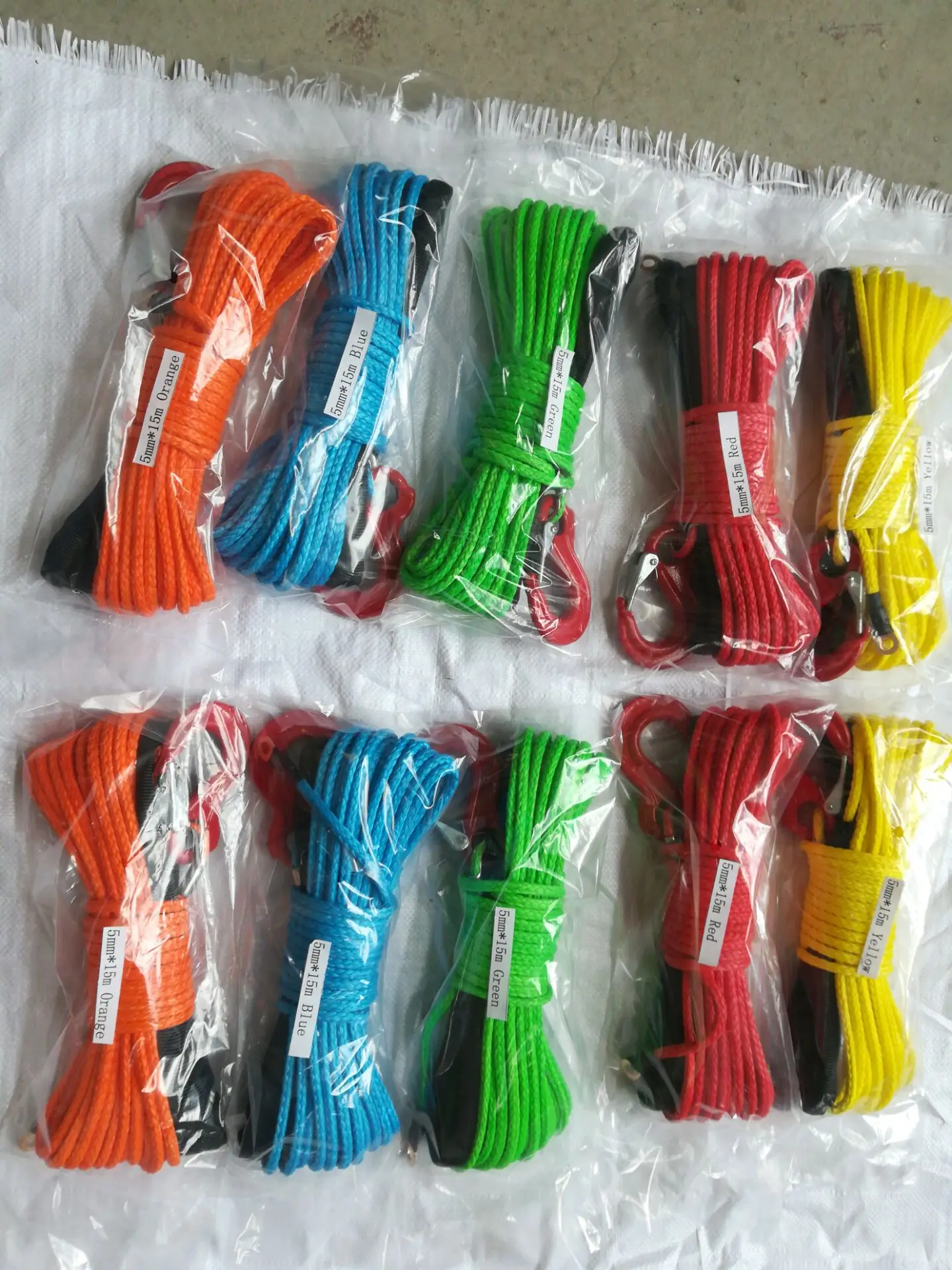

Real Shot
.
.
Company Profile
Xinglun Rope Cable Co., Ltd is a comprehensive high-tech enterprise with design, production and sales
combined together,specializing in rope area for 48 years.
As the development of the company, Xinglun people gradually became aware of the enormous power of science and technology, through the continuous research & development and innovation of the Xinglun technology department, each manufacture facility in the factory is adjusted to maximum productivity, what's more, we imported new production machines from Germany and Denmark. Besides, we keep technical communication with Germany rope companies, to improve our productiontechnology, to make Xinglun Rope go further and further.
