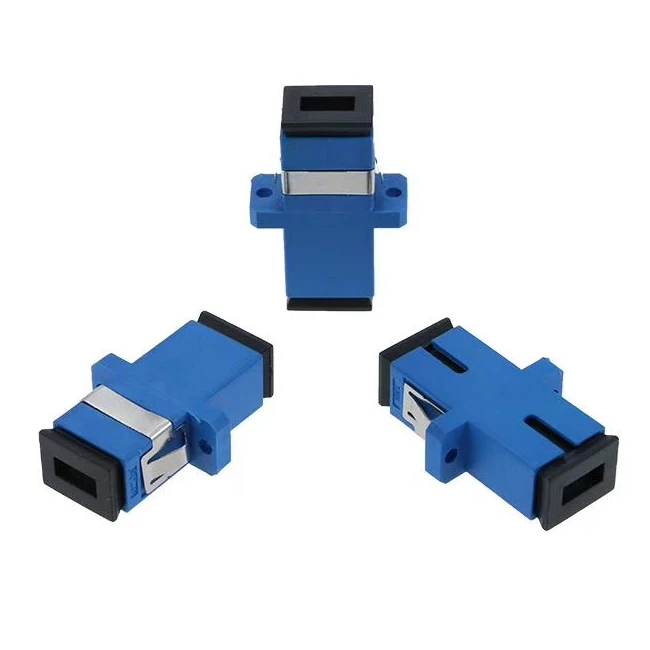

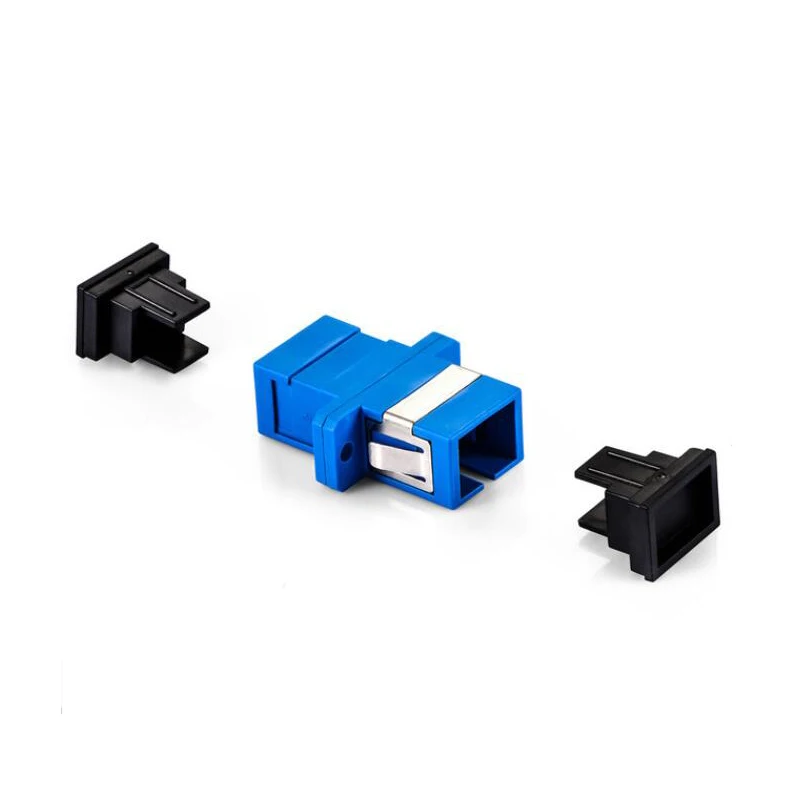

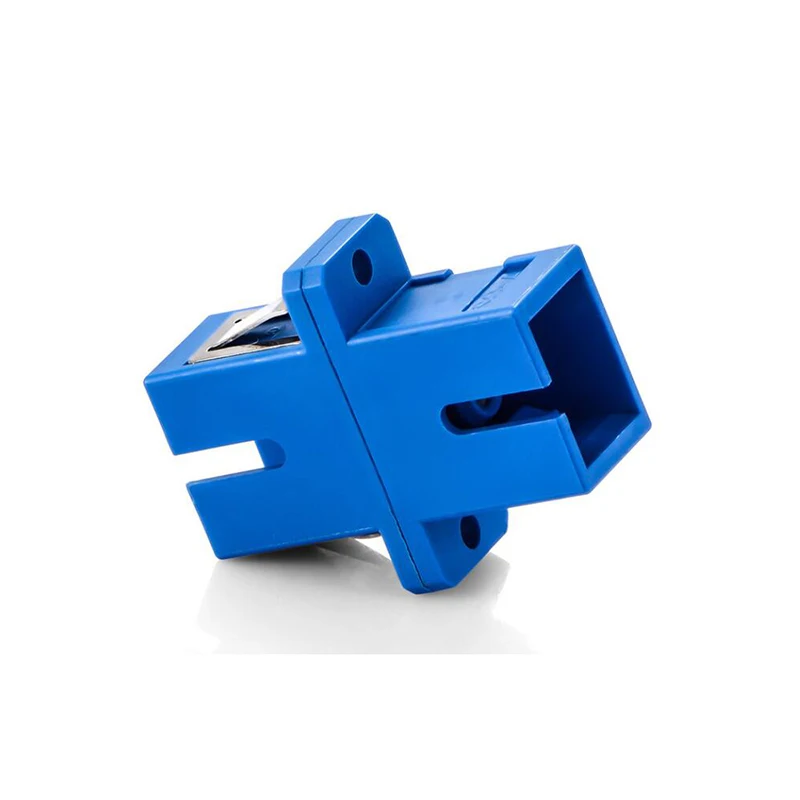

Simplex Duplex Flange Coupler Fiber Optical Patch Cable Adaptor SC APC PC UPC

Product Overview

Description

Simplex Duplex Flange Coupler Fiber Optical Patch Cable Adaptor SC APC PC UPC

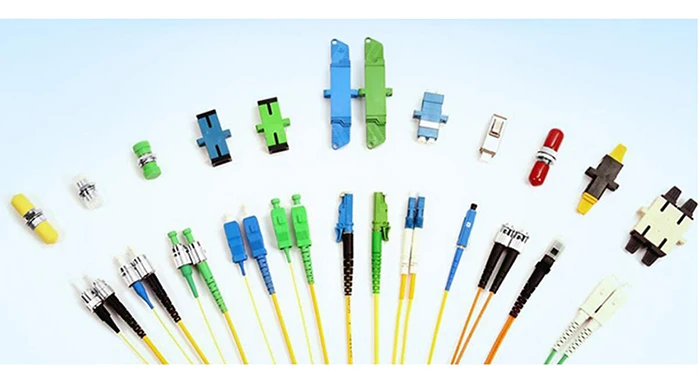

The Fiber optic adaptor is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. They are also called mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We supply a complete line of adaptors, including ST, SC, FC, LC style fiber optic adapters for both multimode and single-mode fiber applications, as well as simplex and duplex type, etc.



  Features:

• Low insertional loss and back reflection loss


• High precision alignment


• Nickel plated brass body


• Use in Single-mode or Multimode applications


• Optional housing material and sleeve material


• ISO9001:2008, ROHS compliance


• Zirconia ceramic ferrule with high durability and reliability.

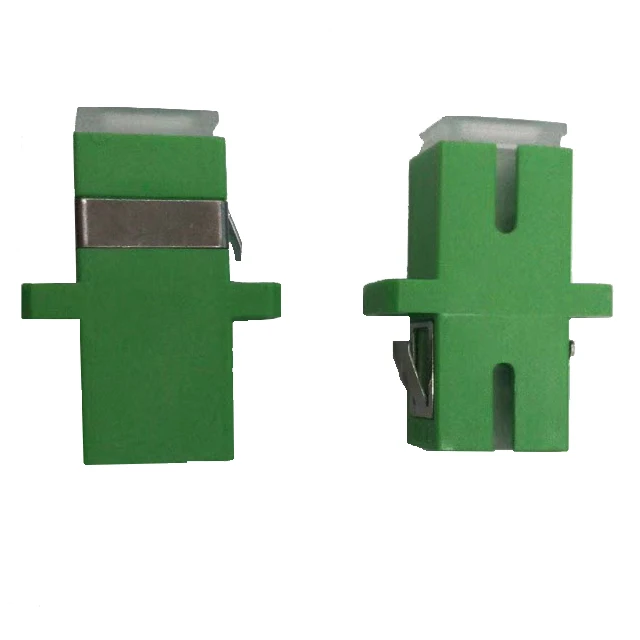

• PC/UPC/APC type available

 Applications:

• CATV


• Telecommunication networks


• Test equipment


• Metro


• Local Area Networks (LANs)


• Data processing networks

Technical Specifications:



Parameter	Unit	LC, SC, FC, ST
		SM			MM
		PC	UPC	APC	PC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30
Exchangeability	dB	≤0.2
Repeatability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	°C	-40~75
Storage Temperature	°C	-45~85
