DQT-501C is spray blend polyols, blowing agent is 365mfc/245fa instead of HCFC-141B, it reacts with isocyanate to produce foam which has excellent performances, which are as follows:
1) fine and uniformity cells
2) low thermal conductivity
3) perfect flame resistance
4) good low temperature dimensional stability.

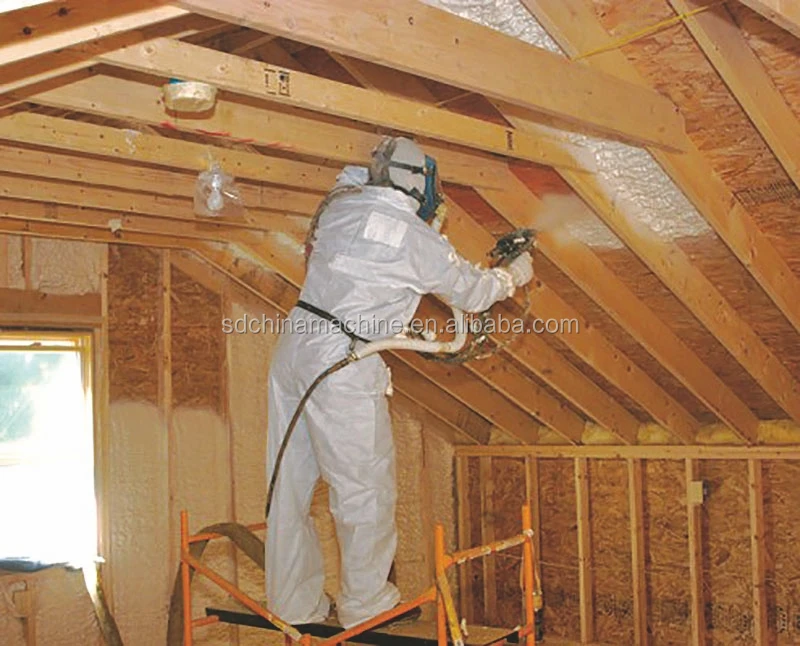

It applies to all kinds of thermal insulation engineering which uses the spray technology, such as cold rooms, pots, large-scale pipelines and construction metope etc.
Physical Properties
Appearance
Hydroxyl Value mgKOH/g
Dynamic Viscosity (25 ℃) mpa.s
Specific gravity (20 ℃ ) g/ml
Storage Temperature ℃
Storage Stability month
Pale yellow to brown viscous liquid
200-300
100-200
1.12-1.20
10-25
6

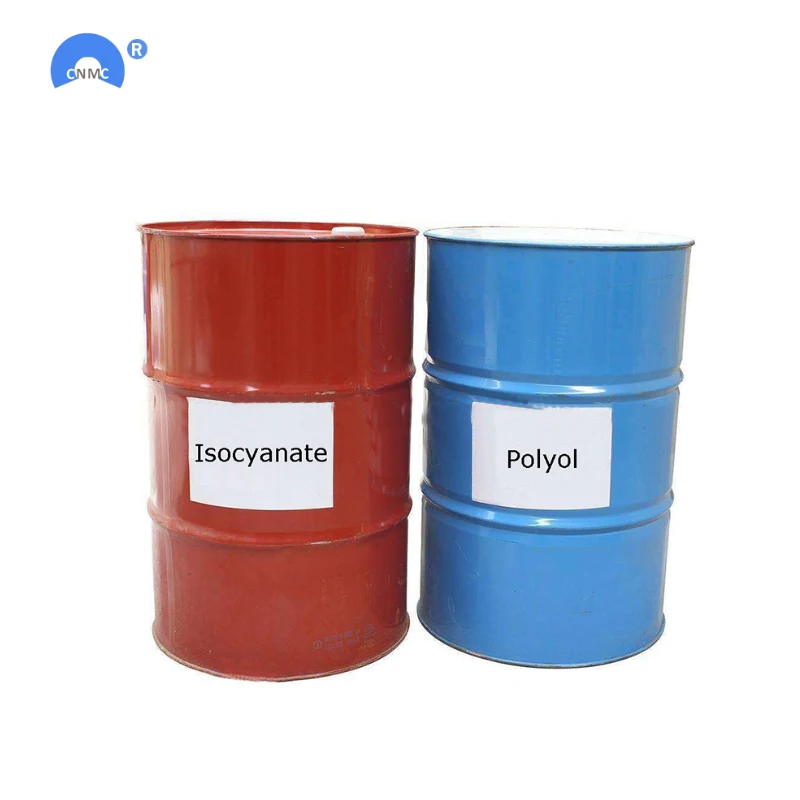

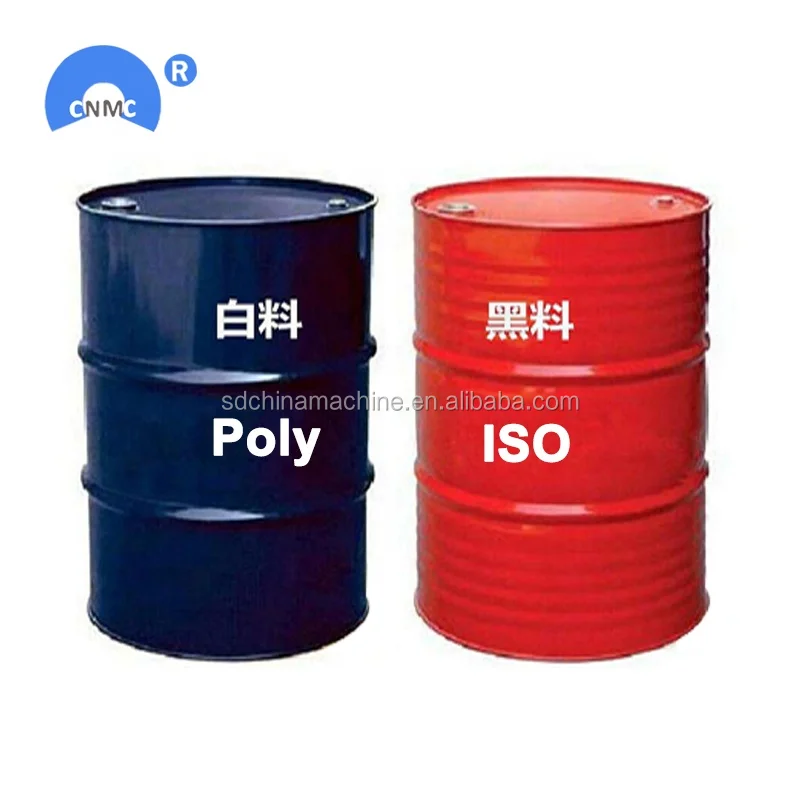

Recommended Ratio
pbw
DJD-105 blend polyols
Isocyanate
100
100-105
Reactivity Characteristics
(The temperature of the system is 20℃,and the exact value varied depending on processing condition)
Cream Time s
Gel Time s
3-5
6-10
Foam Performances
items
Test Method
Index
Spray Density
Closed-cell Rate
Initial Thermal Conductivity(15℃)
Compressive Strength
Adhesive Strength
Elongation at break
Dimentional Stability 24h -20℃
24h 70℃
Water Absorption
Oxygen Index
GB 6343
GB 10799
GB 3399
GB/T8813
GB/T16777
GB/T9641
GB/T8811
GB 8810
GB 8624
>40kg/m3
≥90%
≤24mW/(m.K)
≥150kPa
≥120kPa
≥10%
≤1%
≤1.5%
≤3%
≥26
Packaging & Shipping
FCL Delivery with container packing in plywood tray
