Wired External Hd Wifi Ip68 Ptz Speed Dome Csurvillance Poe Ir Night Vision Camera
- Category: >>>
- Supplier: Shenzhen Fengtaida Electrionics Co. Ltd.
Share on (62364417718):
Product Overview
Description
Product Description
Wired External Hd Wifi Ip68 Ptz Speed Dome Csurvillance Poe Ir Night Vision Camera
CTC Technology,extremely suitable for harsh environment and climate
High precisely step motor,preset accuracy is under ±0.1 degree

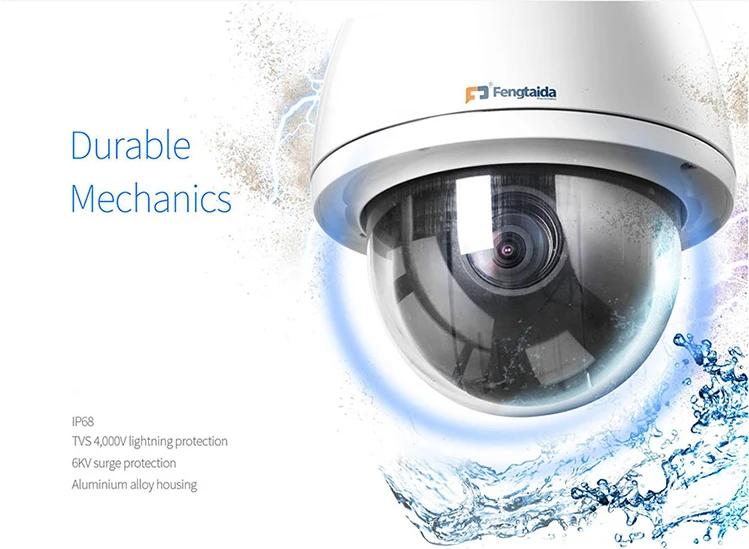

Durable mechanics, IIP68 waterproof Wide voltage,AC24V, PoE optional

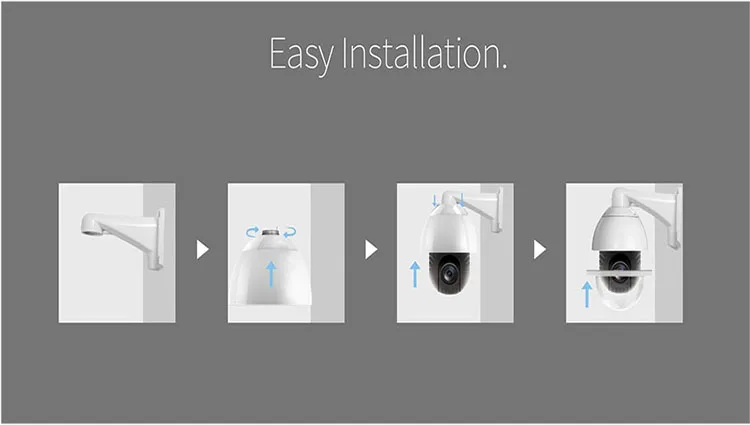

Easy installation,low maintenance
| Dome type | FA3-001 Series High Definition IP Speed Dome Specifications | ||||||
| FTD-FA3-1822P (38X) | |||||||
| Network | Network Interface | Ethernet 10/100Base-T (RJ-45) | |||||
| Network Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P | ||||||
| Compatibility | Support Hikvision,XM,TOPSEE etc center platform management software | ||||||
| Interface Protocol | ONVIF2.4/GB28181(Option- Customize) | ||||||
| Mobile monitoring | Operating System | Android/IOS | |||||
| Camera | Image Sensor | 1/1.8” 2.0M Pixel Sony CMOS IMX385 | |||||
| Optical Zoom | 38X | ||||||
| Minimum Illumination | Color: 0.005Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on) | ||||||
| WDR | 80dB | ||||||
| S/N Ratio | More than 50dB(AGC off) | ||||||
| Day/Night | Auto(ICR) / Color / B/W | ||||||
| Angle of View | H: 60° ~ 2° | ||||||
| Electronic Shutter Speed | 1/2 - 1/20,000s | ||||||
| Noise Reduction | DNR,3DNR | ||||||
| Defog | Support | ||||||
| Max. Aperture | F1.5~F4.8 | ||||||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||
| Gain Control | Auto / Manual | ||||||
| Video | Compression | H.265/H.264/MJPEG | |||||
| Video Interface | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB) | ||||||
| Resolution | Main stream:1920x1080,1280x960,1280×720,720×576,640×480 | ||||||
| Sub stream:640×480,352×288,320×240,176×144 | |||||||
| MJPEG:1920x1080,1280×720 | |||||||
| Max Frame Rate | H.265/H.264: 30fps at 1920x1080 | ||||||
| Bitrate | MainStream:10.0Mbps at VBR/Sub Stream:32Kbps at VBR | ||||||
| Audio | Algorithm | G711,G726,PCM,AAC | |||||
| Input | 1 x Line-In (Mini-stereo, Single Mono) | ||||||
| Output | 1 x Line-Out (Mini-stereo, Single Mono) | ||||||
| Pan/Tilt | Range | Pan : 360°(Endless)/ Tilt: -10~90° | |||||
| Pan/Tilt Speed | Preset Max.:480°/sec | ||||||
| Manual : 0.046° ~ 360°/sec (Zoom Proportional) | |||||||
| Patrol : 1.4°~360° /sec | |||||||
| Preset | 247Presets and 8 presets for special function | ||||||
| Patrol Scan | 3 Group Patrol | ||||||
| Other Functions | Auto Flip, Auto Parking, Power-up Action & etc | ||||||
| Alarm | Alarm Input | 1(ON/OFF signal) | |||||
| Alarm Output | 1(ON/OFF signal) | ||||||
| Physical | IP protection | With IP66 | |||||
| Operating Temperature | –30℃~50℃ | ||||||
| Humidity | 0%~98% (Non condensing) | ||||||
| POE | 2W-15W | ||||||
| Power Source | AC24V 3A 60Hz/50Hz; | ||||||
| Power Consumption | AC24V:2W-15W ; | ||||||
