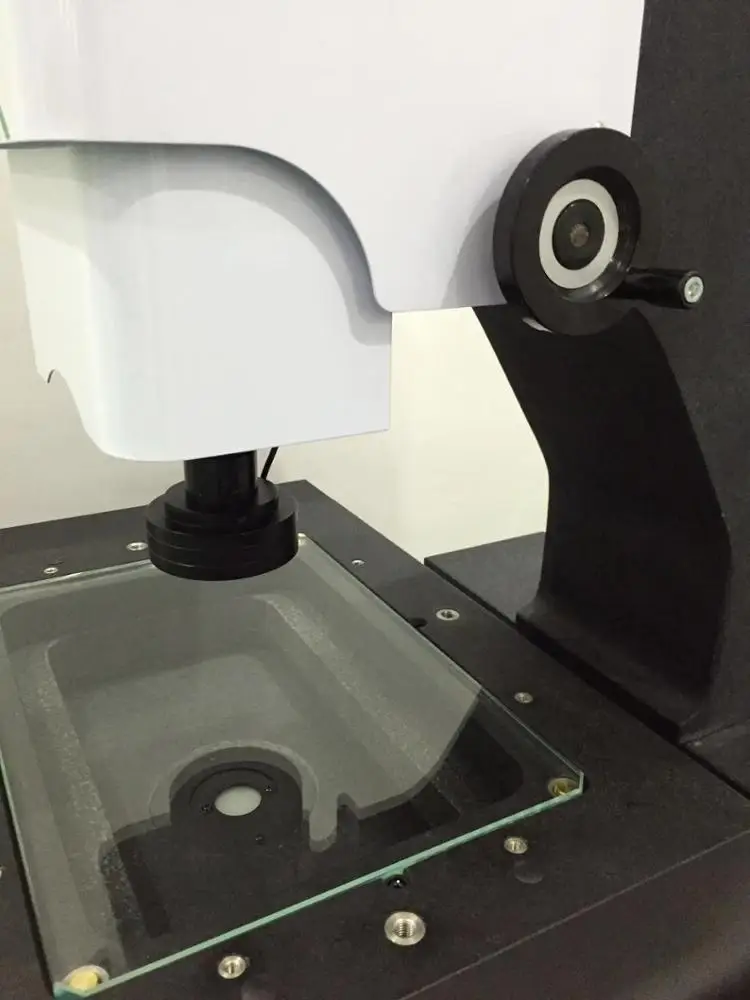

Factory Hot Selling VMS Video Measuring System Instrument With High Configuration (62364424867)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Technical parameters







































































































Paramter and ModelAQC210  AQC320AQC430  AQC540
Workbench Platfom size(mm) 360X260 460X360560X460 720X620
 Glass table size(mm)250X150350X250 450X350 550X450
 Load-bearing weight(kg) 2020  2020
Travel X axis(mm)200 300 400 500
 Y axis(mm) 100200 300 400
 Z axis(mm)200200200200
Image and measurement system Display resolution(μm)     1/0.5(Optional)
 Instrument precision(μm)     (3+L/200)μm
 Imaging system(CCD)HD Digital Camera
 Zoom objective(X)High Precision Zoom Objective 0.7~4.5X
 Total video magnification(x)30-200X
 Working distance(mm)96
 Light sourceLED programmable partiton light source(Coaxial light source optional)
Outline dimension(mm) 610X550X970 740X660X970    880X760X970 1090X720X1700
Weight(kg)  250350 450700
Power supply220V AC  50Hz.,100V AC 60HZ

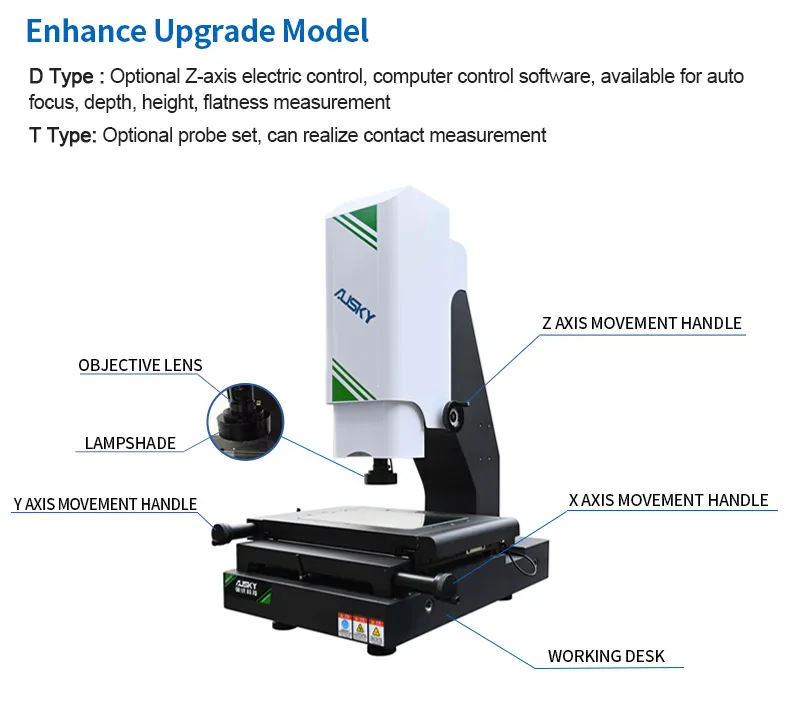

-1-OK_04.jpg-2-OK_03.jpg-2-OK_04.jpg-4-OK_03.jpg-4-OK_04.jpg-4-OK_02.jpgUpgrade AQC.jpg





Main Function


1.Element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.





2.element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.





3.preset elements: point, line, circle, arc.





4.graphics: coordinate translation, straighten the work piece.





5.arbitrary axis straightened, coordinate system reset.





6.graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.





7.Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.





8 .Set the gray scale image, saturation, contrast, image saved as a BMP format.





9.a variety of edge detection mode, the computer automatically get points, automatic identification circle, arc greatly enhance the speed of mining points.-4-OK_01.jpg





Advantages























Company profile


Located at Shenzhen city, Baoan District Guangdong Province.High-tech enterprise integrating R & D and production.





Mainly engaged in video measuring system,have been professional in the industry of video measuring  system for 15 years.





Our main products are :Manual Image Measuring Instrument, CNC Video Measuring System,Gantry Large Stroke Vision Measurement Machine, One Key Rapid Video Measuring Machine, CMM Coordinate Measuring Machine, Profile Projector etc .





Products widely applied in industrial applications such as machines,


electronics, molds, plastics, metals, die-cutting, electrical appliances, mobile,


phone, home appliance, computer, LCD TV, printed circuit board (PCB), automotive, aviation etc.





AUSKY always carries on the scientific manage system ,strong adhere to the policy :Quality Firstly,Customer Firstly and Credit Firstly .





We also have a perfect after sale service system ,These can ensure that we provide customers with the best products and services.-5-OK_02.jpg





Our Customers







Our Service












FAQ


1. How to Choose the Appropriate Specification


After get your demand,our professional team will work out best solutions by sending catalogue specification,demonstration video or other methods according to customers' need.





2. What is the delivery term of your products?
Normally we have standard products in stock. For bigger sizes (larger than 1000mm),


we  can  discuss  and  determine  on  the delivery  time, generally,7-10 working days after receipt of the


payment. in urgent , we will try to make special arrangement.


Various shipping modes choices,shipping from Shenzhen port.





3. Do you accept customized service?
Yes OEM is welcome .





4. What is your warranty period?


12 Months warranty,after the warranty,the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products and promptly handle customer problems and complaints.





5.Have you ever had clients in our country before?





Our equipment has been widely supplied to Malaysia,India,Japan,


Pakistan, Philippines, Singapore,Thailand and Vietnam, Korea, UK, Italy, Germany,USA, Poland, Russia,


Turkey,Mexico,Ecuador,Canada,Israel and so on more than 30 countries.





6.How to install and use your product .


We will provide operating instructions and video of English version, if near our agent,the spot service is easier or


we can send engineer to your country to finish installation and training,it takes extra cost like air-ticket and


accommodation .
