Low power ipc consumption and high efficiency embedded industrial controller without fan MEC-5031-M IPC
Low power and high performance embedded fan without fan
MEC-5031-M

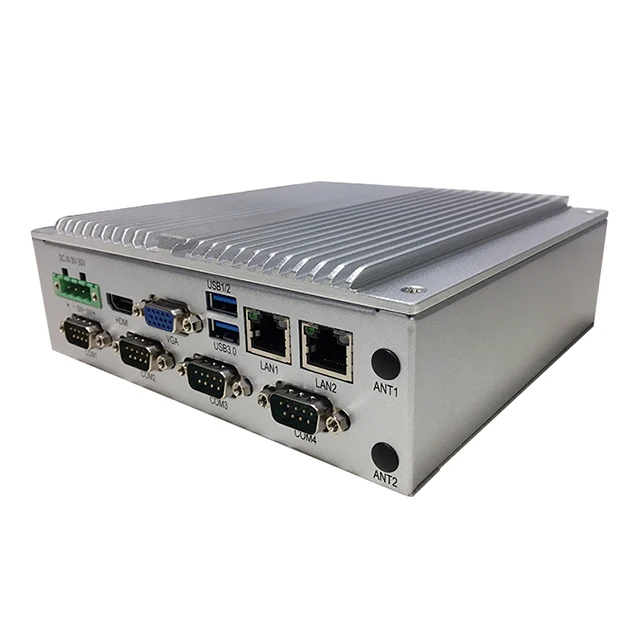

The MEC-5031-M product is a fan free, low power and high performance embedded machine. It has compact structure, strong structure and no fan design. The shell is used for heat dissipation. It has excellent sealing, dust-proof, heat dissipation and anti-vibration performance. It can satisfy the use of harsh environment such as pollution, dust and electromagnetic interference. The solution of Intel Celeron J1900 processor + Intel Domain.
Adopt Intel Celeron J1900 2.0Ghz quad core low power processor
4G DDR3 memory, maximum support 8GB memory.
Board M-SATA slot, MINI PCI_E slot, expand M-SATA hard disk and wireless network card, 3G/4G function
The serial protection level is high (ESD protection: air gap + 15kV, contact + 8kV).
Support USB3.0 equipment, Net port PXE boot function, support no disk boot.
Product characteristics:
Four-core low-power processor 4G DDR3 memory with Intel Celeron J1900 2.0GHz is used to support 8GB memory on-board M-SATA slot, MINI PCI_E slot, expansion of M-SATA hard disk and wireless network card, and high protection level of serial port (ESD: air contact gap (+15kV, +8kV) of 3G/4G function to support PXE boot function of USB 3.0 device network interface. Start without disk
Product Specifications:
System
Processor
Onboard Intel@ ATOM™E3845 1.91GB Quad-core CPU
Chipset
Bay Trail
Memory
Onboard 4GB Memory Capacity
Display
VGA
1 x VGA(maximum resolution:2560 x 1600)
HDMI
1 x HDMI (maximum resolution: 1920 x 1200)

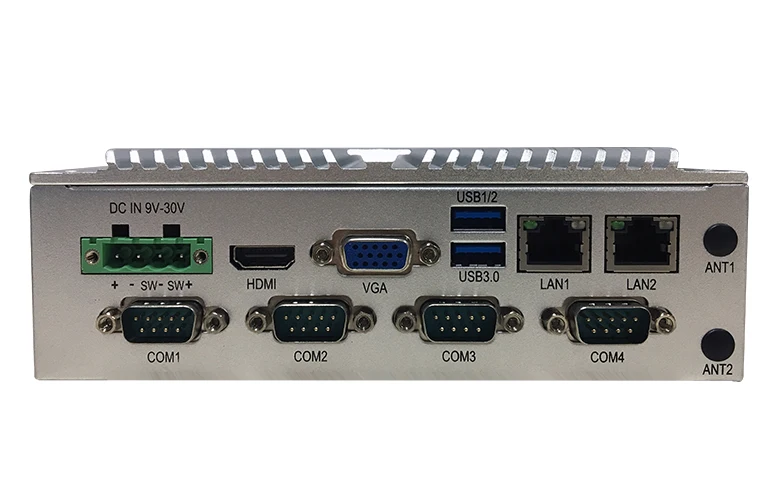

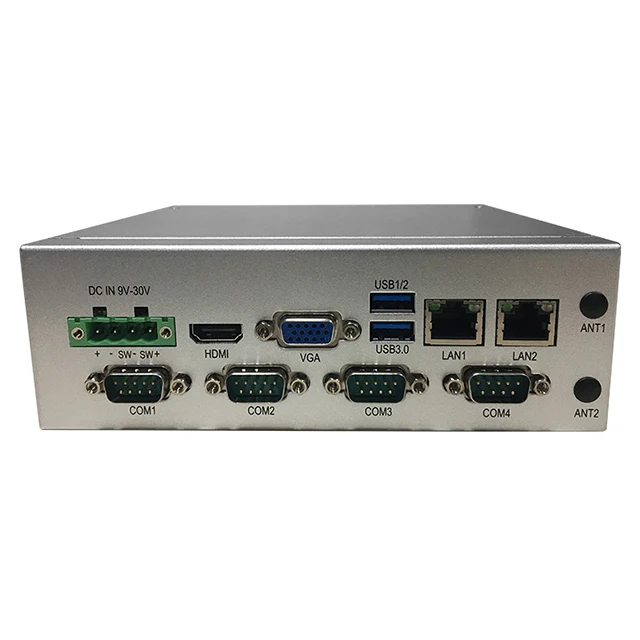

I/O interface
LAN
2 x 10/100/1000Mbps RJ45 LAN port; LAN1 supports Wake-On-LAN
Serial Port
4 COM ports (COM1~COM2 are RS-232/422/485 optional, COM3~COM4 are RS-232, depending on the configuration)
USB
1 x USB3.0; 3 x USB2.0 (2 x USB on the front panel)
Supports 9~30V DC wide voltage input, or by 90W AC external adapter
Dimensions(W x H x D)
170mm (W)× 70mm(H) × 160mm(D)
Ordering information:
Part Number
Model Number
Description
0010-087231
MEC-5031-M-01
Low-power fanless embedded PC with ATOM E3845 1.91G quad core/4G memory/4 x COM port(2 x RS232/485/422 optional)/1 x PS/2 port/1 x VGA/1 x HDMI/2 x Lan port/4 x USB/SSD 64G/Support M-SATA/Support MiniPCI-E/SIM card/DC12V~24V input/60W adapter
