Overview EC9-1501-ZX is a single board computer with Embedded ATX structure based on mega byte domestic chip platform, which adopts advanced ZX-C4701 four-core processor and ZX-100S chipset, and supports VGA+DVI dual display function.Support PCIe X16 (actu al speed X8), PCIe X4, PCI extension bus extension, mainly for bank ATM/VTM self-help terminal, self-help tax terminal, petroleum and petrochemical, highway ETC, governme nt security computer and other applications. High-end performance and rich feature co nfigurations can play an important role.

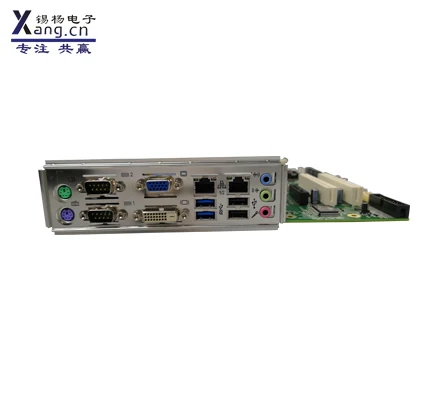

Characteristics Chipsets that support home-made megabyte 4-core CPU (ZX-C4701) and ZX-100S, ZX -C4701 and ZX-100S have the same performance as G1820 and H81 support two 1333 /1600MHz DDR3 memories. The maximum memory capacity can be up to 32GB VGA, DVI-D dual display function to support six USB2.0,3 USB3.0,9 serial ports to support P CIe X16 (actual speed is X8), PCIe X4, PCI bus expansion support TCM module, with a u nique secure encryption system.Operating systems that support SM3 and SM4 nationa l secret algorithms: win7, win8, win10, Linux and domestic bid-winning Kirin and other operating systems (can achieve the localization of all software and hardware)
Product specification
Processor
Support for open ZX-C+ quad-core processor, this board uses ZX-C4701
Chip set
ZX-100S chipset
Memory
Provides two 1333/1600MHz DDR3 U-DIMM memory slots that support a maximum capacity of 16GB per root memory and total support for 32GB
Display interface
Support for VGA, DVI-D dual display, VGA supports a maximum resolution of 2560 to 1600, DVI-D supports a maximum resolution of 2048*1536@60Hz
Provide 10 serial ports, of which COM1,COM2 supports RS-232/422/RS-485 mode selection, COM1 and COM2 support 5V/12V live optional at the same time, provide 6 USB2.0 interfaces, and provide 3 USB3.0 interfaces. Provide 2 PS/2 interfaces (keyboard and mouse interface), 1 8-way digital I / O interface, 1 TCM interface and 1 LPT interface (pin interface, which can be drawn through wire)
Extended bus
Provide 2 PCI, 1 PCIEX4 (actual speed is PCIEX1), 1 PCIEX16
Working temperature
-10 ℃ ~ 60 ℃; humidity: 5% 95% (non-condensed)
Storage environment
-20 ℃ ~ 80 ℃; humidity: 5% 95% (non-condensed)
Watchdog
Level 255, programmable second / minute, timeout interrupt or system reset
