High quality standard peltier module teg semiconductor

Product Overview

Description

High Quality standard Peltier module teg semiconductor

• Features

High reliability: with the special GL structure,the reversal of polarity property of our products are 10 times better than conventional thermoelectric coolers. The reliability of coolers has been increased dramatically.
Higher temperature difference: 2℃ temperature difference result in higher cooling performance and better quality.
High temperature resistance: the 230℃ high temperature solder made the products possible to be used at higher temperature.

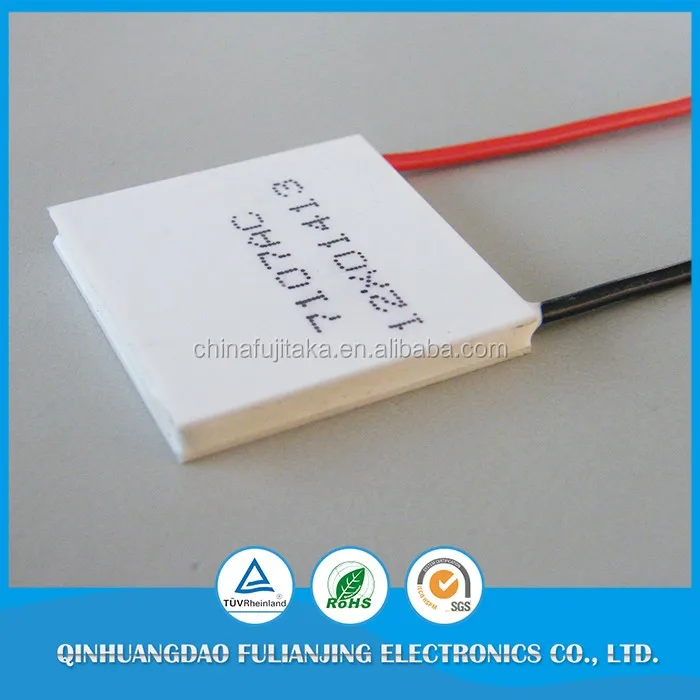

1. Product Pictures of Thermoelectric Peltier module

2.Product description of thermoelectric peltier module

Model number	Imax(A)	Vmax(V)	Tmax(℃)	Qmax(W)	Tmax(℃)	Qmax(W)	Dimensions(mm)
			Th=27℃		Th=50℃		L	W	H
TEC1-1703NC	3.5	2.1	68	3.9	75	4.3	15	15	4.70
TEC1-3103NC		3.8		7.0		7.7	20	20
TEC1-3503NC		4.2		7.9		8.7	15	30
TEC1-7103NC		8.6		16.0		17.8	30	30
TEC1-12703NC		15.4		29.0		32.0	40	40
TEC1-12703AC		15.4		29.0		32.0	40	40
TEC1-1704NC	4.0	2.1	68	4.2	75	4.6	15	15	4.60
TEC1-3104NC		3.8		7.5		8.3	20	20
TEC1-3504NC		4.2		8.4		9.2	15	30
TEC1-4904NC		5.9		13.5		15.2	25	25
TEC1-7104NC		8.6		19.6		21.6	30	30
TEC1-12704NC		15.4		32.0		35.2	40	40
TEC1-12704AC		15.4		32.0		35.2	40	40
TEC1-1705NC	5.0	2.1	68	5.5	75	6.1	15	15	4.00
TEC1-3105NC		3.8		10.0		11.1	20	20
TEC1-3505NC		4.2		11.0		12.3	15	30
TEC1-7105NC		8.6		23.0		25.7	30	30
TEC1-12705NC		15.4		41.0		45.8	40	40
TEC1-1706NC	6.0	2.1	68	7.1	75	7.9	15	15	4.00
TEC1-3106NC		3.8		13.0		14.5	20	20
TEC1-3506NC		4.2		14.5		16.1	15	30
TEC1-7106NC		8.6		29.0		31.4	30	30
TEC1-12706NC		15.4		53.0		59.3	40	40
TEC1-12706AC		15.4		53.0		59.3	40	40
TEC1-1707NC	7.0	2.1	68	7.5	75	8.3	15	15	3.70
TEC1-3107NC		3.8		13.6		15.1	20	20
TEC1-3507NC		4.2		15.4		17.1	15	30
TEC1-7107NC		8.6		31.0		34.6		30
TEC1-12707NC		15.4		55.0		61.5	40	40
TEC1-12707AC		15.4		55.0		61.5	40	40
TEC1-1708NC	8.5	2.1	68	10.0	75	11.1	15	15	3.50
TEC1-3108NC		3.8		18.0		20.1	20	20
TEC1-3508NC		4.2		20.0		22.3	30	15
TEC1-6308NC		7.6		37.4		41.8	40	20
TEC1-7108NC		8.6		42.0		46.9	30	30
TEC1-12708NC		15.4		75.0		83.9	40	40
TEC1-12708AC		15.4		75.0		83.9	40	40
TEC1-12710AC	10.5	15.4	68	93.0	75	102.0	40	40	3.30
TEC1-12712AC	12.5	15.4	68	110.0	75.0	121.0	40	40	3.70
TEC1-12715AC	15.0	15.4	68	130.0	75.0	145.0	50	50	4.15
TEC1-19903AC	3.5	24.1	68	49.0	75.0	53.0	40	40	4.70
TEC1-19904AC	4.0	24.1	68	55.7	75.0	61.2	40	40	4.60
TEC1-19906AC	6.0	24.1	68	83.5	75.0	91.9	40	40	4.00
TEC1-19908AC	8.5	24.1	68	118.0	75.0	130.0	40	40	3.50
TEC1-19910AC	10.5	24.1	68	148.0	75.0	163.0	40	40	3.30
TEC1-19913AC	13.0	24.1	68	200.0	75.0	224.0	40	40	3.40
TES1-3102NC	2.0	3.8	68	3.7	75	4.0	15	15	4.8
TES1-7102NC		8.6		8.5		9.4	20	20
TES1-12702NC		15.4		15.2		16.9	30	30
TES1-12702AC		15.4		15.2		16.9	30	30
TES1-3103NC	3.0	3.8	68	6.5	75	7.2	15	15	3.9
TES1-4903NC		6.0		10.3		11.3	20	20
TES1-7103NC	3.0	8.6		15.0		16.7	20	20
TES1-12703NC		15.4		27.0		30.1	30	30
TES1-12703AC		15.4		27.0		30.1	30	30
TES1-3104NC	3.9	3.8	68	8.1	75	8.8	15	15	3.7
TES1-7104NC		8.6		18.7		21.8	20	20
TES1-12704NC		15.4		33.4		37.3	30	30
TES1-12704AC		15.4		33.4		37.3	30	30
TES1-3106NC	6.0	3.8	68	12.2	75	13.6	15	15	3.2
TES1-7106NC		8.6		27.9		31.2	20	20
TES1-12706NC		15.4		50.5		56.5	30	30
TES1-12706AC		15.4		50.5		56.5	30	30
