Высокотвердая насадка для струйной резки из карбида вольфрама

Product Overview

Description

high hardness tungsten carbide water jet cutting nozzle

Carbide water jet nozzle made from high hardness tungsten carbide, the life time is 10 times longer than ceramic nozzles. They are good for cleaning, even small areas: weldments, grillwork, and railings. It can be used with water from a tap or with rust inhibitors introduced through any simple pump, no special equipment is required. If your needed a non-standard nozzle, we also can produce it for you.



Unique advantage of  tungsten carbide water jet nozzles

1. Adopt supermicron grain size, which can result in  better wear-reseistance and longer life span.

2. Super oxygen-resistant

3. Using HIP sintering which can increase the performance of carbide greatly.

4. Precision Ground and polished



 Detail information:

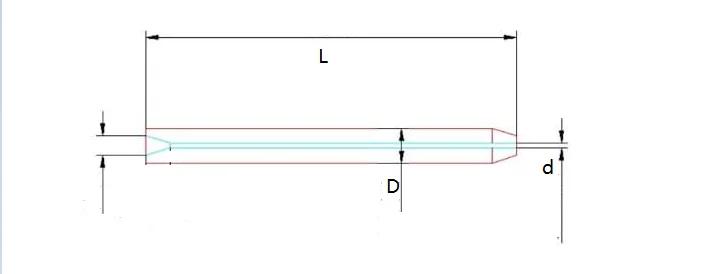

1. Size: Φ7.14*Φ1.02*76.2mm( customized is also available)

2. Material: tungsten carbide(WC+Co)

3. Hardness: HRA92.5-93

4. Application: waterjet cutting head



Physic character of  tungsten carbide water jet nozzles

1. Long life span:  80 hrs for finish grinding, 140hrs for rough grinding

2. Density:15.45g/cm3 —15.60 g/cm3

3. Hardness:2000Mpa-2400Mpa

4. the tolerance of polish and ground can be +0.005/-0.005m

Application of  tungsten carbide water jet nozzles

1.Metal cutting

2.Ceramic cutting

3.Stone cutting

4.Glass cutting

Recommen Grade information

Grade	Density(g/cm3)	Hardness(HRA)	TRS(MPa)	grain Size	Composition
YG6X	14.95	92	1800	0.6um	6%Co+94% WC
YG6	14.95	90	1900	0.8-1.2um	6%Co+94% WC
YL10.2	14.6	92.8	4000	0.6-0.7um	10%Co+90% WC
YG10X	14.5	93	3500	0.4-0.6um	10%Co+90% WC

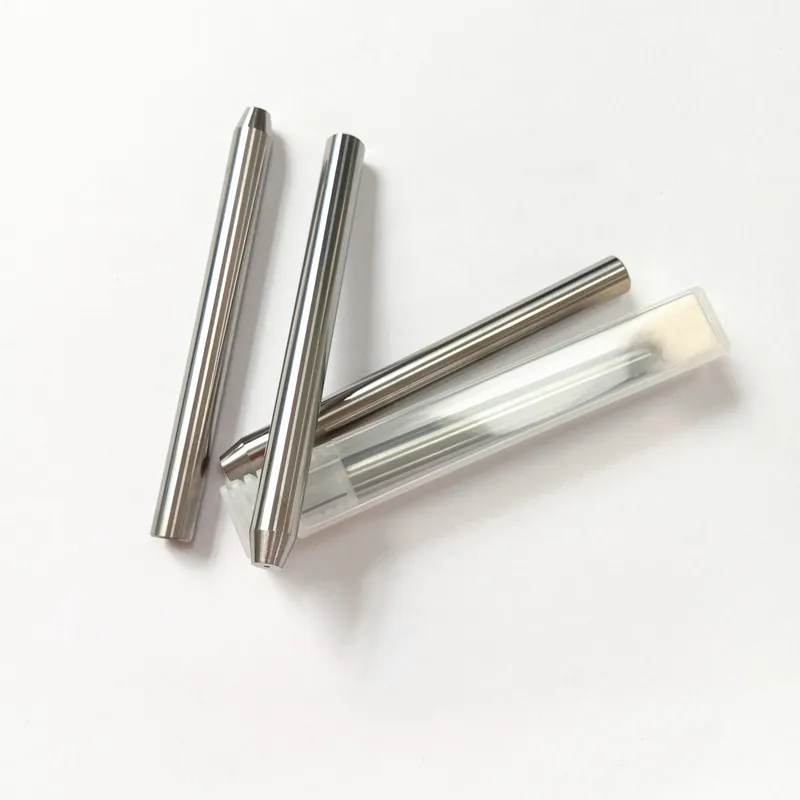

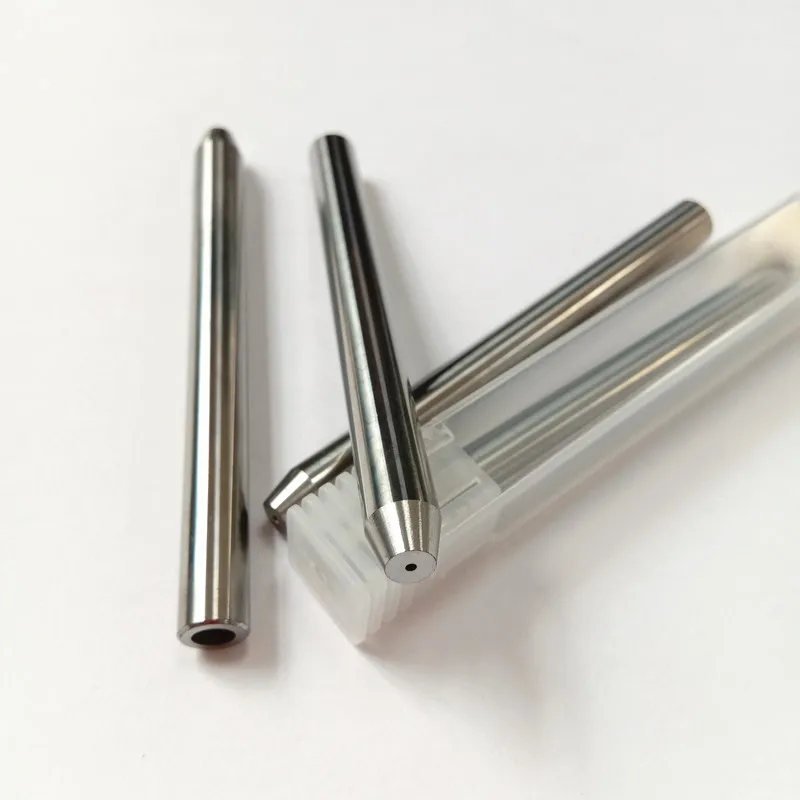

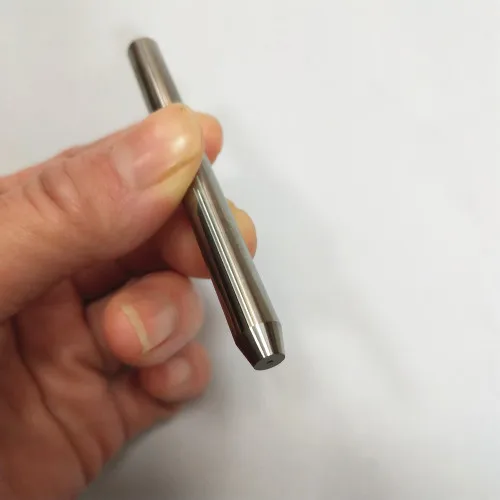

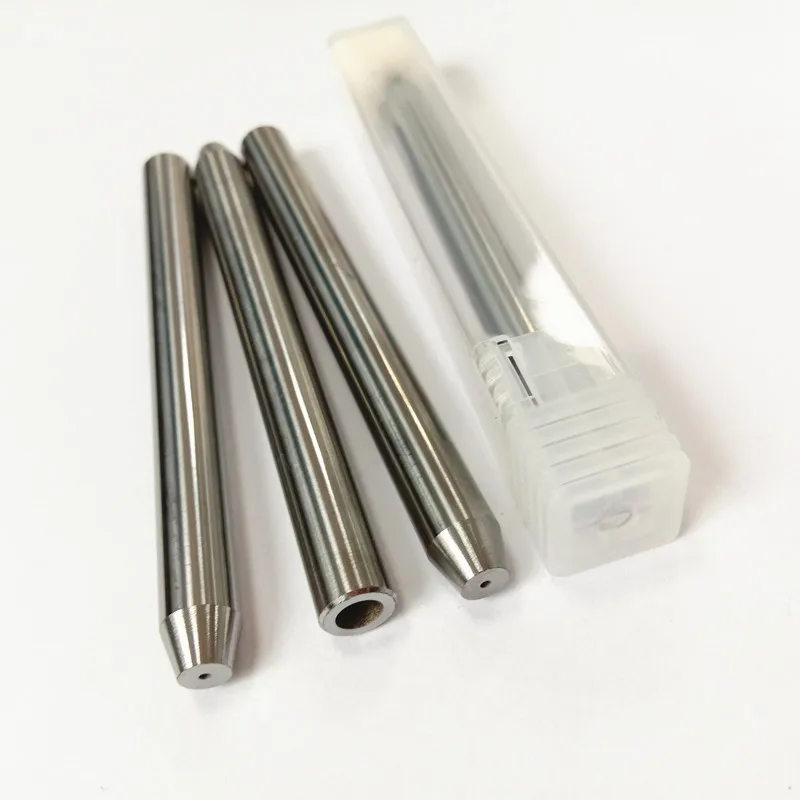

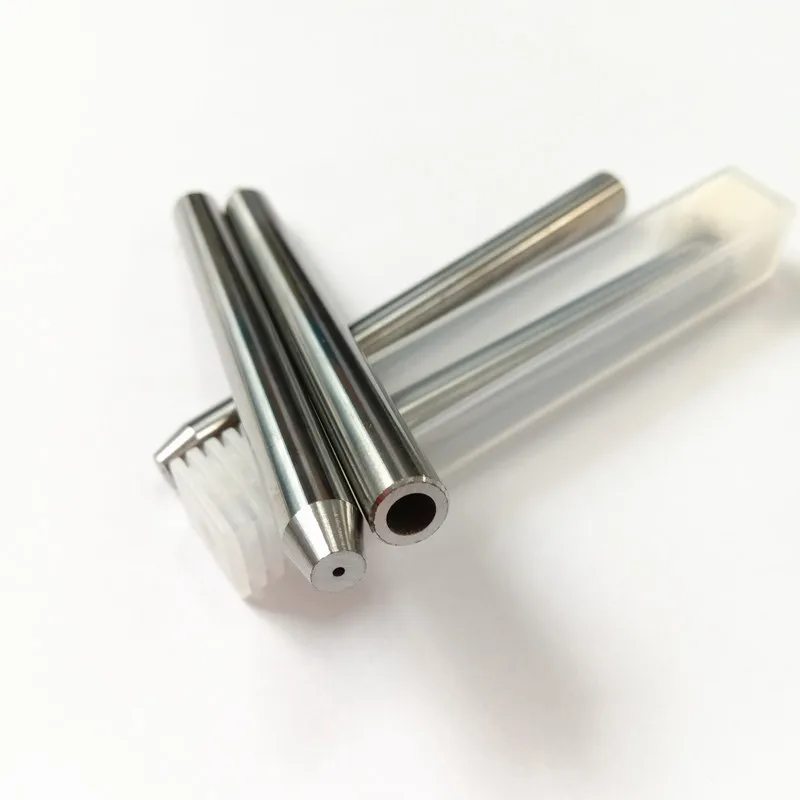

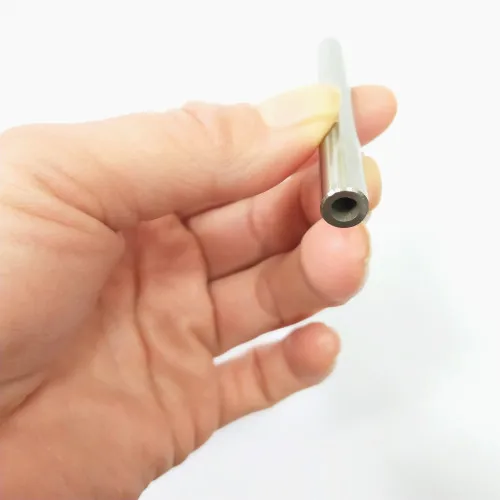

Products Show:

our packing  and shipment

1. outside carton or plywood case with inner plastic box

2. ship by sea or by air such as DHL TNT Fedex.....
