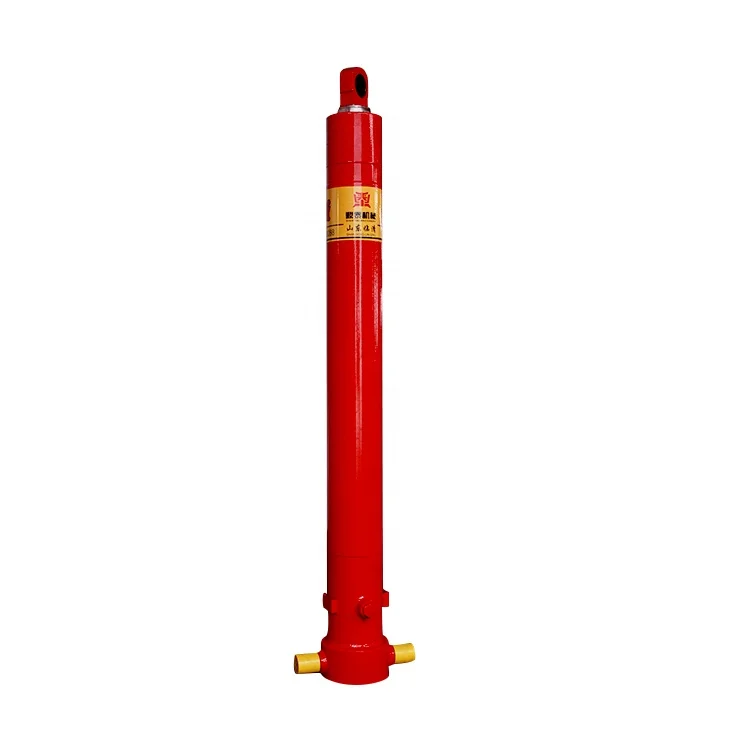

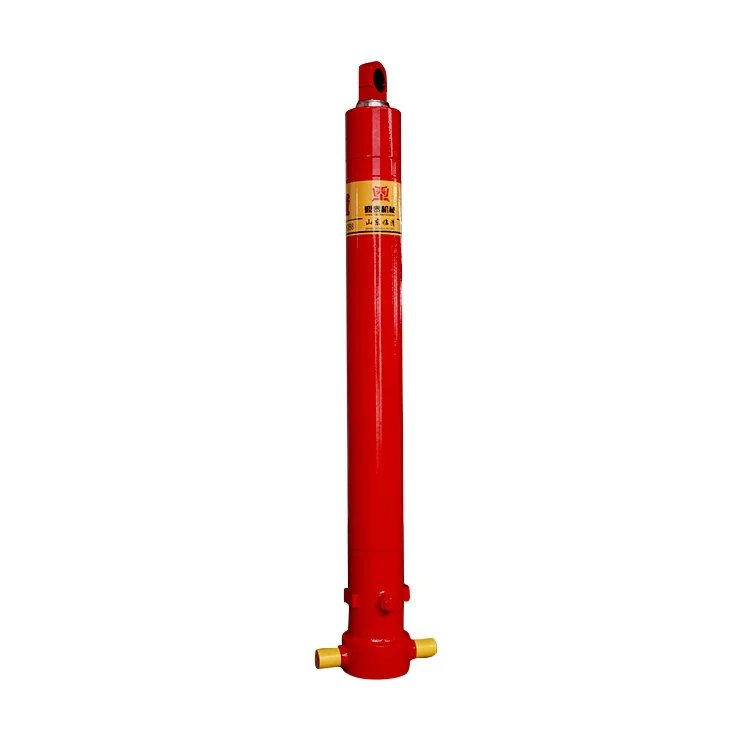

Excavator General Hydraulic Cylinder
- Category: >>>
- Supplier: Linqing City Dingtai Machinery Co. Ltd.
Share on (62364586130):
Product Overview
Description
Excavator General Hydraulic Cylinder
Products Description
Model | Max storke | Rated Pressure | L | M1 |
4TG-E130*3800EE | 3800 | 16 | 1325 | M27*2 |
4TG-E150*3800EE | 3800 | 16 | 1325 | M27*2 |
3TG-E240*6600EE | 6600 | 16 | 2058 | G1 |

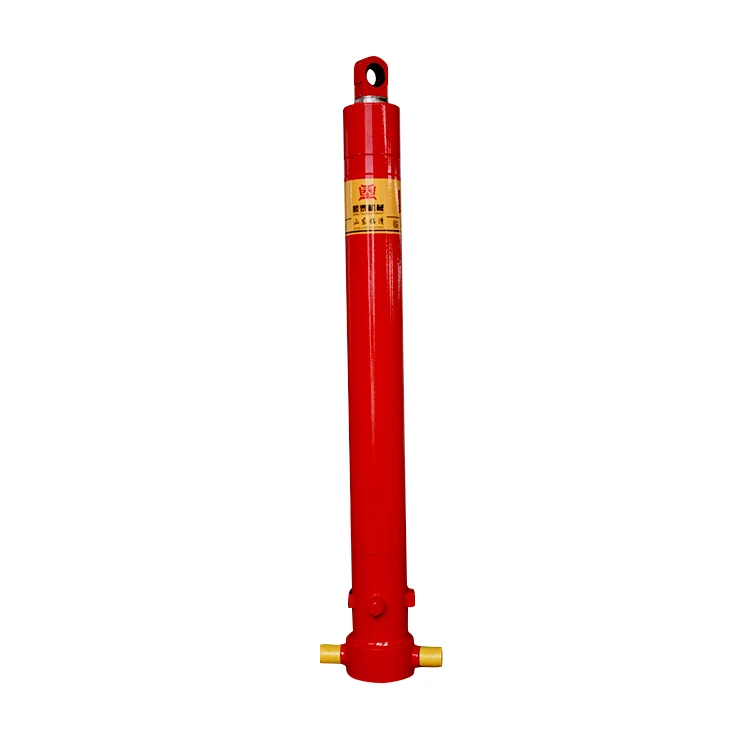

Details Images
Installment Introduction
1.The specifications for all the install screw and self- locking is M16(DIN931.Q8.8)
2.The specifications for grommet is M1730MM.
3.The biggest gap between support and cylinder is 2mm.
4.Make sure the hydraulic cylinder vertically ,up and down two parallel shafts when installed.
5.The installation should be greater than the center distance between the closed hydraulic cylinder center distance 20mm-30mm.
2.The specifications for grommet is M1730MM.
3.The biggest gap between support and cylinder is 2mm.
4.Make sure the hydraulic cylinder vertically ,up and down two parallel shafts when installed.
5.The installation should be greater than the center distance between the closed hydraulic cylinder center distance 20mm-30mm.
Six advantages for hydraulic
More secure
Faster unloding speed.
The lifting frequency higher
A stronger ability to adapt to the environment
Lighter
Lift more
