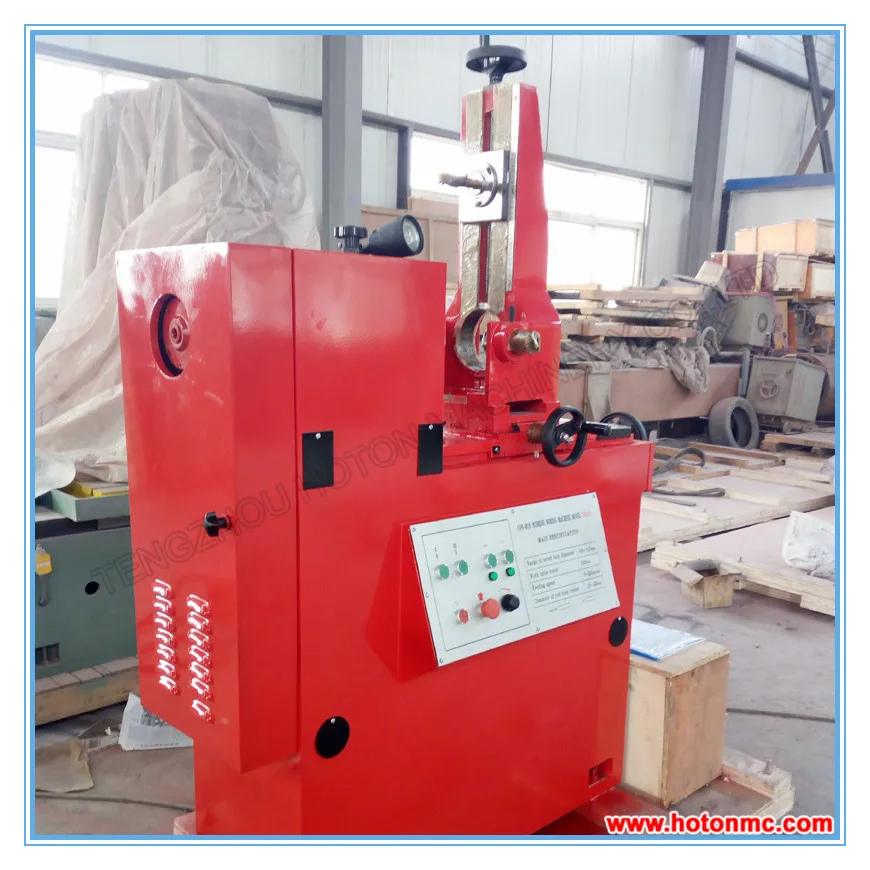

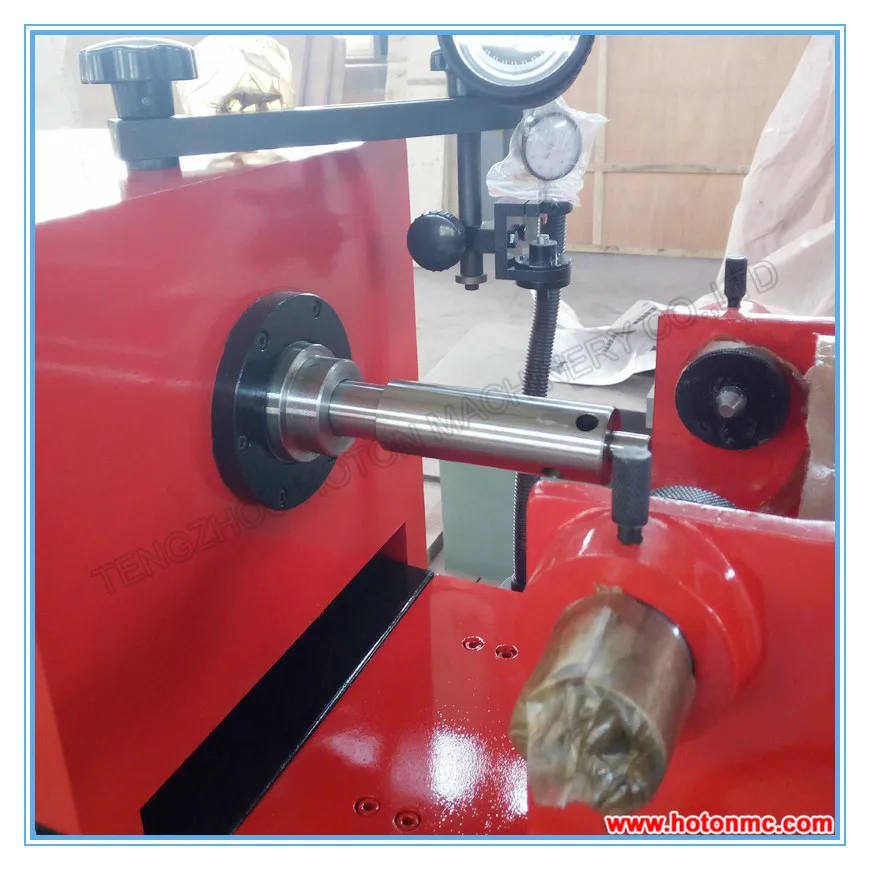

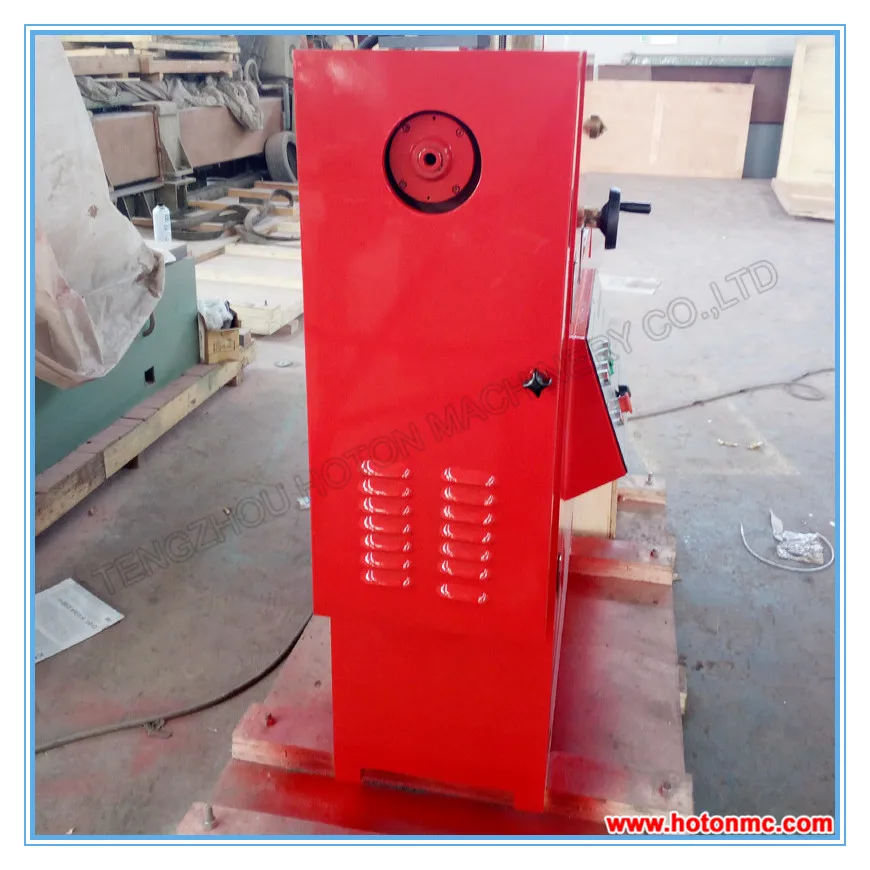

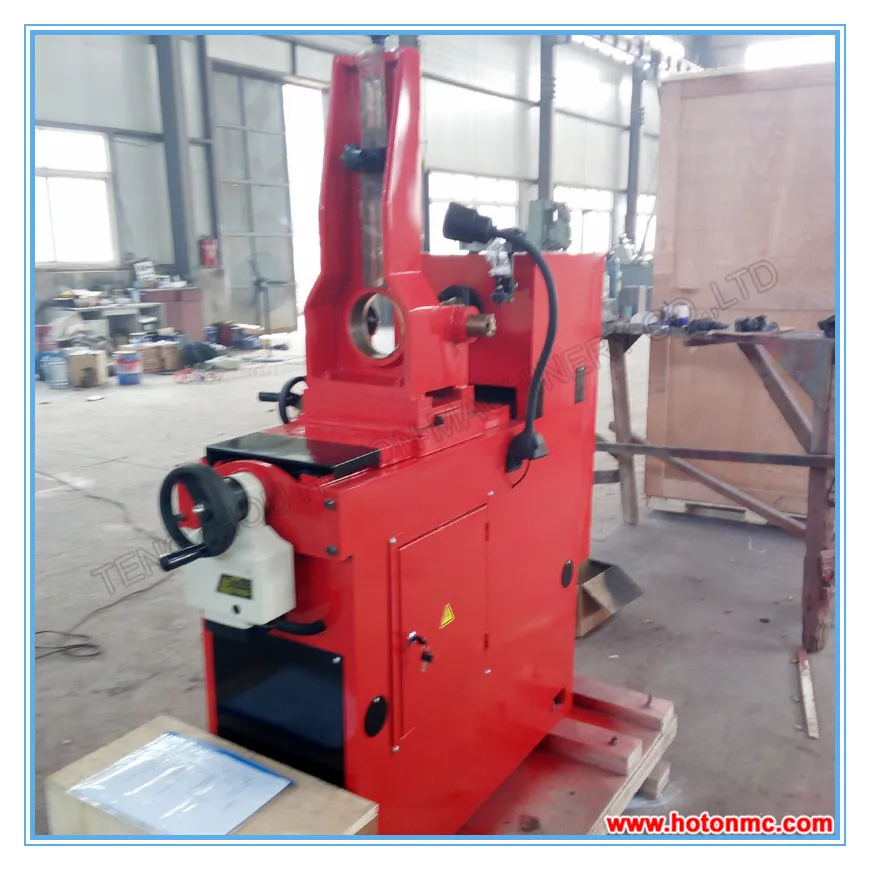

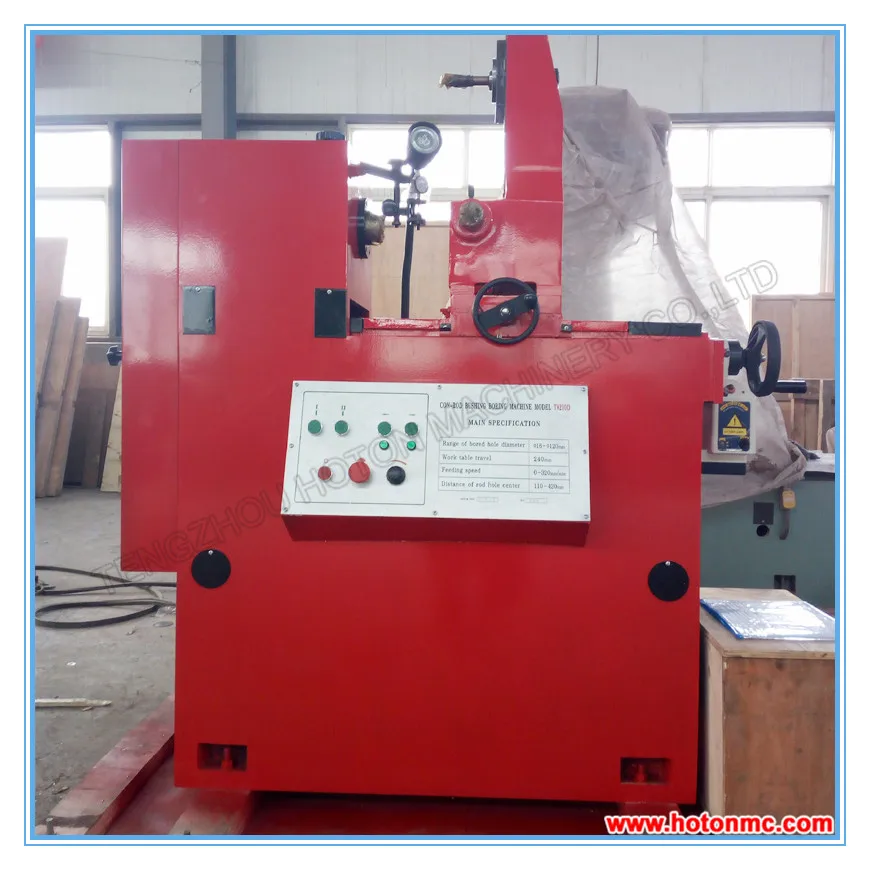

T8216 Connecting Rod / Con rod Boring Machine

Share on (62364809130):


Price:$7,500.00

Quantity:


Product Overview

Description



WELCOME








DESCRIPTION OF GOODS
Con-Rod Bushing Boring Machine T8210D for engine rebuild Berco type
Con-rod boring machine has good performance,better structure,easy operation and high accuracy and can meet customer's demand.
The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors.
In case of necessity,rod bushing seat hole can be fine-bored. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps.
Besides,it has the accessories for centering sectifying tools,boring tools and micro-adjustment tools holder etc.



Model
T8210D
T8216
Diameter range of boring hole
16-100mm
15-150mm
Centre distance of link two hole
100 -425 mm
85 -600 mm
Longitudinal travel of worktable
220 mm
320 m
Spindle speed
350, 530, 780, 1180 rpm
140, 215, 355, 550, 785, 1200 rpm
Transverse adjusting amount of fixture
80 mm
80 mm
Feeding speed of worktable
16 -250 mm /min
16 -250 mm /min
Traveling speed of working
1800 mm /min
1800 mm /min
Diameter of boring bar (4 class)
14, 16, 24, 40 mm
14, 29, 38, 59 mm
Main motor power
0.65/0.85 Kw
0.85/1.1 Kw
Motor power of oil pump
0.55 Kw
0.55 Kw
Overall dimensions(L × W × H)
1150 × 570 × 1710 mm
1300 × 860 × 1760 mm
Packing dimensions(L × W × H)
1700 × 950 × 1450 mm
1850 × 1100 × 1700 mm
N.W/G.W
700/ 900 kg
900/ 1100 kg
