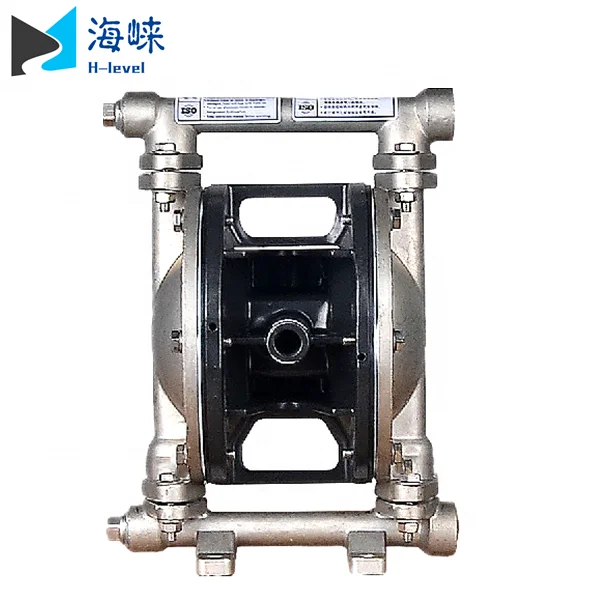

Coating and painting powder pneumatic diaphragm pumps
QBF3 pneumatic diaphragm pump is designed for powder transferring.The material density can be up to 80-800kg/m3, the pumpingcapacity can reach 6t/h, and pumping height can be 30m. The powder pneumatic diaphragm pump is featured of good sealing, no
leakage, high safety and explosion proof.
It is designed with pump chamber cleaning system, avoiding material blocking and residue.

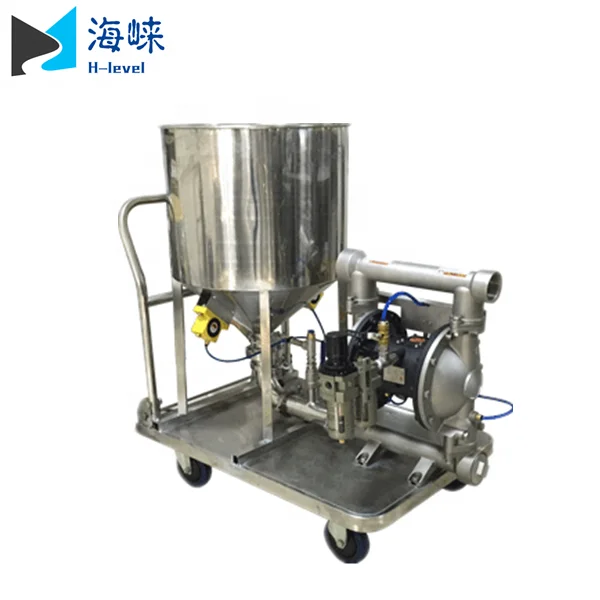

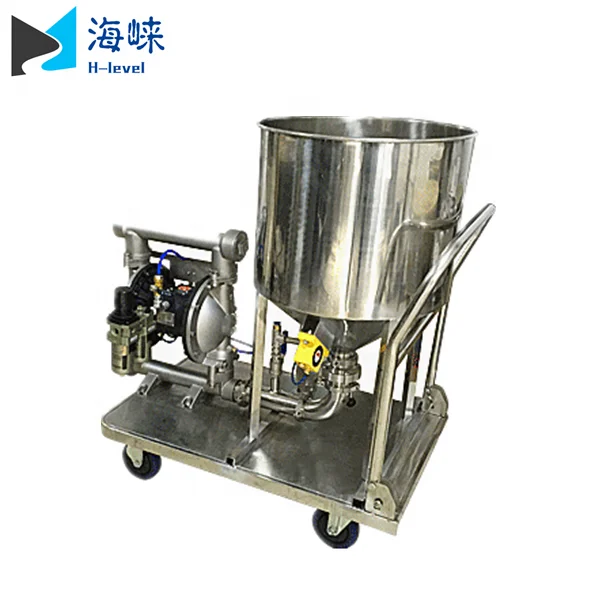

The feeding tank has vibrator which makes the feeding more smooth and no leakage.
Features:
1. Excellent sealing, no powder leakage, avoiding the operator contacting powders.
2. Bolt connection, high leak proof.
3. Tiny material agitating, avoiding heat build-up, no spark or heat during the running process.
4. Mild internal shearing force, protecting nmaterial from being damaged.
5.Fluidised air can be separated from the pump driving air, avoiding material contacting air to become humid or oxided.
6.Running without dead points, can work even under low inlet air pressure.
7.Ecnomical and practical, easy to install.
8.Easy to operate,portable, no need commissioning.
9. Widely used for dry flowing powder material with bulk density 80~800kg/m3.
7.Ecnomical and practical, easy to install.
8.Easy to operate,portable, no need commissioning.
9. Widely used for dry flowing powder material with bulk density 80~800kg/m3.
Coating powder diaphragm pump specifications
Model | Capacity (kg/h) | Pumping height (m) | Air consumption (m3/min) | Air pressure(bar) |
QBF3-32/40 | 0~1000 | 0~30 | 0.67 | 0.67 |
QBF3-50/65 | 0~3000 | 0~30 | 0.9 | 0.9 |
QBF3-80/100 | 0~6000 | 0~30 | 1.5~2.0 | 1.5~2.0 |
powder diaphragm pump application
Field | Application materials |
Chemical | Dyestuff, coating material, carbon black, titanium dioxide,iron oxide,ceramics powder,acid, alkali, limestone powder, activated carbon |
Mineral | ammonium bicarbonate,soda ash, ground phosphorite , powder pesticide,carbamide, coal powder, copper concentrate powder,wolfram powder |
Food | Flour, starch, washing powder, milk powder, yeast, sugar, crops powder |
Building | Coating powder, powder medicine, paper powder, bleaching powder, caustic soda,metal powder |

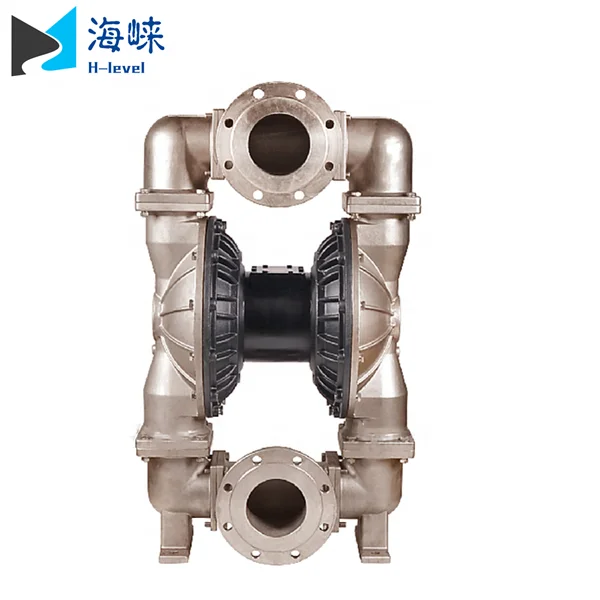

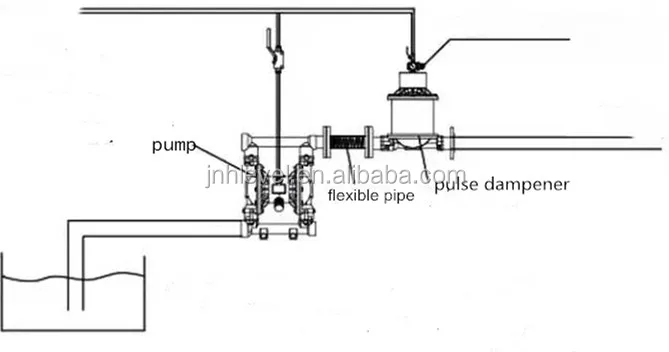

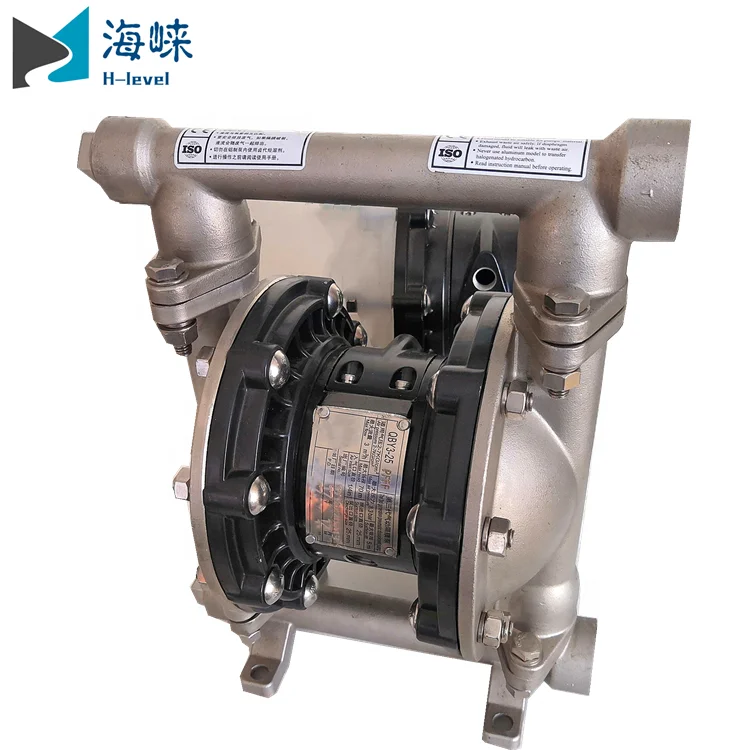

Detailed Images
After Sales Service
We have 5 years qualitywarranty for the pumps, and one year period" repair, replace and return)
