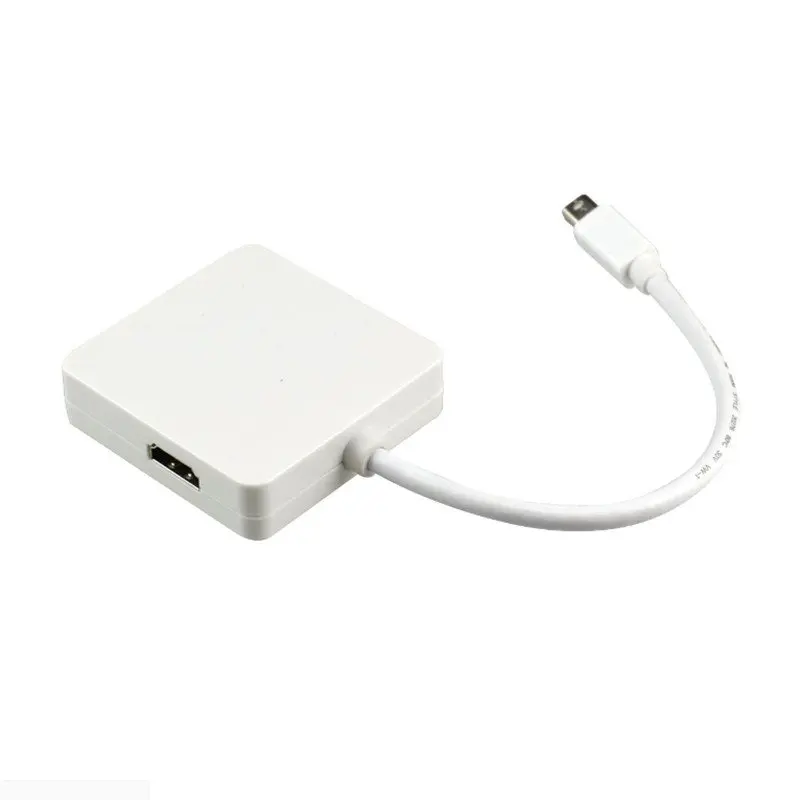

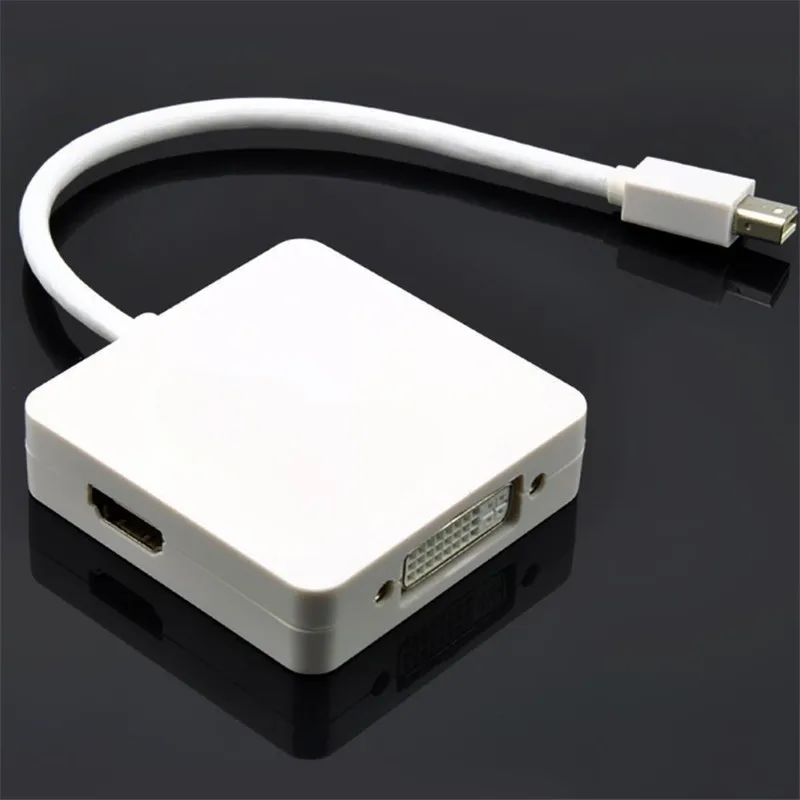

3 в 1 Кабель адаптер mini Displayport DP DVI HM DP, порт дисплея «штырь гнездо» для Mac Macbook Pro Air

Product Overview

Description

Description:

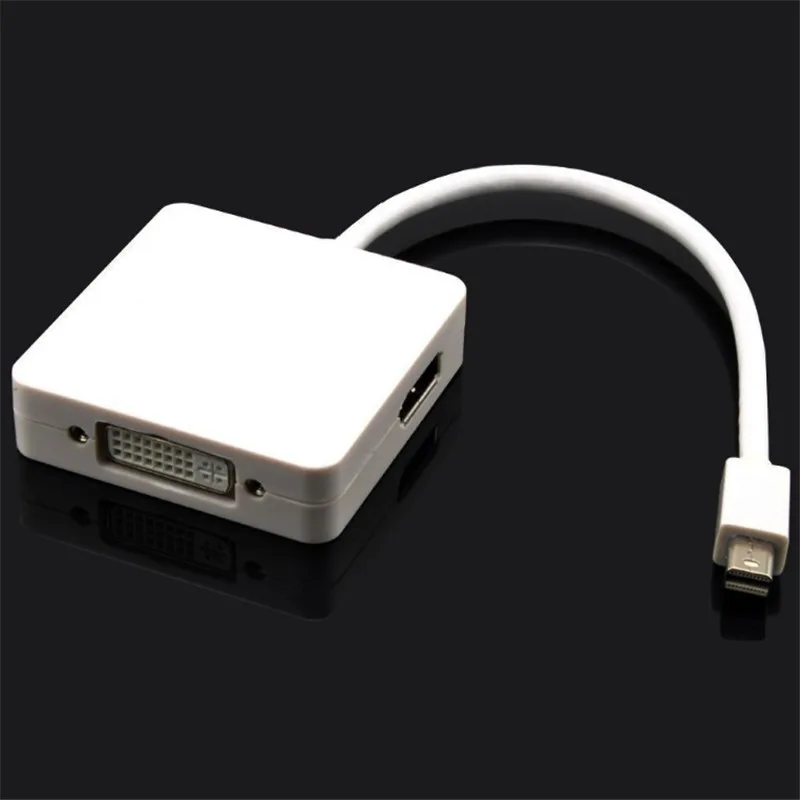

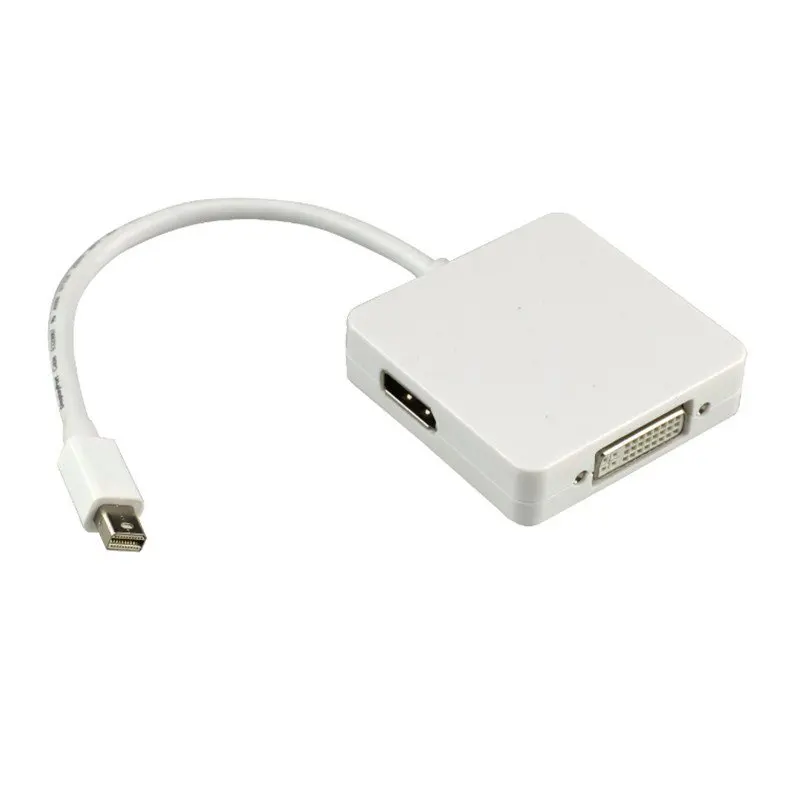

Mini DP M to Multiple F (DP HM DVI) Short Cable

Feature :
1.Plug: Mini Displayport male, Nickel plated shell

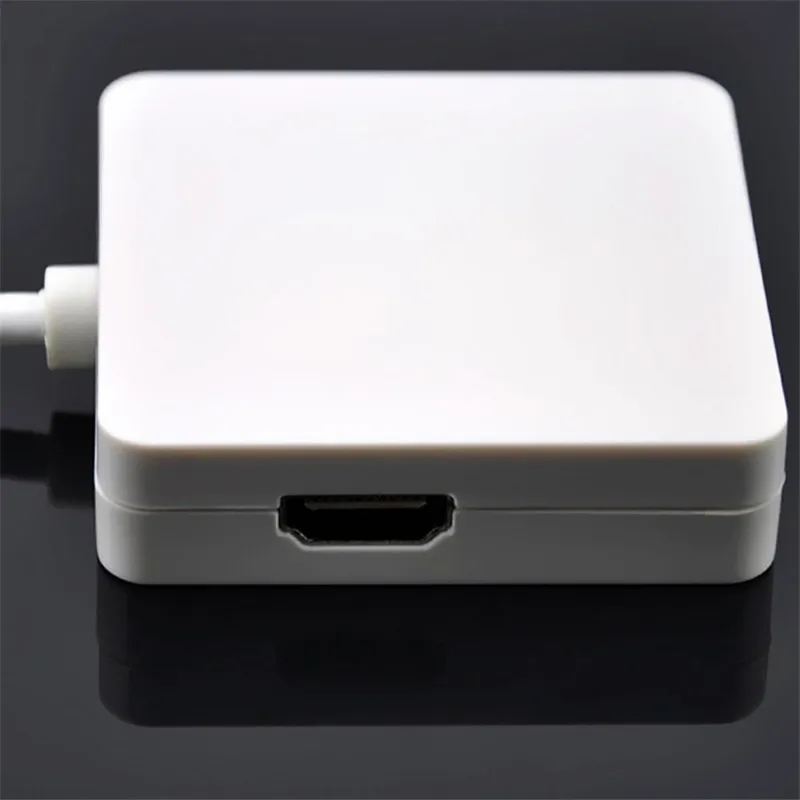

2.Socket: HM Female+ DVI Female + Displayport Female ports.
3.Cable in length of 0.15 Meter (Approx. 0.5FT )
4.Support Mini DisplayPort 1.1a input and DVI/HM/DisplayPort output.
5.Support DisplayPort highest video resolution 1920*1200.
6.Support HM/DVI highest video resolution 1920*1080p
7.Support HM/DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
8.Support HM/DVI 12bit per channel (36bit all channel) deep color

Data Reference:
1.Input Video Signal5 Volts p-p (TTL).
2.HM/DVI Maximum Single Link Range
3.DisplayPort Maximum Single Link Range
4.HM/DVI Video Amplifier Bandwidth2.25Gbps/225MHz
5.DisplayPort Video Amplifier Bandwidth2.7Gbps/270MHz
6.Input InterfaceMini DisplayPort Male 20pin
7.Output Interface HM Female 19Pin and DVI Female (24+5) and DisplayPort 20Pin
8.HM/DVI Resolution480i, 480p, 576i, 576p, 720p, 1080i, 1080p
9.HM/DVI Resolution1280*1024, 1360*768, 1920*1080, 1920*1200
10:Operating Temperature0 to +70
11.Operating Humidity10% to 85 % RH (Non Condensing)
