Product Overview

Description

Water pipe joint crusher waste gate crusher



 Introduction of scrap steel Crusher:
Waste steel Crusher is mainly used for cutting and crushing of scrap iron materials. Waste steel Crusher can achieve large size of scrap steel materials such as scrap metal, scrap steel, scrap iron, cans, scrap steel profiles, crush metal, wire ropes, scrap square pipes, iron slag, iron boxes, corner materials, plastic steel doors and windows, scrap cars, bicycle racks, paint drums, etc to become a small size ideal state. And complete pre-crushing, secondary crushing, molding, encryption, sorting. and waste recycling merchants, steel mills, subsidiary enterprises of steel mills, foundry factories, waste recycling enterprises, waste recycling enterprises, scrap metal recycling enterprises favorite this kind of scrap steel crusher.



Application of scrap steel Crusher:
The waste iron and steel materials that have been beaten and compressed by waste iron and steel Crusher have many advantages such as complete phase, uniform size, clean removal, high brightness, good purity, and specific gravity of piles. It is very suitable for handling light, medium and heavy scrap steel, large components, mixed scrap steel, and low-quality scrap steel. The metal material after being cut and broken by a scrap steel Crusher has a high density and reduce metal compression processes. High solubility and high steel discharge rate, It meets the requirements of the steel mill for refined materials into the furnace, and also reduces the number of input, reduces the smelting electrode, shortens the dissolution time, and reduces the smelting process, saving customers a lot of production costs.

Composition of scrap steel Crusher:

This sleeve is mainly composed of 1. chain plate conveyor; 2. roller teeth crushing device; 3. large material removing device; 4. scrap steel crushing host; 5. hydraulic open cover device; 6. hydraulic pressure station; 7. Pulse dust remover; 8. vibration separator; 9. magnetic selective conveyor; 10. discharge conveyor and other equipment composition.



Advantages of scrap steel Crusher:

1, the scrap steel material processed by the scrap steel Crusher is neat, the quality is complete, the size is uniform, and the selling price is high;

2, after the processing of waste steel Crusher, the natural accumulation density of waste steel material is 1.8 to 2.5 tons/cubic meter, with high density, high specific gravity of the heap, high yield rate, and high output of dissolution, which has greatly reduced the transportation cost;

(3) The non-ferrous and non-metallic materials of scrap steel that have been broken up by scrap iron and steel Crusher have been completely sorted and purity has been improved, and the amount of sulfur and phosphorus produced by the dissolution of the scrap steel Crusher has also been greatly reduced, so that it can be heated in the furnace. Reduced heating, reduced chemical additives, increased the service life of refractory materials, significantly reduced smelting pollution and slag production of scrap steel scrap per ton of steel water consumption is also significantly reduced;

4, the waste steel material processed by the scrap steel crusher can serve as a steel refining filler additive, improve the steel water feed density, and fill the gap in the steel making.



The scope of application of scrap steel Crusher:

Waste iron and steel Crusher is suitable for all kinds of scrap iron and steel products, such as centralized crushing, forming, encryption, sorting, cleaning, etc..

1. waste metal, light and thin materials, cans, corner materials, packed metal, thin iron sheet, car shavings, iron boxes, iron shavings, iron boxes, paint drums, colored steel tiles, Gates;

2. scrap steel products, scrap steel, steel chips, corner steel, steel pipes, steel slag, steel bars, wire ropes, pipes, pipes;

3. metal waste: waste edge material, flush iron side material, plate side material, residue material, corner material, foot material, living waste;

4. aluminum alloy products, aluminum plate clasps, castings, valves, joints, doors and Windows, aluminum alloy shells, motor shells, engine cylinders, templates, cast aluminum parts;

5, scrap vehicles, used cars, crushed bodies, bicycles, motorcycles, wheels, chassis, keel strips, electric vehicles, automobile disassembled parts etc.

All other materials can be uniformly stored and concentrated to complete the purpose of scrap steel regeneration and crushing.

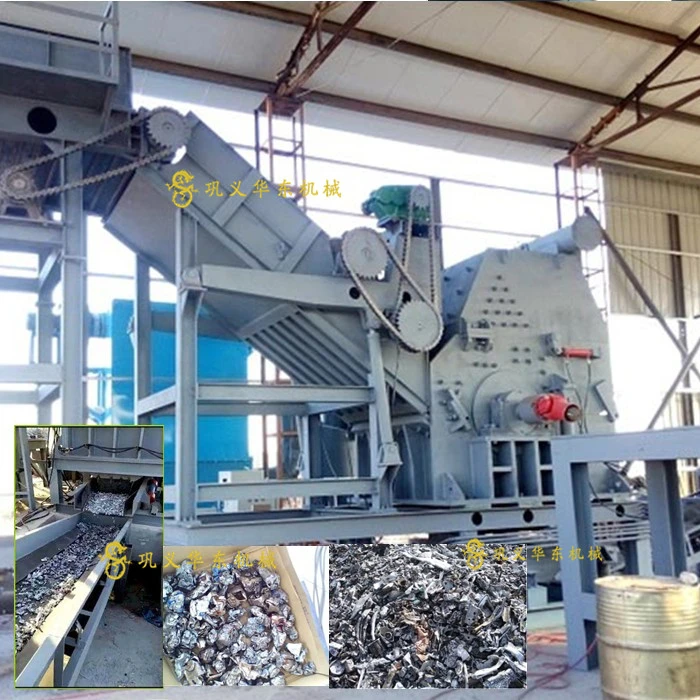

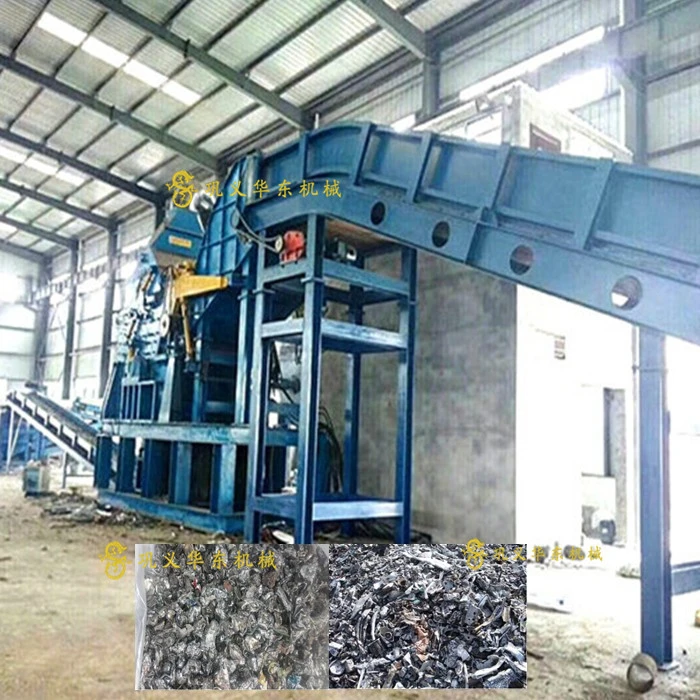

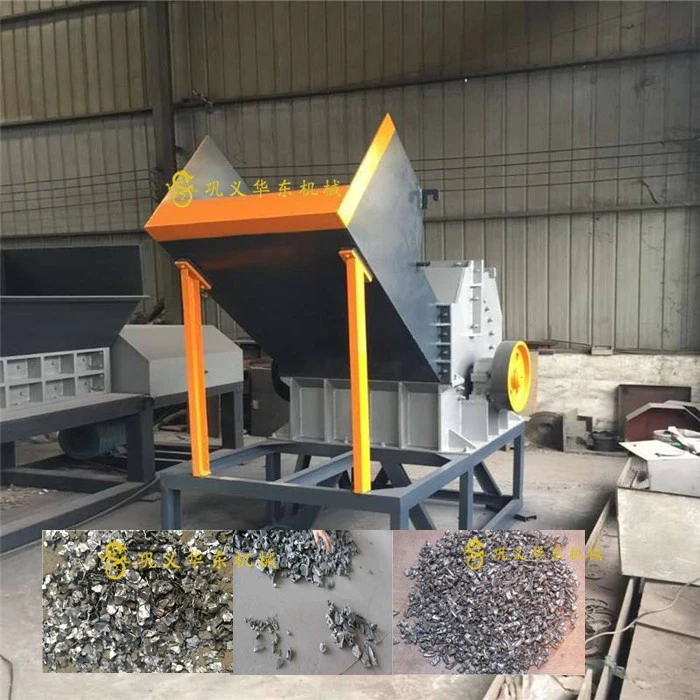

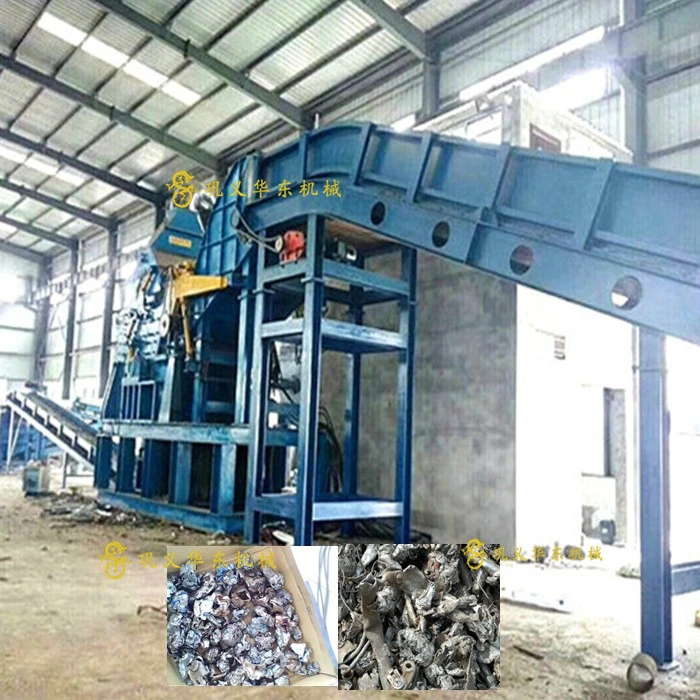

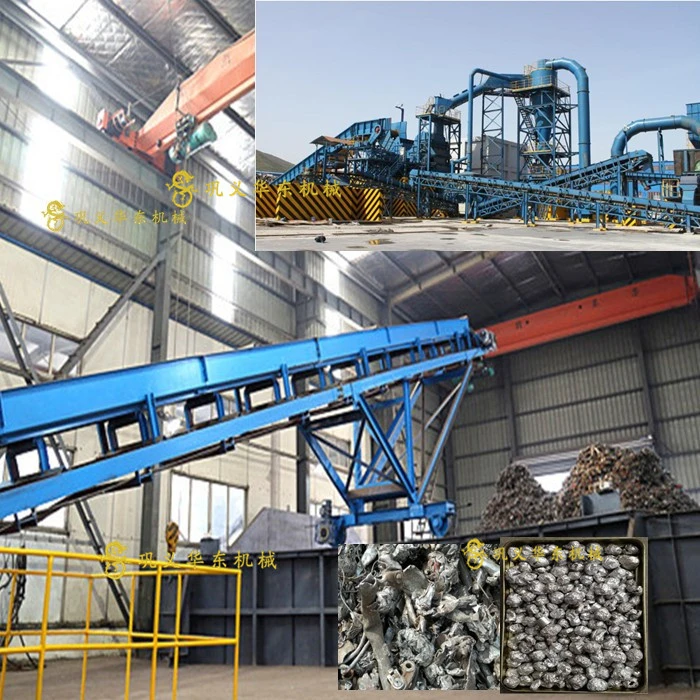

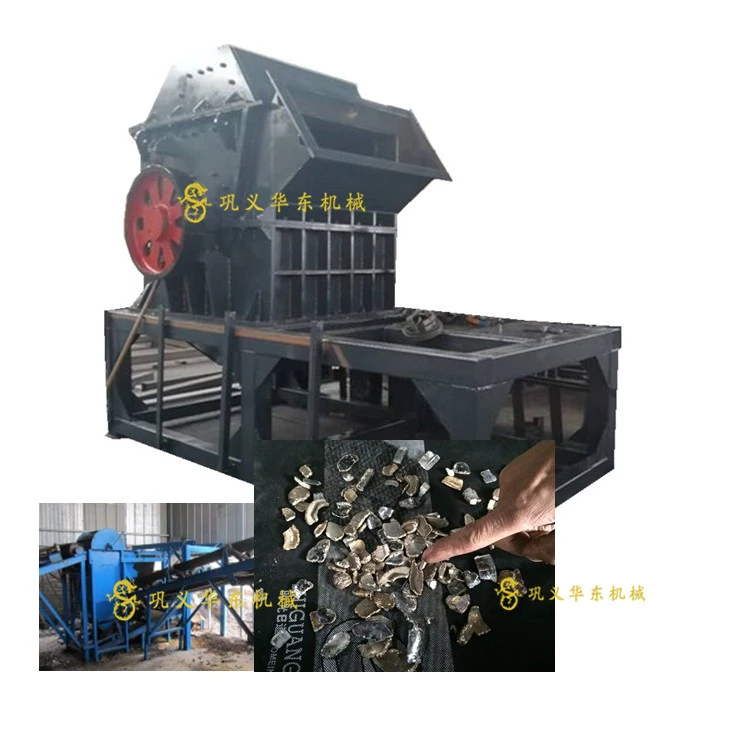

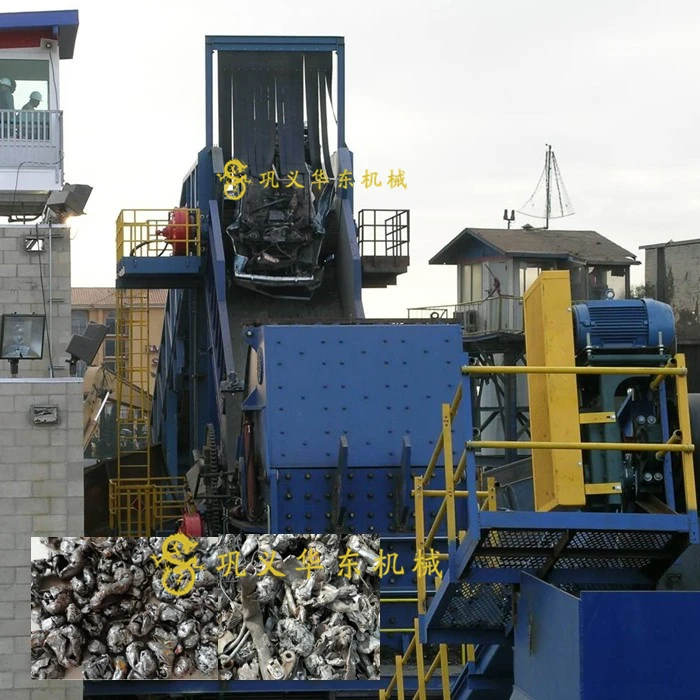

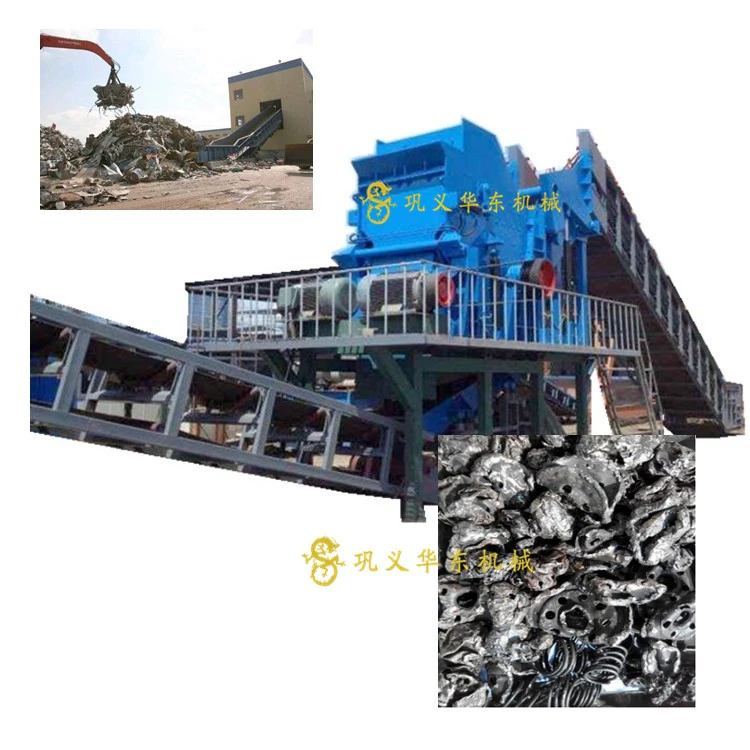

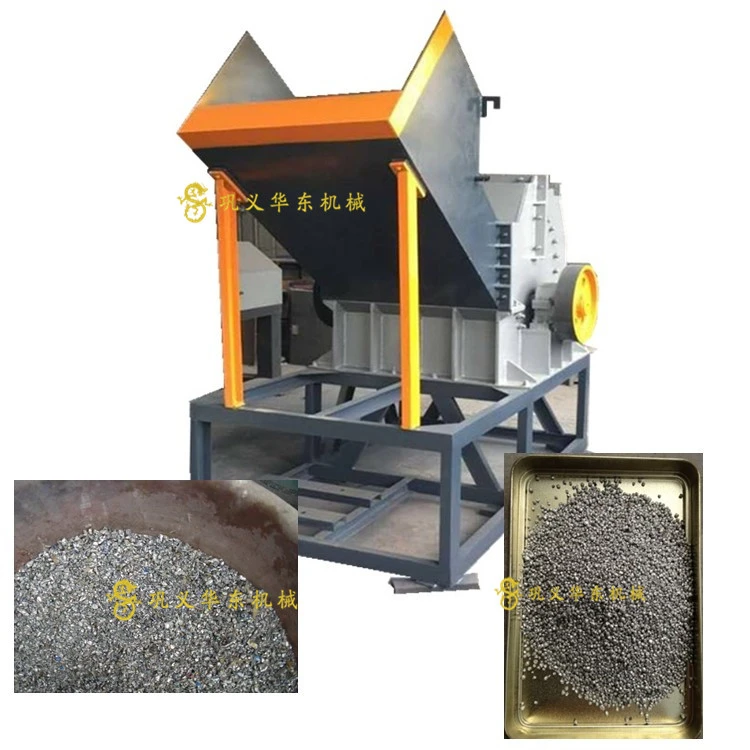

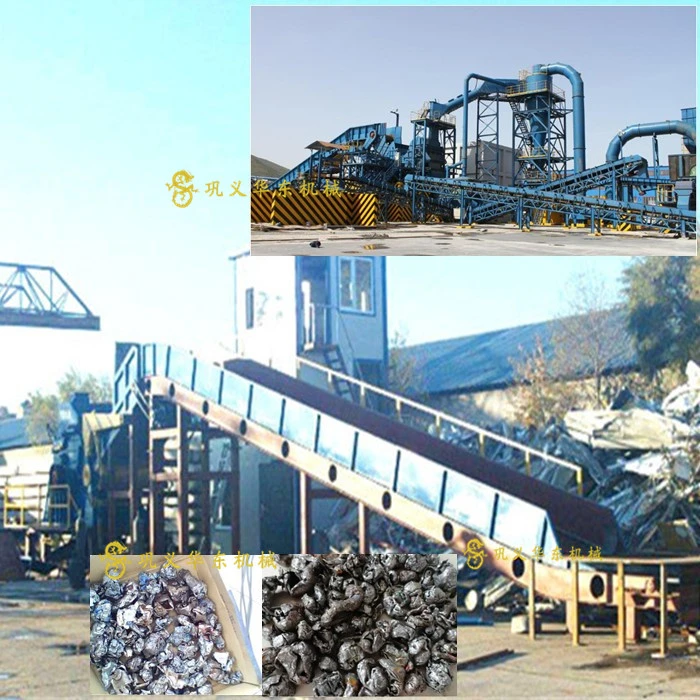

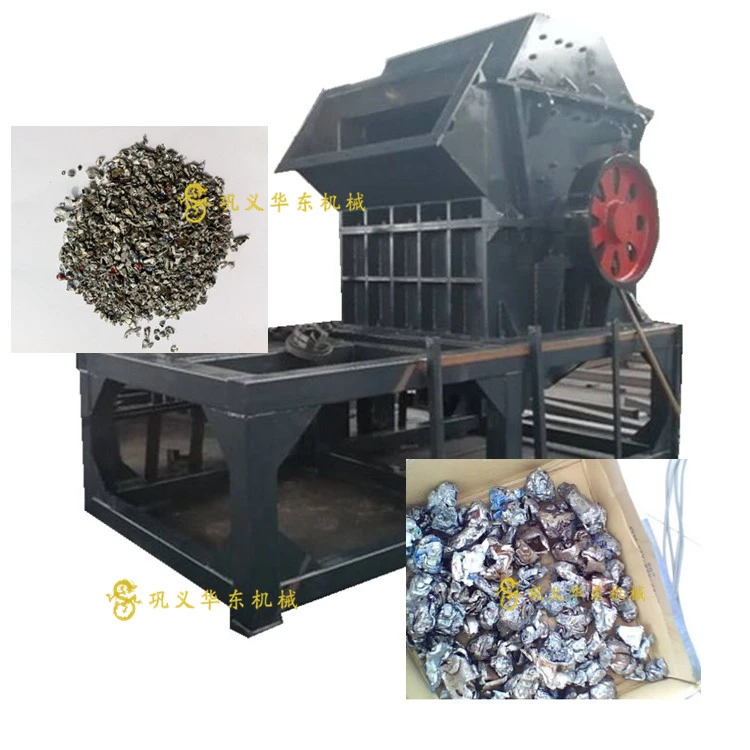

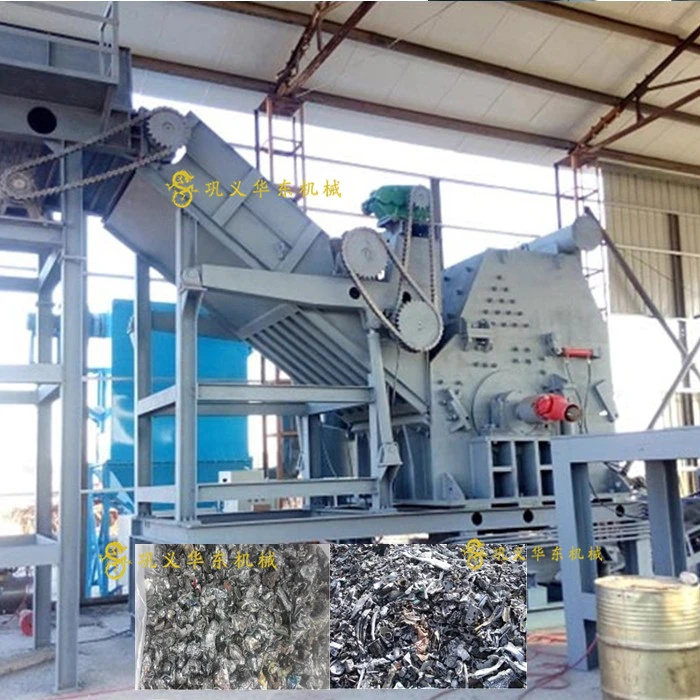

Finished product showing:





Metal crusher/shredder technical parameters:





Model	Power(KW)	Scope of application	Rotate speed	Processing capacity(t/h)	Measurement(mm)	Weight(t)	Input
800	45-55	Waste tin, cans	21-40	0.8-1.5	2560*1800*2200	3200	1000
900	90-150	Medium scrap metal blocks such as bicycles, motorcycles, electric cars, etc.	21-40	2-4	4000*2300*2800	5.6-11.5	1300
1100	110-240	Medium scrap metal blocks such as automobile cutting parts and paint drums	21-30	4-10	4800*2900*3200	8-16.6	1600
1200	150-320	Large scrap metal blocks such as scrap cars	21-30	8-12	5000*3200*3400	28.6	1800
1300	220-380	Large scrap metal blocks such as scrap cars	18-30	8-12	5000*3200*3400	28.6	2000
1600	290-400	Large metal packages, car shells	18-30	15-21	6500*4200*3800	36.3	2400
1800	320-460	Car shells, large scrap metal blocks, various scrap metals	18-30	19-24	5000*5200*4100	48.2	2800
2000	360-480	Car shells, large scrap metal blocks, various scrap metals	18-21	24-28	5000*7200*5500	75.8	3000
