1500M Long Range Laser Night Vision PTZ Camera Monitor System Wall Mounted, Vehicle Mounted, Shipboard

Product Overview

Description

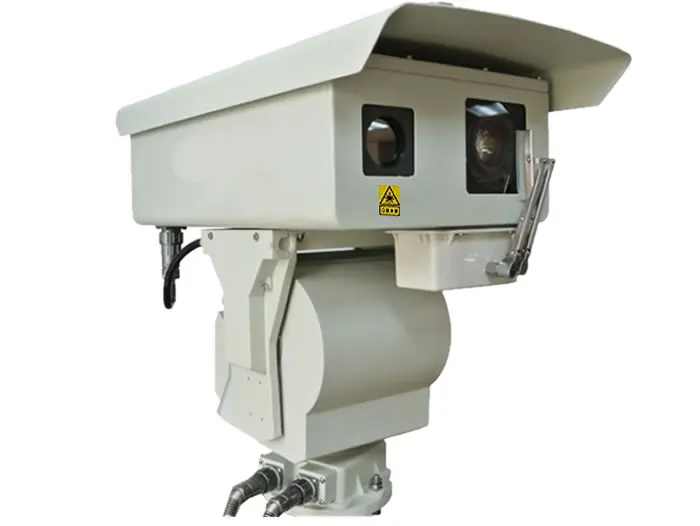

1500M Long Range Laser Night Vision PTZ Camera Monitor System



Material: Anodic Al alloy+ brass

Wavelength: 532 nm

Output: >10W

Output under extreme conditions: >80%

Effective distance: max. 1000m

Laser excitation material: Nd YVO4

Laser life: >10000hr

Work mode: CW/TTL

Focusable: Electronically focus adjustable

Spatial: 10Hz or customized

Beam divergence: 1.0-15mrad, adjustable

Beam diameter (at aperture): 25mm (50mm optional)

Facular: round spot

Warm-up time: <30s

Protection grade: IP65

Work temperature: -40 to +70^oC

Humidity: 10% - 90%

Cooling: air cooling/TEC

Power supply: 220V/50Hz

Work voltage:  DC 12V or 24V

Scanning speed: 10s per cycle

Control Interface: RS422\\RS232\\USB

Camera: infrared night vision

Monitor: 16” HD monitor

Max. 60fps@1080P
3.5-12mm variable focal lens
Max. IR length 120m, Smart IR
Image Sensor: 1/1.8" CMOS
Effective Pixels: 1920 ×1080, 2MP

Pan-tilt: 0-360^o horizontal, -15-60^overtical
