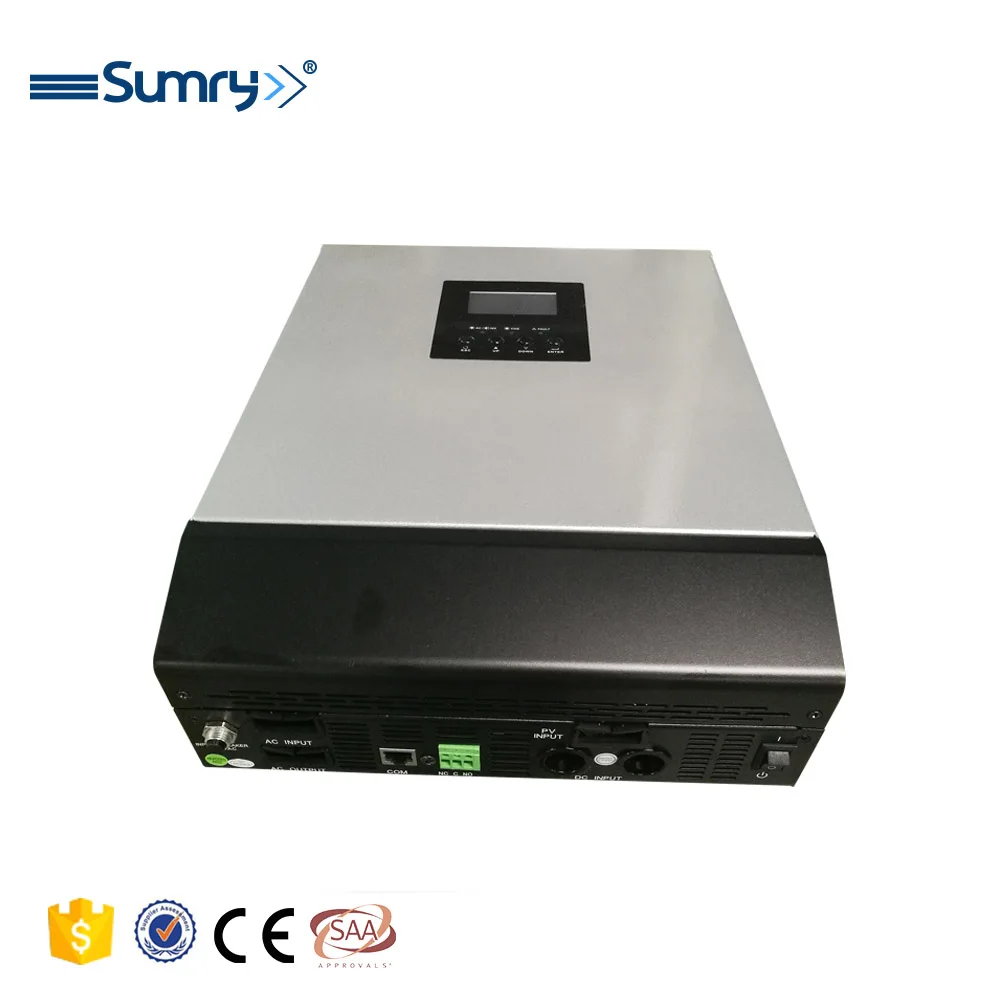

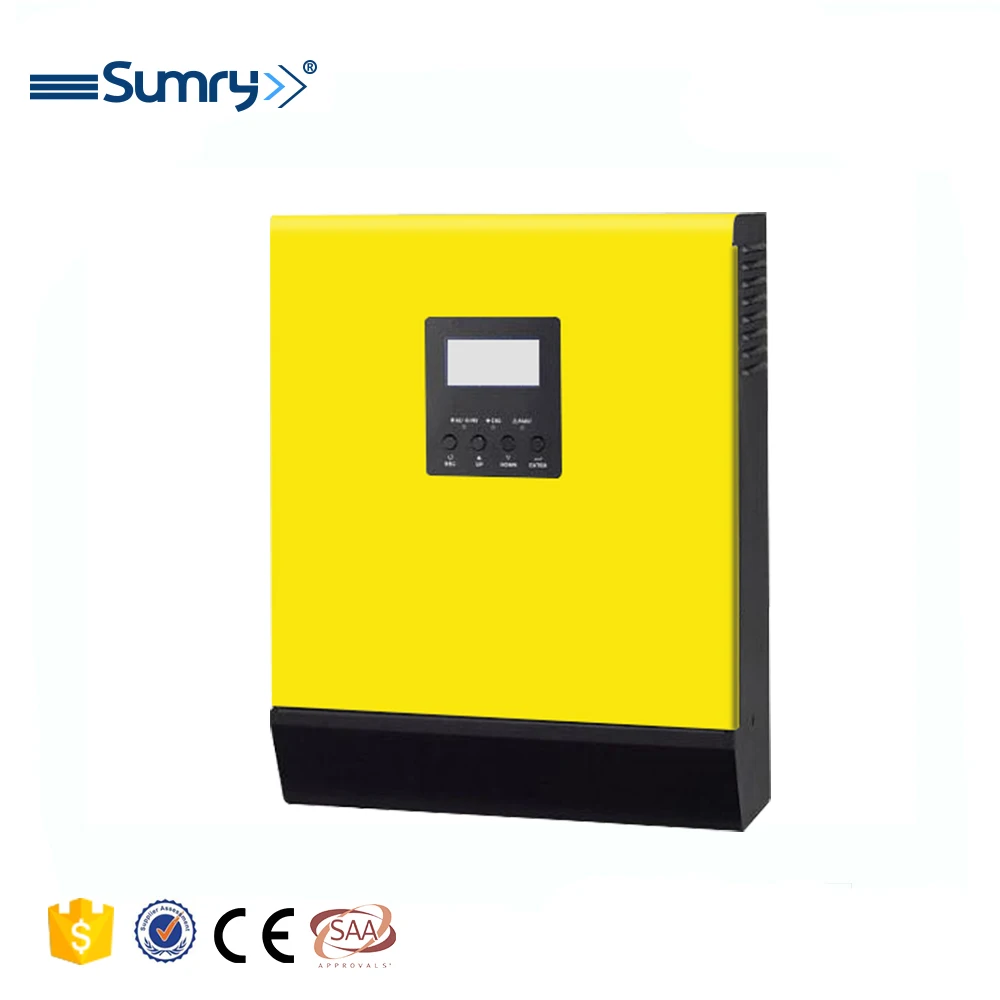

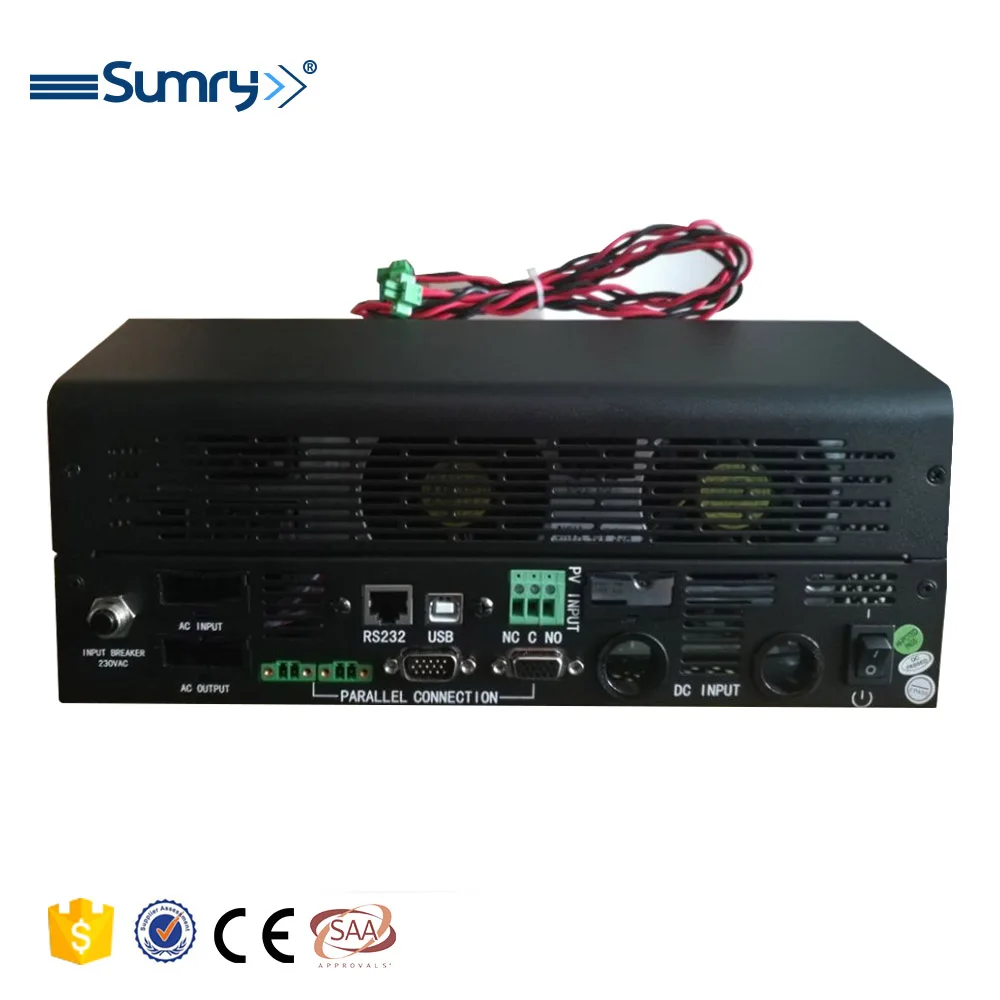

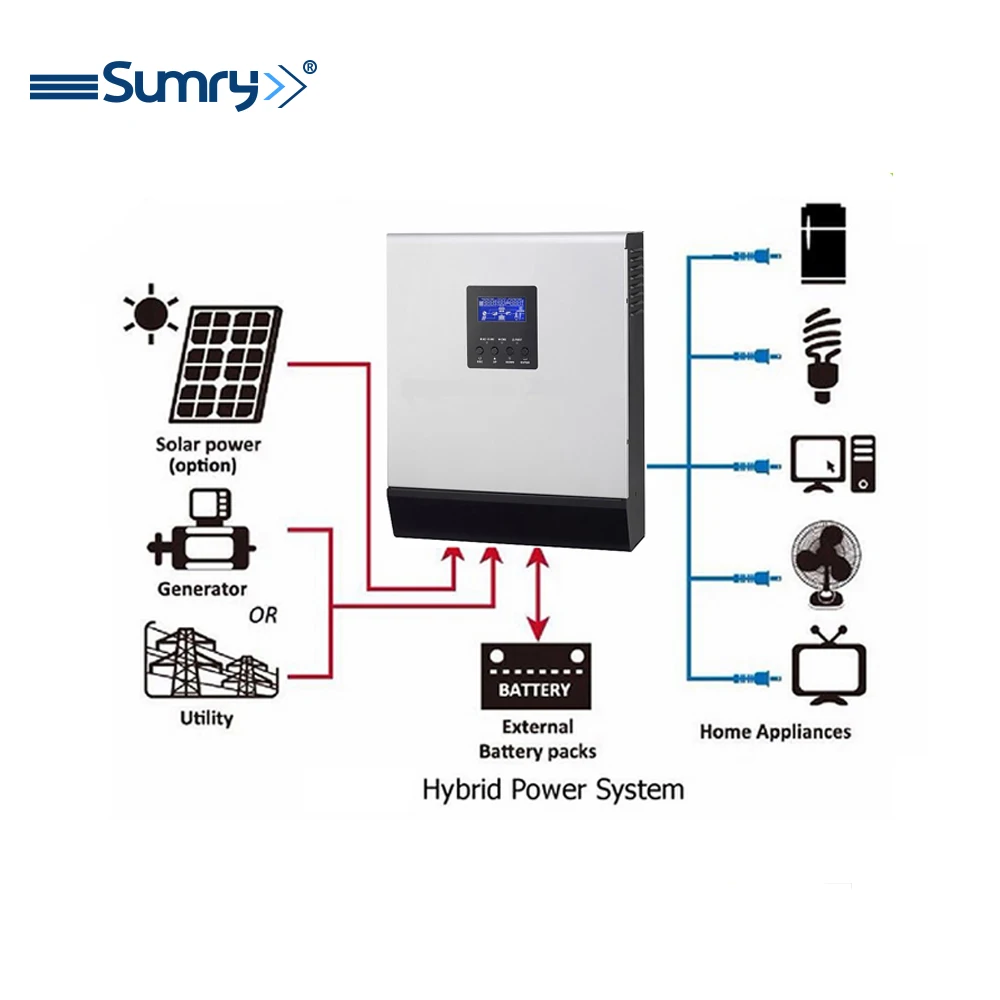

Pure Sine Wave high frequency 48v 5kw converter for Afica Market

Model No.

MPS 1K

MPS 3K

MPS 5K

Rated power

1000VA/800W

3000VA/2400W

5000VA/4000W

INPUT

Voltage

230VAC

Selectable voltage range

170-280VAC (for personal computers)

90-280VAC (For home appliances)

Frequency range

50Hz/60Hz (auto sensing)

OUTPUT

AC voltage regulation

(Battery mode)

230VAC±5%

Surge power

2000VA

6000VA

10000VA

Efficiency (peak)

90%-93%

93%

Transfer time

10ms (for personal computers)

20ms (for home appliances)

Waveform

pure sine wave

BATTERY & AC CHARGER

Battery voltage

24VDC

24VDC

48VDC

Floating charge voltage

27VDC

27VDC

54VDC

Overcharge protection

31VDC

31VDC

60VDC

Maximum charge current

10A/20A

20A or 30A

10A/20A/30A/40A/50A/60A

SOLAR CHAGER

MAX PV array power

600W

600W

1500W

3000W/4000W

MPPT range@ operating voltage

30VDC-66VDC

30VDC-66VDC

30VDC-115VDC

60-115VDC

Maximum PV array open circuit voltage

75VDC

75VDC

145VDC

145VDC

Maximum charging current

25A

25A

60A

60A/80A

Maximum efficiency

98%

Standby power consumption

2W

PHYSICAL

Dimension, D*W*H (mm)

387*300*118

Net weight (kg)

7.4

8.0

10

11.05/13.5

ENVIRONMENT

Humidity

5%-95% relative humidity (non-condensing)

Operating temperature

0℃ to 50℃

Storage temperature

-15℃ to 60℃
