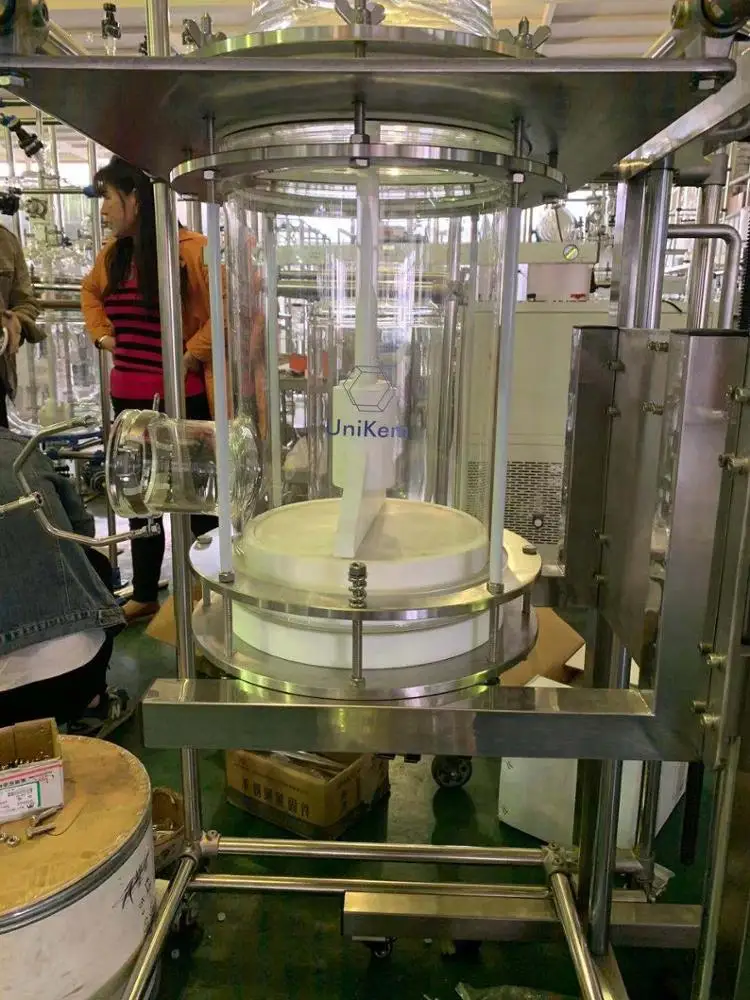

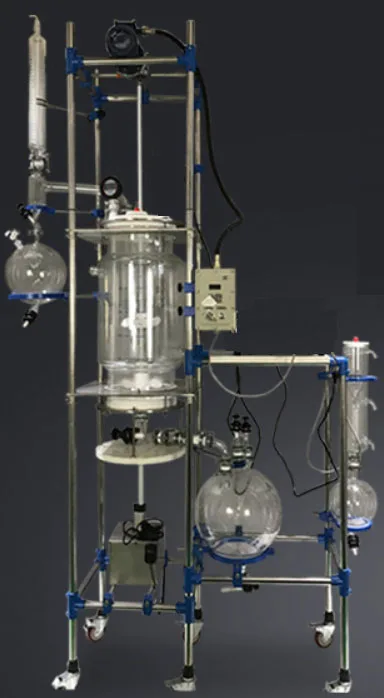

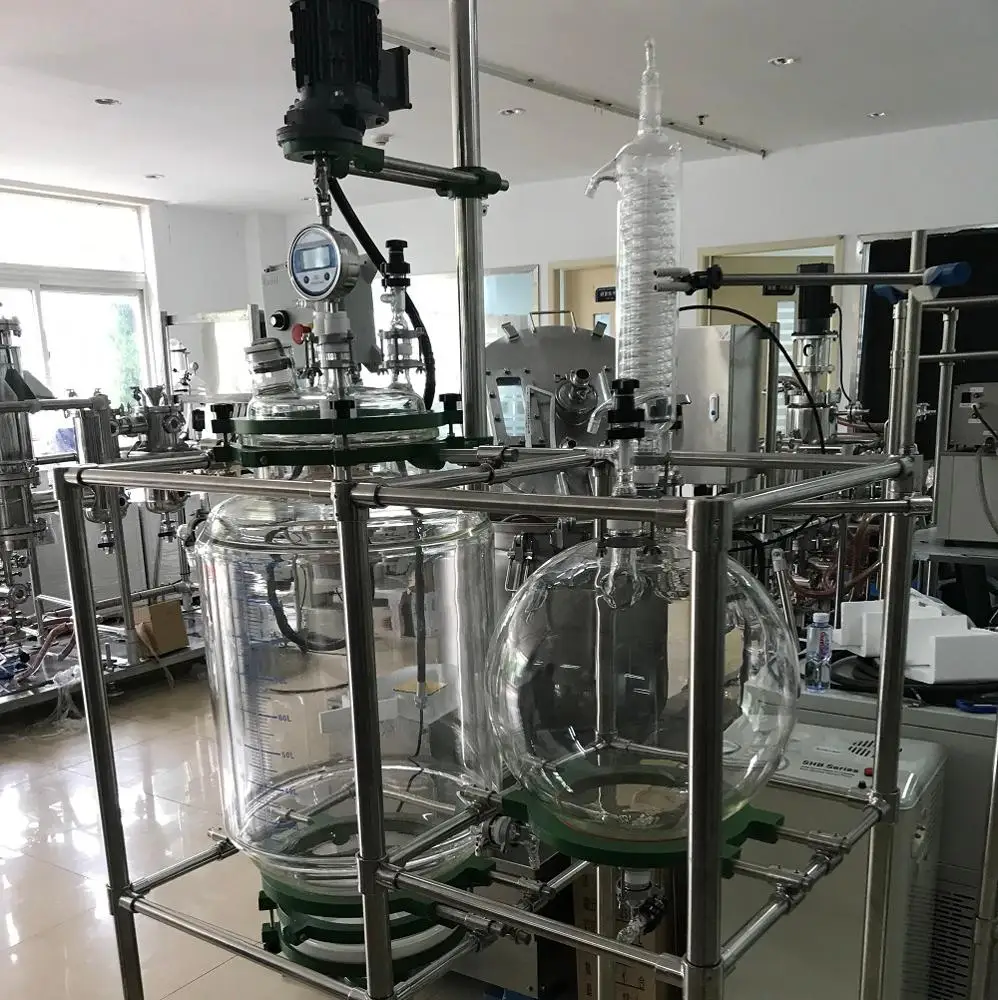

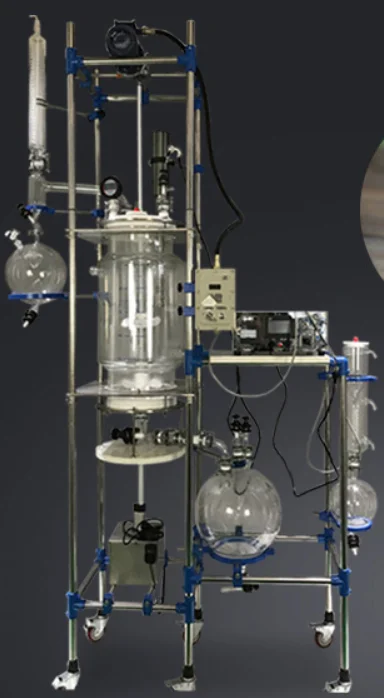

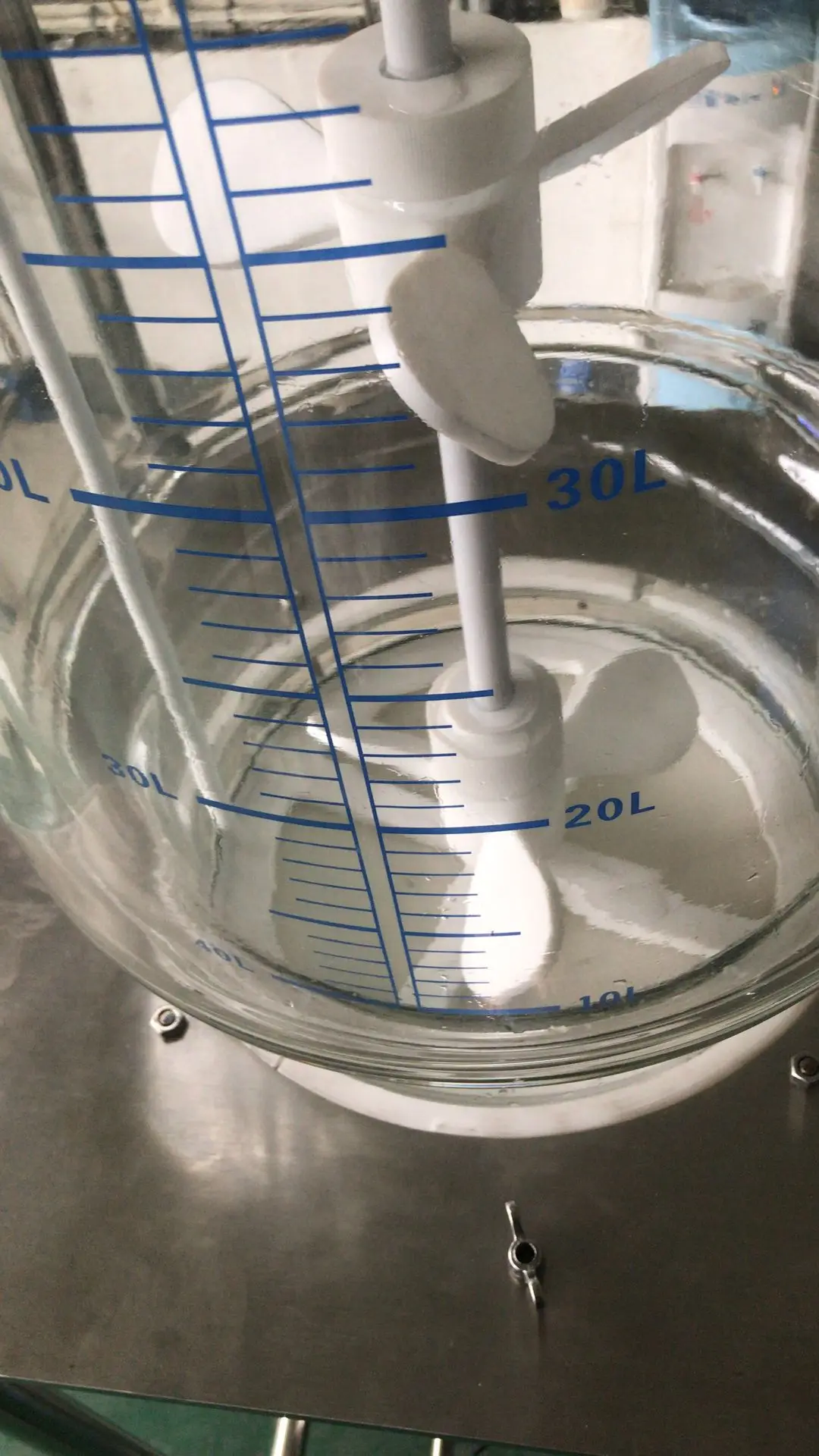

100L customized Jacketed glass ultrasonic crystallization reactor with heater and cooler and vacuum pump
- Category: >>>
- Supplier: Nantong Sanjing Chemglass Co. Ltd.
Share on (62365207474):
Product Overview
Description
Product Description
Product Application
The standard jacketed glass reactor is made by 3.3 borosilicate glass ,and there are 2 layers. The reaction solvent can be put into inner layer for stirring reaction.The middle layer can be connected with different sources (water or oil) for cyclic heating or cooling reaction by heating and cooling circulator.Under the condition of constant temperature , the stirring reaction can be carried out under normal pressure or negative pressure according to the requirements. The glass reactor can also be used for reflux and distillation,which is an ideal experiment and production equipment for modern fine chemical plant, biological pharmacy and new material synthesis.
There are 2 models you can choose, with or with explosion-proof motor.
Product Attribute | ||||||||||
Product Modle | FPGR-50 | FPGR-80 | FPGR-100 | FPGR-150 | FPGR-200 | |||||
Volume(L) | 50 | 80 | 100 | 150 | 200 | |||||
Neck No.on Cover | 6 | 6 | 6 | 6 | 6 | |||||
External Diameter of Inner Vessel(mm) | 365 | 410 | 460 | 550 | 600 | |||||
External Diameter of Outer Vessel(mm) | 410 | 460 | 500 | 600 | 650 | |||||
Cover Diameter(mm) | 265 | 340 | 340 | 340 | 340 | |||||
Vessel Height(mm) | 850 | 950 | 950 | 980 | 1200 | |||||
Motor Power(W) | 180 | 370 | 370 | 750 | 750 | |||||
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | |||||
Rotation Speed(rpm) | 50-600 | 50-600 | (50-600) | (50-600) | (50-600) | |||||
Torque(Nm) | 2.86 | 5.89 | 5.89 | 11.9 | 11.9 | |||||
Power(V) | 220 | 220 | 220 | 220 | 220 | |||||
Diamension(mm) | 700x500x2300 | 1000x700x2500 | 1000x700x2700 | 1200x900x3000 | 1200x900x3200 | |||||

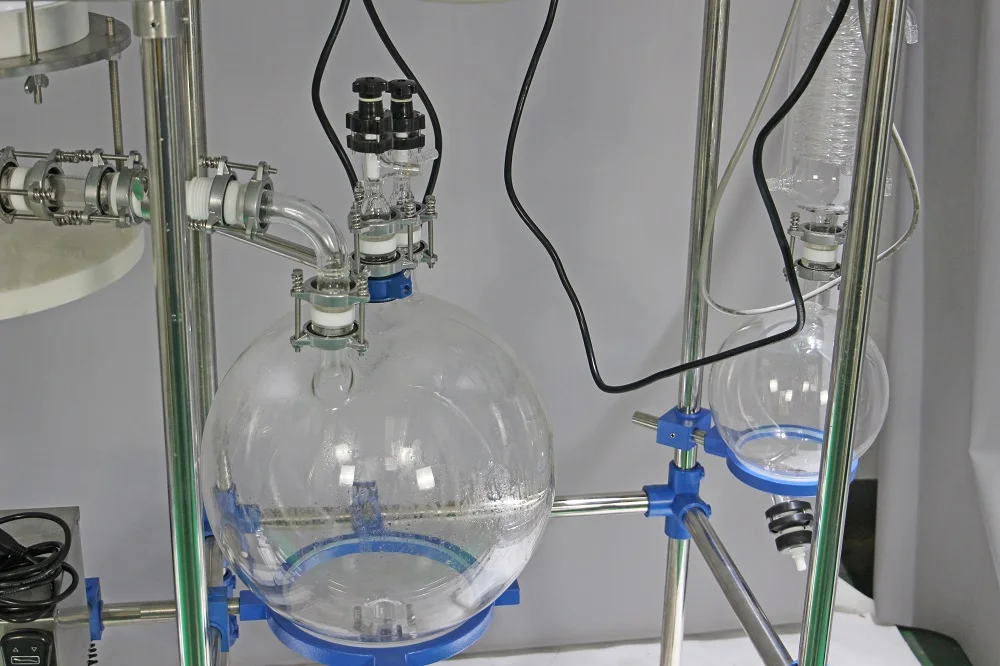

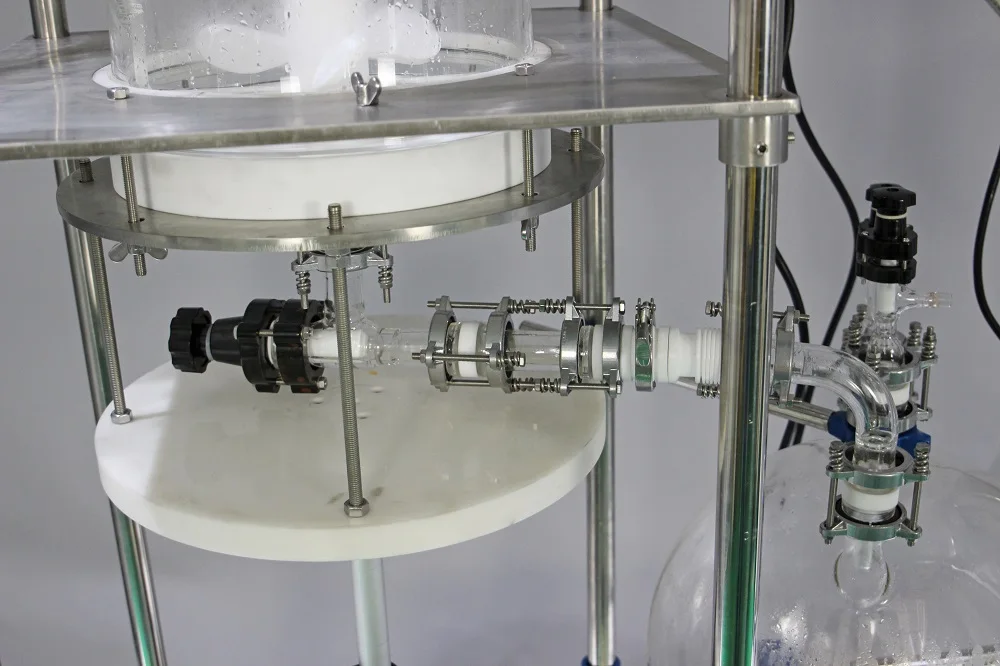

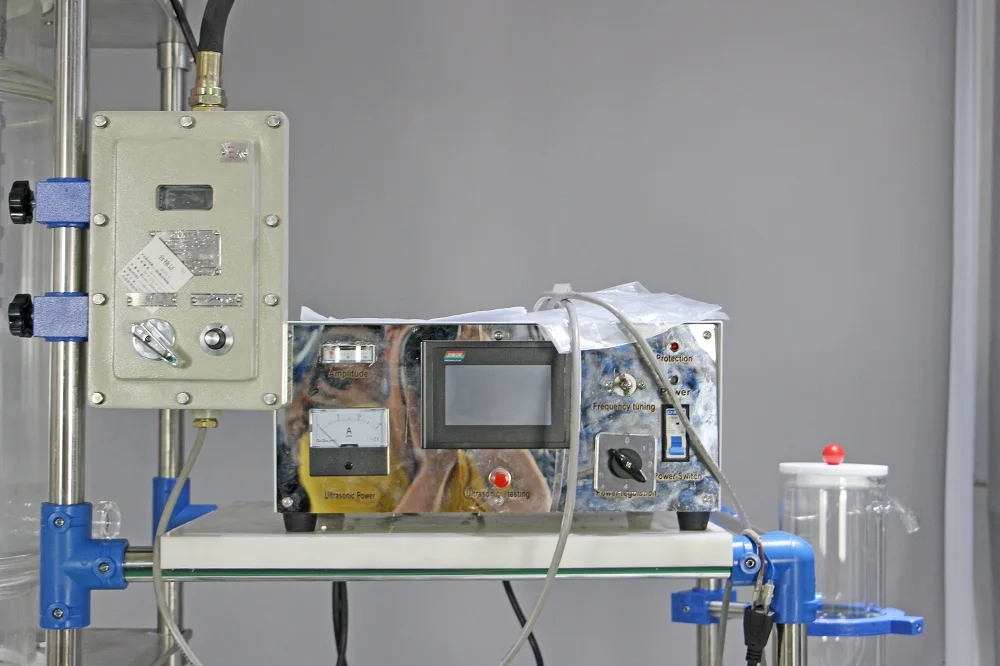

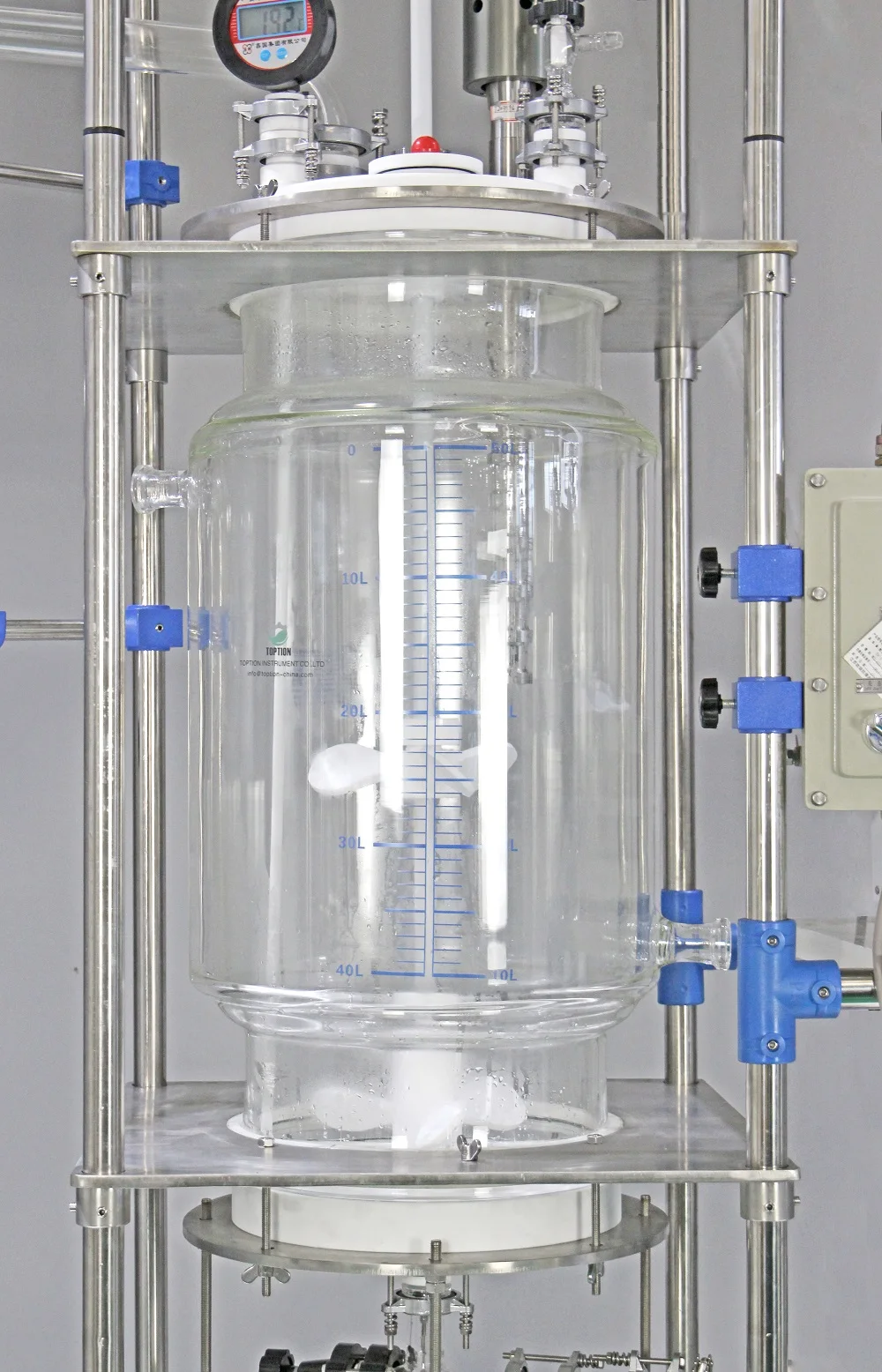

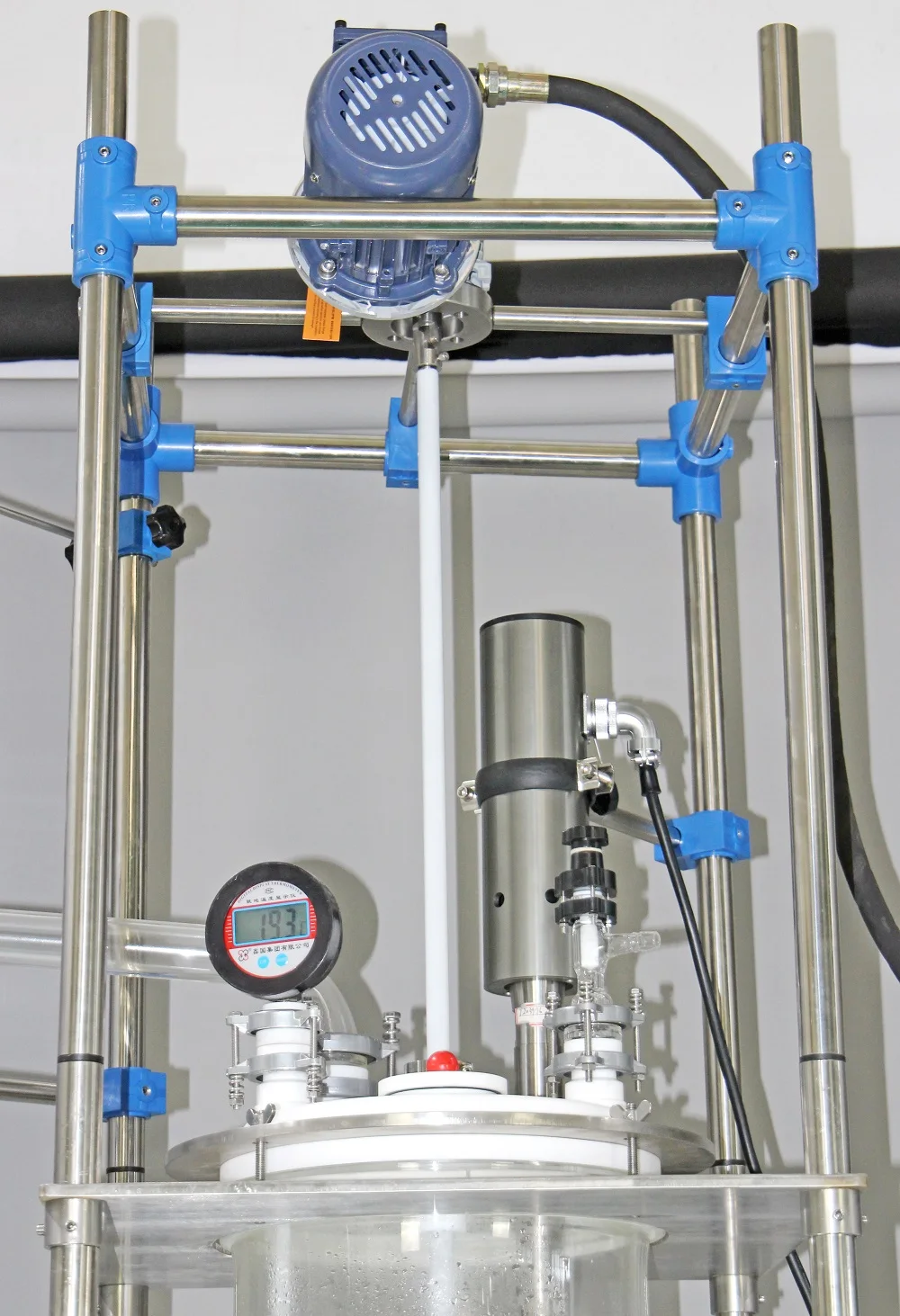

Detailed Images
Main Features
1) The whole stainless steel frame structure (the connection part of the three-way and four-way exquisite connection) is compact and firm, and it's easy to move.
2) VFD(variable-frequency drive) motor controller can realize high-medium-low-speed operation,which is accurate and operable. And fully explosion-proof system is feasible.
3)The kettle chamber and jacket are designed without dead angle, and the special solid feeding port on the cover is convenient for cleaning without disassembly.
4)The lower discharge part is easy to release concentrated liquid and residuum.
5)The heating (cooling) solution in the sandwich layer will be completely eliminated after the reaction.
