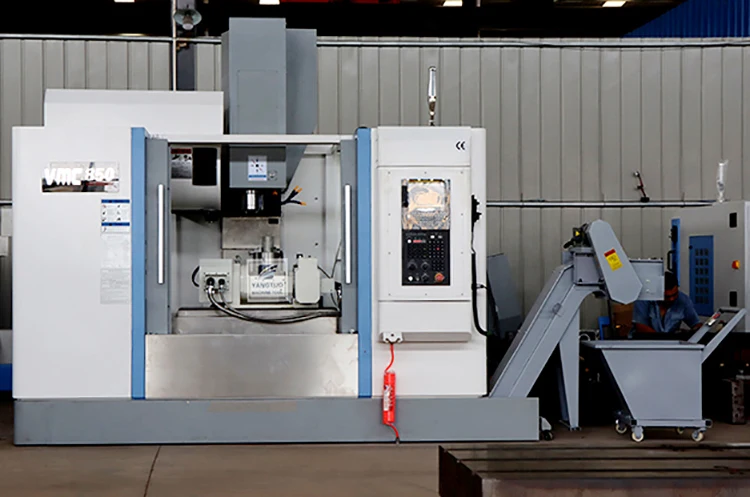

centro de mecanizado cnc VMC850 5 axis vertical cnc milling machine price
- Category: Machine Centre & Parts >>>
- Supplier: Shandong Yangtuo CNC Machine Tool Co. Ltd.
Share on (62365248195):
Product Overview
Description
Product Description

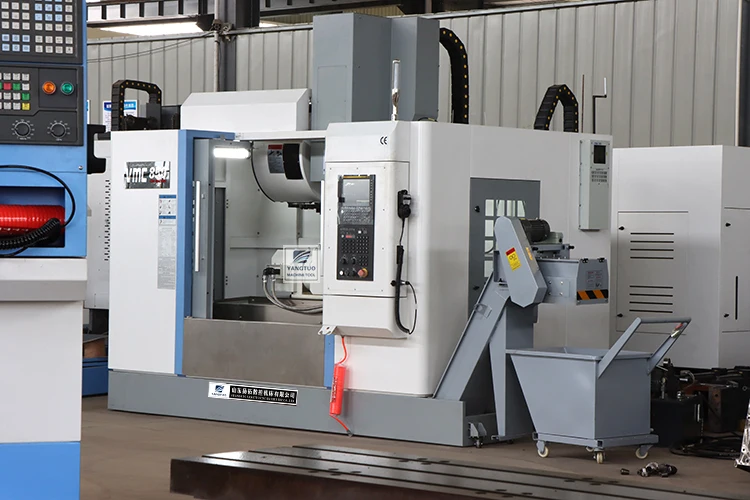

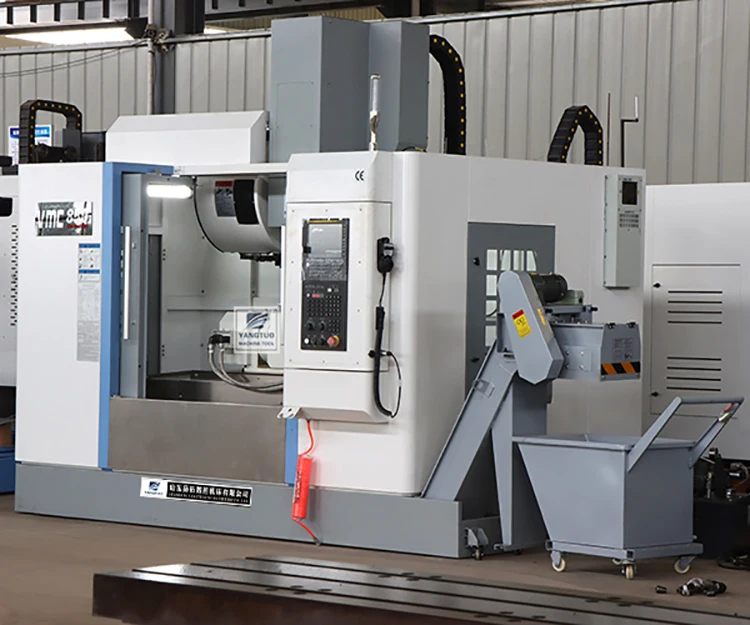

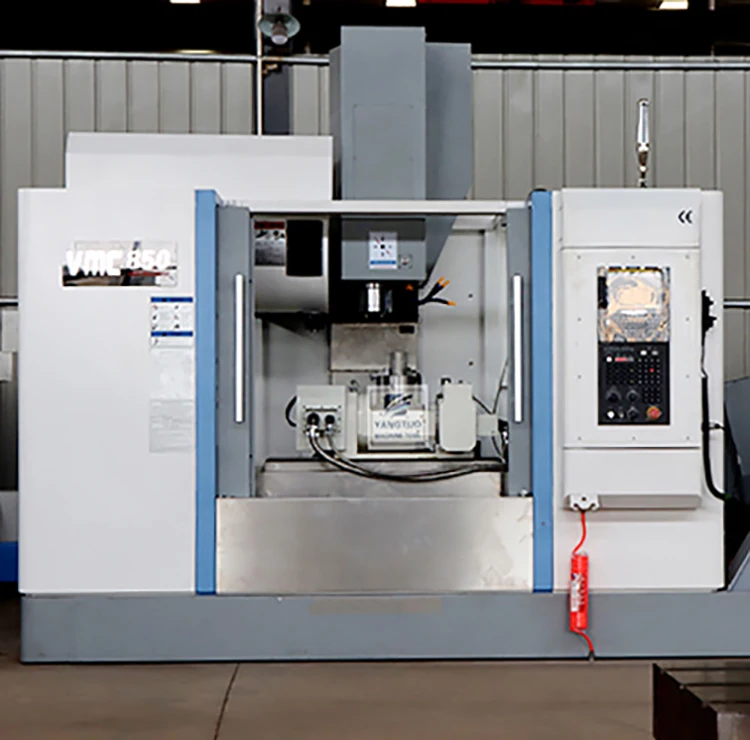

centro de mecanizado cnc VMC850 5 axis vertical cnc milling machine price

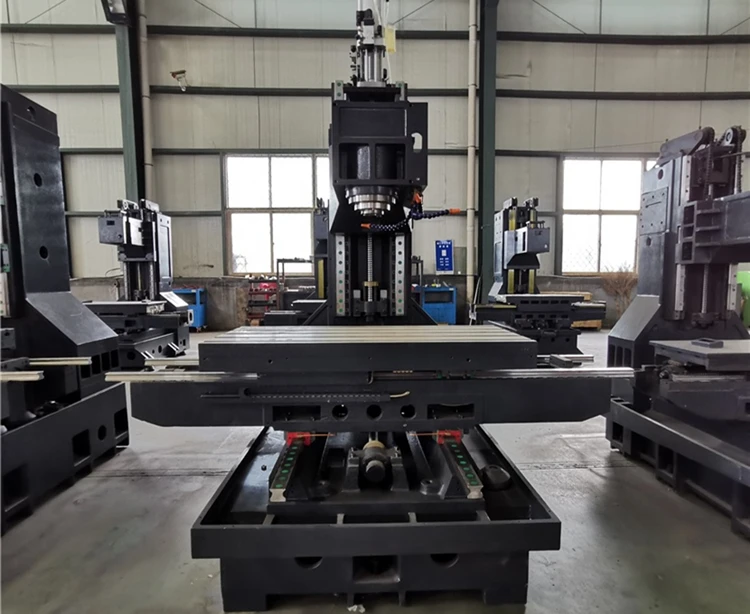

1.The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and

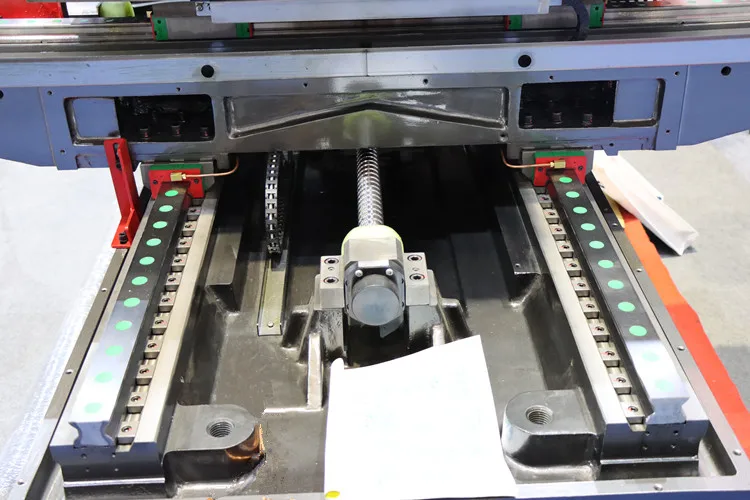

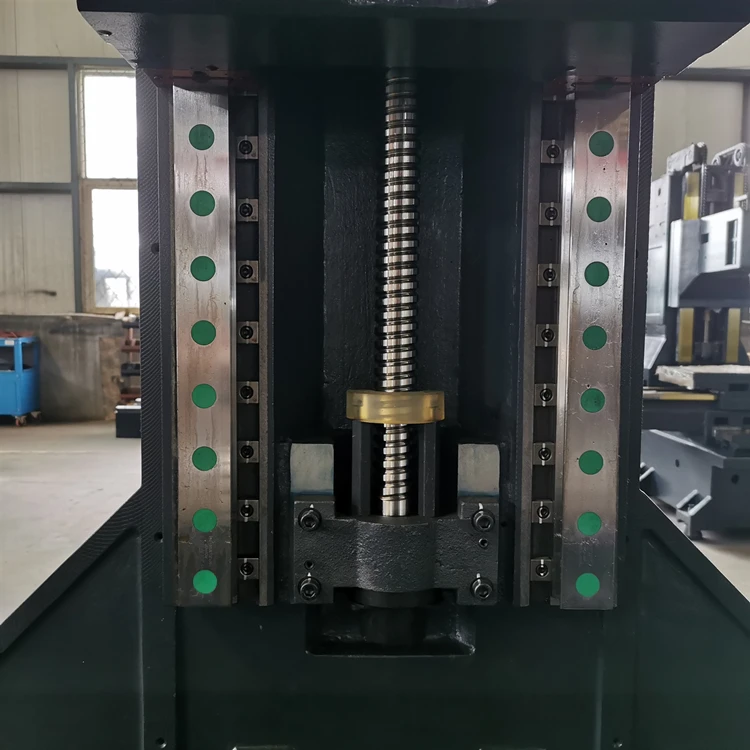

effectively prevent the deformation of the body2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan
HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.
effectively prevent the deformation of the body2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan
HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.
Specifications | Units | VMC850 |
Table size | mm | 1000x500 |
X axis travel | mm | 800 |
Y axis travel | mm | 500 |
Z axis travel | mm | 500 |
Max. worktable load | kg | 550 |
T slot(number-width-pitch) | 5-18x90 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 |
Main motor power | kw | 7.5/11 |
X/Y/Z rapid traverse speed | m/min | 48/48/32 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | Linear rail | |
Distance from spindle axis to column surface | mm | 550 |
Distance between spindle nose and worktable surface | mm | 150-650 |
Positioning accuracy | mm | ±0.01 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | Arm 24 | |
Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) |
Max.tool weight | kg | 8 |
Machine weight | kg | 5500 |

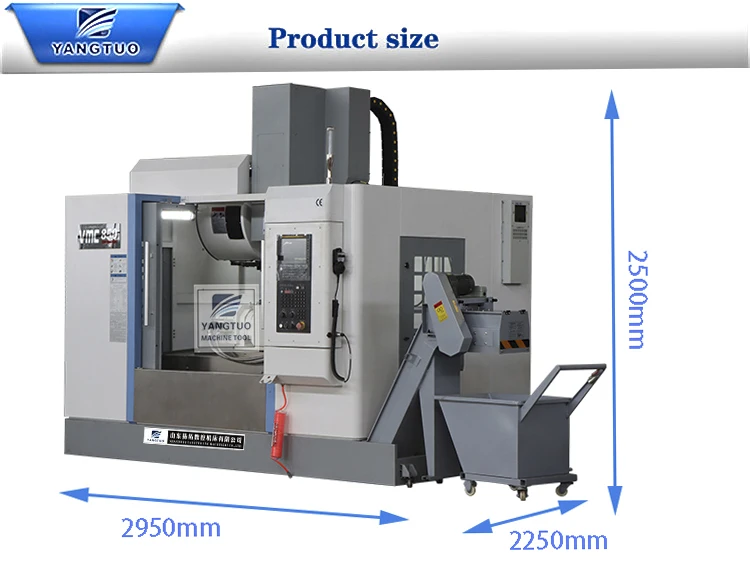

Overall dimension | mm | 2700X2250X2500 |

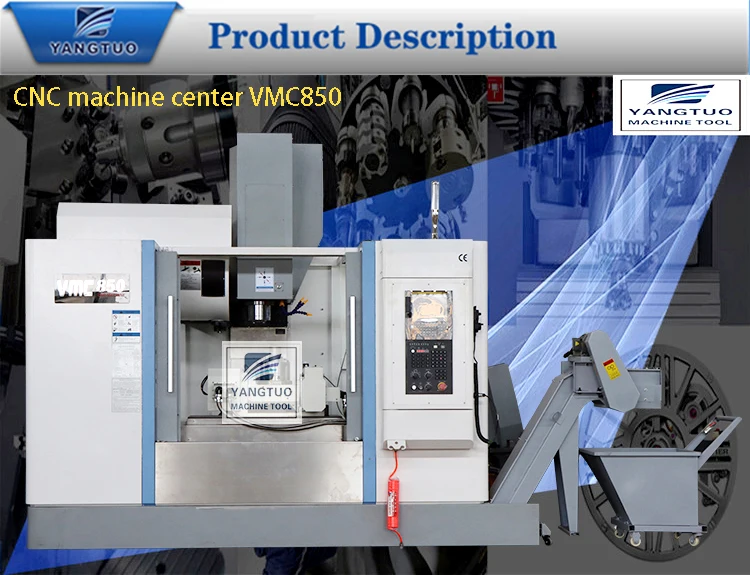

Product Description:
1 .Taiwan HIWIN high precison guideway
2 .Taiwan-made spindle Unit,8000-12000rpm available

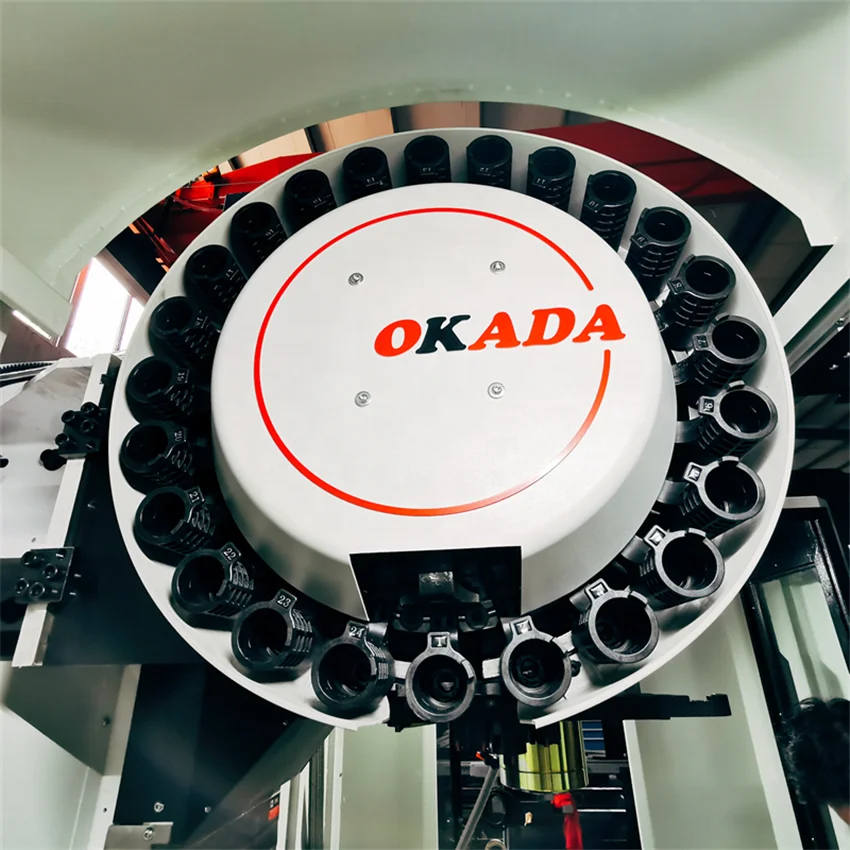

3 Taiwan OKADA 24 ATC
4.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product
and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1 .Taiwan HIWIN high precison guideway
2 .Taiwan-made spindle Unit,8000-12000rpm available
3 Taiwan OKADA 24 ATC
4.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product
and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
