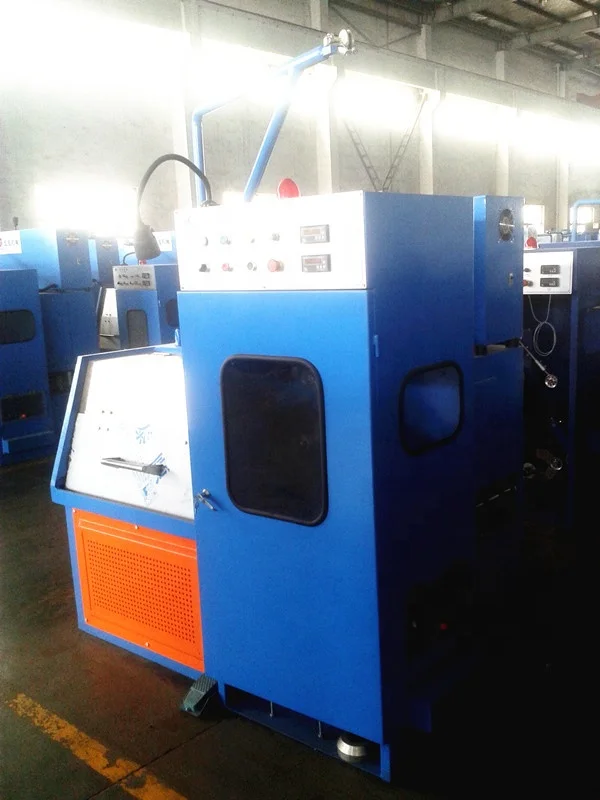

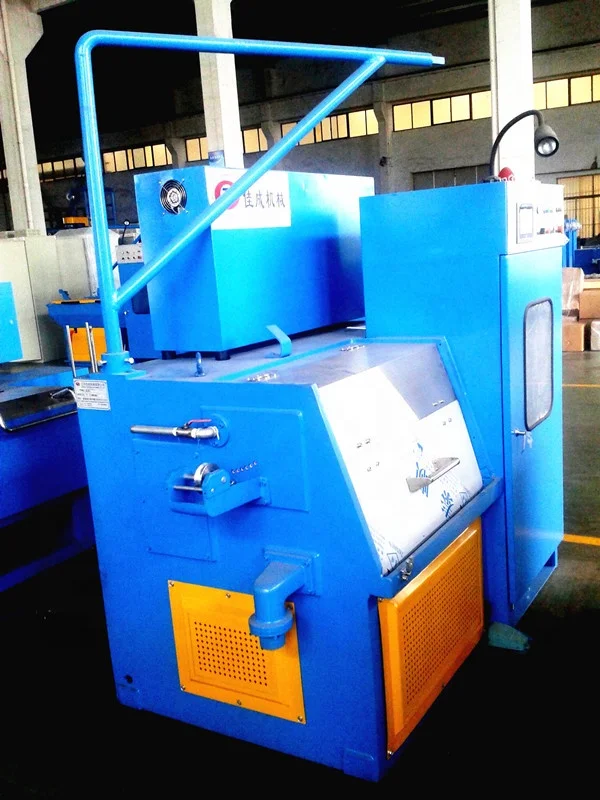

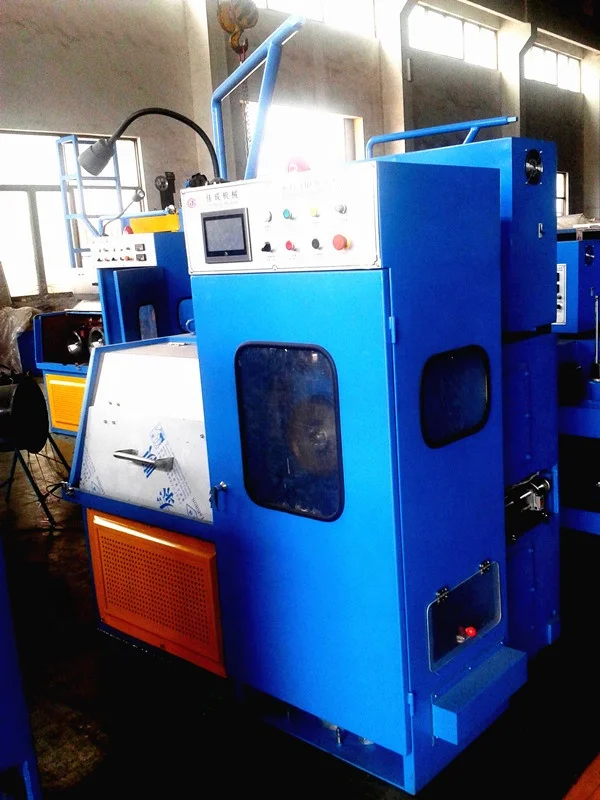

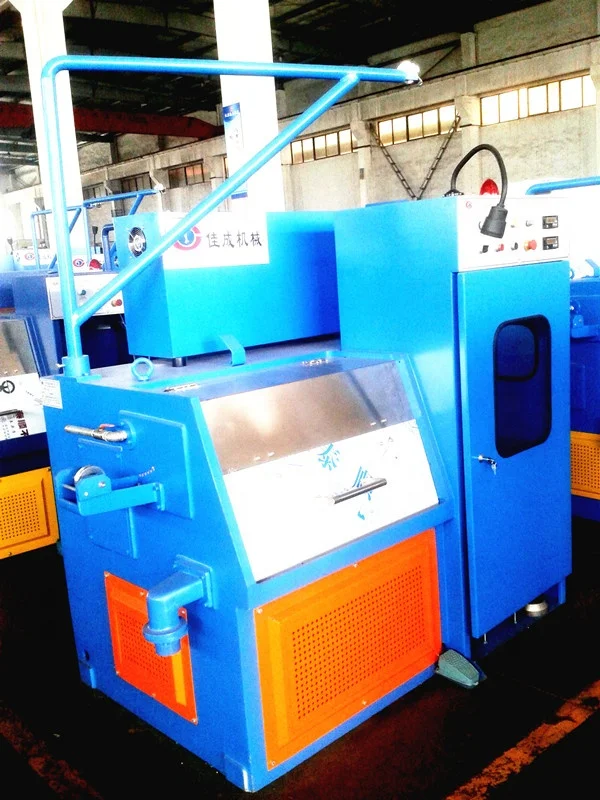

B26 fine copper wire drawing machine
- Category: >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (62365361409):
Product Overview
Description
Product Description
Product Application
This machine is used for drawing copper clad aluminum wire which mainly applicated in the wire and cable industry.
B26 FINE COPPER WIRE DRAWING MACHINE | ||||||
Model No. | JCJX-B26 | |||||
Max. Inlet Dia. (mm) | 0.95-1.60 | |||||
Outlet Dia. (mm) | 0.11-0.50 | |||||
Max. Die No. | 26 | |||||
Max. Drawing Speed (m/s) | 2500 | |||||
Body Structure | ironed cast | |||||
Drawing Drum | ceramic plasma capstan | |||||
Transmission Type | by belt | |||||
Inverter | INOVANCE | |||||
Bearing | NSK | |||||
Low Voltage Apparatus | SCHNEIDER | |||||
Main Features
1) Save room
2) High productivity
3) High quality
4) Easy to operate
5) One stop station services
Detailed Images

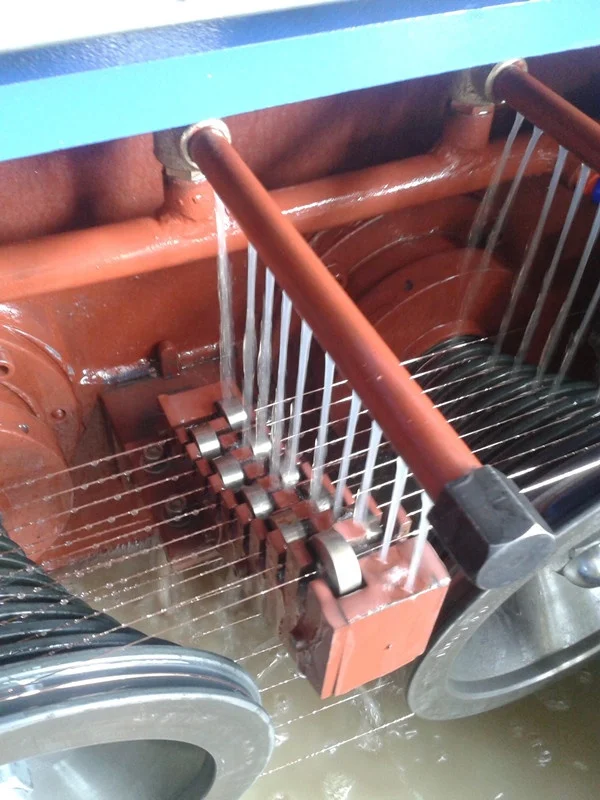

Lubrication type: spray type
Advantage:
a. protect the drawing capstan
b. protect the drawing die/mould
c. guarantee the quality of wire
Take-up bobbin size: Dia. 300mm(iron bobbin)
Advantage:
a. high speed(Max. 2000m/min)
b. large capacity wire-collection(Max. 50kg)
a. high speed(Max. 2000m/min)
b. large capacity wire-collection(Max. 50kg)
c. can change for small plastic bobbin take-up
Electric control system: push button type
Advantage:
a. easy to change
b. easy to operate
Main electric appliance brand:
1) Inverter: INOVANCE
2) Bearing: NSK
3) Low voltage apparatus: SCHNEIDER
Finished Products
Our Services
One Stop Station Services
1) Stand-by engineers team to provide overseas installation and commissioning service
2) 1 year warranty. During warranty, we provide free of charge for repairing cost
3) Lifetime maintenance. After-sales department can provide life long maintenance service
