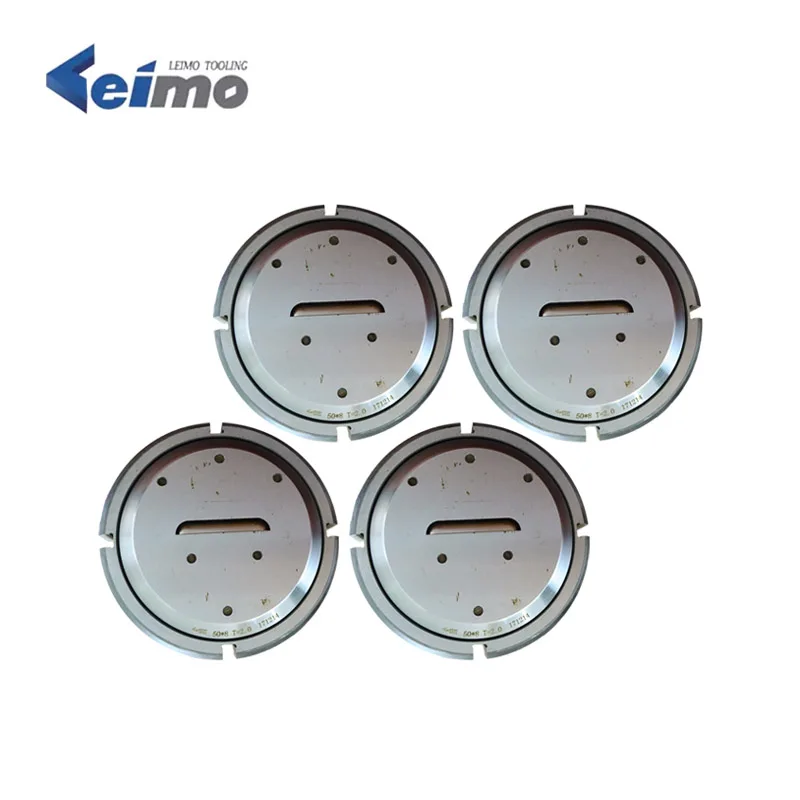

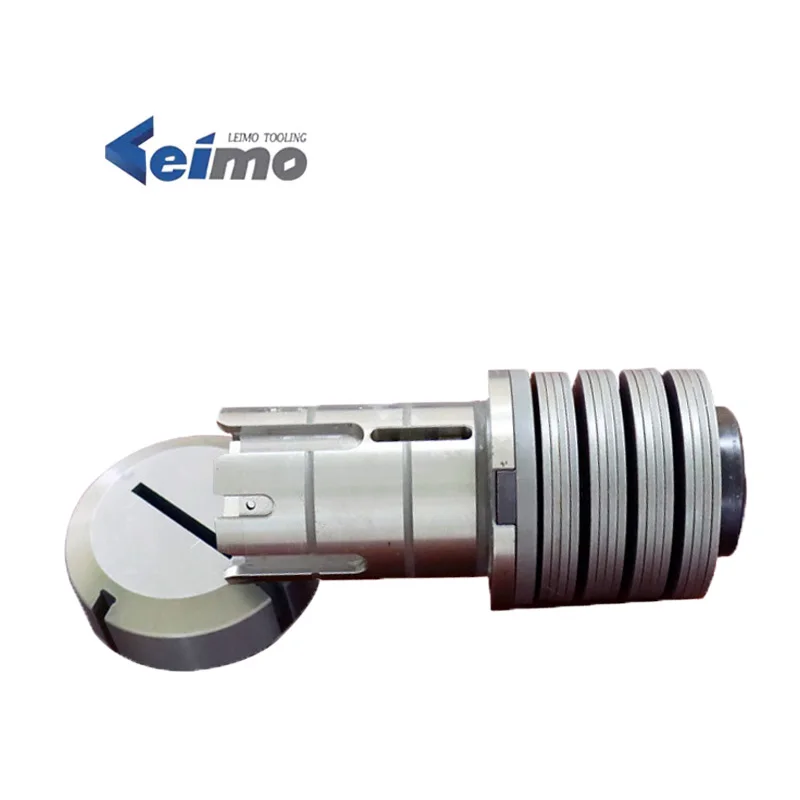

90S D station CNC punch press tooling punch die Customized shape

Product Overview

Description

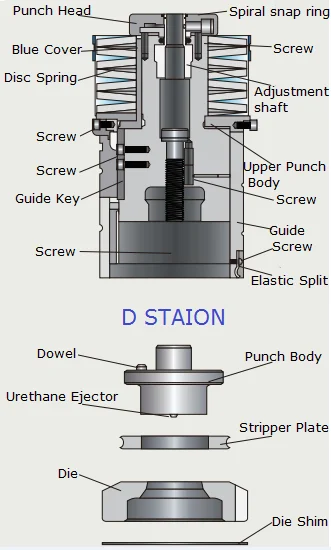

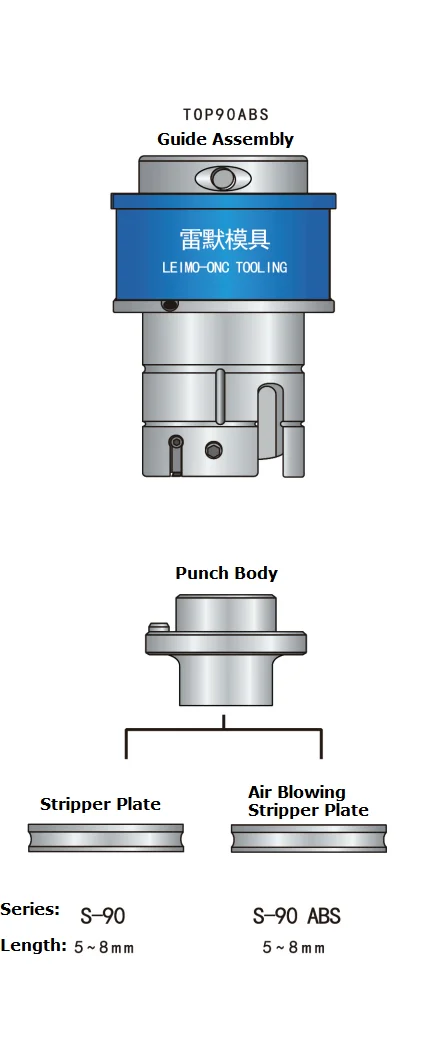

Usage of S-90 Quick Adjustment Mold:

1.General old structure mold, any parts can be exchanged with the foreign

   mainstream products.

2. The unique surface treatment technology makes the guide more wearable and

    not rusting.

3. Four specifications of A,B,C,D available.





Warm Notice:

1. 90 punches can be ground 5-8 mm, reducing the cost of use 60%.

2. Mold adjustment does not need to add gasket, so it's convenient and fast.

3. The standard key slot for guide is 0°, 90°,135°, it has good applicability.







Parameters:



Station	Shape	Size	Max. Thickness of Medium carbon steel plate
D (3-1/2'')	RO/RE/OB/SQ/HX	31.71-50.80mm	6.3mm





Different Shapes have different price, please contact supplier.
