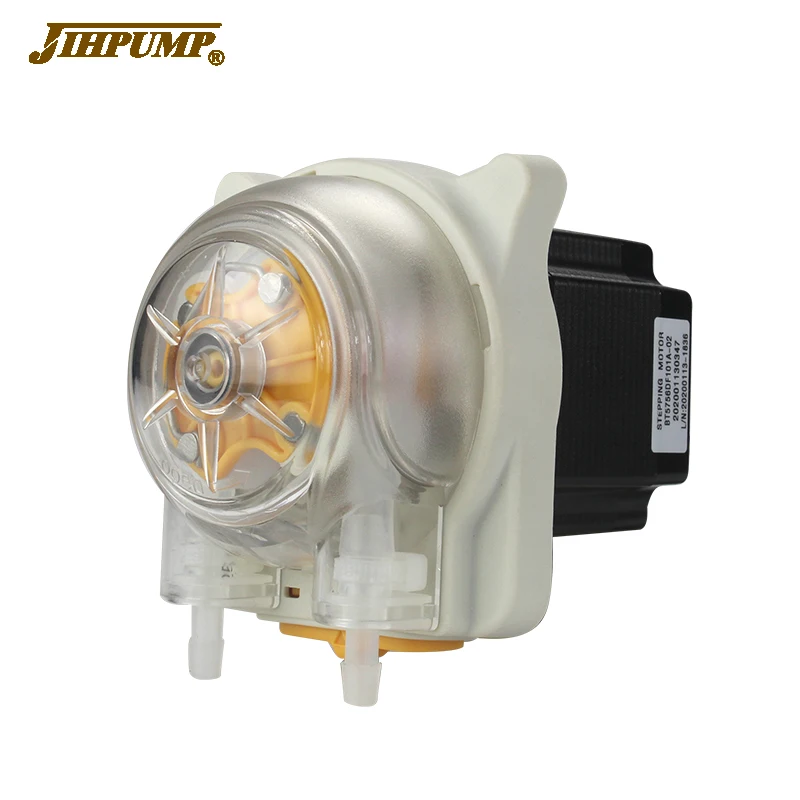

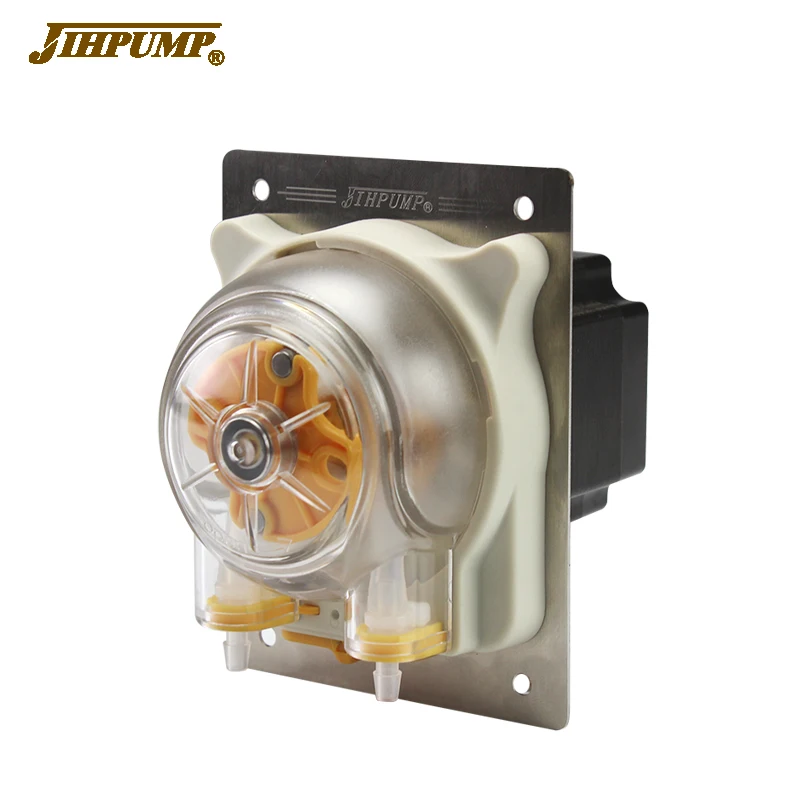

JIHPUMP Laundry Detergent Dispensing Chemical Peristaltic Pump 24V Gas Smoke Water cooling liquid Wastewater Dosing pump
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (62365421452):
Product Overview
Description
Corporate Strength:
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
Lilian He(Europe , North and South America) :
WhatsApp:+8618983834629
Skype：+8618983834629
Email：alan@jihpump.com
Skype：+8618983834629
Email：alan@jihpump.com
April Huang(Asia and Africa) :
WhatsApp:+8615703016080
Skype：jihpump
Email：april@jihpump.com
Products Description:
Features | ||||||

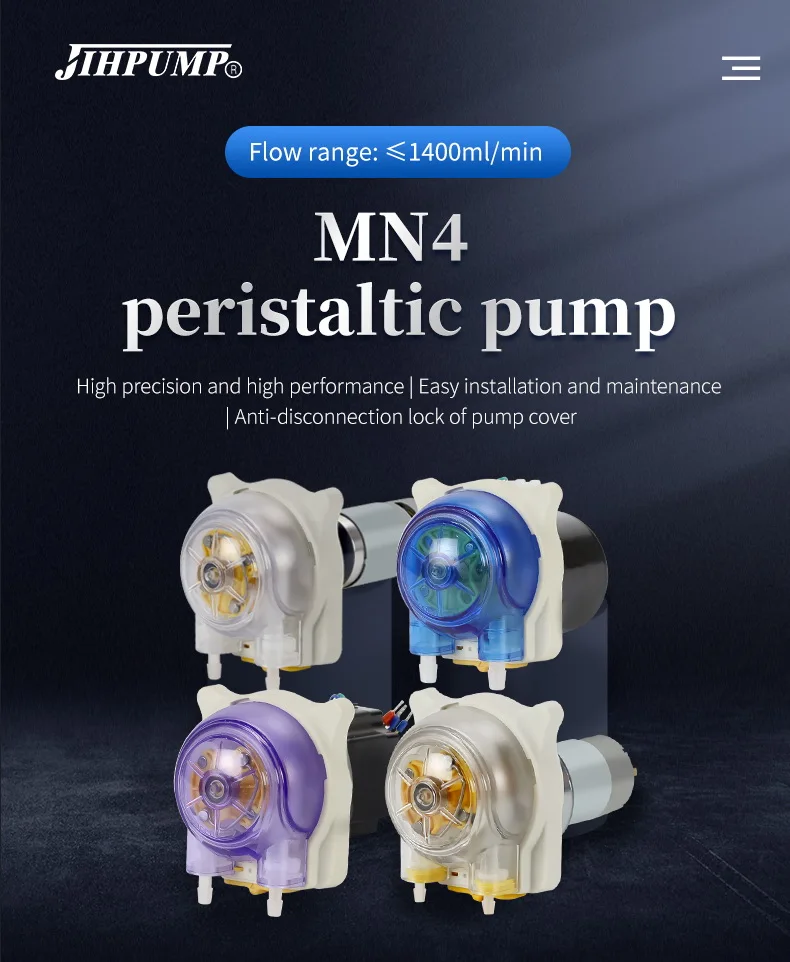

High precision high performance | Long life and high reliability | Tool-free tube replacement | Pump cover lock | |||
2 & 4 rollers optional | 4 types of motors are available | 3 hose diameters | Multiple pump cover colors | |||
Hot Sale Products ：
Product Parameters | ||||||||
Product name | JIHPUMP 12v 24v stepper motor laundry medical coffee liquid transfer filling machine viscous high flow peristaltic pump | |||||||
Product number | MN4/ZL | MN4/ZLX | MN4/BT | MN4/TB | ||||
Motor type | DC motor | DC planetary gear motor | stepper motor | Synchronous motor | ||||
Use electric | DC 12V,4A/24V，2A | DC 24V，2A | DC 24V，4A | AC 220V,50Hz | ||||
Use power(W) | ≤24W | ≤48W | ≤25W | |||||
Weight | 577g | 583g | 886g | 695g | ||||
Outlet pressure | ≤0.17MPa | |||||||
Main material | Pump cover: Polycarbonate, Wheel set: Polyacetal, Base: Polyamide | |||||||
Reference flow (unit: ml/min) | ||||||||||||||||||
Product number | MN4/ZL | MN4/ZLX | MN4/BT | MN4/TB | ||||||||||||||
Motor speed Hose model | 338r | 526r | 150r | 300r | 300r | 5r | 10r | 30r | 100r | |||||||||
16# | 285 | 430 | 120 | 260 | 245 | 4 | 8 | 25.5 | 80 | |||||||||
25# | 550 | 875 | 235 | 530 | 500 | 8 | 16 | 50 | 160 | |||||||||
17# | 875 | 1370 | 365 | 840 | 805 | 12.5 | 25 | 75 | 260 | |||||||||

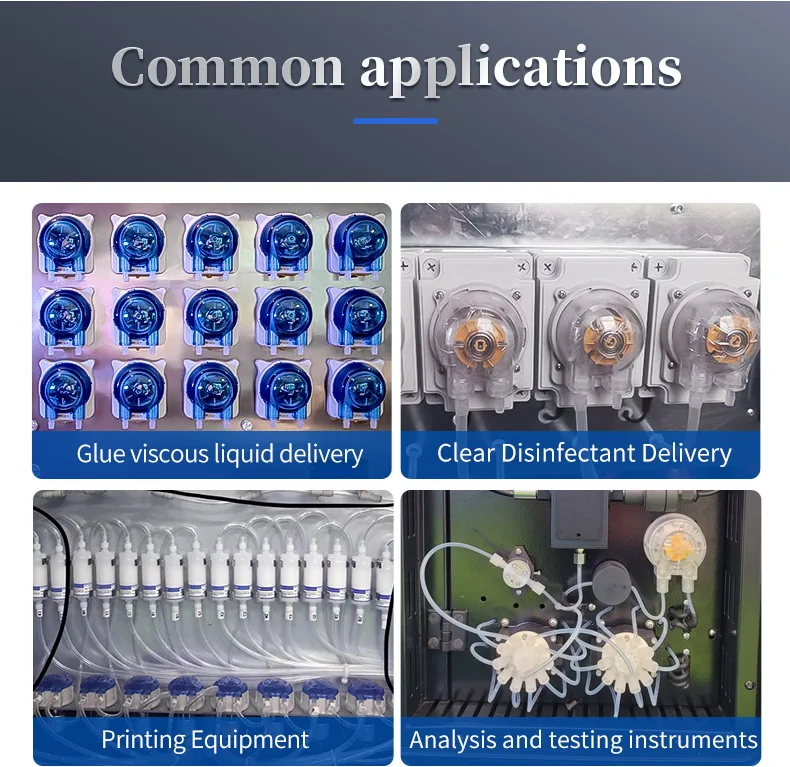

Common Applications: Glue viscous liquid delivery, Clear Disinfectant Delivery , Printing Equipment, Analysis and testing instruments , Automatic beverage machine , Food and Beverage Equipment etc.
Applications Industry: washing cleaning industry, Analytical Instruments, Analytical Instruments, Inkjet Ink, Food and Drink industry, Experimental Research, Pharmaceutical Machinery, Industrial Machinery，Smart Home Appliances etc.

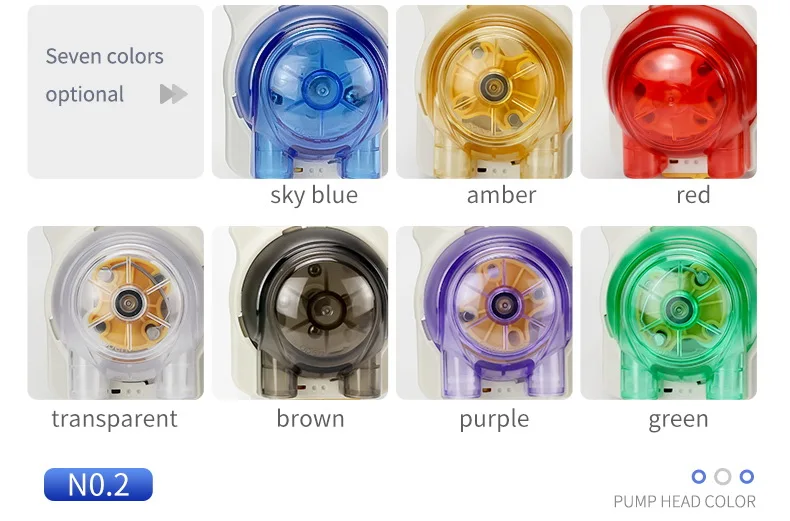

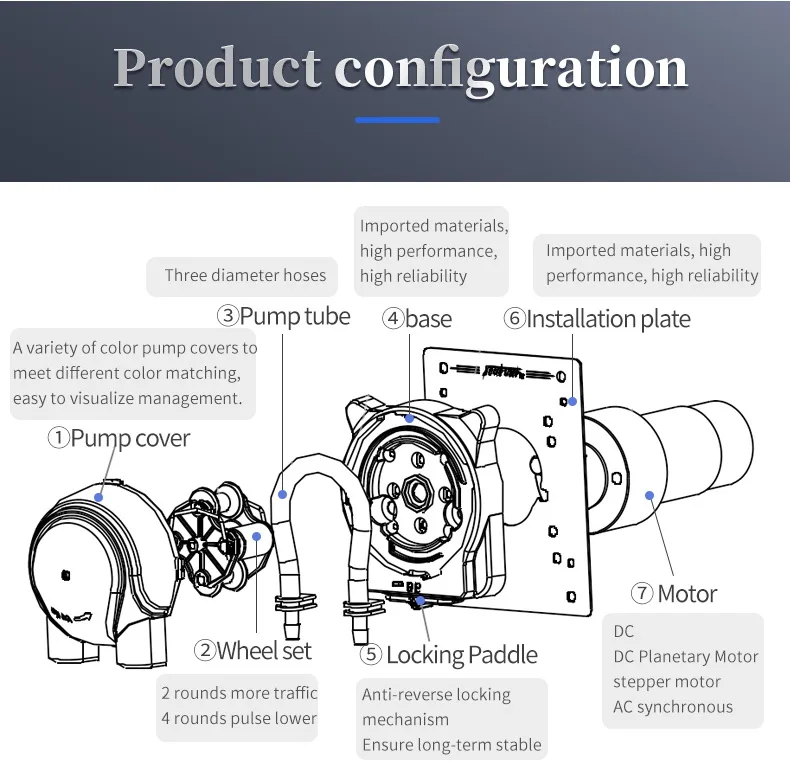

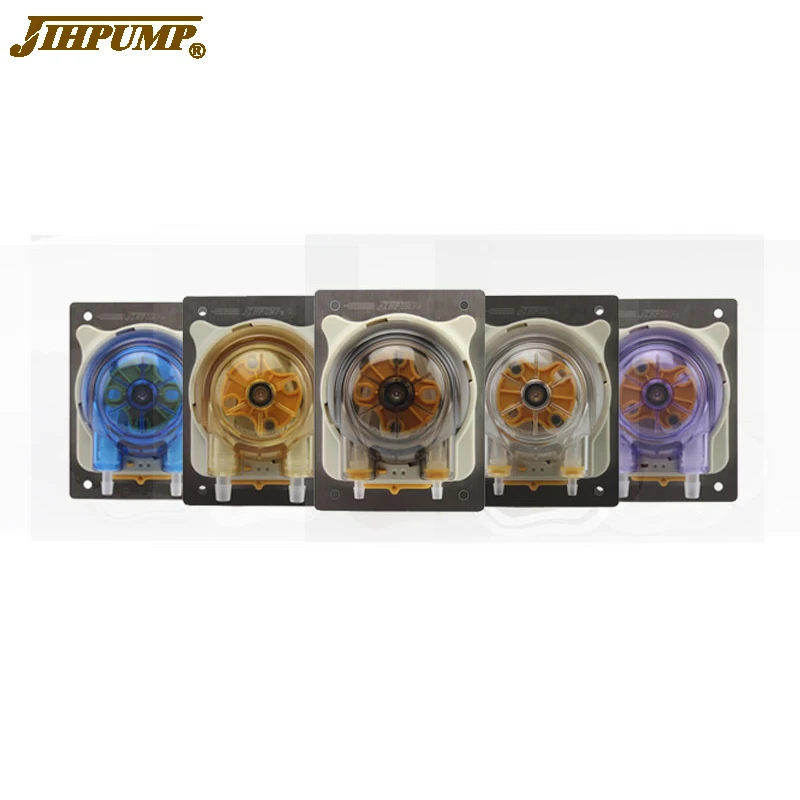

①pump cover ：A variety of color pump covers to meet different color matching, easy to visualize anagement |
②Wheel set ： 2 rollers more traffic 4 rollers pulse lower |
③Pump tube ： Three diameter hoses are available |
④base ：Imported materials, high performance, high reliability |
⑤ Locking Paddle ： Anti-reverse locking mechanism Ensure long-term stable operation |
⑥Installation plate ： Imported materials, high performance, high reliability |
⑦ Motor ： DC motor ， DC Planetary Motor ， stepper motor ，AC synchronous motor |

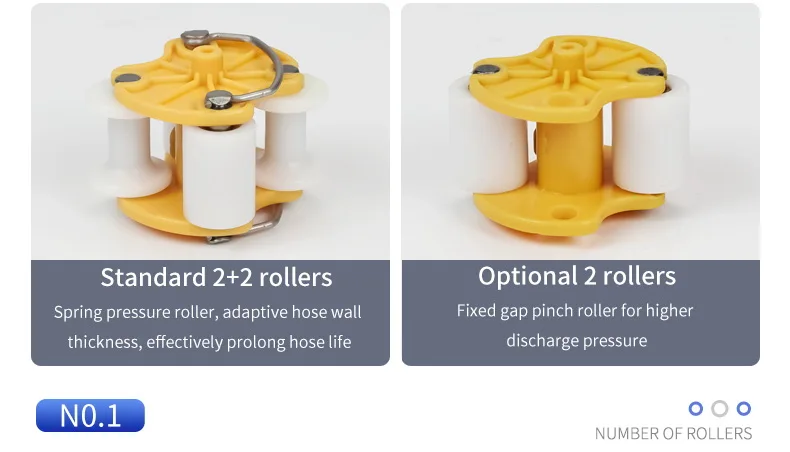

Number of rollers Affects flow and pulse
Spring pressure roller, adaptive hose wall
thickness, effectively prolong hose life
thickness, effectively prolong hose life
Optional 2 rollers
Fixed gap pinch roller for higher
discharge pressure
discharge pressure

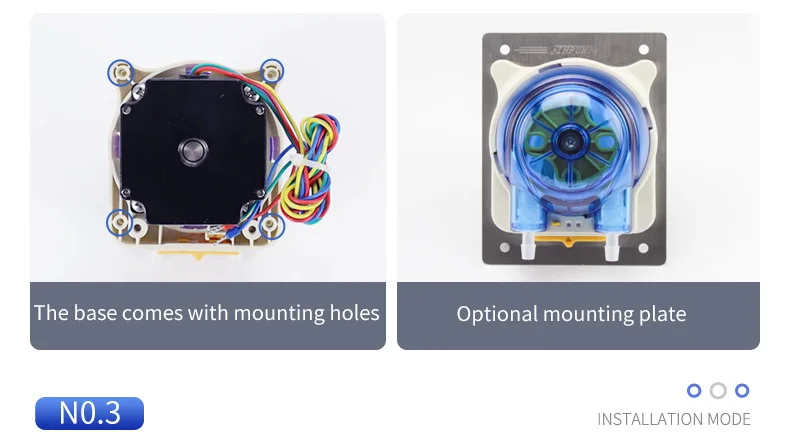

Installation method | ||

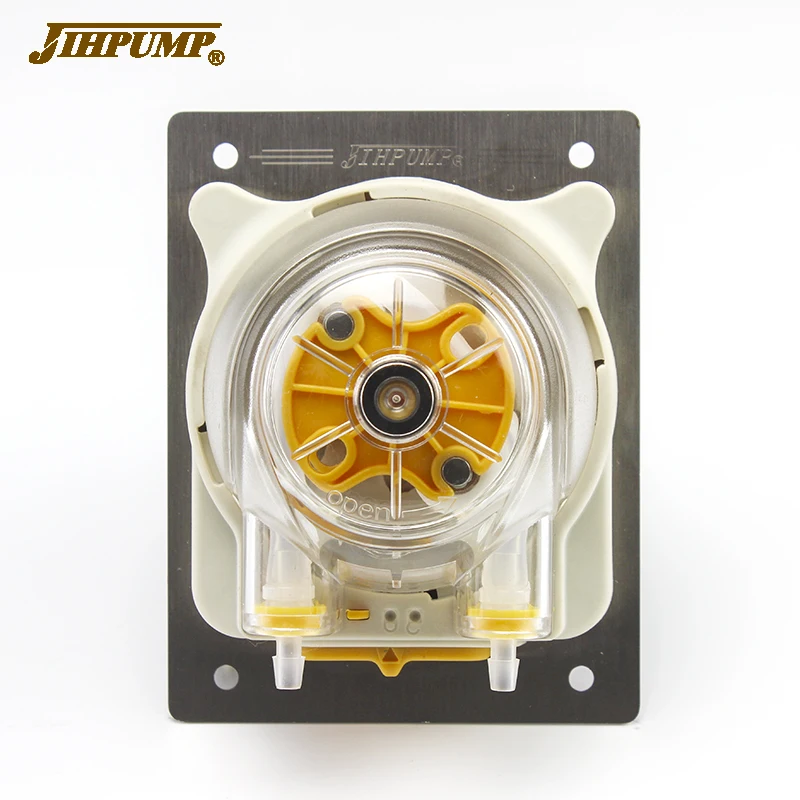

The base comes with mounting holes | Optional mounting plate | |

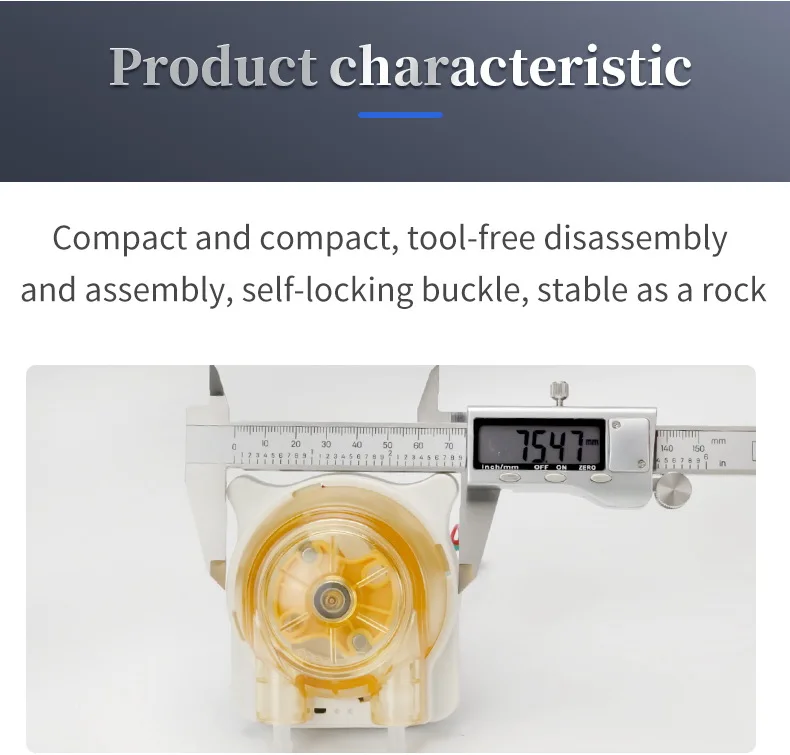

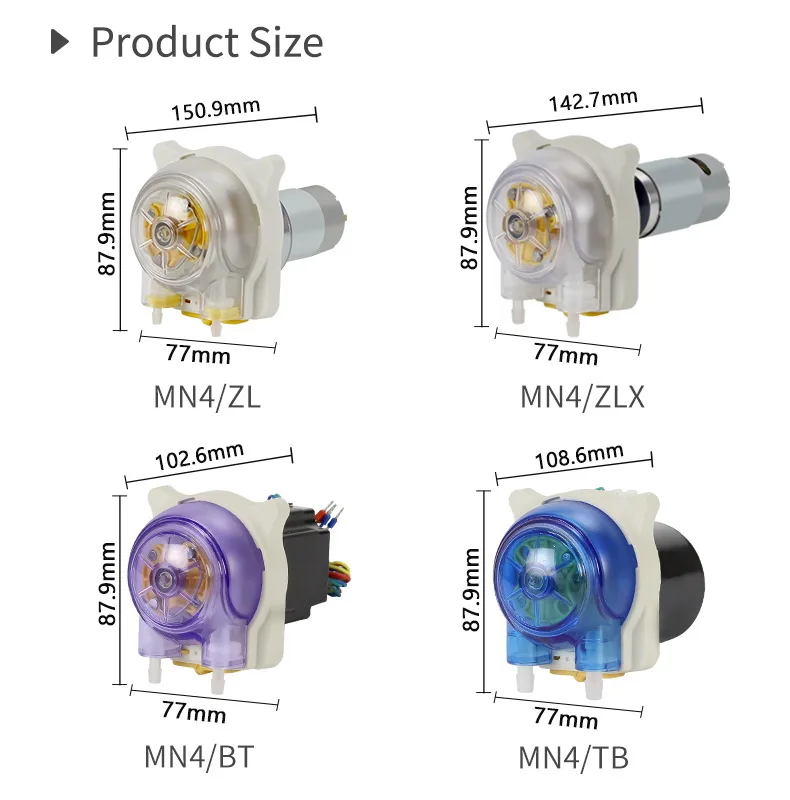

Product appearance dimension
The width is only 75.47 mm, Small volume and large flow, efficient use of space, and easy miniaturization of instruments and equipment.
Compact design , tool-free disassembly and assembly, self-locking buckle, stable as a rock.

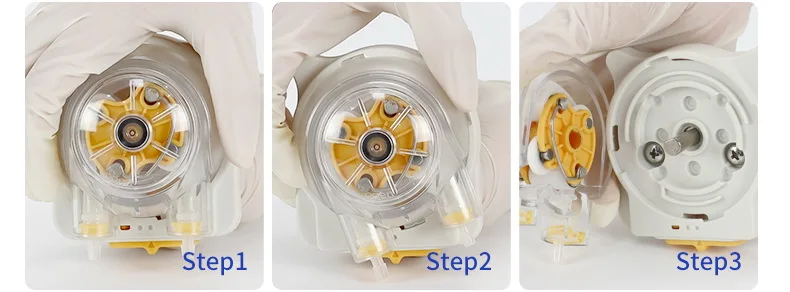

Easy installation and maintenance
Bayonet Mounting Mechanism Tool-free assembly and disassembly for quick hose changes and maintenance.

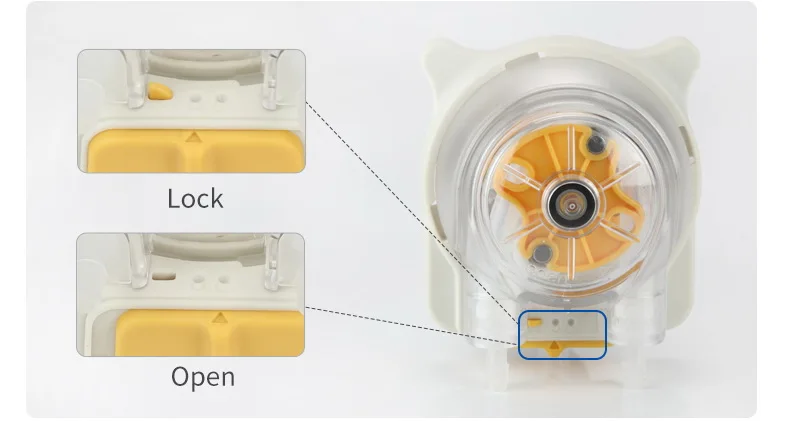

Unique pump cover locking mechanism
Meet the needs of frequent forward and reverse work, long-term stability and reliability.
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile:
JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
Contact Us :
FAQ:
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the
power supply. The types of pumps used in the two cases are different.
power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
