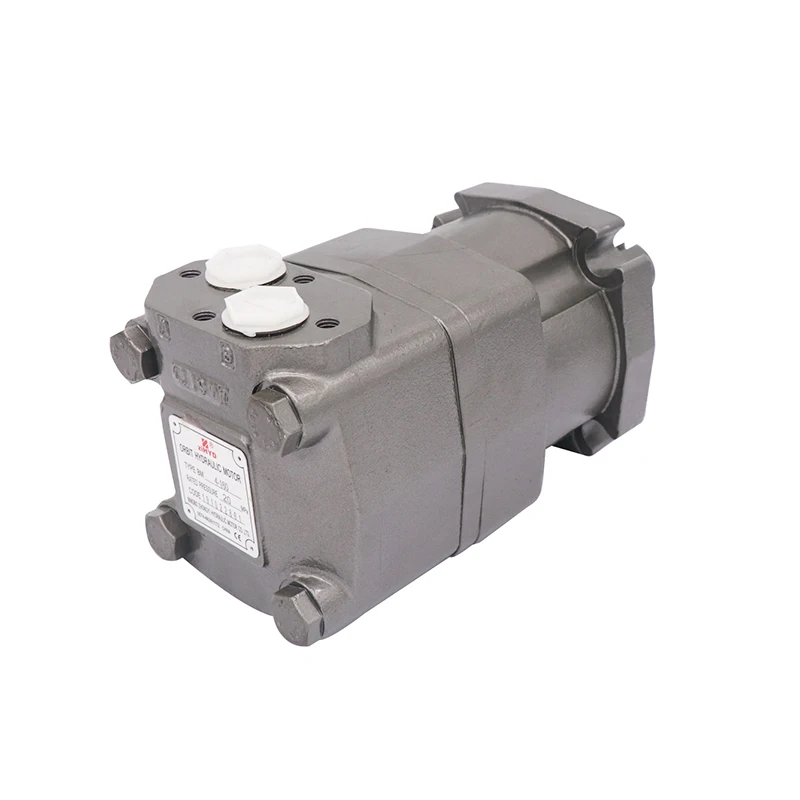

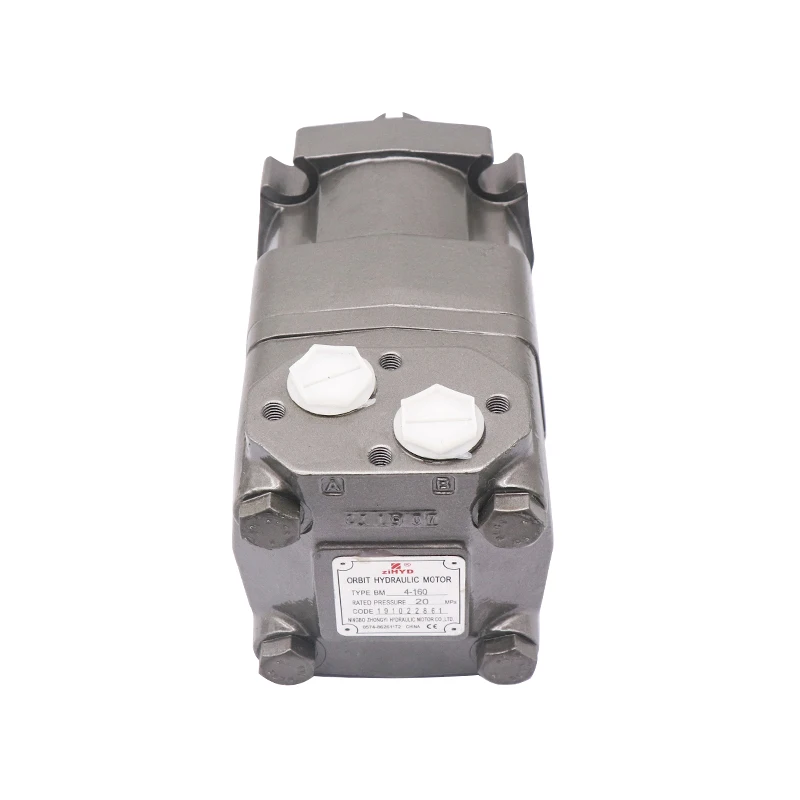

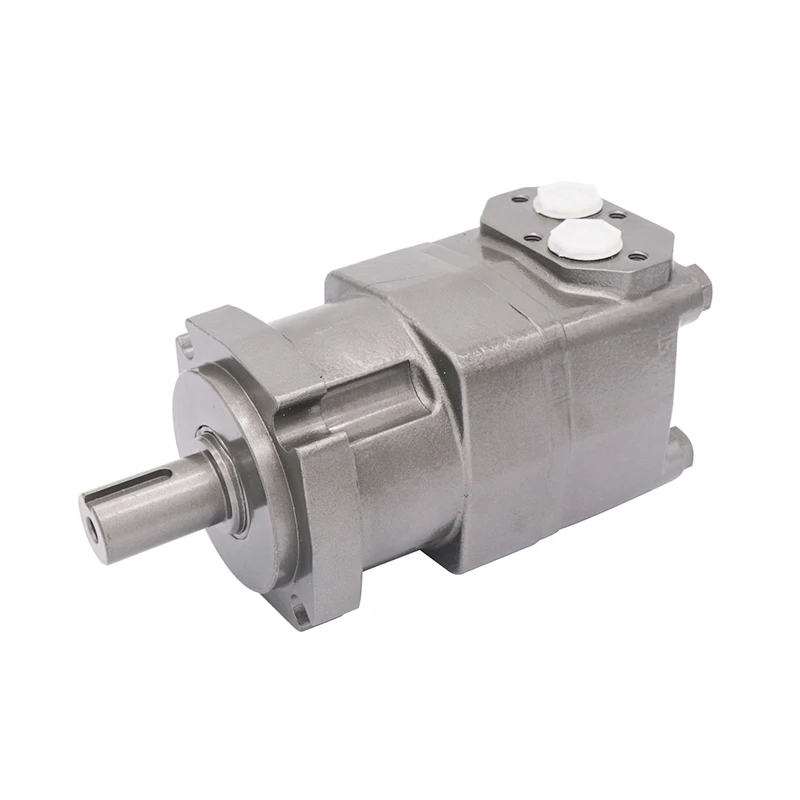

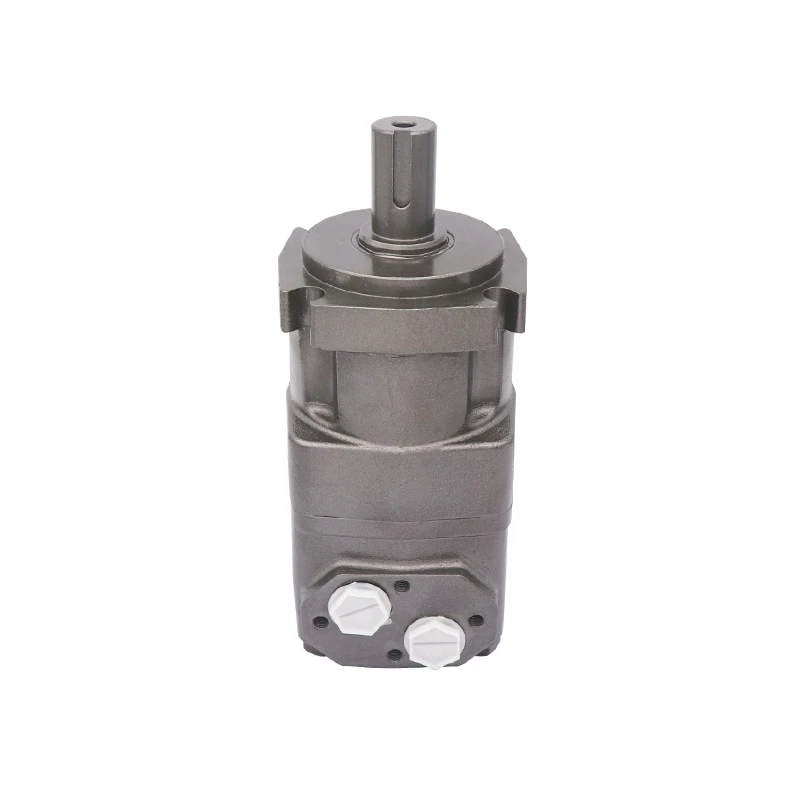

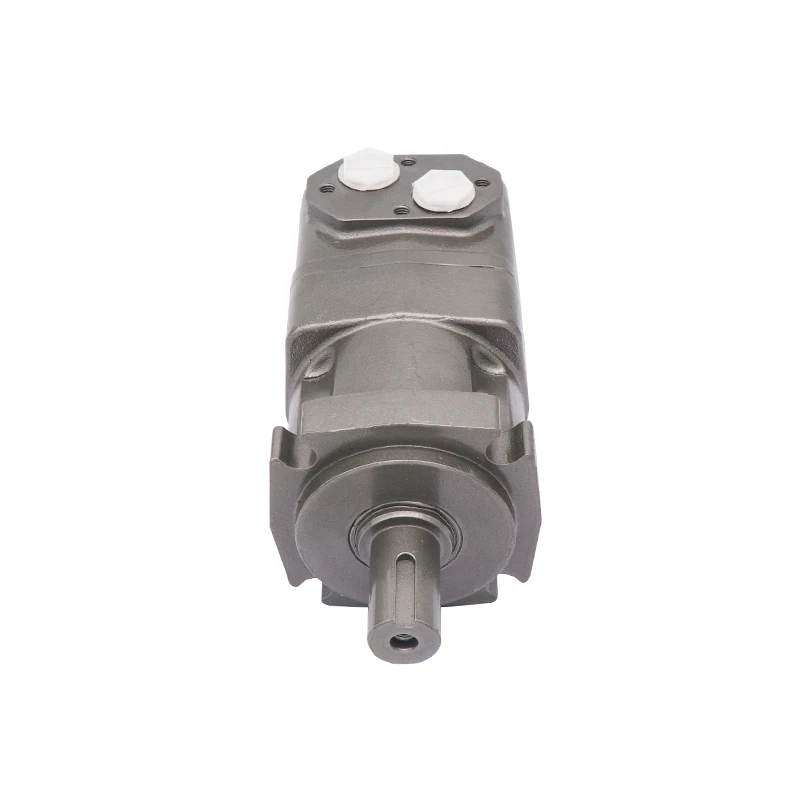

400cc BM4 orbital hydraulic motor for eaton

Product Overview

Description

TECHNICAL DATA

TYPE		BM4-160  BM4S-160 BM4W-160	BM4-200  BM4S-200 BM4W-200	BM4-250  BM4S-250 BM4W-250	BM4-320  BM4S-320 BM4W-320	BM4-400  BM4S-400 BM4W-400	BM4-500  BM4S-500 BM4W-500	BM4-630 BM4S-630 BM4W-630	BM4-725 BM4S-725 BM4W-725
Displacement(ml/r)		158.8	200.8	252.2	317.5	401.6	535.3	630.5	728.6
Max.Pressure.Drop(Mpa)	cont.	20	20	20	20	18	16	14	11.5
	int.	24	24	24	24	21	18	16	13
	peak.	28	28	28	28	24	21	19	16
Max.torque(N.m)	cont.	450	561	710	902	1008	1121	1124	1067
	int.	559	714	883	1143	1255	1377	1317	1236
	peak.	663	818	1021	1322	1431	1598	1602	1559
Max. Speed (cont.)(r/min)		625	495	395	310	245	185	155	135
Max.Flow(cont.)(L.min)		100	100	100	100	100	100	100	100
Max.Output.Power(cont.)(Kw)		20.1	25.2	25.2	25.2	22	21	20	19
Weight(kg)		20.3	20.8	21.4	22.4	23	24	25	26



Intermittent operation the permissible values may occur for max.10% of every minute

Peak load:the permissible values may occur for max.1% of every minute
