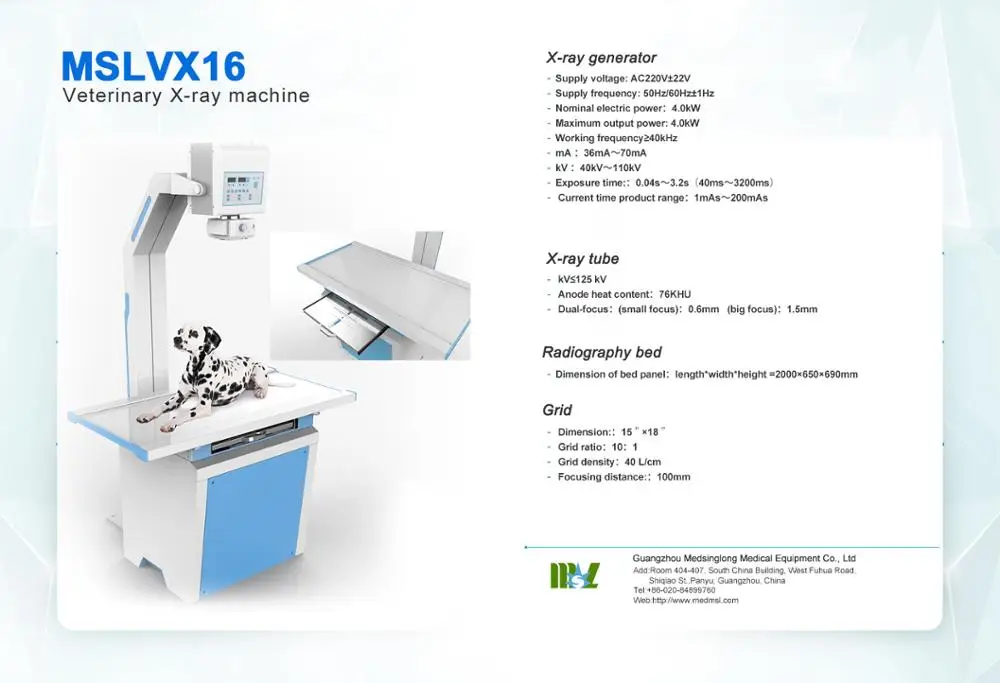

X-ray generator | ① Supply voltage: AC220V±22V ②Supply frequency: 50Hz/60Hz±1Hz ③Nominal electric power:4.0kW ④Maximum output power: 4.0kW ⑤Working frequency≥40kHz ⑥mA :36mA~70mA ⑦kV :40kV~110kV ⑧Exposure time::0.04s~3.2s(40ms~3200ms) ⑨ Current time product range:1mAs~200mAs |
X-ray tube | ① kV≤125 kV ②Anode heat content:76KHU ③Dual-focus:(small focus):0.6mm (big focus):1.5mm |

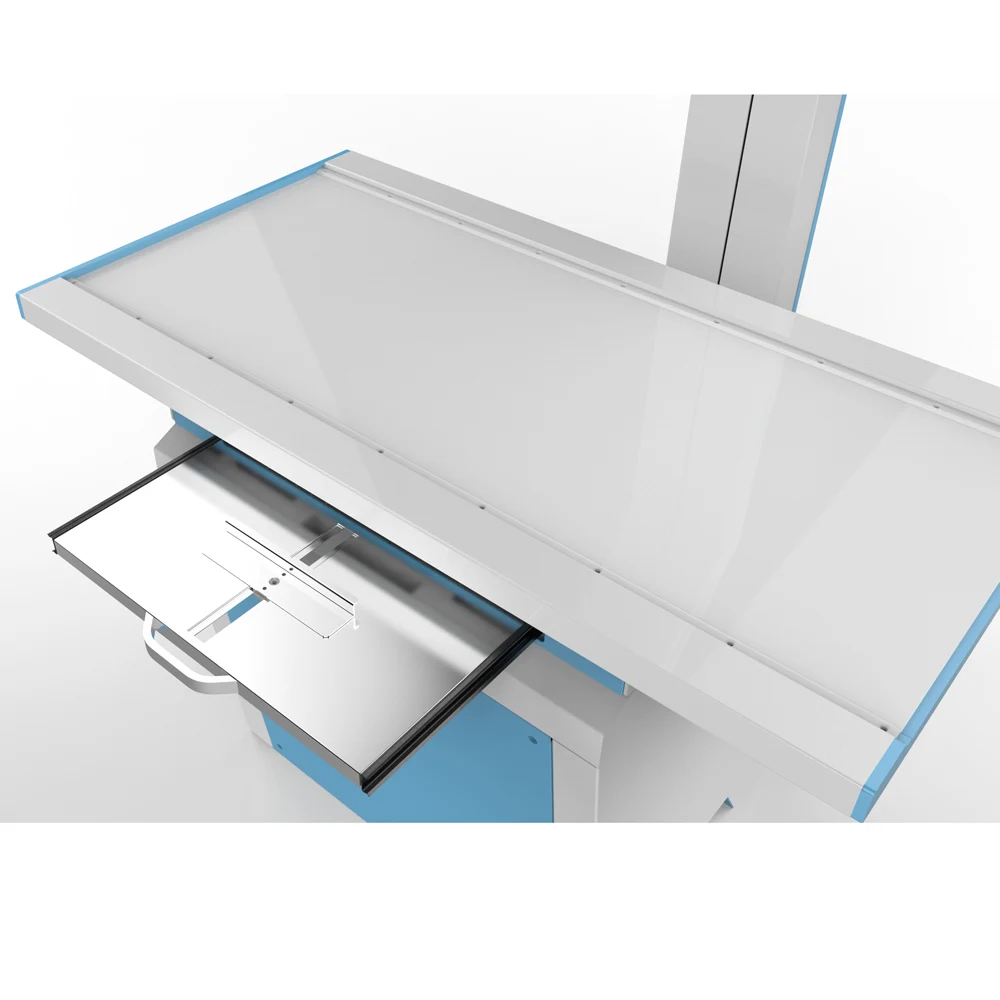

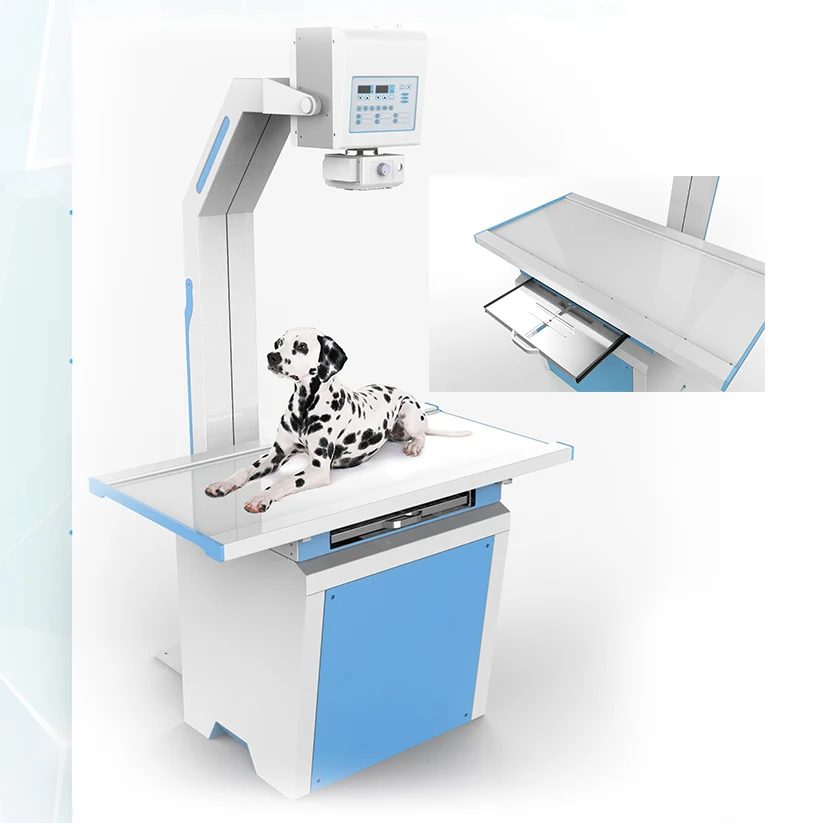

Radiography bed | ① Dimension of bed panel: length*width*height =2000×650×690mm |
Grid | ① Dimension::15"×18" ② Grid ratio:10:1 ③ Grid density:40 L/cm ④ Focusing distance::100mm |
