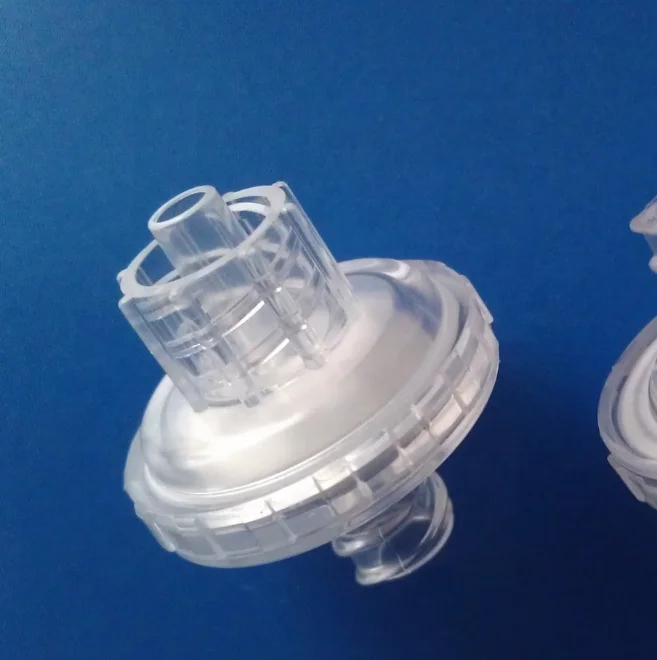

transducer protector

Product Overview

Description



Transducer protector specification:



The highest working temperture:50°C



Air Sealing: the cover under 100kPa air pressure, should not have leakage phenomenon within 3min



Water tightness:under 40 KPa fluid pressure, should not have leakage phenomenon within 15 s

6:100 luer connector

Filtering rate: filte the particle which the size larger than 0.5um more than 90%.

Effective filtration area: 1.8 cm2.



Memberane : PTFE

housing:ABS

Connector: Luer Lock

membrance size: 0.1um







Transducer protectors are used in hemodialysis blood lines to keep the blood side of the circuit

separated from the machine side, and to prevent contamination of the machine by the blood flowing through the circuit Transducer protectors let air pass while preventing the blood from passing through.



Prevents contamination of the internal pressure monitoring lines. Antibacterial hydrophobic air filters with female luer lock/male luer lock.
