Environmentally friendly Plastic Luggage Forming Machine Thick Sheet Vacuum Forming Machine
- Category: Plastic Vacuum Forming Machines >>>
- Supplier: Guangzhou Sme Plastic Corp.
Share on (62365704671):
Product Overview
Description

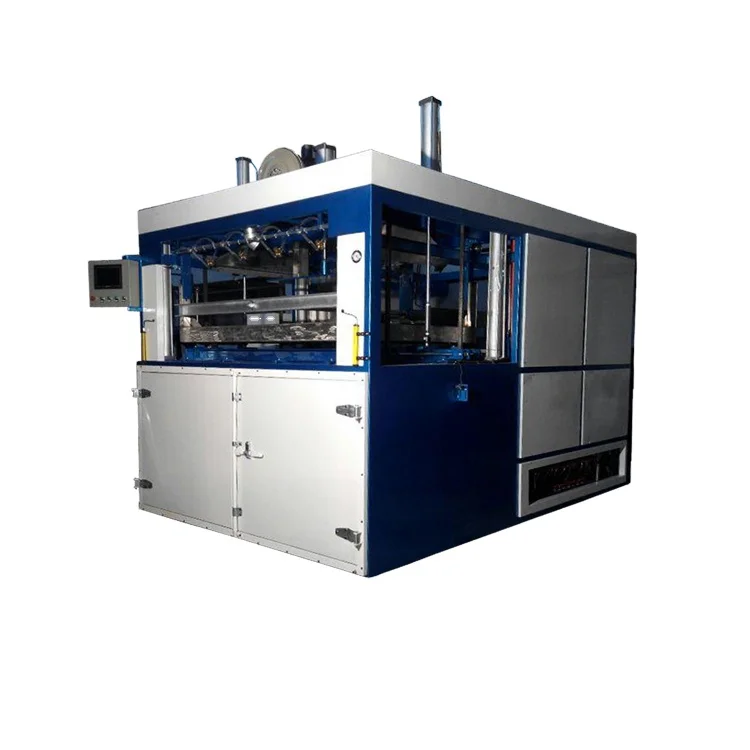

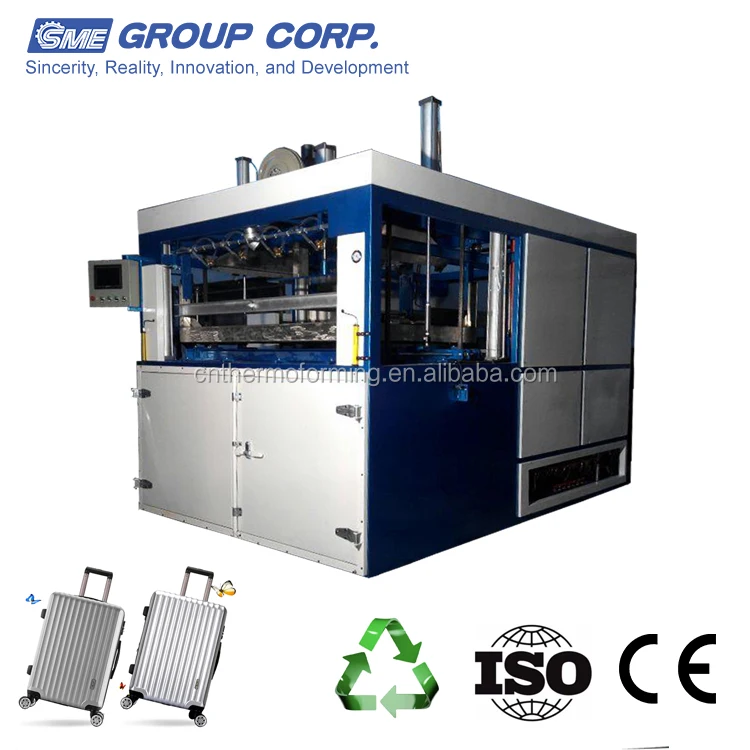

Thick sheet vacuum forming machine
The machine is used in PS/PP/PET etc. vacuum forming
1)By relay under auto mode 2)High capacity 3)Environmentally friendly
Suitable for industry:

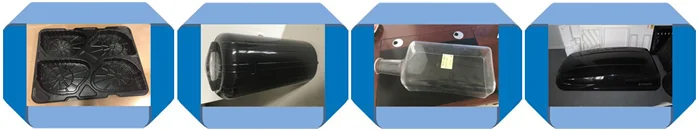

1. PC,ABS and PE luggage forming; 2. Car and motor parts forming;
3.Plastic tray or turnover pallet; 4. Refrigerator inner case;
5.3D car mats; 6.The plastic products which thickness is more than 1mm;
Remarks:
The forming size is customizable; The max. forming size is 2500*2000*800mm;
•Suitable Rubbers:PS,PE,ABS,PC,Acrylic...etc plastic materials above 2mm.

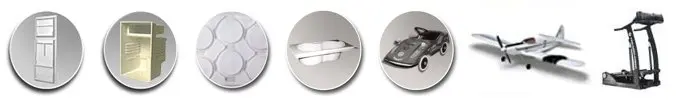

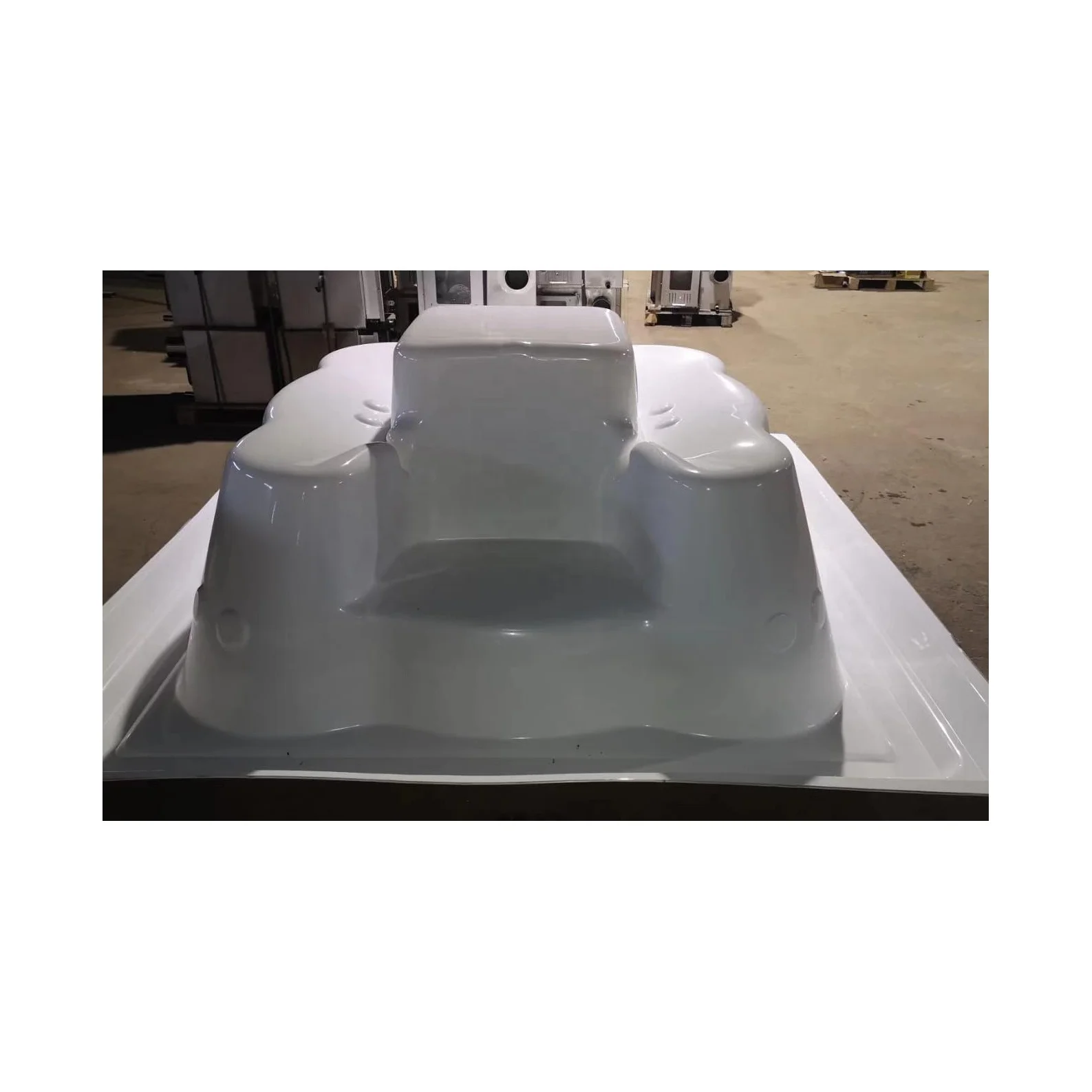

•Suitable Products:Inner and outer linings of refrigerators,bathtubs,cosmetic boxes,travel baggage,automobile parts,aircraft parts,fitness equipment and various general industrial big-scale products.
![]4]KD_2B~QNM%R0OYQO60K9](http://sc01.alicdn.com/kf/HTB1pufidnqWBKNjSZFA761nSpXam/230868398/HTB1pufidnqWBKNjSZFA761nSpXam.png)
Technical Data TVF series
Full control of electrical :"OMRON" made in Janpan
Air cylinder:"Zhicheng" made in China
Solenoid pilot actuated valve:"Airtac" made in Taiwan
Radiator:"SME" made in China
Travel switch:"Panasonic" made in Janpan
Auxiliary equipment or component
Vacuum pump: “Becker” Germany
Industrial Chiller:"SME" China
Model | TVF-1510 | TVF-2015 | TVF2515 |
Suitable material | PP, PE, PS, PVC, PET, ABS, HIPS, Acrylic degraded material, etc. | ||
Forming thickness | 2-8mm for upper oven, 2-10mm for double ovens | ||
Forming length | 1500mm | 2000mm | 2500mm |
Forming width | 1000mm | 1500mm | 1500mm |
Forming height | 650mm | ||
Max. forming sheet | 1600*1100mm | 2100*1600mm | 2600*1500mm |
Heater consumption | 400W*96pcs | 400W*192pcs | 400W*240pcs |
Power supply | 380VAC/3phase/50Hz; 220VAC/3phase/60Hz; | ||
Vacuum pump | 100m3/H | 160m3/H | |
Production Capacity | 1-4mins/T | ||
Air pressure | 0.6-0.8Mpa | ||
Machine size(L*W*H) | 3890*1850*3400mm | 4200*2250*3400mm | 5000*2250*3400mm |
Weight | About 5300kg | About 5700kg | About 6500kg |
Special function
1. Twice vacuum function 2. Twice top die 3. Twice demould 4. Manual demould
5. Vacuum delay 6. Aerodynamic fine-tuning function 7. Sheet frame moving by the cylinder
8. Blow sheet in advance 9. Top die can be adjusted by the motor 10. Add the oleo damper reduce the sheet frame moving
