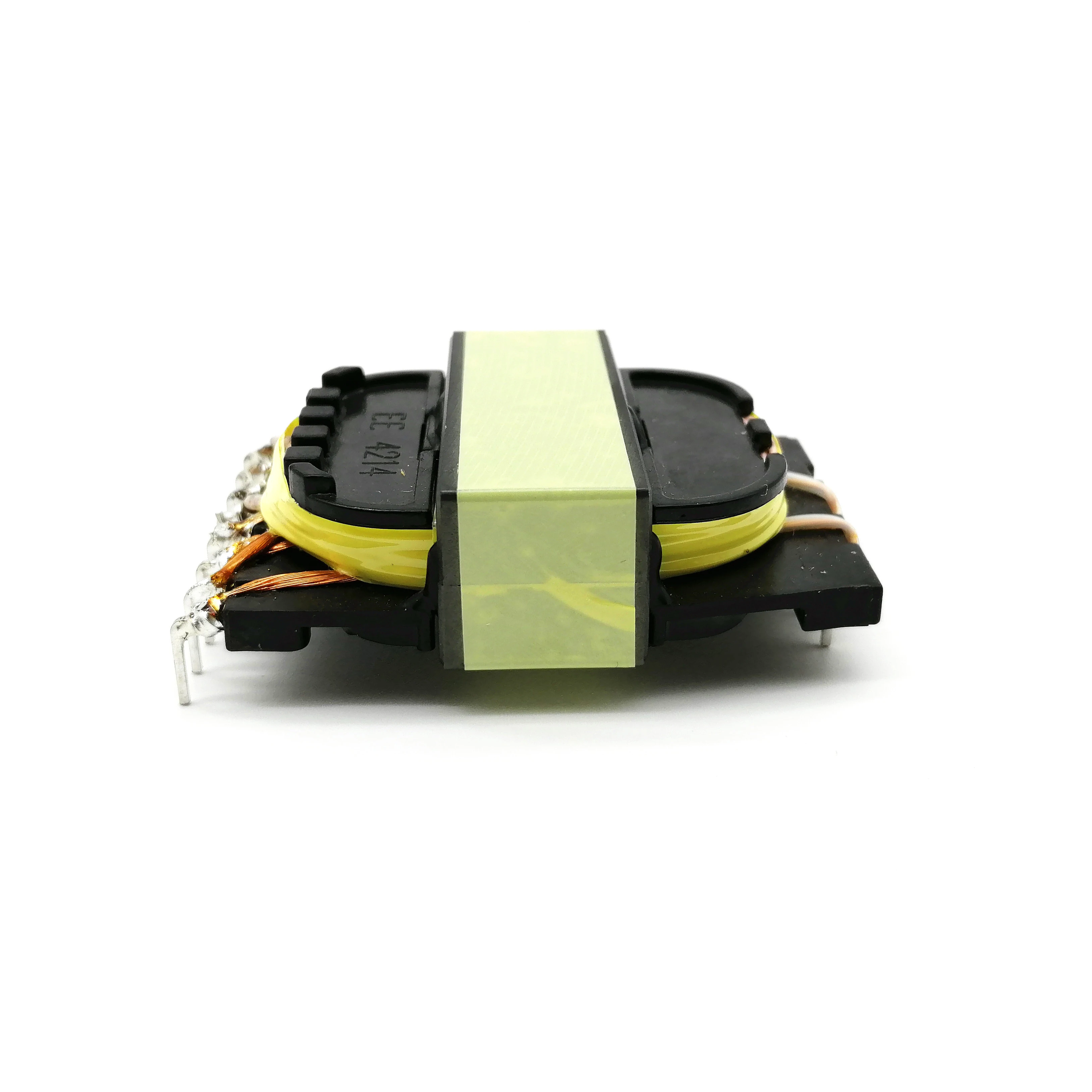

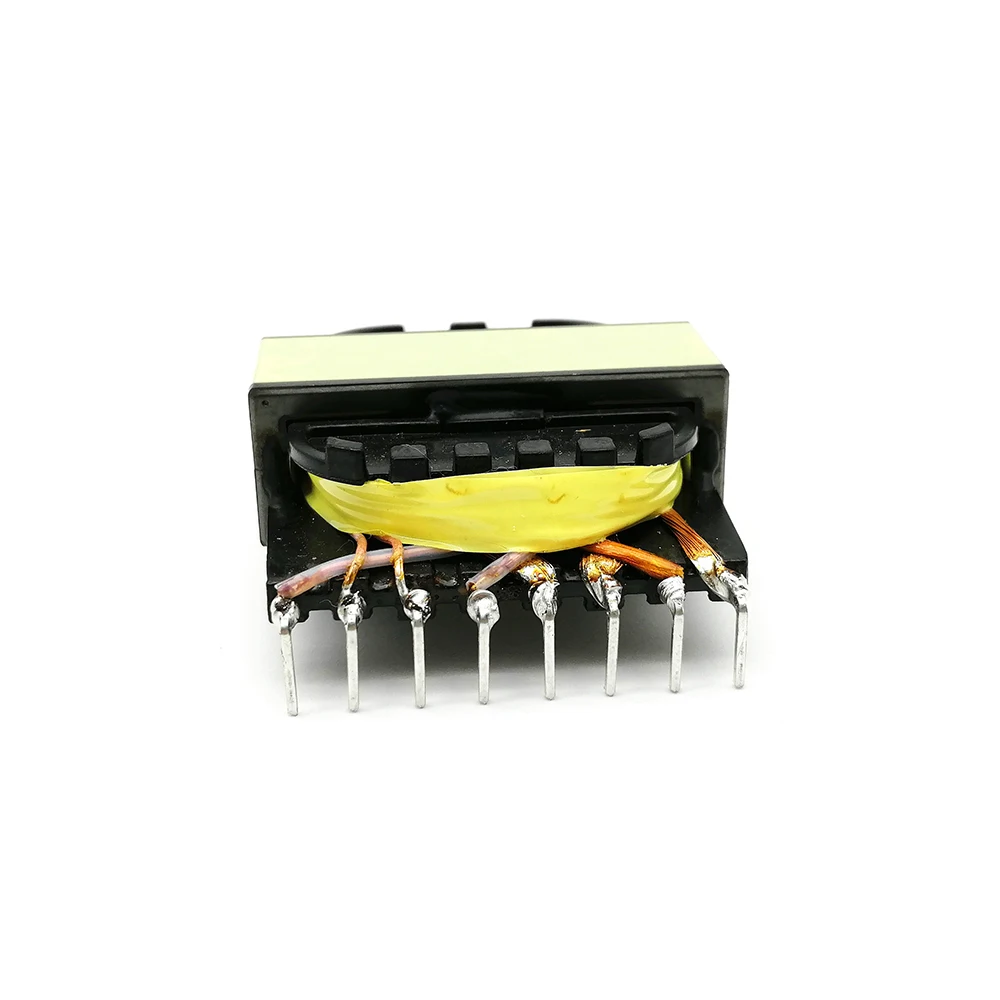

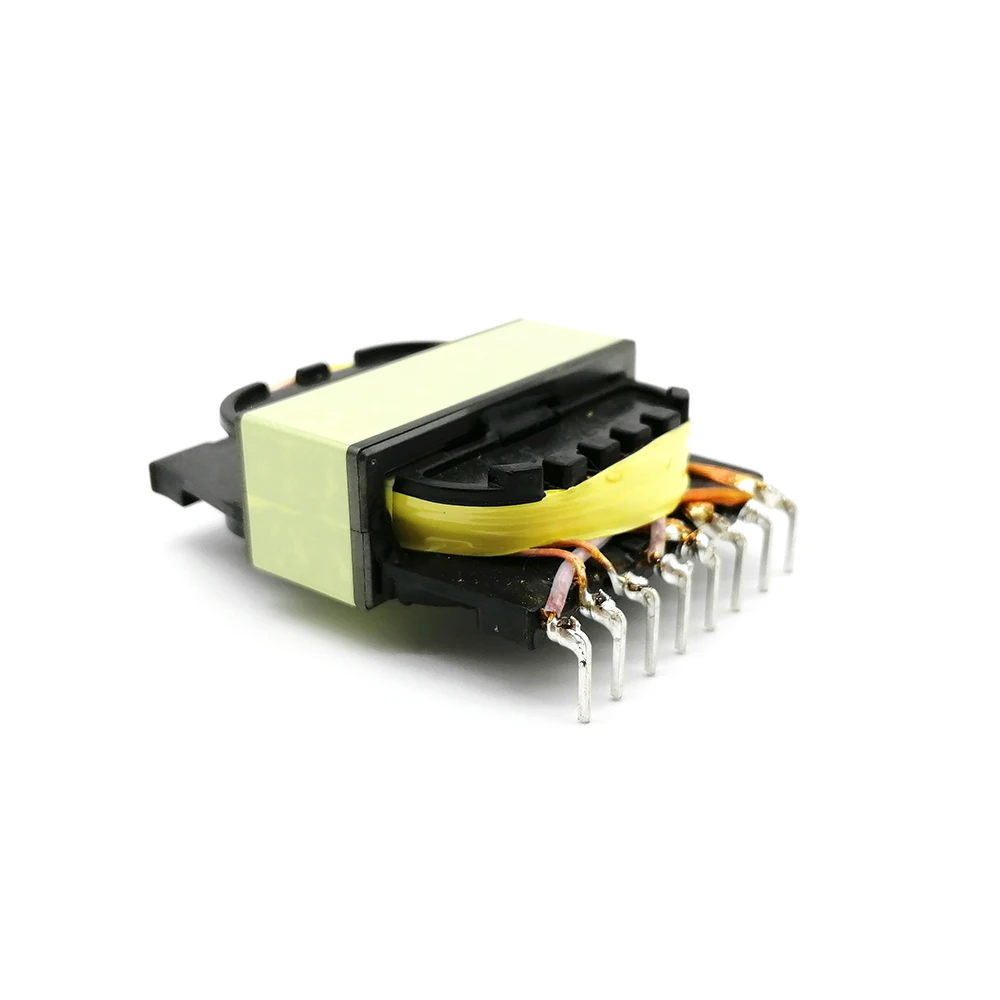

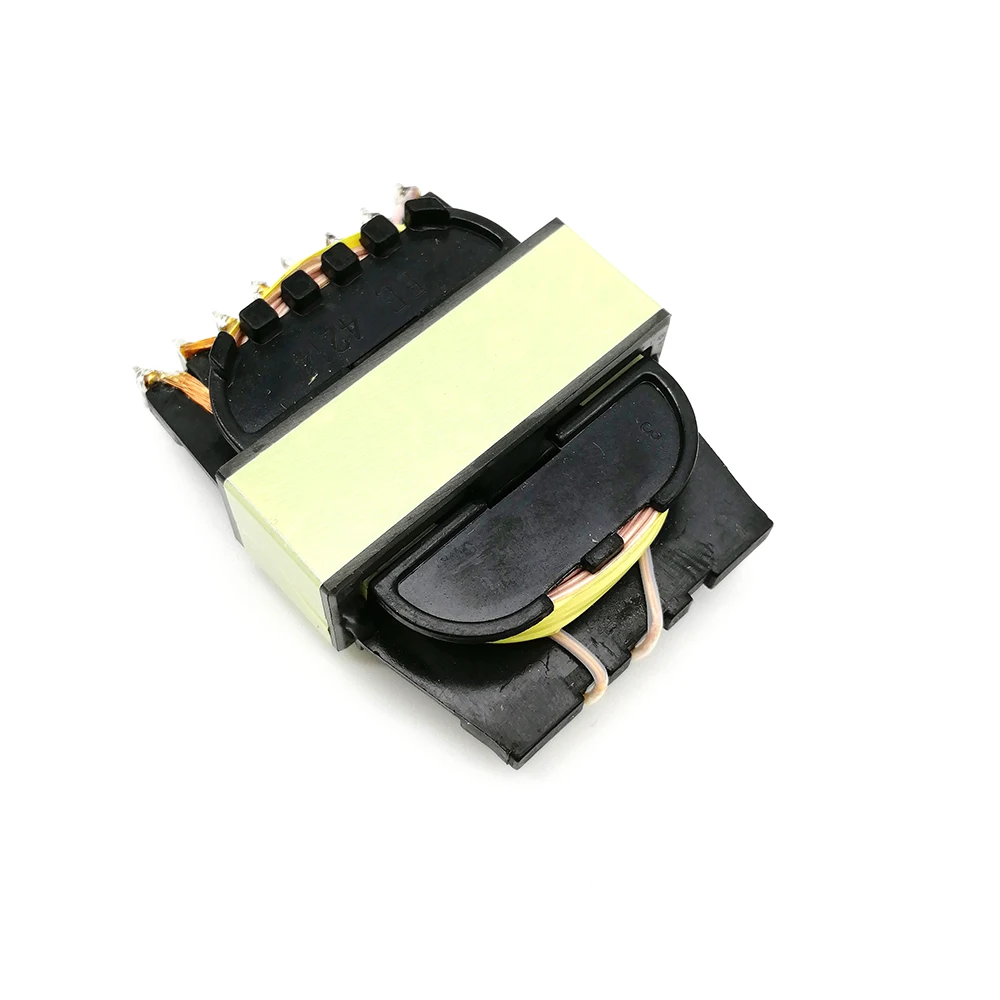

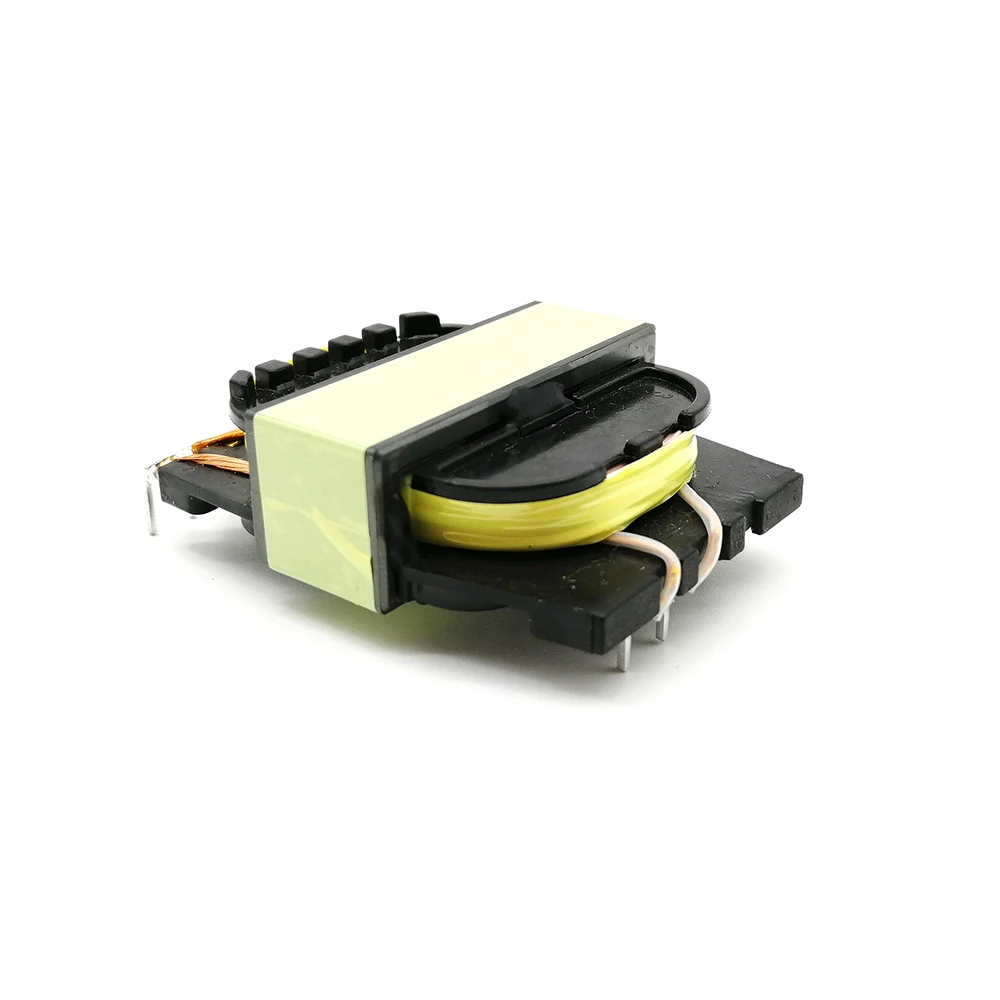

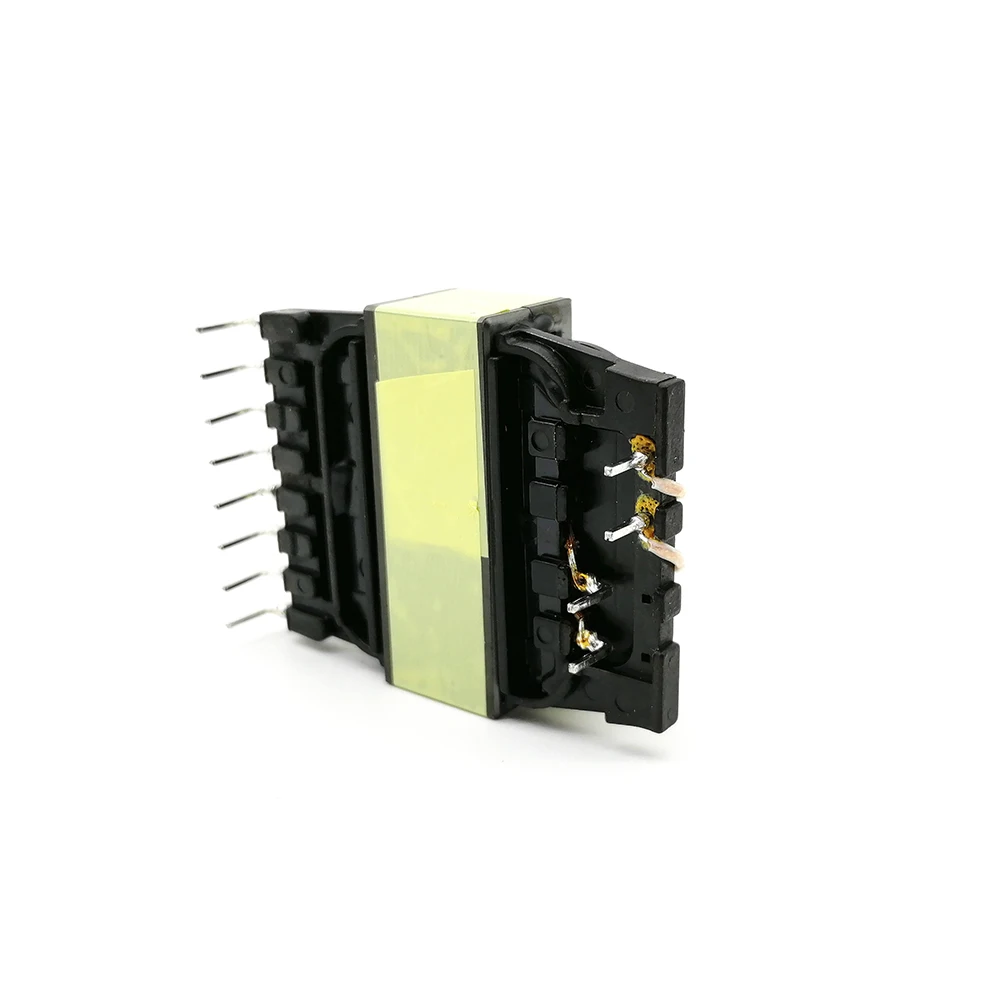

Ce Standard EE4214 High Frequency Electrical Transformer
High voltage transformers are normally used in high voltage labs for testing purpose. This transformer is subjected to transient voltages and surges during their normal operation when the insulation under test breaks down. To withstand these impulse voltages,the insulation of these transformers must be carefully designed. These are usually single phase, core type transformers.

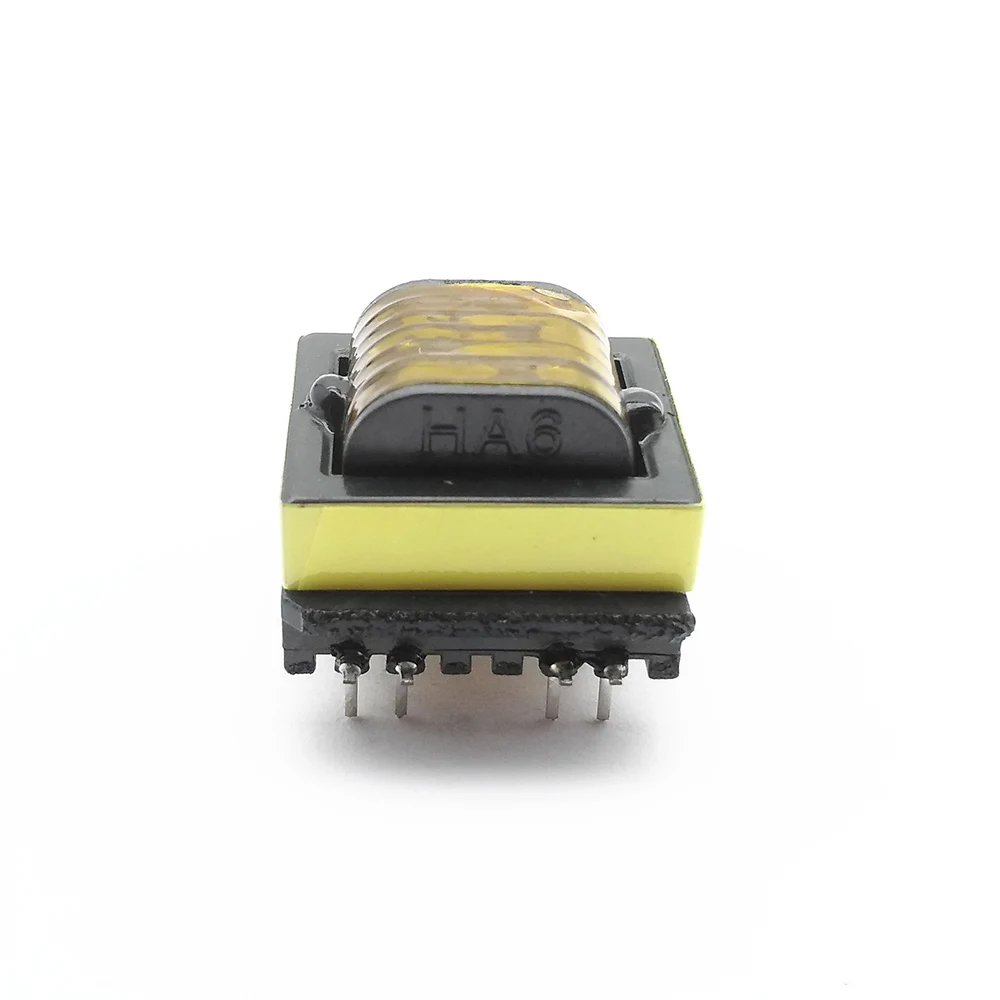

Product Display
EE4214
Dimention(mm)
Pin Quantity(pcs)
Pin Array(mm)
Power
52*43.5*15.5
4+8
6.0 /8.0 /5.0
200W
Resistance(MAX)
Inductance
Leakage(MAX)
Test Condition
4'-3'=210mΩ
4-3=420uH±10%
4-3=62uH±10%
100KHz 1Vrms
Our Customer
Company Profile
Dezhou Sanhe Electric Group
Dezhou Sanhe Electric Group is a famous joint venture manufacturing enterprise for electronic components and power appliance since 1991 in China. We have four manufacture bases locate in Dezhou, Qingdao, Huizhou, Shenzhen. And the Dezhou factory area is 96000㎡.
Our core products are Line filter, electronic transformers, integrated inductors, power board etc. High quality, technical innovation and excellent management help us to earn 'Best vendor 'of Panasonic, TCL, Haier etc. And certificated to be 'No defect Company' and acquired gold and silver awards by Samsung. To serve customer better, we established two affiliates in Tokyo, Kumamoto Japan. We will continually keep improving to satisfy your need
Factory View
We have a hard foundation to provide products that satisfy our customers with SMT production line and AI production line for power supply and detailed QC flow charts for to guide production. And our annual production capacity is 120million
Certifications
Our Own Patent
ISO 9000:2015
ISO 14001
UL
RoHS
REACH
Our Advantage
1. Supply Chain Management All the material are from middle and high end suppiler 1.1 Core:TDG,DMEGC,ACME 1.2.Bobin:SUMITOMO,CHANGCHUN 1.3.Magnet wire:Yichi,DALIAN FUJI 1.4.Tape:3M,Yahua. 1.5.Paint:KYOCERA,TAIHU 1.6:Glue: ThreeBond,SHAW HUOW 2. Production Process Control System of Key Parameter Make operation instructions in every production process, Quality traceability 3. Storage management System We have raw material warehouse, finished product warehouse and nonconforming product warehouse all the material should be stored at fixed area 4. Packaging System We have many years' experience to serve European and Japnese Customers, here are many reliable packing solutions options. We also have professional packaging engineer to design suitable packing according to customer's demand 5.QC System We have 30 QC staffs, and 5 of them have years experience of QC management. The QC system covers all the quality control procedures such as incoming inspection, process control,finished product inspection, Reliability test and RoHS management. We have 20 testing equipments and strict testing process to promise every product is qualified 6.Inspection before delivery Sampling inspect according to standards of finished product inspection,sampling and package 7. After sales system To protect customer's benefit, we will reply customer within one hour when there is quality complaint. Also we need customer's assistant to provide relevant pictures and videos, and finish the accident investigation within 24 hours If it is our responsibility, we will give 8D report within 48 hours, and all the defective product will be returned or replaced
