mango juice processing machine / orange juice making machine / lemonade production line
- Category: >>>
- Supplier: Zhangjiagang Crown Machinery Co. ltd
Share on (62365735670):
Product Overview
Description
Product Description
Filling Machine Benefits
1) The machine is mainly used for PET bottled fruit juice hot filling operations.
2) Washing,filling and capping are available in one machine
3) The contact time between raw materials and the outside world has been reduced to improve the health conditions, production capacity and economic benefits
4) The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type
5 )Using the advanced PLC(Programmable Logic Controller) technology
6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON
7) Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
8) Optimum uptime: 30 % reduction in changeover and maintenance downtime
9) Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
10) Hygiene improvement through volume control and contactless filling
11) Automatic dump bottles: Safer, easier cleaning procedures
12) Automatic bottle changeover improves uptime
Model | RCGF14-12-5 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-12 | RCGF60-60-15 | RCGF72-72-18 |
Washing heads | 14 | 18 | 24 | 32 | 40 | 50 | 60 | 72 |
Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 72 |
Capping heads | 5 | 6 | 8 | 10 | 12 | 12 | 15 | 18 |
Capacity (B/H) | 3000 | 5000 | 8000 | 12000 | 15000 | 18000 | 25000 | 28000 |
Power （kw） | 2.2 | 3.5 | 4.5 | 6 | 7.5 | 9.5 | 11.2 | 15 |
Dimensions (mm) | 2300*1600*2500 | 2600*1920*2550 | 3100*2100*2800 | 3850*3000*2850 | 4850*3800*2750 | 5750*3550*2750 | 6500*5500*2750 | 6800*4800*2850 |
Weight (KG) | 2600 | 3650 | 4800 | 6800 | 8500 | 10000 | 12000 | 15000 |
Detailed Images

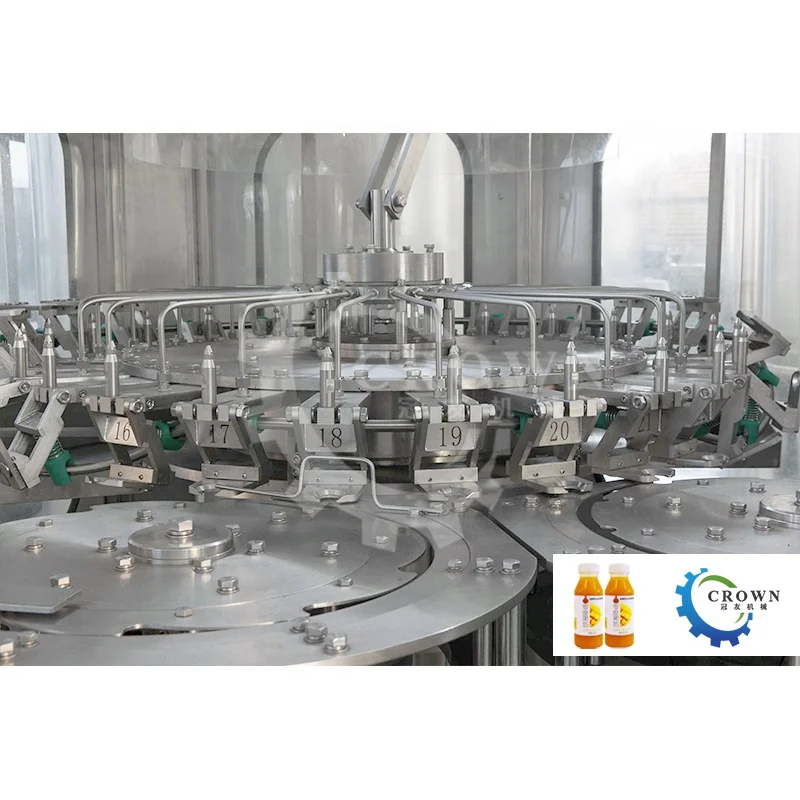

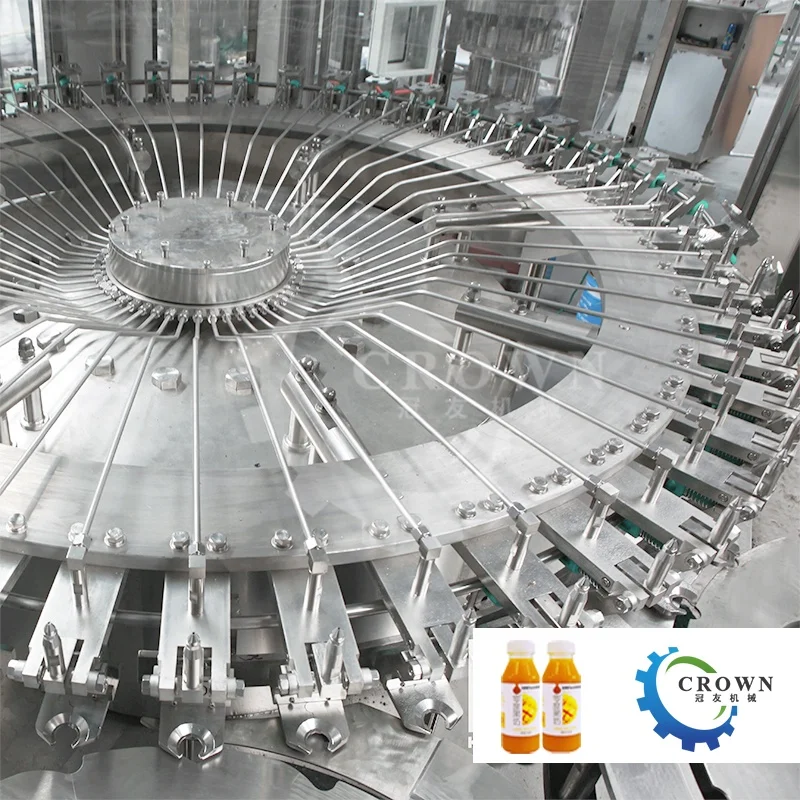

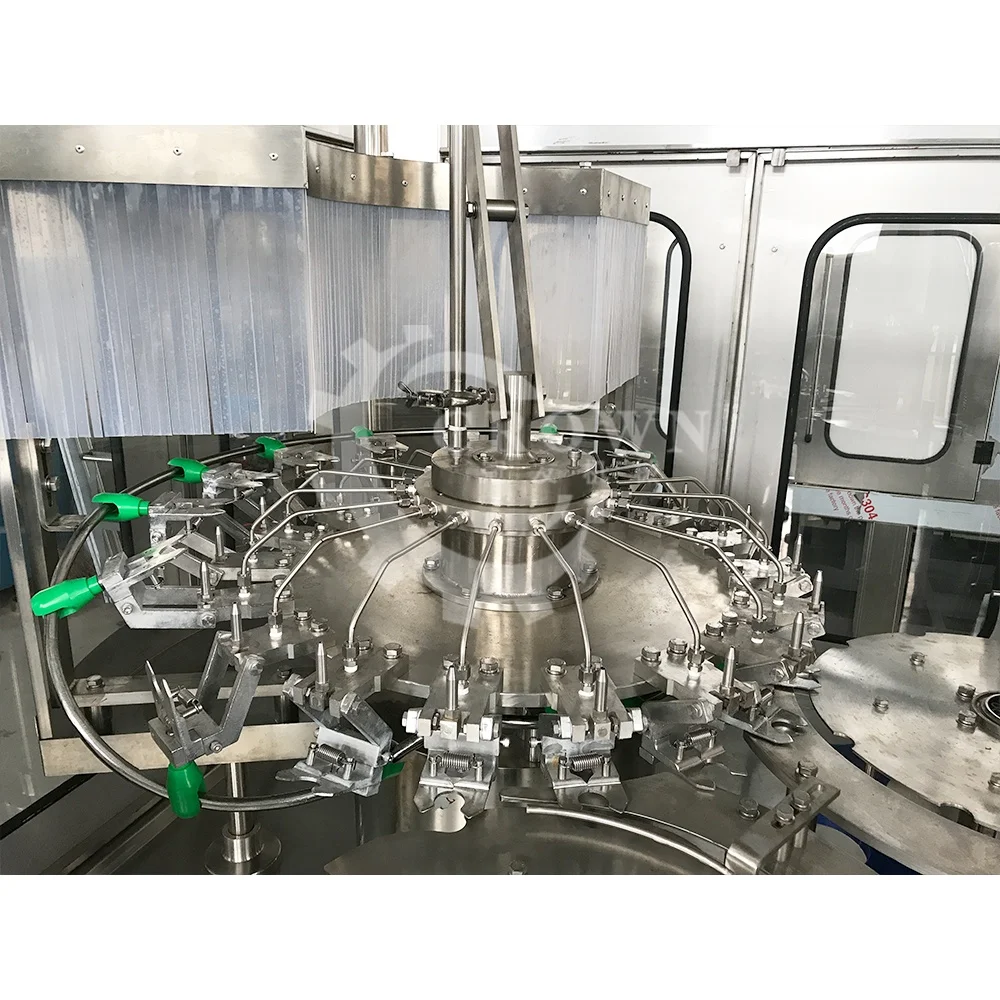

Washing Heads
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable

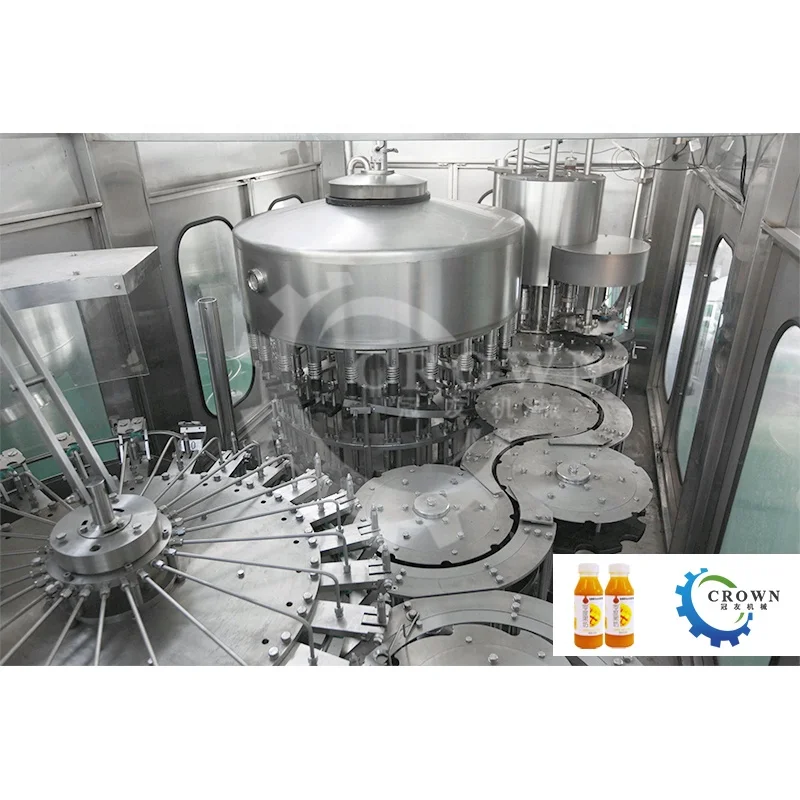

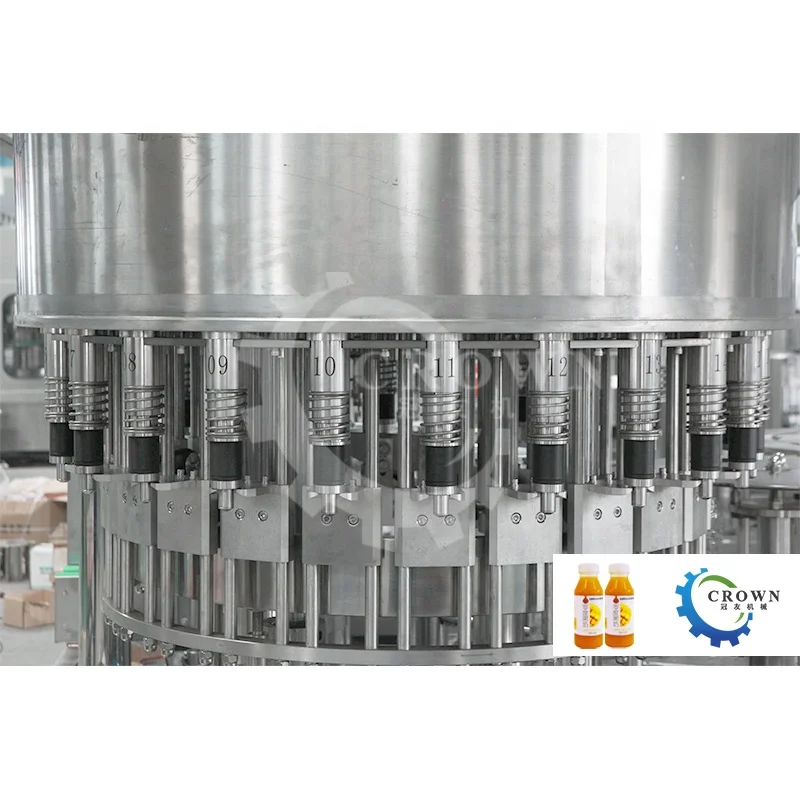

Filling Heads
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

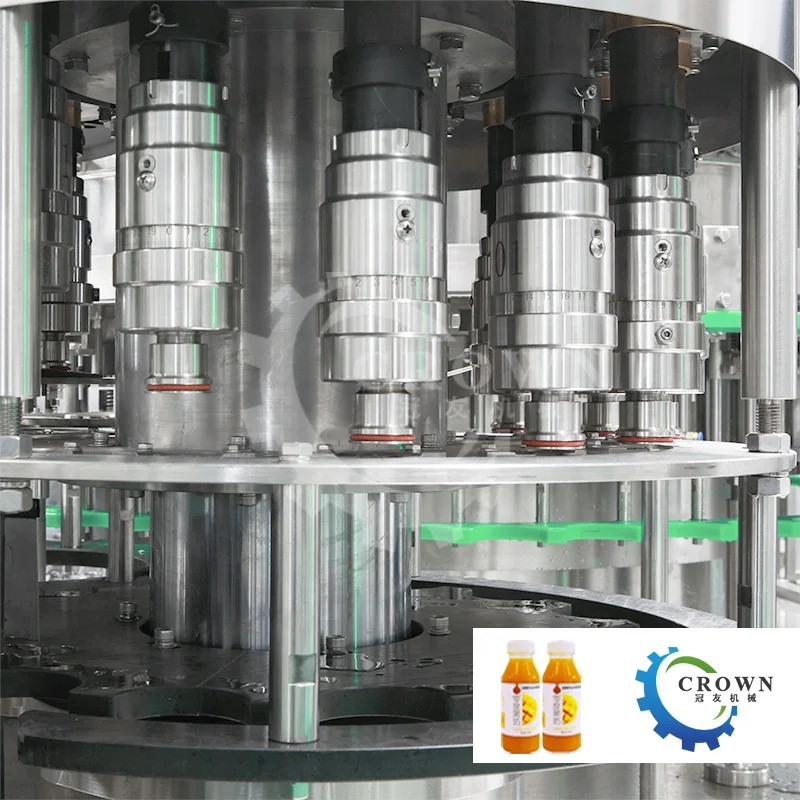

Capping Heads
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2%
Flat conveyor
(1) Energy saving. High efficient. Adapt to customer factory layout
(2) Special lubrication system, keep products clean, health, safety
(3) Extended service life
(4) Electric eyes design keep whole line running safety and quickly
(2) Special lubrication system, keep products clean, health, safety
(3) Extended service life
(4) Electric eyes design keep whole line running safety and quickly
Whole Line Products

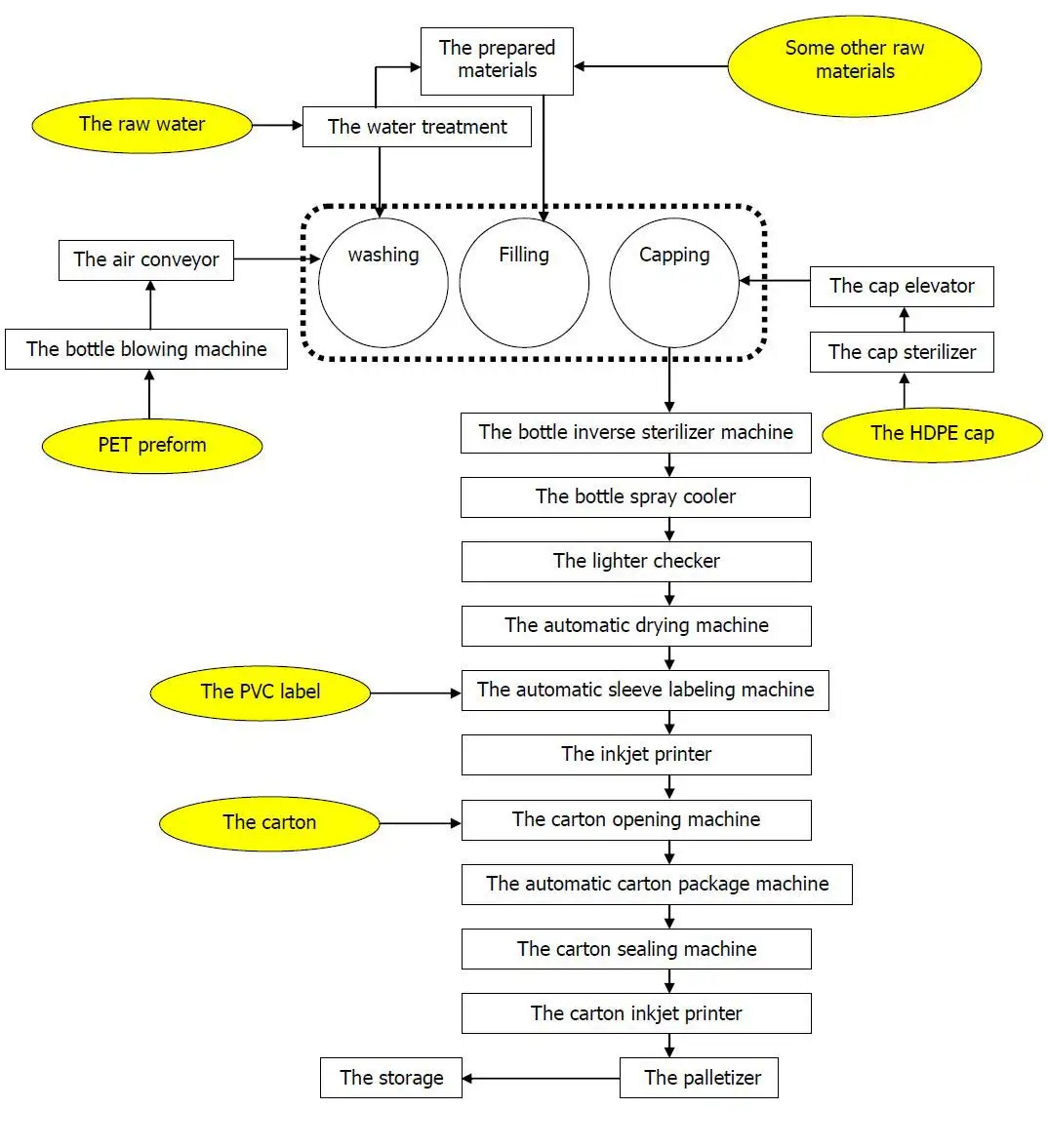

The Flow Chart of Water Filling Machine Production Line
Packing&Shipping

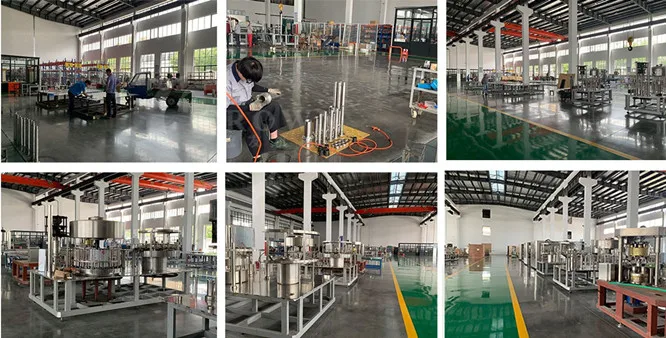

company introduction

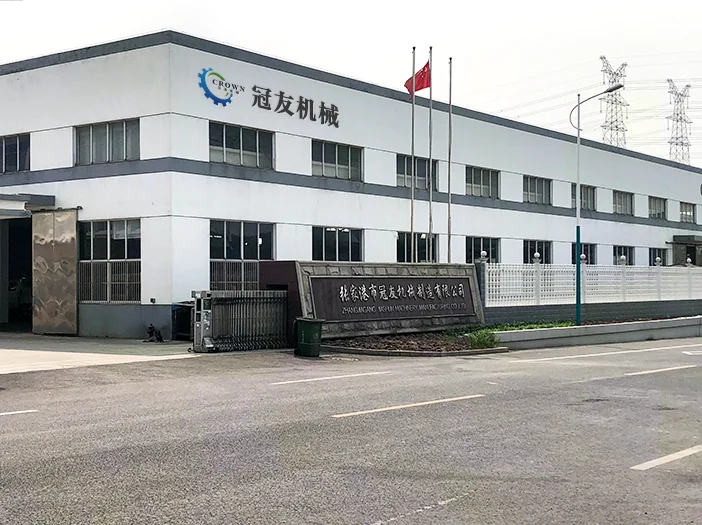

Zhangjiagang Crown Machinery Co.,Ltd
is located at the new port city -zhangjiagang,was founded at 1995,and starting with beverage machinery. Our company have fixed assets over RMB 10million and covers an area of 10000m2,We are a leading enterprise in research and production of liquid food and beverage packing and filling industry.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force,advanced equipment,scientific management system and perfect after-sales service.
