cylindrical SMD surface mount 2.7V mini dc vibration motor for bracelet
- Category: Vibration Motor >>>
- Supplier: Chongqing Linglong Electronic Co. Ltd.
Share on (62365740200):
Product Overview
Description
cylindrical SMD surface mount 2.7V mini dc vibration motor for bracelet
|
Product Description |
| size | 11*3.8*2.7mm, counterweight size:R1.7*3.4/R1.34*2.8 |
| voltage | 2.7V |
| speed | 13500±2500rpm |
| current | 100mA Max |
| vibration | 0.4 G@100g jig |
| response time |
about 40mS |
| life |
2S on, 1S off, cycle for 72H |

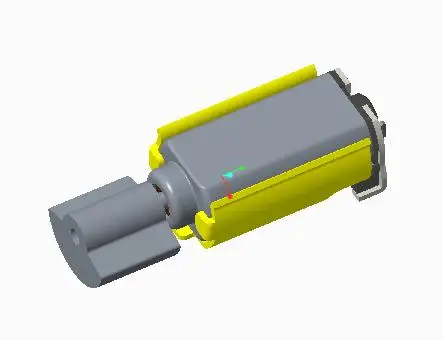

Outline Drawing:
Product feature:
Super small size
High Temperature Resistance
Quick and easy to assemble
|
Application |
|
Certifications |
ISO9001, ISO14001, GBT 28001,QC080000, RoHS
|
About US |
Leading manufacturer for mini vibration motor in China
Incorporated in 2003
1500 workers, 35000 square meters
Above 0.2 billion annual output
Major Clients: Huawei, OPPO, vivo, Lenovo, MOTO...
Main Products:DC coin motor, DC SMD motor, AC linear motor, and DC stepper motor
|

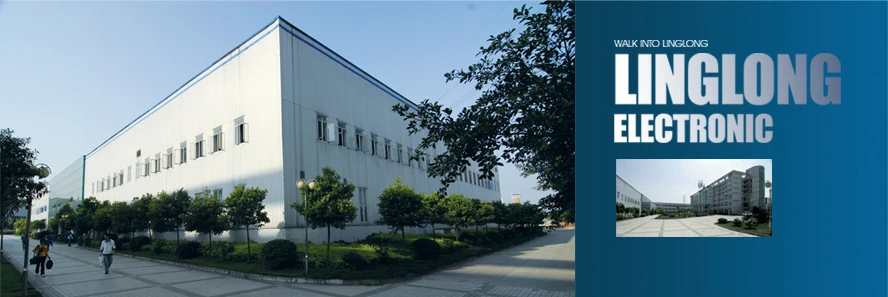

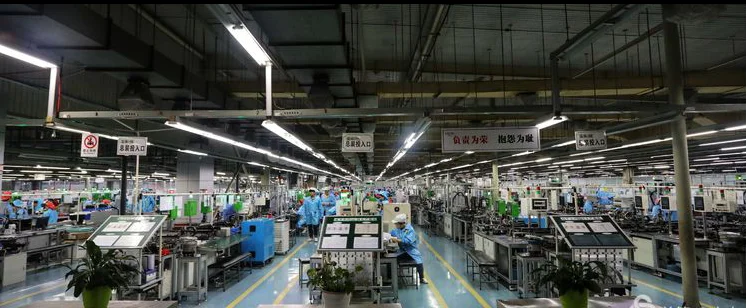

Factory Show |
|
Packing&Delivery |
1. Packaging: Carton
2. Shipping: By Air, Fedex, DHL, UPS, SF, etc for samples and batch goods, customer to pay for freight.
|
Why Choose US? |
1. Quality: Product with good stability and consistency, complete quality management system, satisfying ISO9001, ISO14001, QC080000 and RoHS, strict control for incoming raw material and supply chain.
2. Technology: Independent D&R team with above 10 years’ experience of design and engineering; products with kinds of proprietaty technologies; with unique design technology for super small size and other highly difficult and customized products.
3. Process: Independent D&R team for self-developed and self-made automated production line; unique process and control methods.
4. Service: Professional service window for business, technology and quality.
|
FAQ |
Q: Do you provide free samples?
A: Yes, we can provide specification and free samples.
Q: Do you have MOQ?
A:Yes, the MOQ is 1000pcs after sample approval, small quantity also acceptable for trial-produce.
Q: What is your terms for delivery and payment?
A: EXW, FOB, CFR, CPT for delivery; Visa, Mastercard, e-Checking, T/T for payment.
Q: What is your terms for delivery and payment?
A: EXW, FOB, CFR, CPT for delivery; Visa, Mastercard, e-Checking, T/T for payment.
Q: Customization is available?
A: Yes, if you have great demands, we accept customization, details negotiable.
For more mini dc SMD motors, please contact us.
