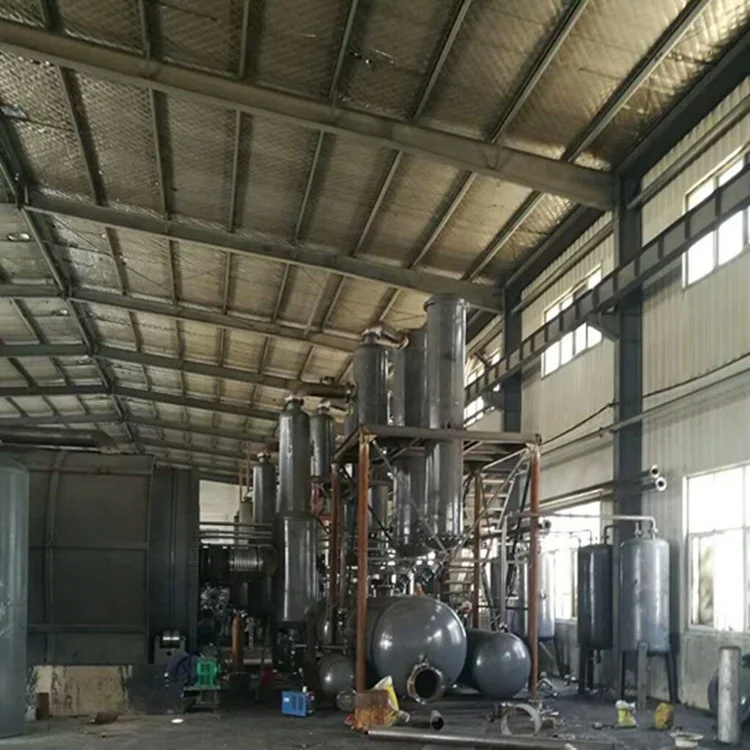

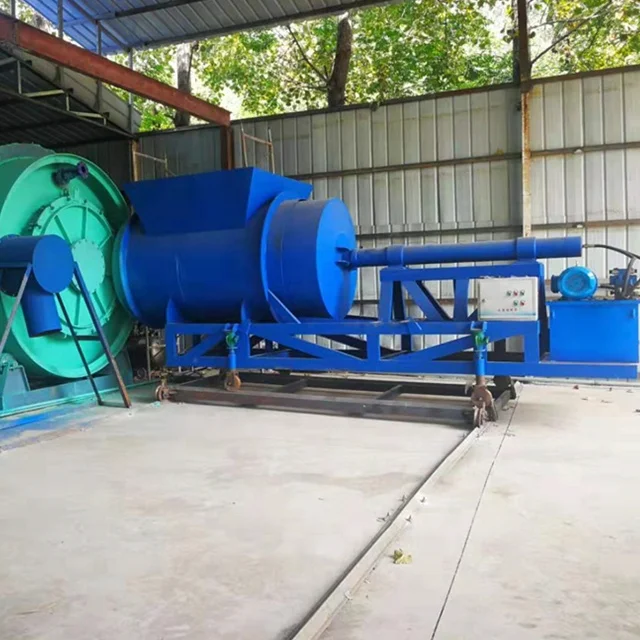

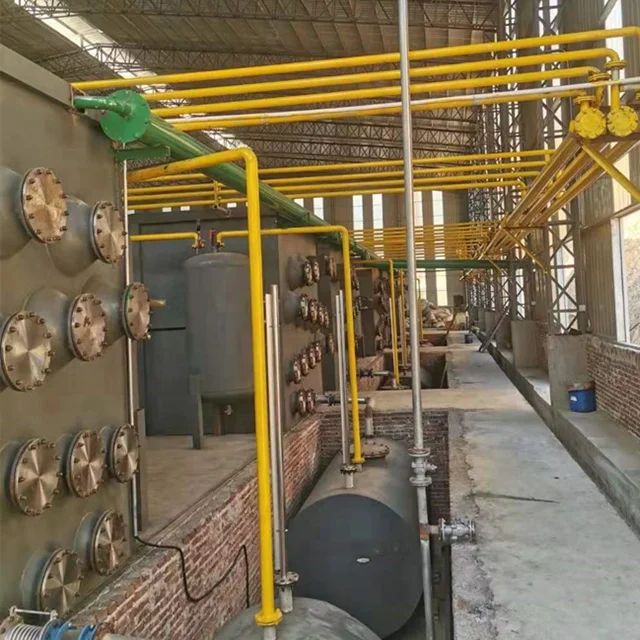

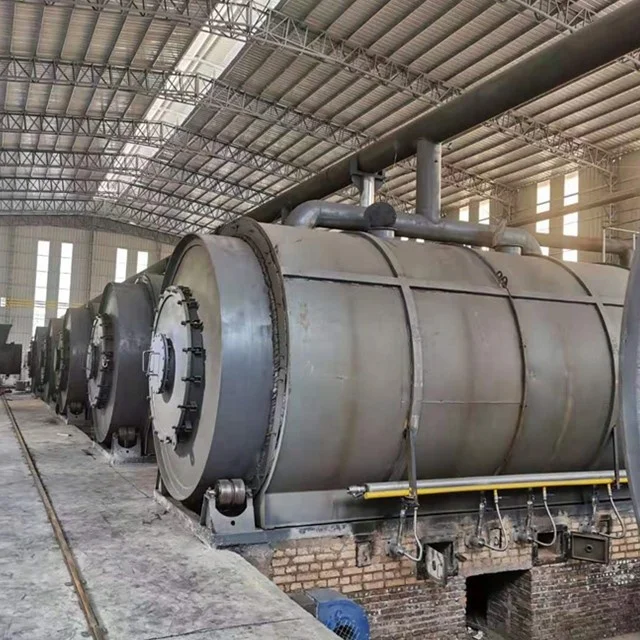

3t 5t 8t 10t 12t daily used tires or plastics piece pyrolysis diesel oil plant with catalyst

Shangqiu Ruike Mechanical Equipment Co., Ltd(below Ruike Company for short), is a domestic company in the field of oil developing (grease manufacturing and selling, waste oil refining, waste tire refining, oil sludge refinery ,etc). Ruike company is located in Shangqiu, a city with convenient transportation and high speed of economic development. After years of technical breakthrough, united with Luoyang Petrochemical design institute, we have got design department , sales department, engineering installation department and after-sale department, provided with one-stop service .

In addition, Ruike Company are equipped with:
1),waste oil/plastic to diesel machine
2),PLC control system from waste engine oil/mineral oil/tire oil/plastic oil to diesel, base oil distillation machine
3),Crude oil refinery machine. Capacity arranges from 1 ton to 200 tons daily.

Ruike Company insist the principle of "Honest First, Promise kept", we guarantee our product quality. Now on we have sold to Zhejiang, Fujian, Hunan, Guizhou, Sichuan, Yunnan, Anhui, Shandong province etc, and overseas American, Turkey ,Israel, Poland, Malaysia, Indonesia, Thailand, Jamaica and Portugal etc.

Environmental Friendly
The heating material :Coal,Wood,Oil,Gas. Light oil processed from the pyrolysis system as well.

Raw material can be processed
Plastic: PP,PE,PS,HDPE.
Waste tyre

Output after the process:( Take plastic for example)

Diesel:40%-45%
Light oil: 40%-45%
Carbon black:3%-5%
Waste gas:3%-5% ( re-heated in the furnace during pyrolysis process)
The oil output depends on the plastic's quality

Output after the process:( Take waste tyre for example)
Diesel:40%-45%
Light oil: 5%-10%
Carbon black:30%-35%
Waste gas:3%-5% ( re-heated in the furnace during pyrolysis process)
The oil output depends on the tyre's quality

Water consumption:
There will have natural evaporation during the gasification process. The water pump will take the water from the water tank to the condensers for cooling the oil-gas.

Power: 32.5KW/H ,during production, the power consumption will be 60%*38.5KW/H

Working Temperature: 200℃-380℃

Working Pressure: Normal pressure
