TOPWELL 3in1 Portable Tig welding machine ProMIG 200SYN Pulse
- Category: MIG Welders >>>
- Supplier: Hangzhou Topwell Technology Co. Ltd.
Share on (62365970695):
Product Overview
Description
Product Overview

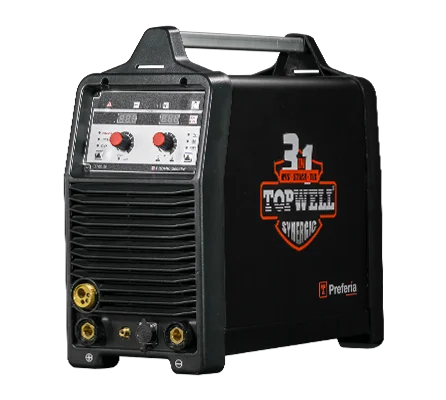

Synergy, Portable, Pulse MIG
ProMIG-200SYN Pulse
Multi-Process Capable - Welds Flux-cored, Stick, TIG, Pulse MIG, advanced MIG for M.S/S.S.
Pulse MIG Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
Synergic Control - Set weld procedures with one control.
Built-in featured waveform - Provides a smooth, stable arc and superior, repeatable welds.
Dynamic Control - controls the welding arc cone width from a softer arc to a harder arc.

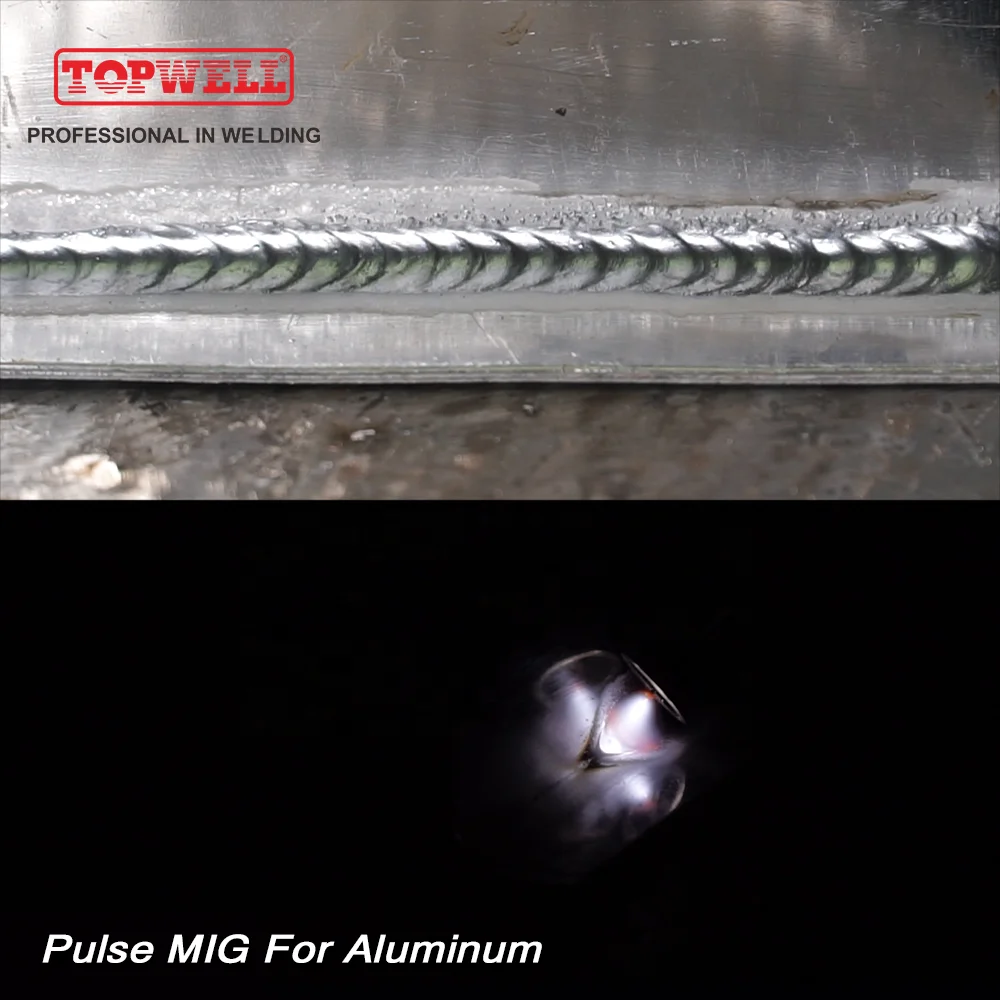

True Pulse MIG For Aluminum
Pulse MIG is featured to weld aluminum. With the spray-arc transfer, it has much better performance with regular torch than using spool gun. Because using spool gun it’s still short-circuit arc transfer.

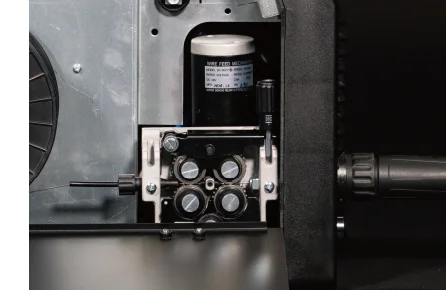

4-Roller wire-feeder
Four-rollers drive system provides a steady and smooth wire feeding speed.
It’s a professional design and very important for welding aluminum.
It’s a professional design and very important for welding aluminum.

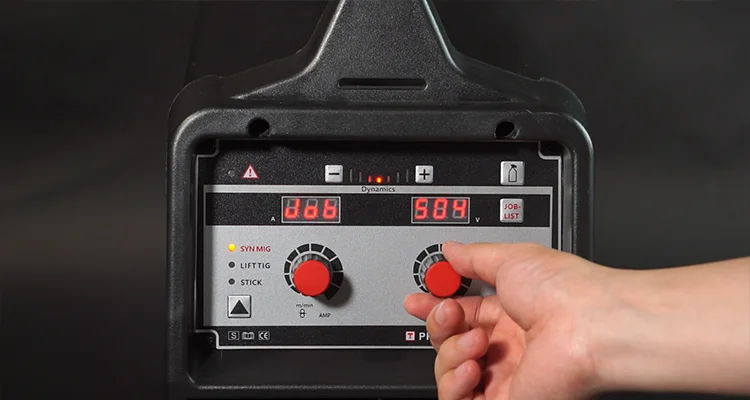

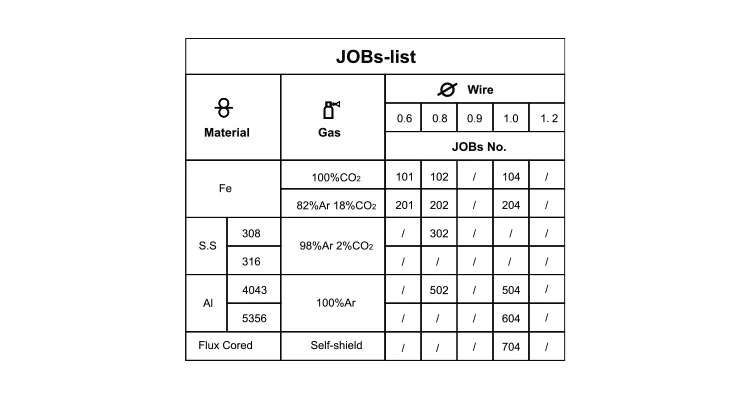

Easy Operation with Jobs-list
The Job-lists display is easily and intuitively controlled through its graphical user interface. We assembled the perfect welding curve in every Job-No. for highly efficient multi-process welding of carbon steels and aluminum alloys. Operation is easier than ever before.
3 Steps to start Perfect Welding
Step one:
Regarding to the Jobs-List, Set job number.
Step two:
Regarding to base metal thickness, set welding current.
Step three:
Go for welding!
Welding Performance

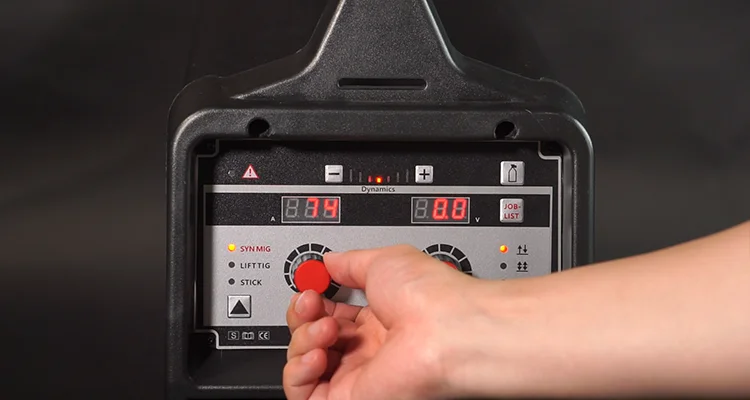

Synergy Pulse MIG, 1.8mm Aluminum Plate
1. Set Job No.: 504
2. Set Welding Current: 74A
3.Start Perfect Welding
No Spatters, Nice Bead, Beautiful Color
Advanced MIG, 2.0mm Mild Steel Plate
1. Set Job No.: 202
2. Set Welding Current: 133A
3.Start Perfect Welding
No Spatters, Nice Bead, Beautiful Color
Lift-TIG(Simple TIG process)
Lift-TIG process
Good for simple TIG works

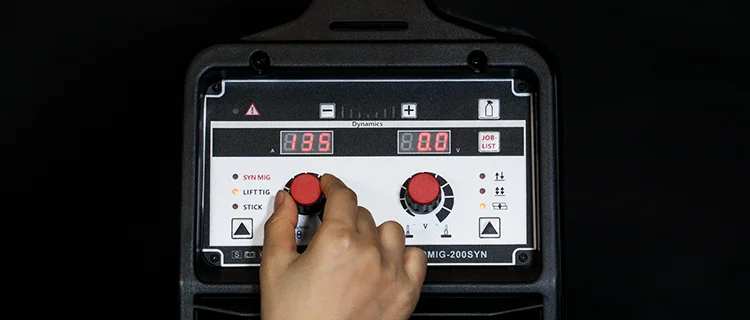

Control Panel Introduction
1. Welding Process: SYN MIG/LIFT TIG/STICK
2. Dynamic control: Softer arc or Harder arc
3. Gas-check
4. Jobs-List selection
5. Trigger mode: 2T/4T/Spot arc
P0 to P6 setting
Symbol | Meaning |
P00 | Pre-gas time |
P01 | Post-gas time |
P02 | Slow-feeding on Arc ignition (Suggestion setting: 2) |
P03 | Burn-back time |
P04 | Burn-back voltage |
P05 | Spot time |

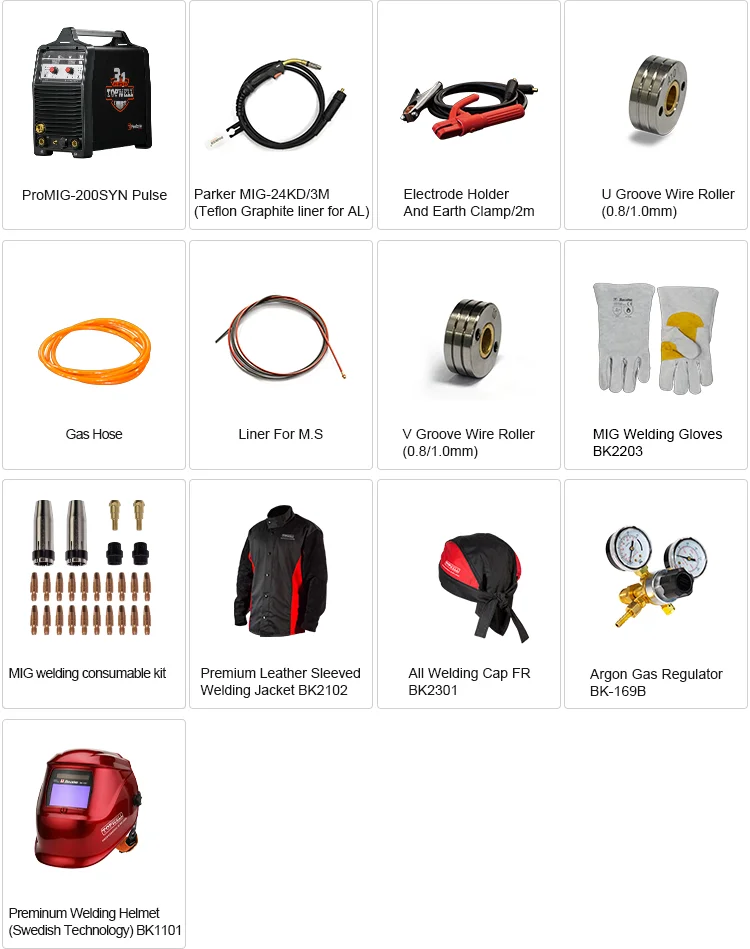

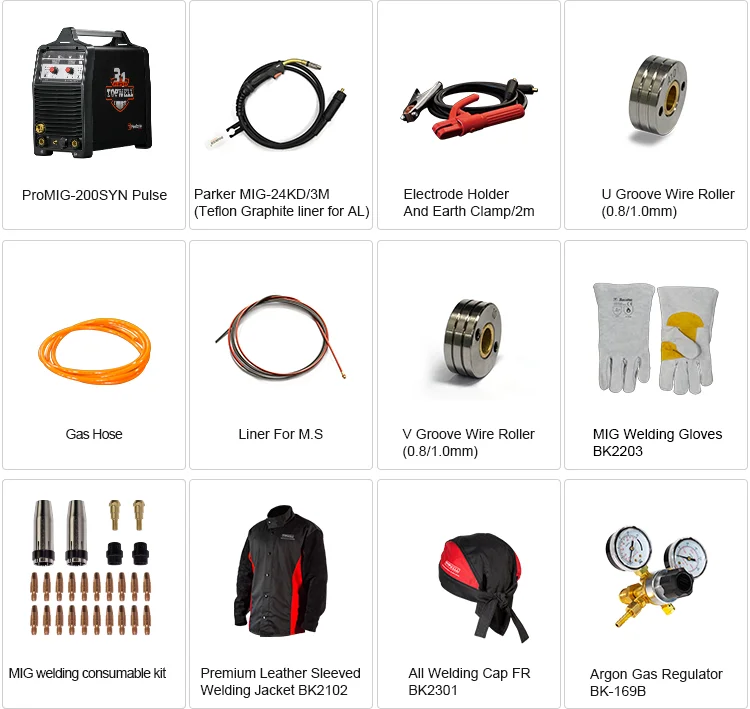

Package details

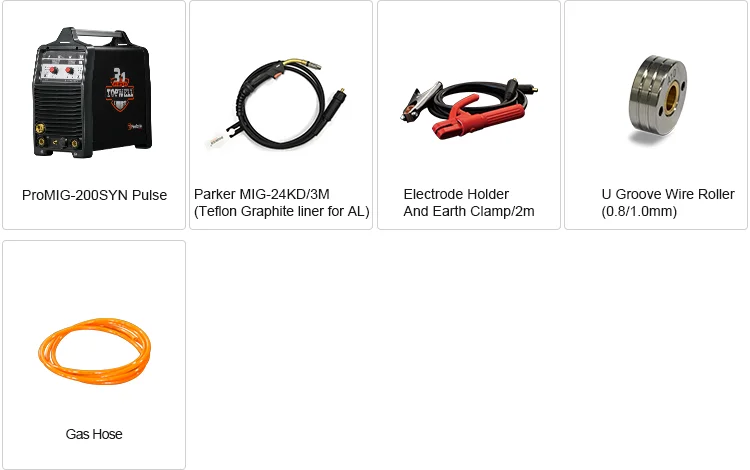

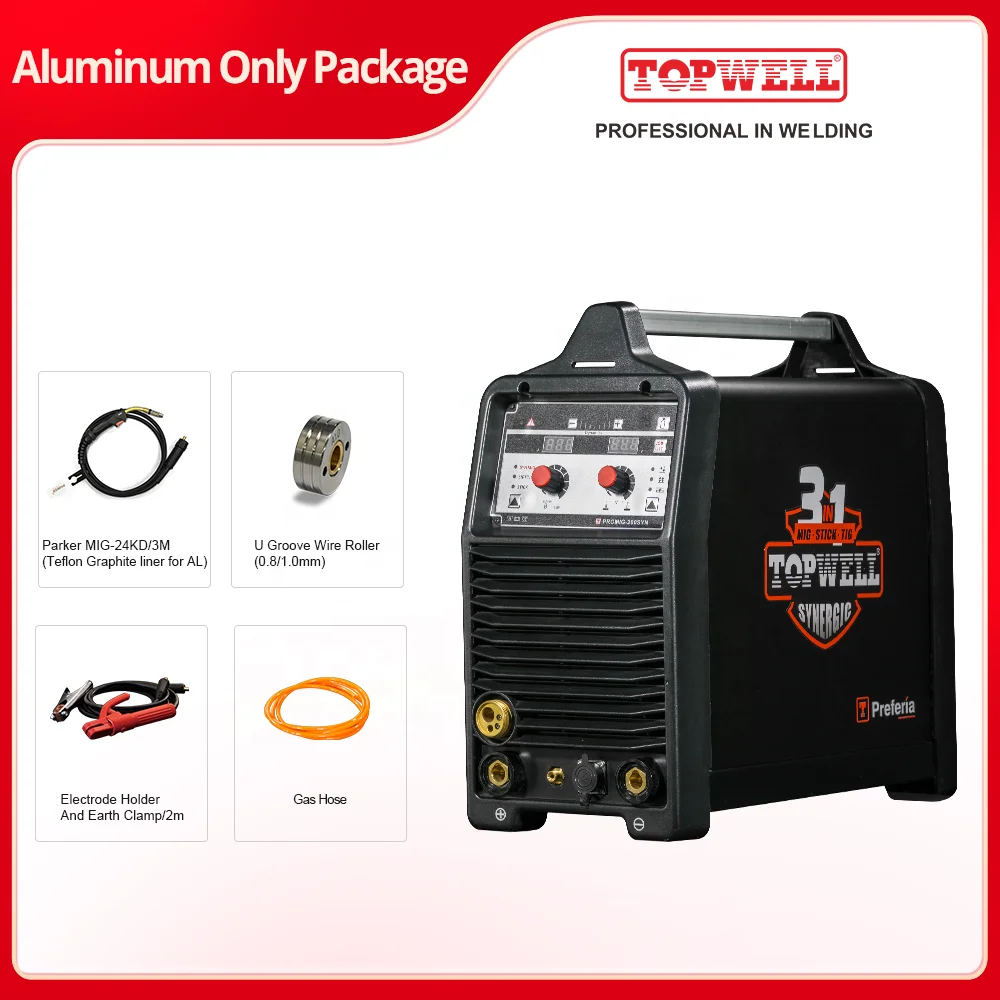

Aluminum Only Package:

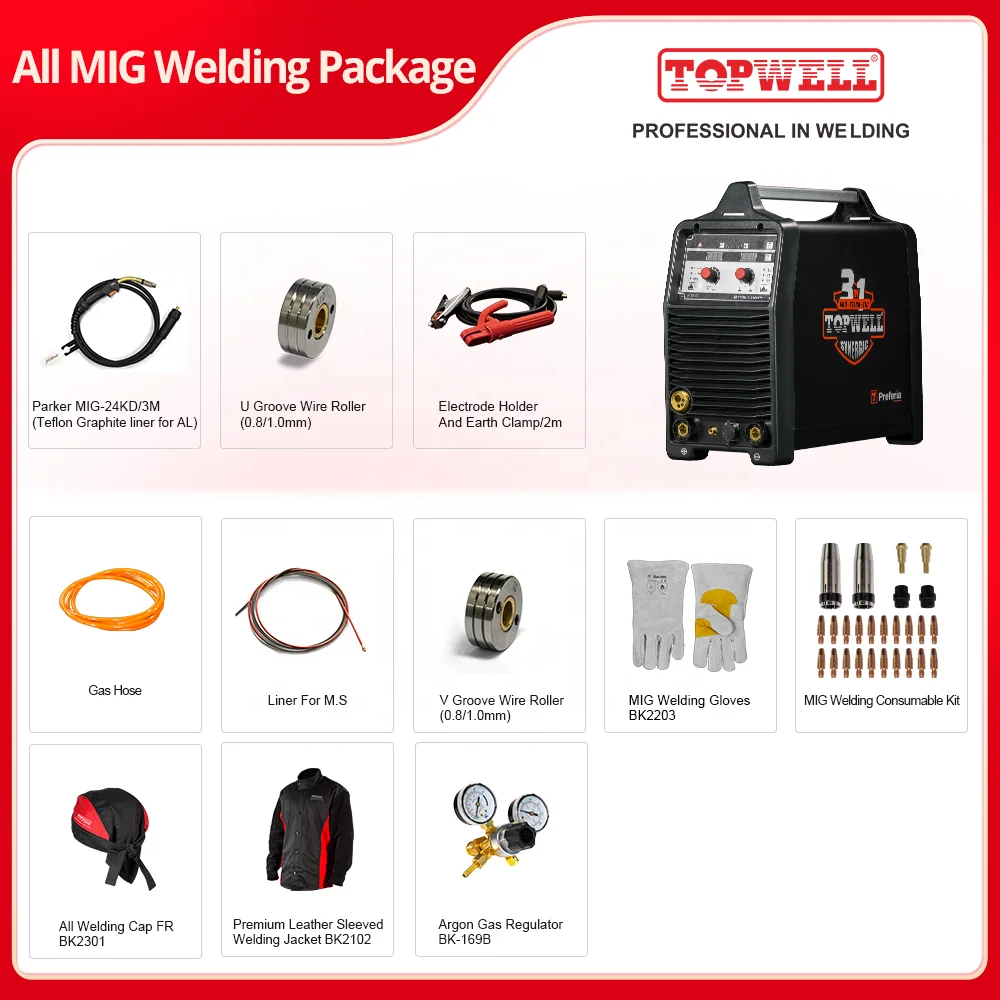

All MIG Welding Package:

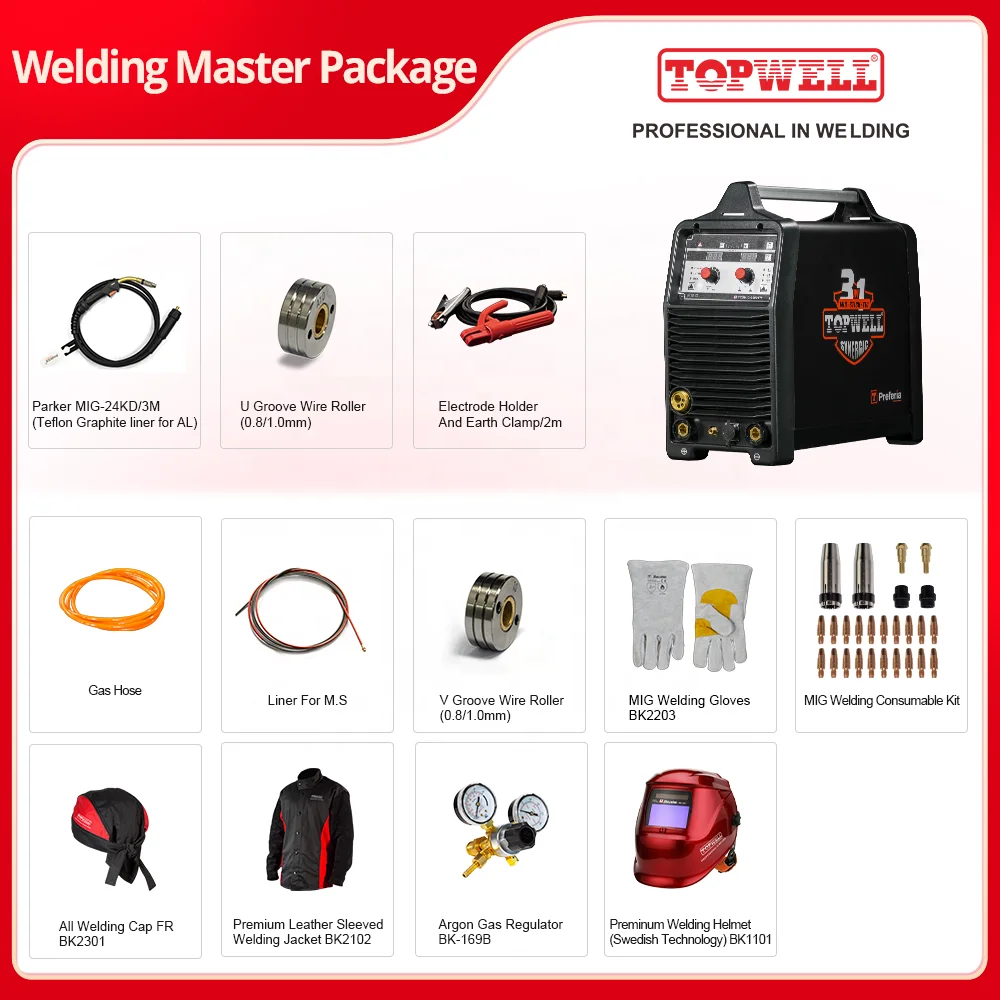

Welding Master Package:
