good quality low cost used gps gnss surveying antena gps rtk Hi target V30 PLUS 222 channel gnss RTK system Multi constellation GNSS engine 1

Share on (62366018623):


Price:$4,000.00 - $4,100.00

Quantity:


Product Overview

Description


low cost used gps gnss surveying antena gps rtk Hi-target V30 PLUS 222 channel gnss RTK system Multi-constellation GNSS engine




Product Description





















low cost used gps gnss surveying antena gps rtk Hi-target V30 PLUS 440 channel gnss RTK system Multi-constellation GNSS engine.png
Smart application


Full-frequency air antenna


Multi-constellation GNSS engine


Data communication


WebUI

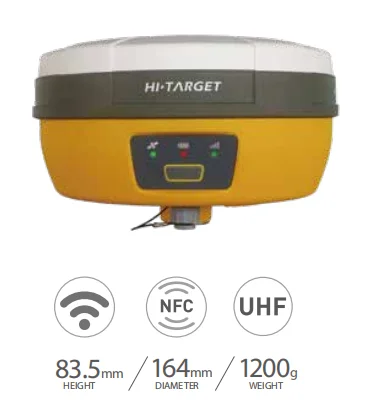

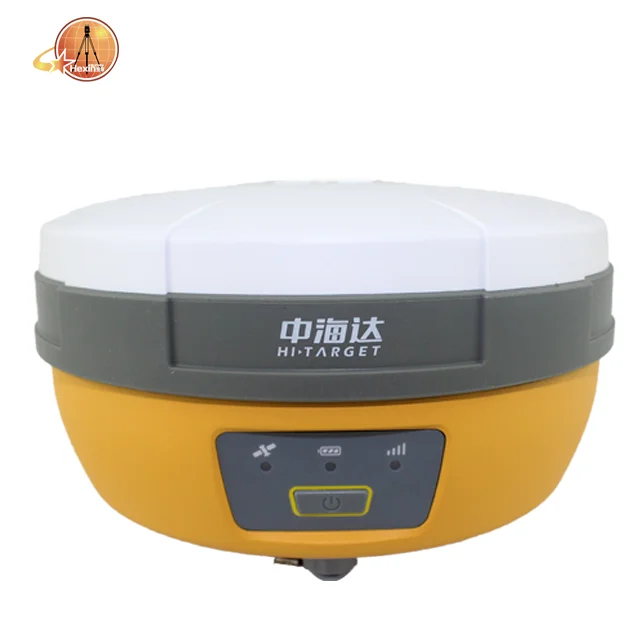

V30 PLUS

GNSS RTK SYSTEM

With its built-in multi-constellation GNSS engine, smaller dimension, and  industrial-grade compact design, V30Plus provides a fexible GNSS work solution. It also integrates with the WebUI, WIFI, Bluetooth and 4G module to make data management and transmission more convenient and faster.  Accompanied by Hi-Target professional feld surveying software and its up-to-10-hours working time, V30Plus meets users’ needs of effcient and convenient surveying experience.

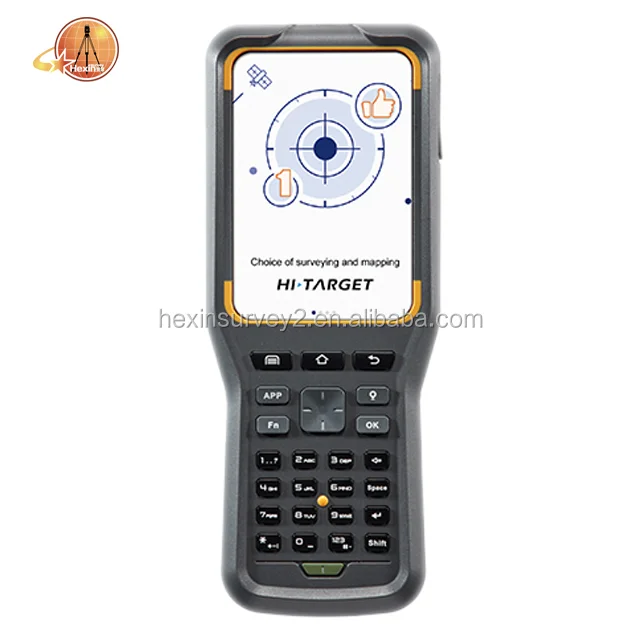

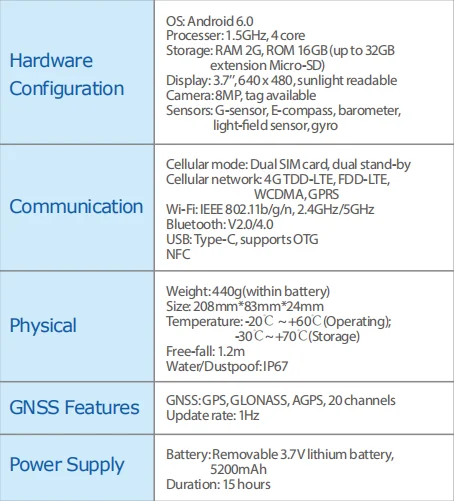

iHand30


Professional Field Controller


The iHand30 is a rugged feld controller that is designed for data collection and GNSS device control. Based on the Android operating system, it is compatible with Hi-Target professional software and third-party Android software. Combining the physical keyboard with a touchscreen, it can boost effcient feldwork and provide reliable solutions for users.

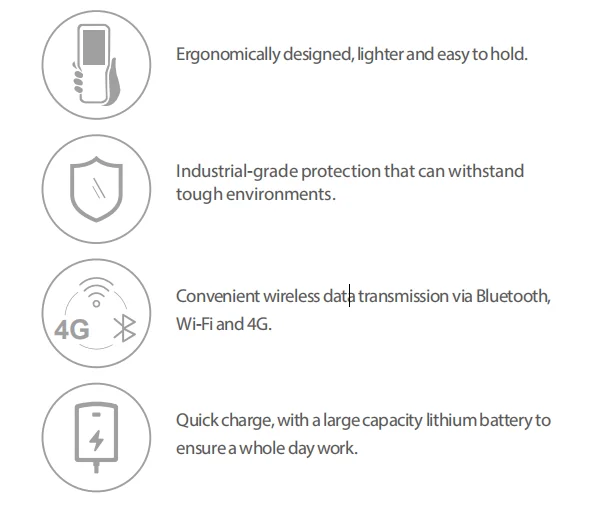

KEY FEATURES






Hi-Survey Road

Survey Data Collection Software

Hi-Survey Road is an Android software that is designed for all types of land survey and road engineering projects in the feld. It is compatible with Hi-Target professional controllers, Android phones, tablets and other third-party Android devices. It is a sleek and easy-to-use software that supports the operating of big data with built-in tools. With customized industrial application solutions, more possibilities are created for users.

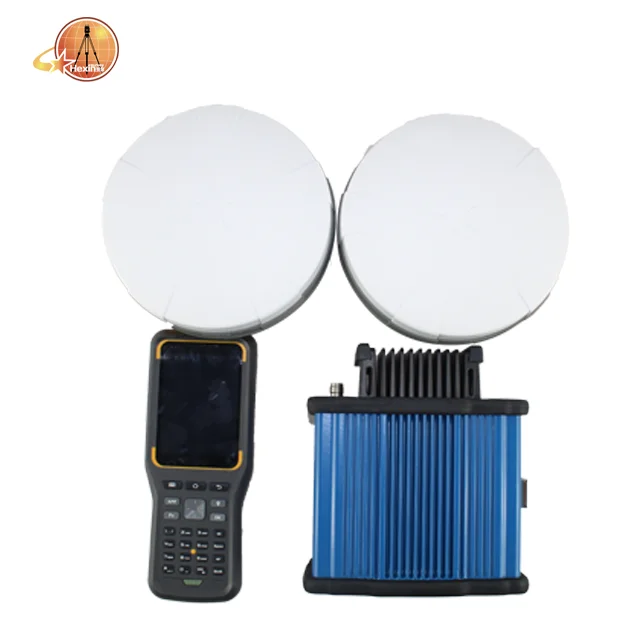

Product Display

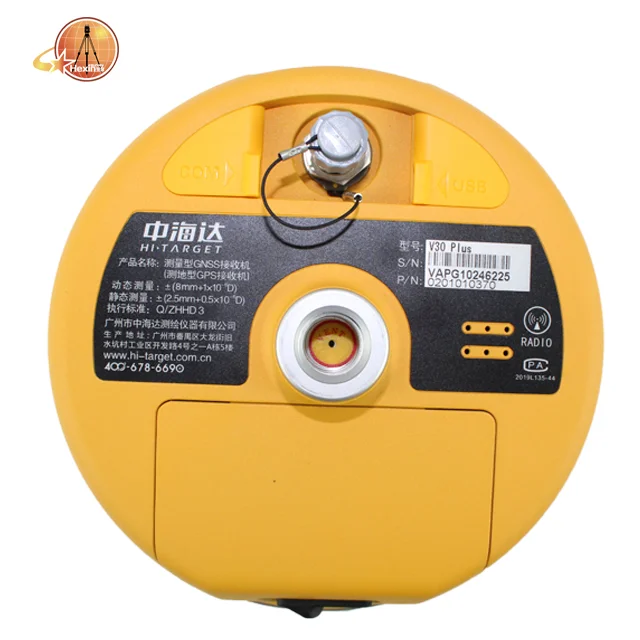

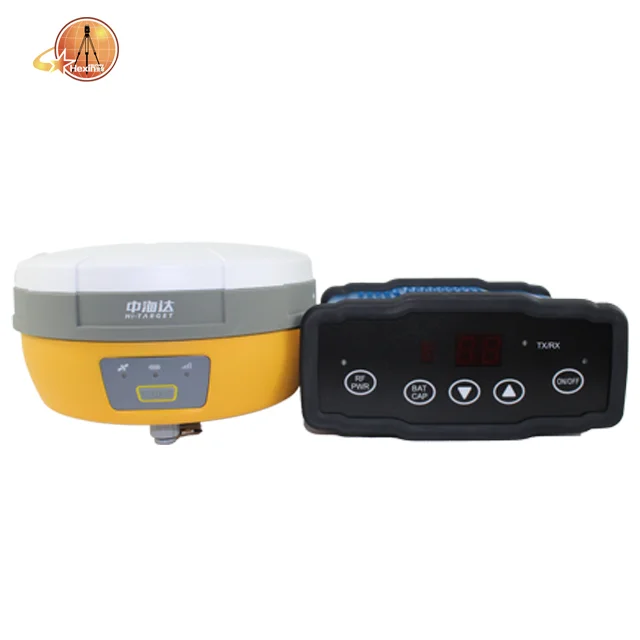

low cost used gps gnss surveying antena gps rtk Hi-target V30 PLUS 440 channel gnss RTK system Multi-constellation GNSS engine.pnglow cost used gps gnss surveying antena gps rtk Hi-target V30 PLUS 440 channel gnss RTK system Multi-constellation GNSS engine.pnglow cost used gps gnss surveying antena gps rtk Hi-target V30 PLUS 440 channel gnss RTK system Multi-constellation GNSS engine.png

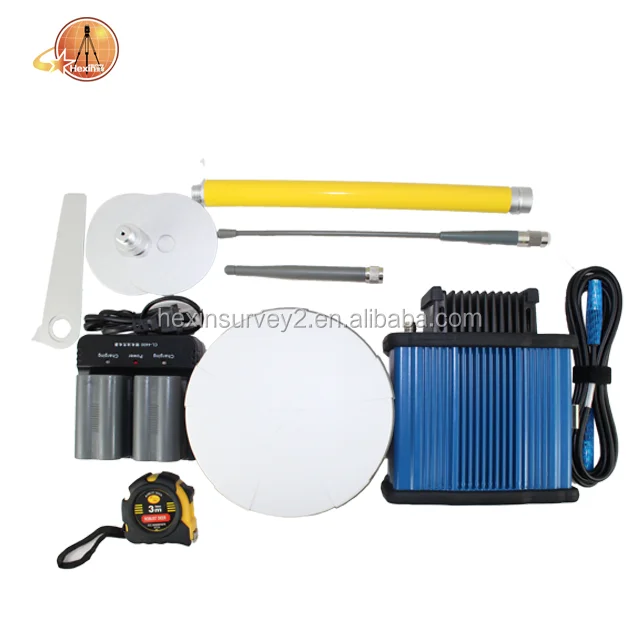

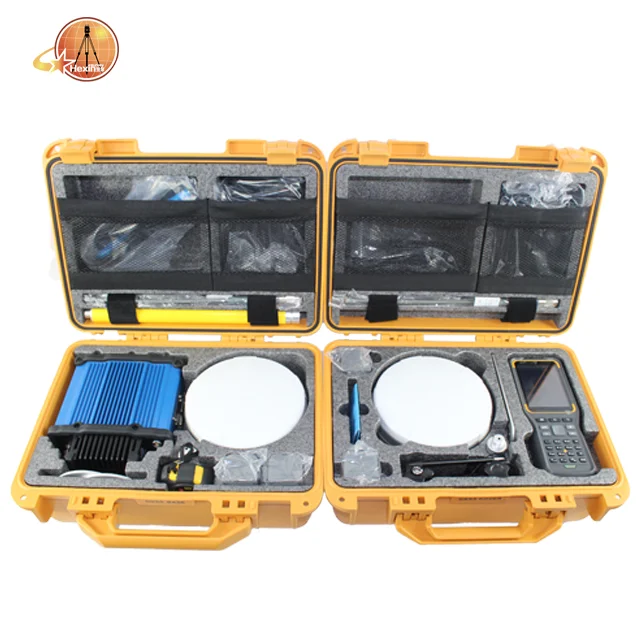

Packaging


1 set packed in 3 cartons:


42*23*37 6.8kg
42*23*37 5.6kg
10*17*145 5kg





Production Details


PERFORMANCE SPECIFICATIONS





























modelV30 PLUS
GnssChannel440

Satellite Tracked

GPS
L1, L2C/L2P, L5

GLONASS
L1C/L1P, L2C/L2P

GELILEO
Reserved

BEIDOU

Bl, B2, B3



SBAS :


Reserved




































































































































POSITIONING PERFORMANCE


Static Accuracy





Horizon:



±(2.5+0.5×10-6D)mm


Vertical:



±(5+0.5×10-6D)mm


RTK Accuracy



Horizon:



±(8+1×10-6D)mm


Vertical:



±(15+1×10-6D)mm


Network RTK

Horizon:±(8+1×10-6D)mm
Vertical:±(15+1×10-6D)mm
Initialization time
Typically 2-10s

Initialization reliability
Typically > 99.9%


Internal Battery


Battery


5000mAh lithium-ion rechargeable and removable battery


Working time


RTK Rover (UHF/Cellular) for 10 hours


Communication


Frequency


403-473MHz


Transmitting power

1W/2W/4W adjustable Supports multiple protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III,TRANSEOT, SATEL-3AS, etc.

Working Range

3-5km typical, 5-8km optima

Bluetooth

4.0/2.1+EDR, 2.4GHz
4G
cellular mobile network (TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM)  Wi-Fi frequency 2.4GHz, supports 802.11b/g/n protocol


Physical


Dimensions


164mm×83.5mm


Weight


≤1.4kg (includes battery)



Interface




I/O Interface


1 × Mini USB port

1 × TNC antenna connector

1 × DC power input (5-pin)

1 × SIM card slo


Control Panel
Physical button1


LED lamp


Satellite, Signal, Power

Environment


Work Temperature


-45℃~+75℃


Storage Temperature


-55℃~+85℃


Dustproof&Waterproof


IP67 (Customizable IP68)


Humidity


100% non-condense





Company Information







With 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.
The marketing model advocated by us is not a simple sense of "selling products", instead, presales service, services during operation and aftersales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!QQ20191011144221









FAQ




1. So for technical support where can I ask?


A: Please just send your questions to me and I will forward your requirement to the right person since all our technicians or factory engineers are speak Chinese only.





2. We want to import it, but we have not any import/export license, so, please let us know how it will be materialized, so that we can get that instrument without any problem.


A: As we will ship the product through express company like DHL/TNT, you don’t necessarily have any import/export license. The carrier/express will deliver the product to your office or your place and they will finish the custom clearance on behalf of you however you will have to provide supporting information or document, usually the PI, when necessary. You will also pay the fee or tax to the carrier. There are 2 typical fee may occur. One is custom duty upon your cargo value and category. The other is VAT/GST which is Value Added Tax upon on the cargo value and your local VAT rate.
