JIHPUMP Economical Coffee machine Beverage Syrup Filling liquid dosing pump Peristaltic Pump 12V 24V cheap pumps prices
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (62366052275):
Product Overview
Description
Hot Sale Products
Why Choose Us
1.China leading manufacturer of peristaltic pumps.
2.Focus on peristaltic pump solutions.
3.Peristaltic pump expert, 16+ years experience.
4.More than 10,000 cooperative customers.
We meet all your peristaltic pump needs. Please contact us now : for product information, parameters, prices and application advice.
Lilian He(Europe , North and South America) : | April Huang(Asia and Africa) : |
WhatsApp:+8618983834629 | WhatsApp:+8615703016080 |
Skype：+8618983834629 | Skype：jihpump |
Email：alan@jihpump.com | Email：april@jihpump.com |
Product Discription

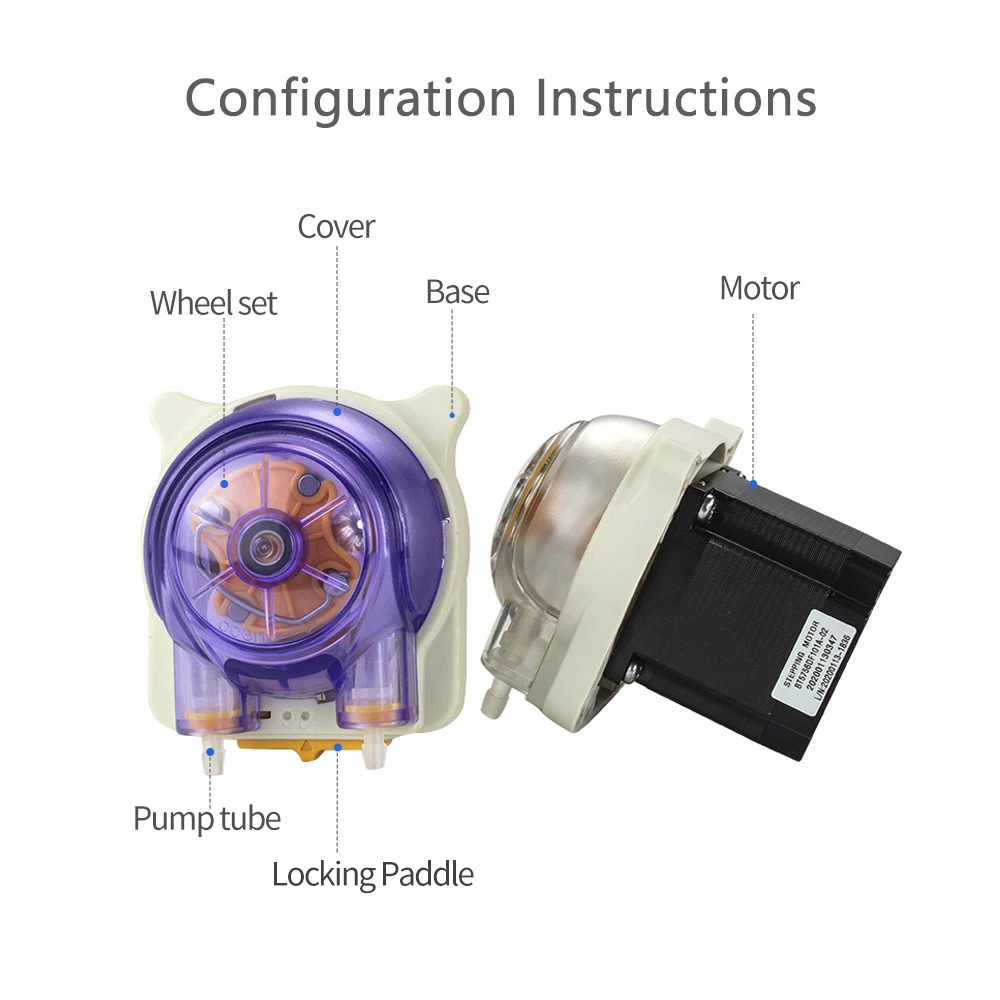

1.Pump cover: A variety of color pump covers to meet different color matching, easy to visualize anagement. 2.Wheel set: 2 rollers more traffic 4 rollers pulse lower. 3.Pump tube: Three diameter hoses are available. 4.Base: Imported materials, high performance, high reliability. 5.Locking Paddle: Anti-reverse locking mechanism Ensure long-term stable operation. 6.Installation plate: Imported materials, high performance, high reliability. 7.Motor: DC geared motor/Stepper motor/AC synchronous motor. The MN4 peristaltic pumps other main features: High precision high performance, Tool-free tube replacement, 2 & 4 rollers optional, 4 types of motors are available. | ||||||||
Product Name | MN4 Mini peristaltic pump | ||||

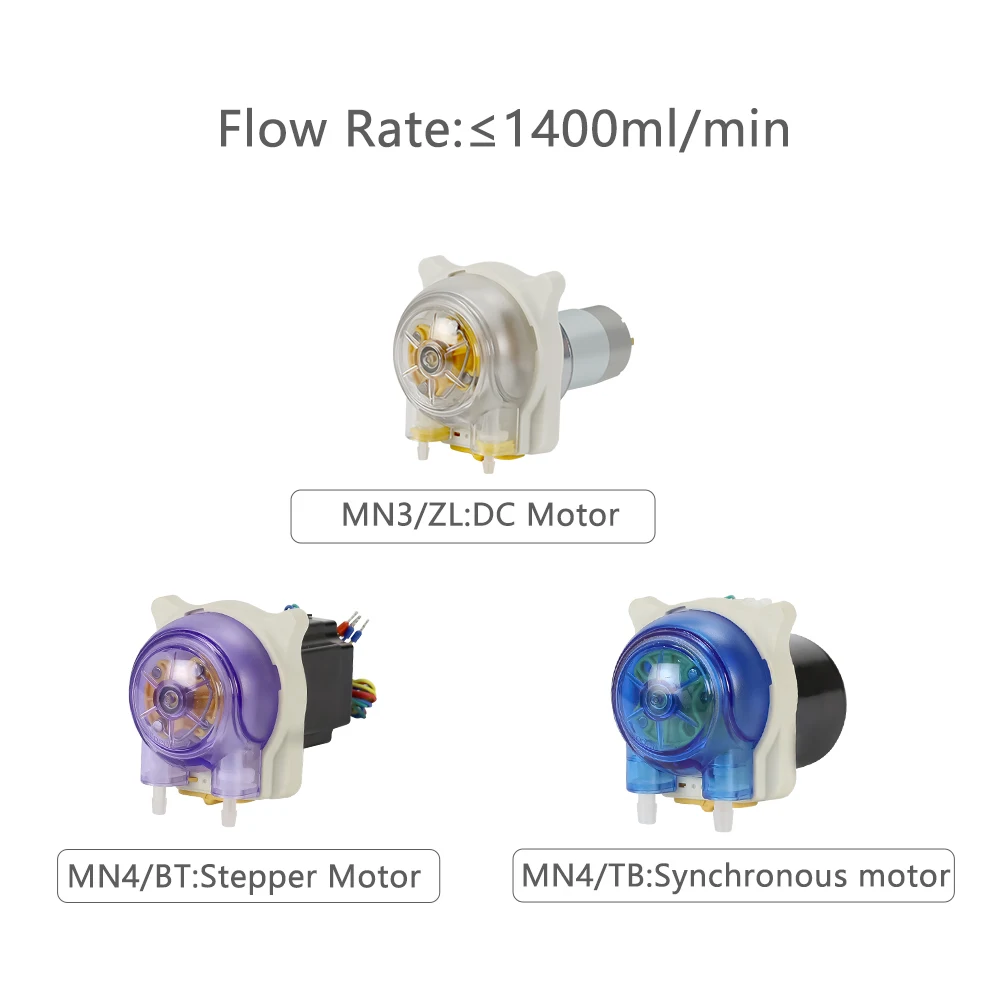

Product Model | MN4/ZL | MN4/BT | MN4/TB | ||
Motor Type | DC geared motor | Stepper motor | AC synchronous motor | ||
Voltage and Current | DC 12V,4A/24V，2A | DC 24V，4A | AC 220V,50Hz | ||
Power | ≤24W | ≤48W | ≤25W | ||
Motor Life | 600~1500 hours | 5000~20000 hours | 7000~10000 hours | ||
Weight | 577g | 886g | 695g | ||
Work Environment | Temperature: 0~60℃ Humidity:＜85%RH | ||||
Outlet Pressure | ≤0.17MPa | ||||
Noise | ≤67dB | ≤55dB | ≤60dB | ||
Main Material | Pump cover: Polycarbonate, Wheel set: Polyacetal, Base: Polyamide | ||||

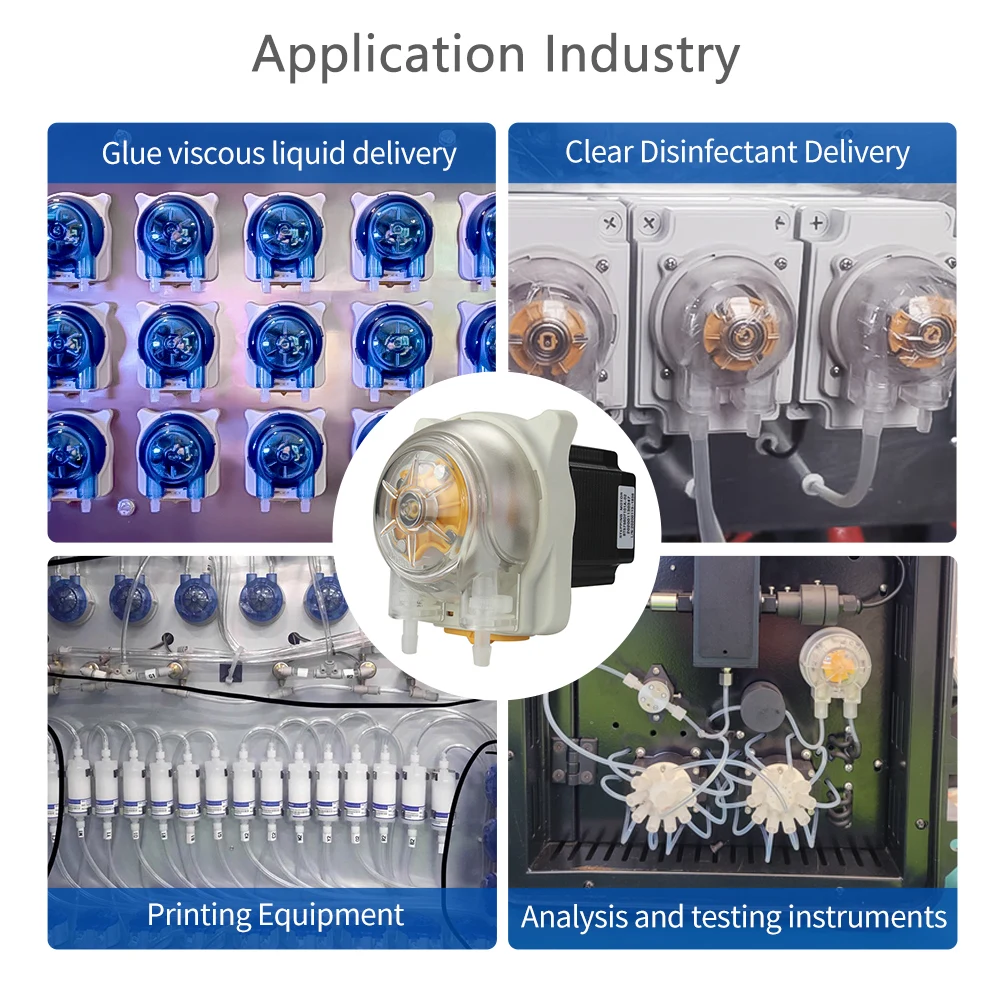

Common Applications: Printing machine, disinfection machine, printing machine, water quality sampling, medical instruments, stir-fry machine, coffee machine, beverage machine, milk tea machine, ice cream machine, hemoglobin analyzer, stool urine analyzer, COD, flue gas analyzer, hypochlorous acid generator, dairy cleaning machine, coin-operated washing machine, dishwasher, bottle washing machine, etc.
Applications Industry: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.

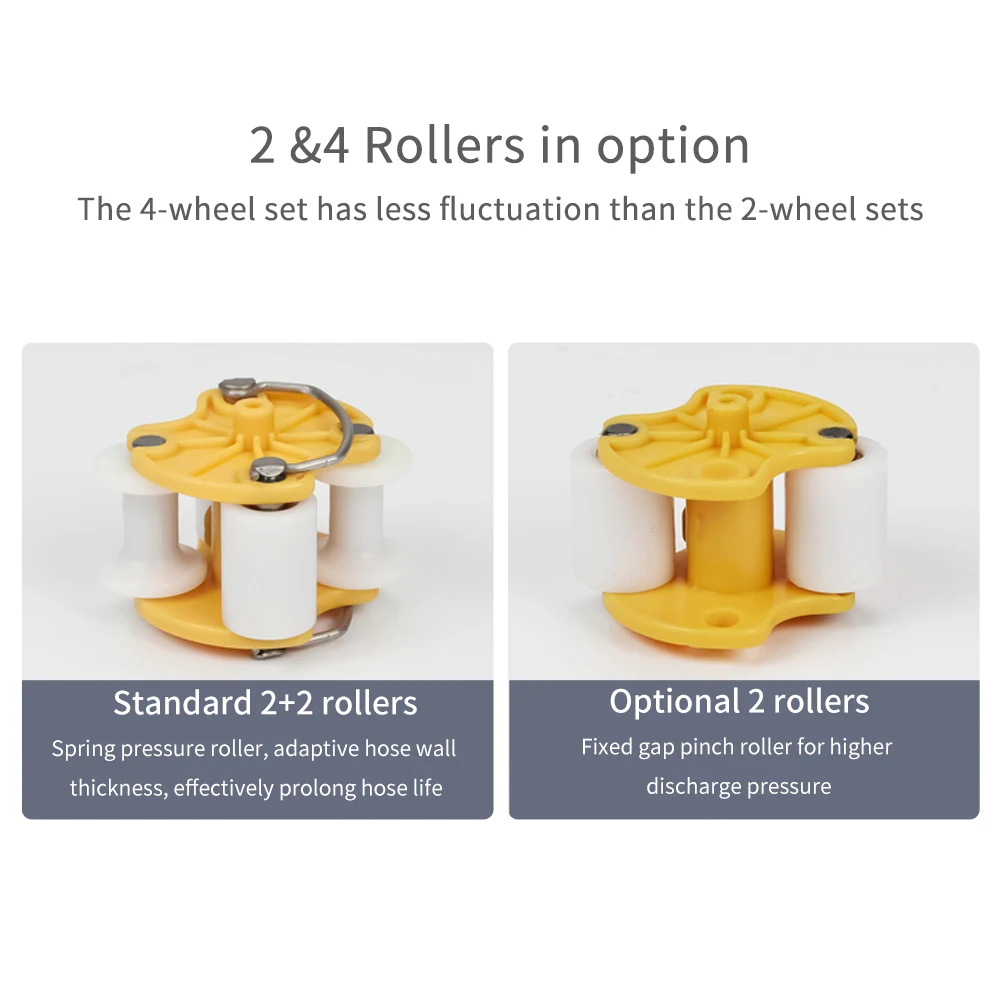

Number of rollers:
Standard 2+2 rollers: Spring pressure roller, adaptive hose wall thickness, effectively prolong hose life.
Optional 2 rollers: Fixed gap pinch roller for higher discharge pressure.

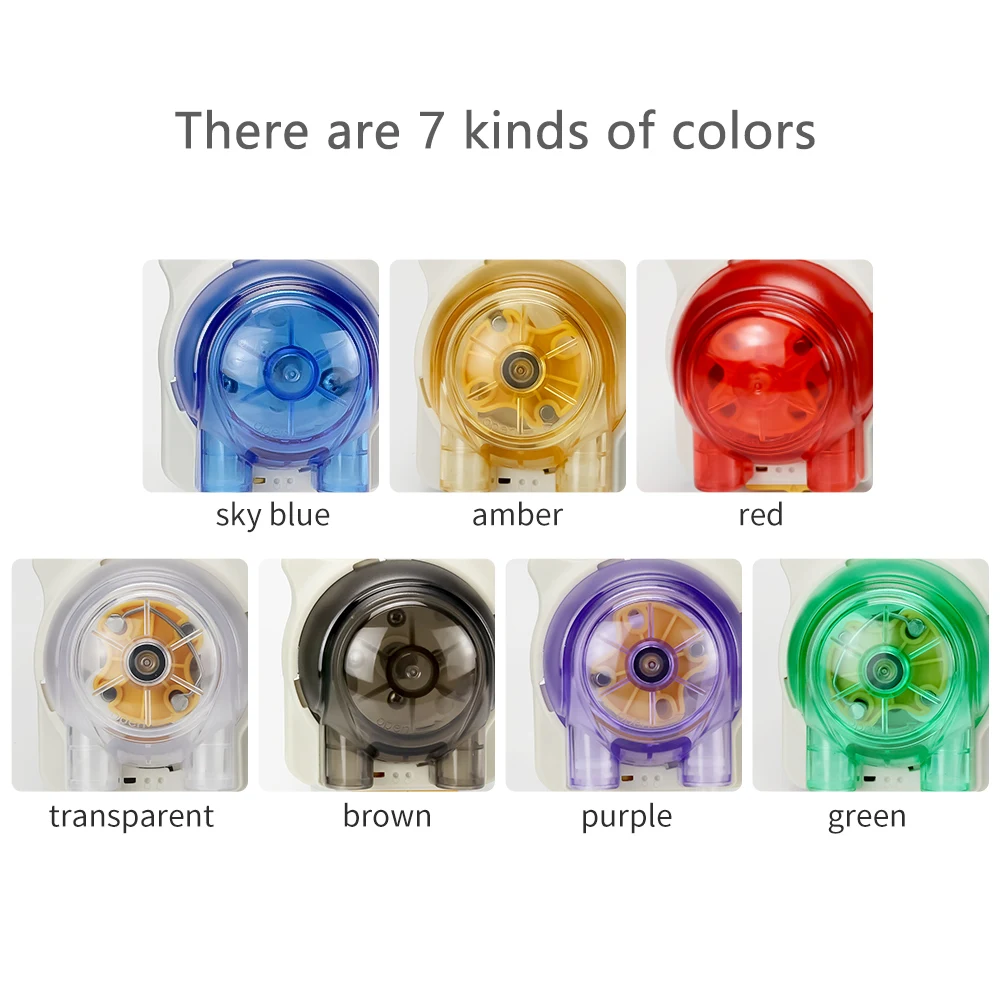

Various pump cover:
Seven colors optional : sky blue, amber, red, transparent, brown, purple, green. Meet different color matching, easy to visualize management.
Motor type:
DC geared motor its accuracy requirements are not high, and the operation is performed in a short time interval, otherwise the temperature will burn out the motor, and the price is cheap. It can be equipped with a JIHPUMP DC speed control board to fine-tune the speed.
Stepper motor Accurate flow, long working life, suitable for long-term operation, you can choose any speed control board of JIHPUMP, the price is higher.
The synchronous motor runs at a constant speed, suitable for intermittent low-speed operation, no need to drive, and it can run with electricity and the price is cheap.
Joint Name | Inner tube size | Connect Size | Connection Description |
Direct joint | internal diameter: 3.2mm/4.8mm/6.4mm | internal diameter: 3.2mm/4.8mm/6.4mm | Connect the hose |
Extended direct joint | internal diameter: 3.2mm | internal diameter: 3.2mm | |
Adjustable joint | internal diameter: 3.2mm | Internal diameter 4.8 to 6.4mm | |
Thread joint | internal diameter: 3.2mm | internal diameter: 4mm wall thickness: 1mm | Connect the hose or hard tube |
Reducer hard tube joint | internal diameter: 4.8mm | internal diameter: 4mmwall thickness: 1mm | |
Hard tube joint | internal diameter: 3.2mm | Outer diameter：3.2mm | Hard tube |
tube clamp | internal diameter:3.2mm/4.8mm/6.4mm | internal diameter:3.2mm/4.8mm/6.4mm | Hose outlet |
Installation mode:
The base comes withmounting holes, Optional mounting plate.
We are the largest OEM peristaltic pump manufacturer in China and can meet all your peristaltic pump needs. Please contact us now : for product information, parameters, prices and application advice.
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile
Chongqing Jieheng Peristaltic Pump Co., Ltd. is a leading peristaltic pump manufacturer in China and an expert in peristaltic pump fluid technology solutions. Specializing in the R&D, manufacturing and sales of peristaltic pumps, focusing on providing peristaltic pump solutions for OEM customers, with more than 16 years of application experience, more than 1 million pumps have been sold, jihpump has 60+ rich and mature product series, which can meet the needs of various Various industry application needs, and can provide customized development services, we are always ready to find a suitable solution for your needs, please contact us, thank you!
Packaging&Shipping
JIHPUMP Standard export packing for peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
FAQ
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the peristaltic pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V peristaltic pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the peristaltic pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
