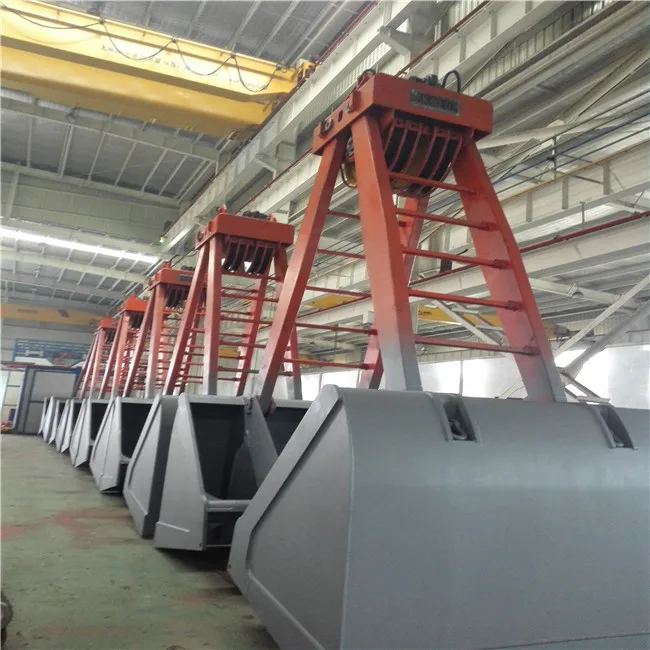

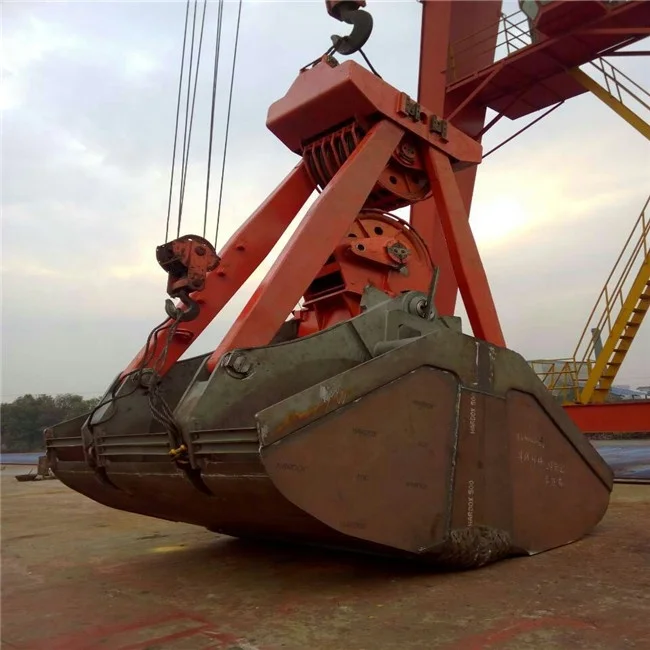

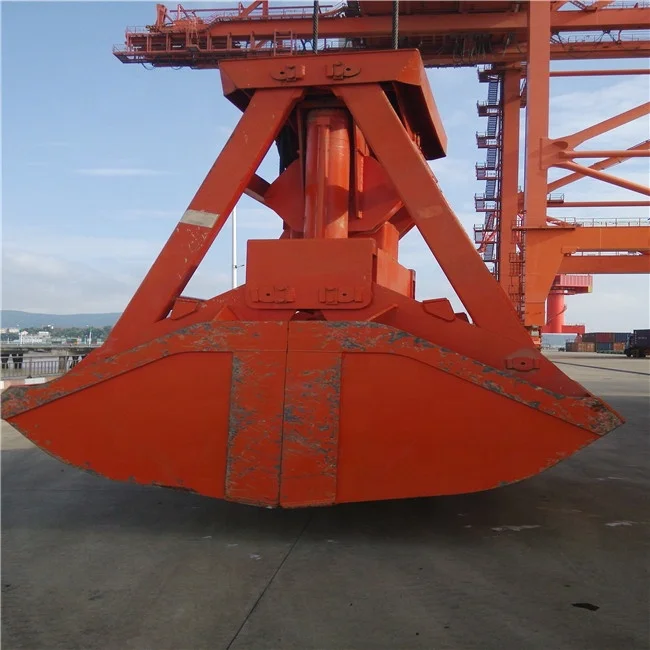

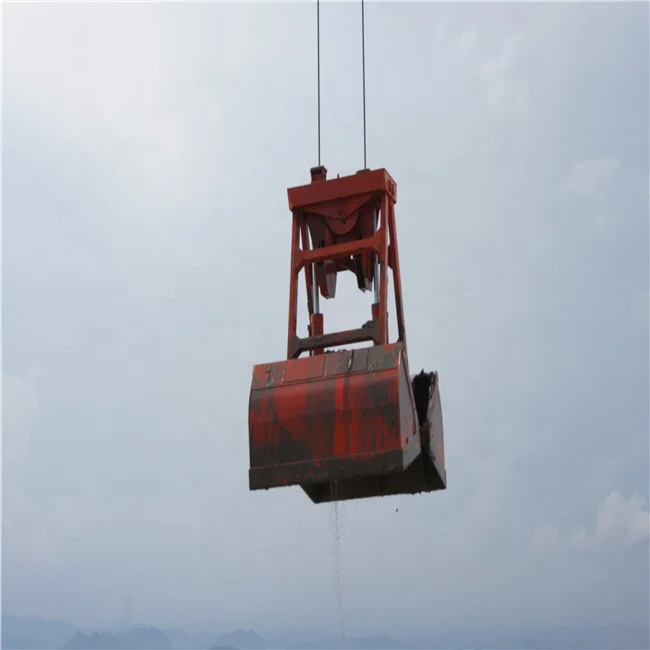

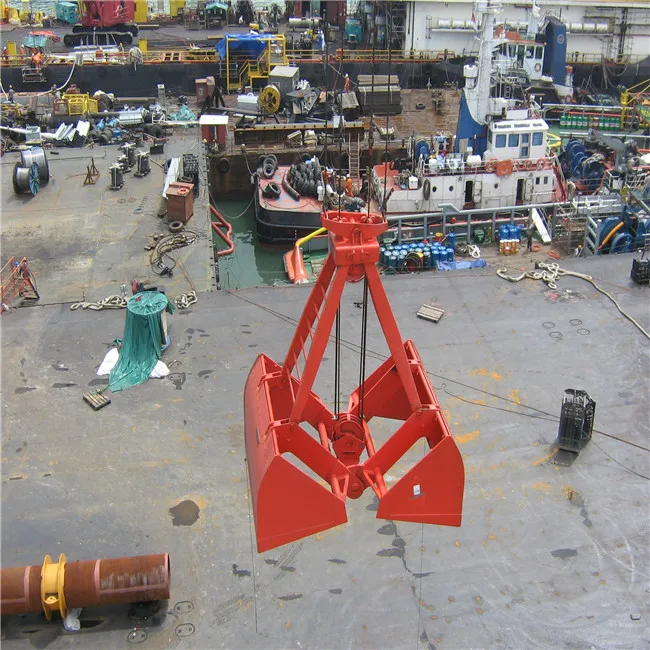

FSG Port and Jetty Loading 4 Ropes Dual Shell Grab
Handling bulk material with density up to 1.0t/m³
| Crane lifting capacity | T | 25 | 32 | 40 | 50 |
| Density | t/m3 | 1.0 | |||
| Grab Volume (40°dome) | m³ | 16.5 | 19.8 | 25.0 | 32.0 |
| Dead weight -3 fold | t | 8.5 | 12.2 | 15.0 | 18.0 |

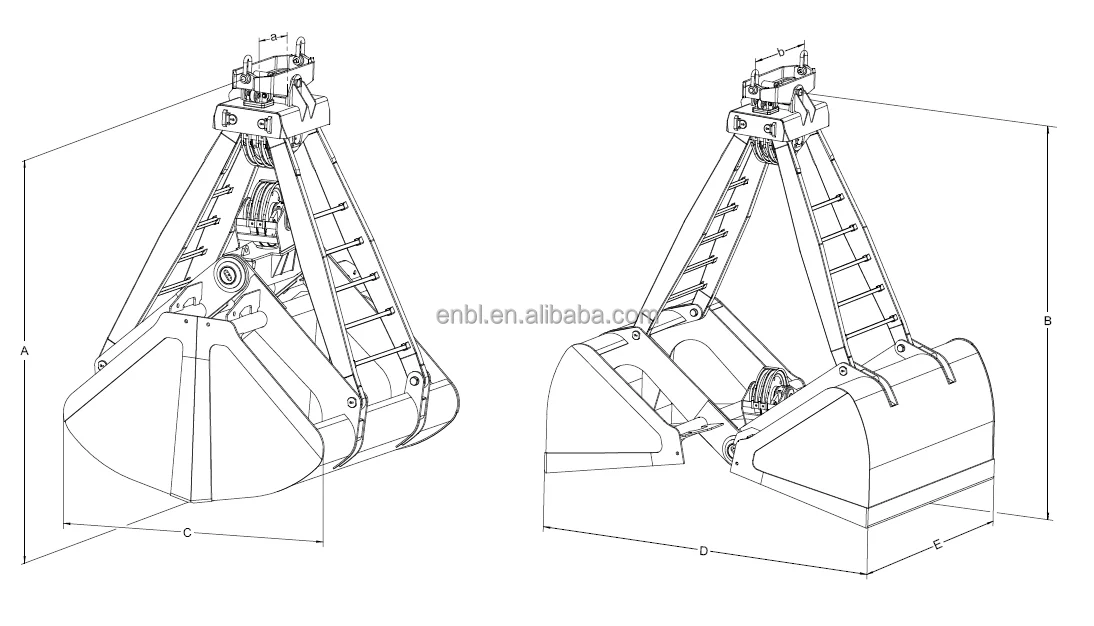

| Dimensions | A(mm) | 4820 | 5110 | 5620 | 5920 |
| B(mm) | 5450 | 5770 | 6380 | 6650 | |
| C(mm) | 3590 | 3870 | 4180 | 4450 | |
| D(mm) | 5140 | 5150 | 5690 | 6230 | |
| E(mm) | 3400 | 3500 | 3900 | 4200 | |
| a(mm) | 670 | 755 | 850 | 950 | |
| b(mm) | 1300 | 1400 | 1400 | 1550 | |
| Closing rope stroke 3-fold | mm | 8130 | 8240 | 9180 | 9720 |
| Standard diameter of closing ropes | mm | 32 | 36 | 40 | 42 |
| Closing rope-total length to operate 3-fold | mm | 15000 | 15700 | 17200 | 18700 |
| Dianmeter of closing rope sheaves | mm | 630 | 710 | 800 | 900 |
Company Information
All grab that we provide, we promise:
| Technic support | 1, customized design team communicate with customer |
| 2, customer's special need will take into account during design and produce | |
| 3, communicate well and find the best suitable solution | |
| Quality control (3tests before delivery) | 1,Test the parts of the test-bed to test the reliability of components before installation |
| 2, hour no-load test of the grab, check the pressure and temperature holding performance of the hydraulic system and various performance data of the grab | |
| 3,The grab shall be tested continuously for 8 hours with load to detect the temperature control of the grab and the stability under continuous load (three consecutive days if necessary) |
